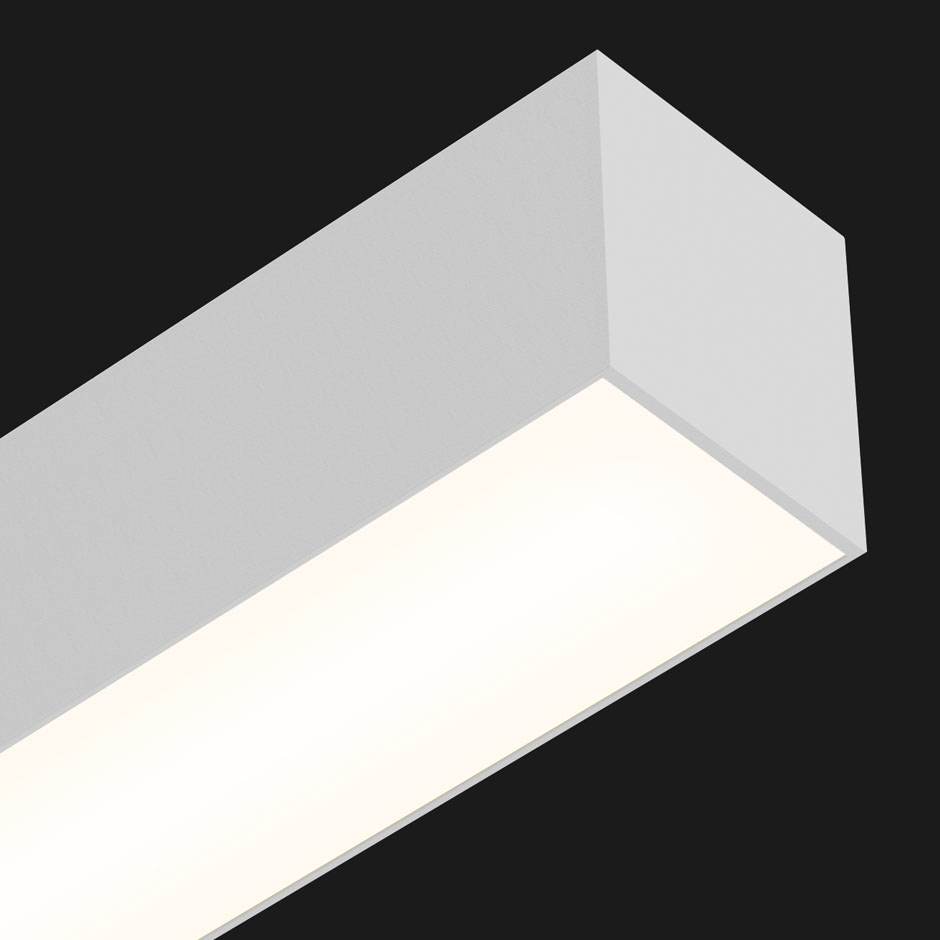

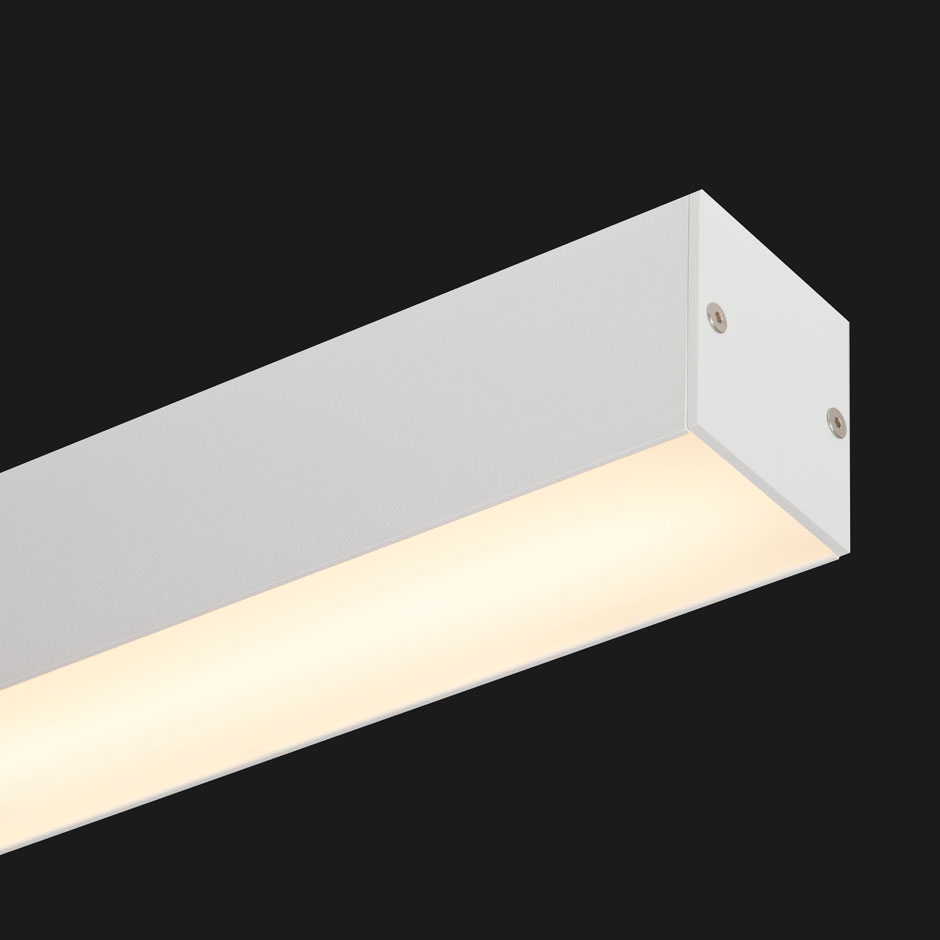

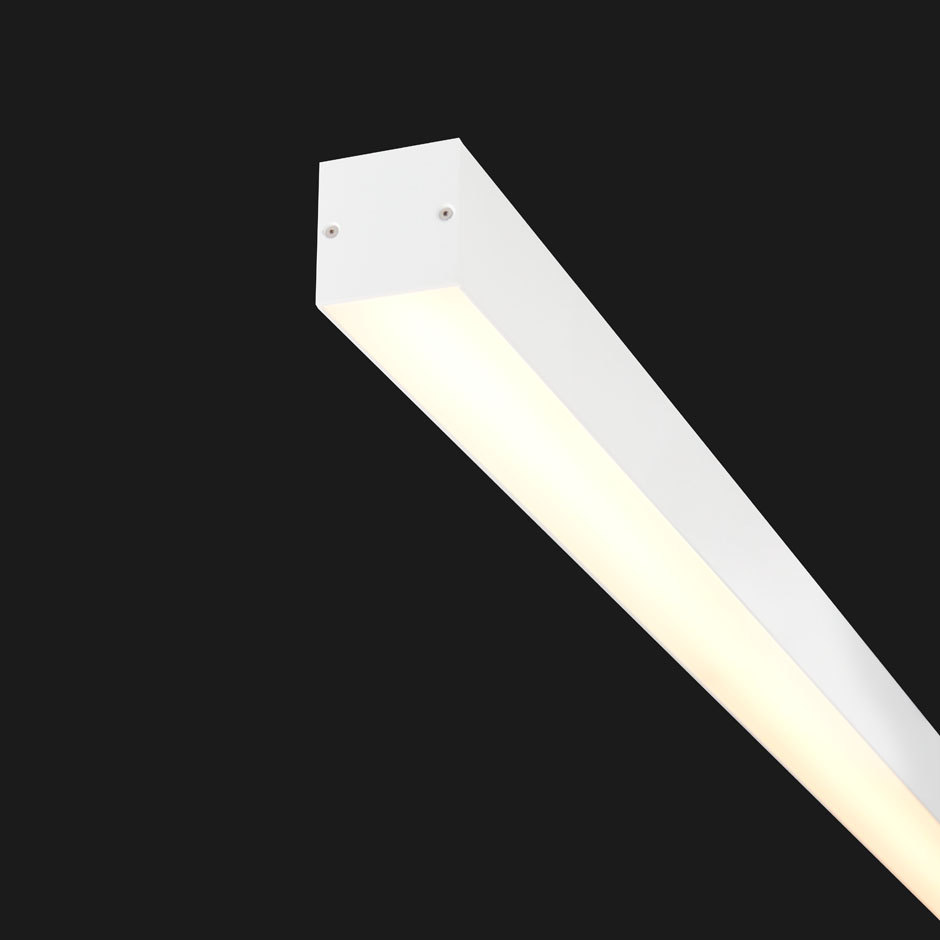

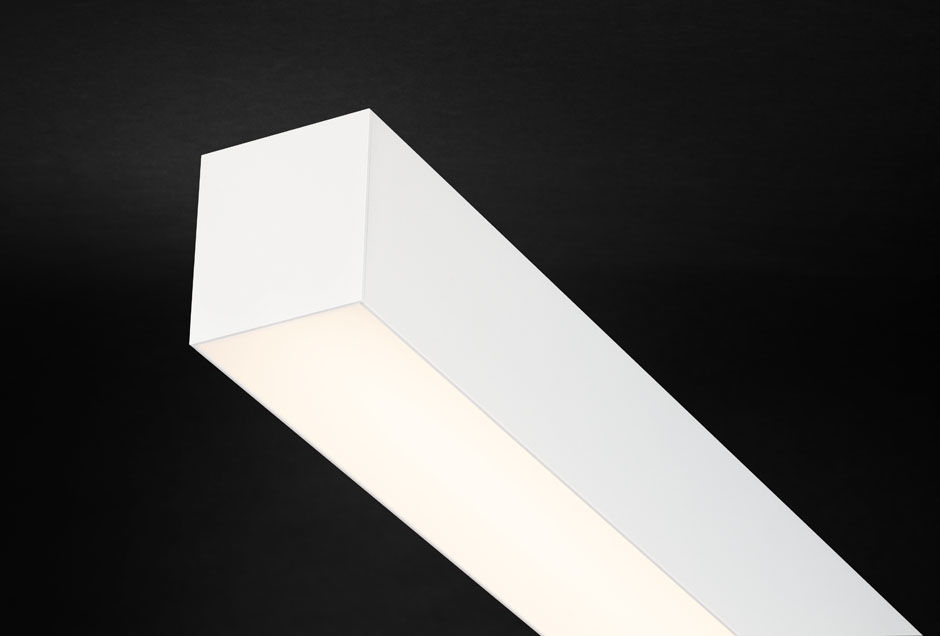

LEDliner65 Ceiling Mounted Down Opal

Available Colours

color Black Black
color Grey Grey
color Anthracite Anthracite
color White White
color Brown Brown
color Gold Gold
color Copper Copper
color Corten Corten
color Champagne Champagne
color Bronze Bronze

Our products can be finished in a RAL colour of your choice on request.

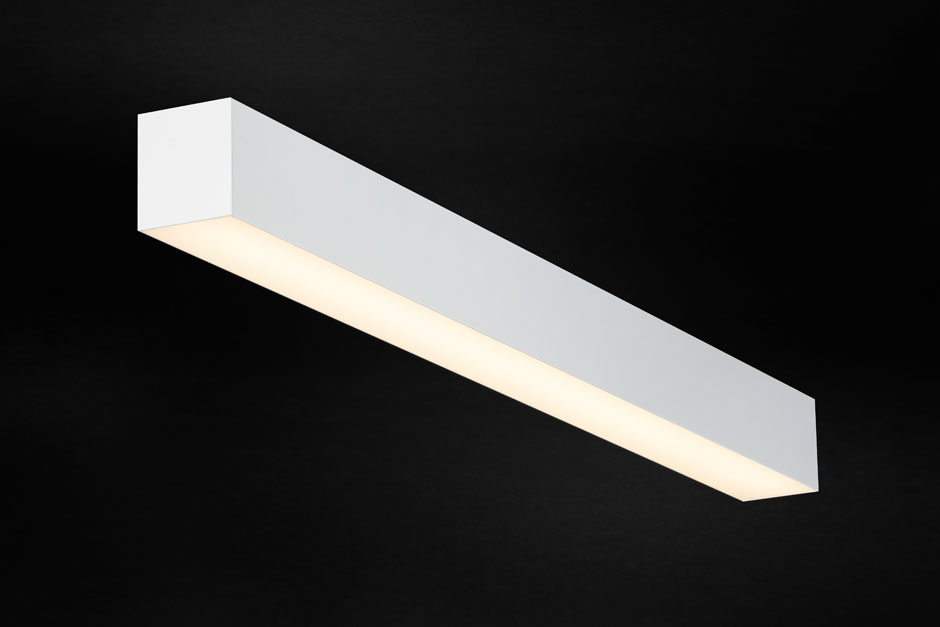

LEDliner65 Ceiling Mounted Down Opal

General Specifications

Luminaire Body

Positioning: Ceiling mounted
Light direction: Down
Material: Recycled aluminium
El. Class: I (Protective earth required)
IP: IP20
Height (device): 72mm
Width (device): 65mm
Weight: Approx. 2.07kg/m
Standard lengths: from 604mm to 6774mm

Customisation

Length: Possible
Angles: Possible
Colour: Possible to choose your own colour

Lightsource

CCT: 2700K, 3000K, 4000K
CRI: 90 (80 on request)
SDCM: 3
Optics: Opal
Photobiological Class: Low risk
LED Power: 14.6W/m
System Power: 20.7 - 23.9W/m

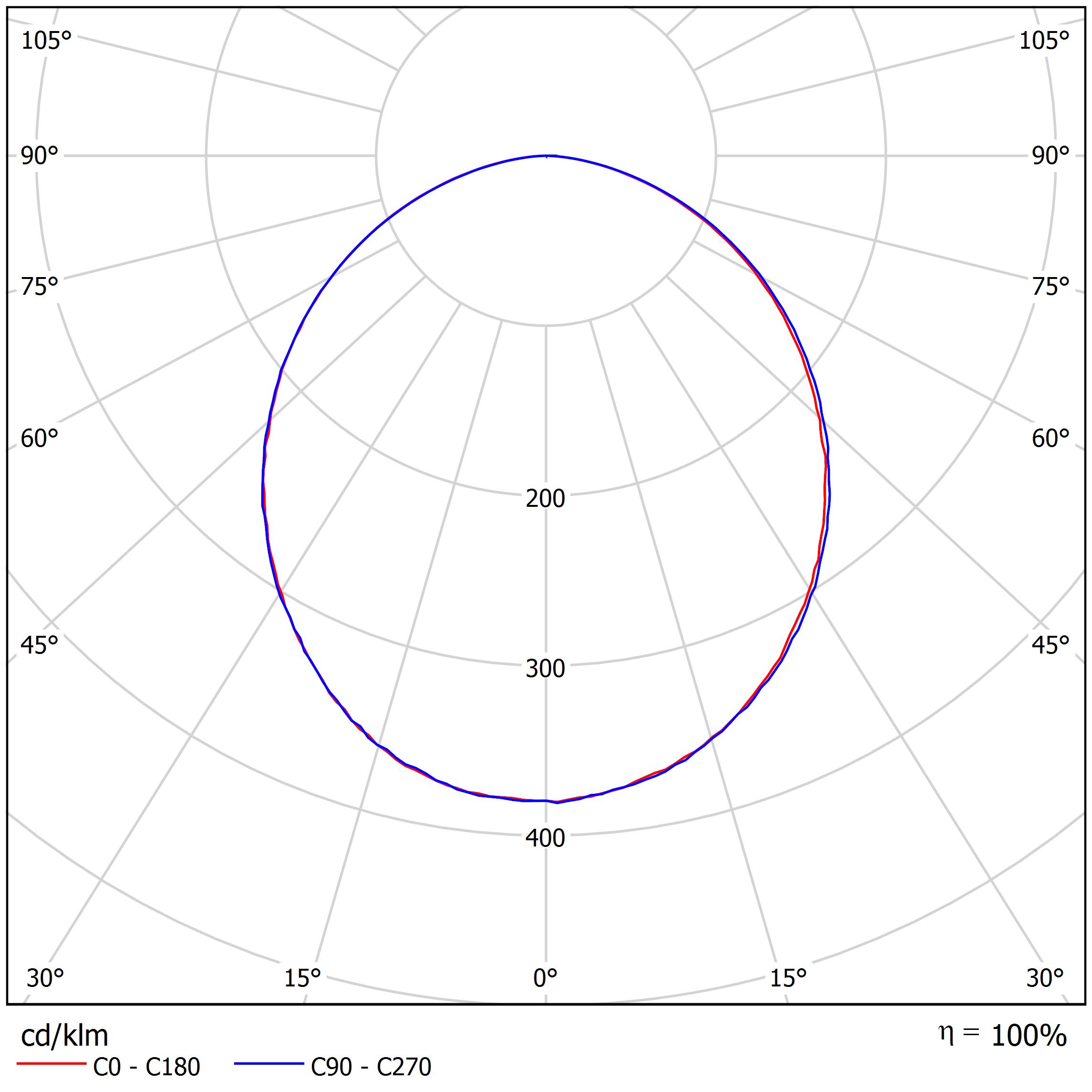

Flux code: 49 80 96 100 100
Lumen per meter: 3698lm/m
Light indications are based on measurements carried out by an independent laboratory on white luminaires. Luminaires in other colours can have different light outputs than the values indicated on this website.

Power source

Dimming: 1-10V Dim, Dali Dim, Non Dim, Push/Touch Dim
Driver location: Integrated

Included

Driver
End Caps
LED Modules
Opal / Prismatic cover Down
Profile

Mounting

Mounting type: Ceiling mounted
Fixing: Fixing with screws by technician (screws not incl. – correct choice in function of type of ceiling by technician)
Power: Direct connection in profile by technician

Available Colors

color Black Black
color Grey Grey
color Anthracite Anthracite
color White White
color Brown Brown
color Gold Gold
color Copper Copper
color Corten Corten
color Champagne Champagne
color Bronze Bronze

Our products can be finished in a RAL colour of your choice on request.

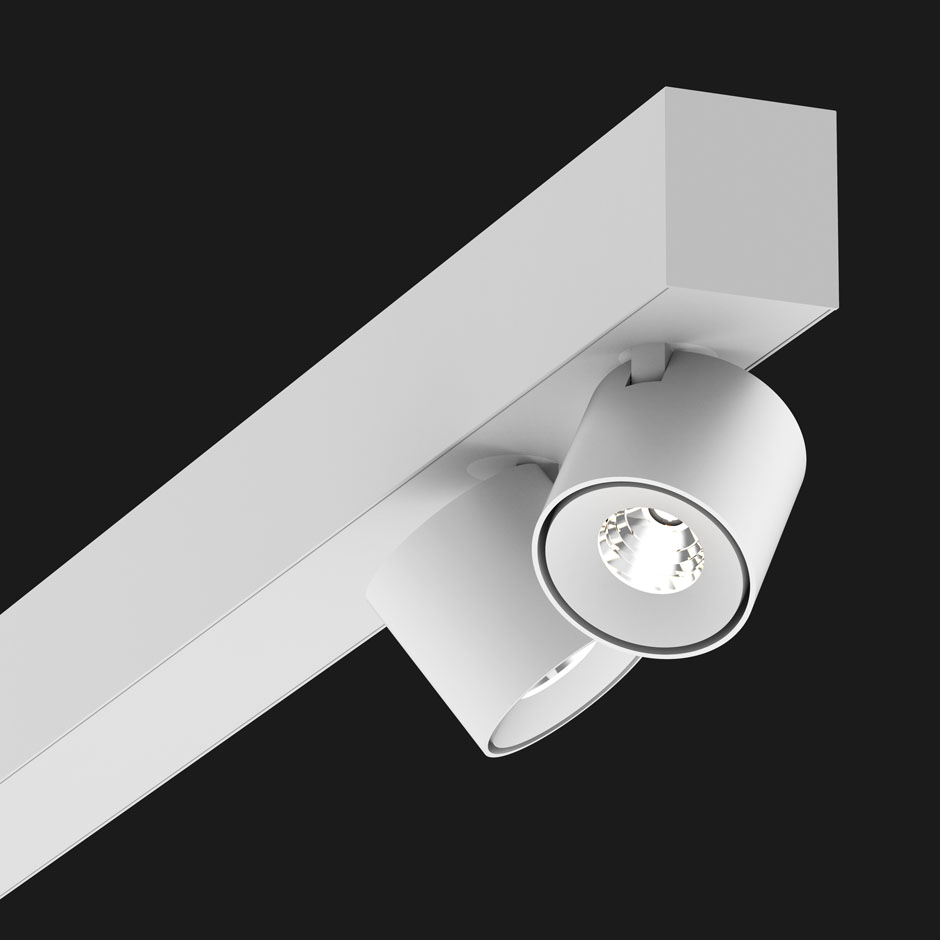

Compatible spot modules

Tektus 45 Pendel LL Single Module 200mm Down

Tektus 45 Pendel LL Single Module 200mm Down

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Juno Mix Spot module Reflector

Juno Mix Spot module Reflector

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Juno Mix Spot module Soft Beam

Juno Mix Spot module Soft Beam

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 45 Pendel LL Single Module 114mm Down

Tektus 45 Pendel LL Single Module 114mm Down

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 45 Pendel LL Double Module 200mm U/D

Tektus 45 Pendel LL Double Module 200mm U/D

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 45 Pendel LL Double Module 200mm

Tektus 45 Pendel LL Double Module 200mm

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 60 Pendel LL Single Module 150mm Down

Tektus 60 Pendel LL Single Module 150mm Down

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link

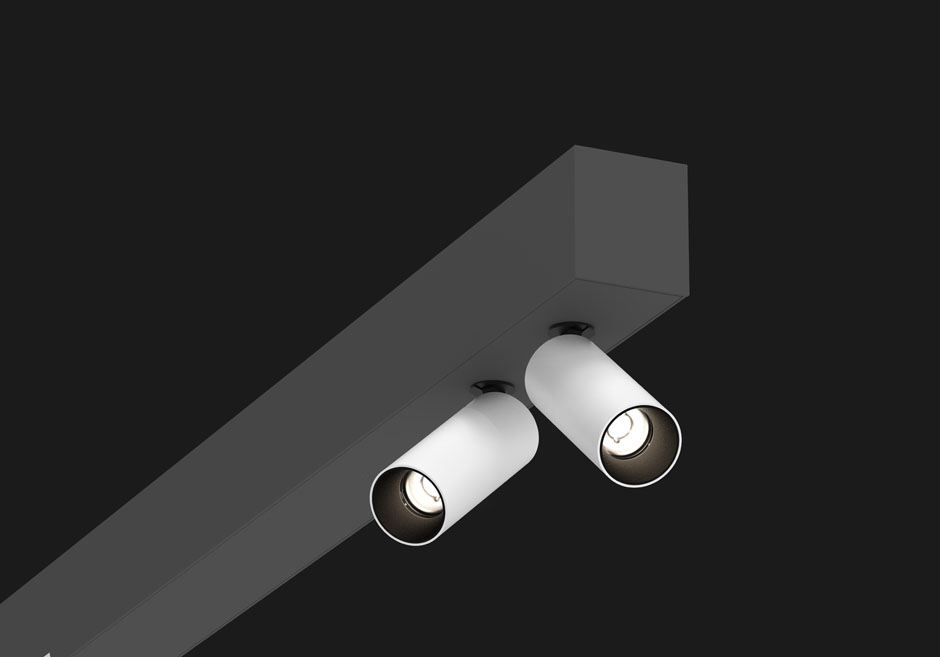

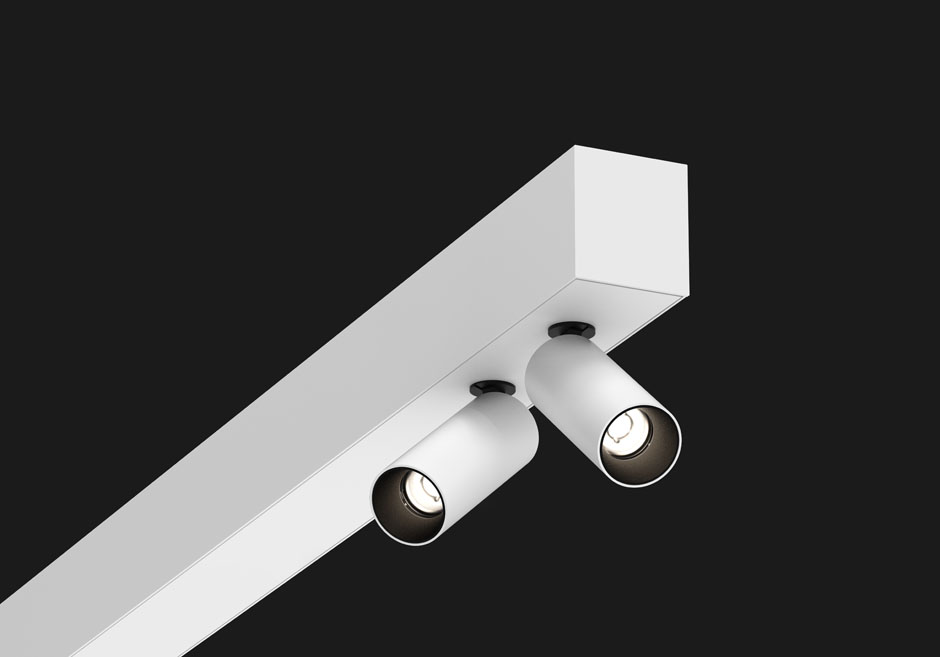

Tektus 45 Spot module Single

Tektus 45 Spot module Single

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 45 Spot module Double

Tektus 45 Spot module Double

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link

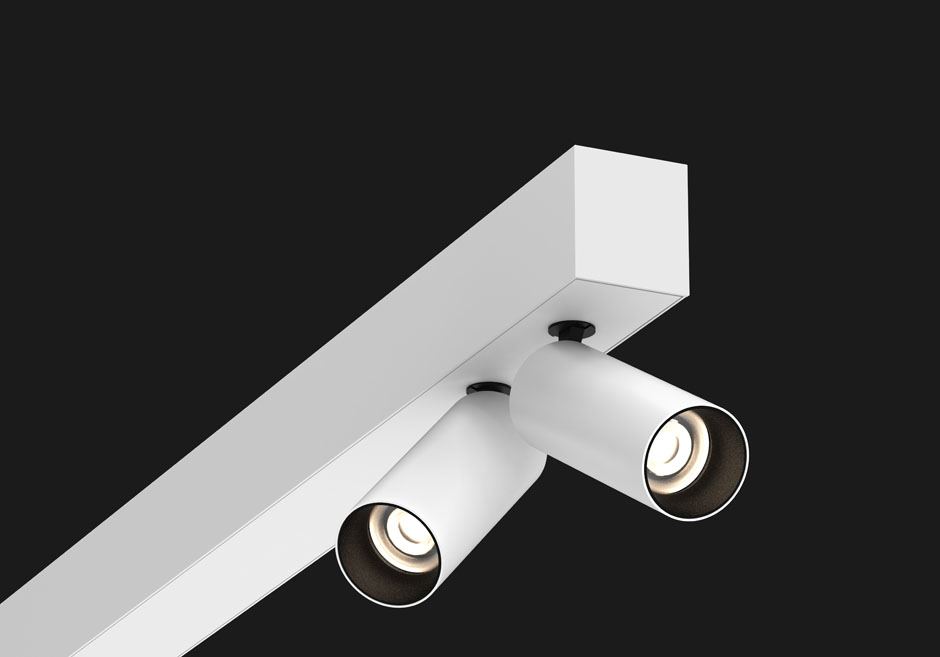

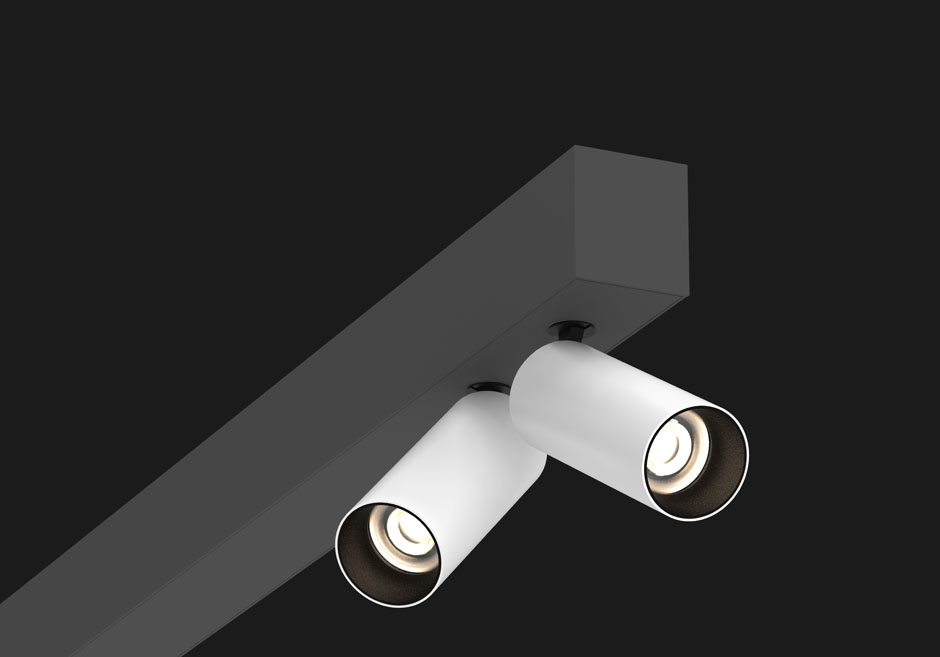

Tektus 60 Spot module Double 350mA

Tektus 60 Spot module Double 350mA

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 60 Spot module Double 500mA

Tektus 60 Spot module Double 500mA

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 60 Spot module Single 350mA

Tektus 60 Spot module Single 350mA

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 60 Spot module Single 500mA

Tektus 60 Spot module Single 500mA

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 45 Pendel LL Double Module 114mm

Tektus 45 Pendel LL Double Module 114mm

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 45 Pendel LL Single Module 200mm Up&Down

Tektus 45 Pendel LL Single Module 200mm Up&Down

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 60 Pendel Slim Single Module 150mm

Tektus 60 Pendel Slim Single Module 150mm

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link
Tektus 60 Pendel LL Double Module 150mm

Tektus 60 Pendel LL Double Module 150mm

  • Available in 2700K / 3000K / 4000K
  • Non dim or Touch & Dali dim driver included
  • Various beam angles and colors available
Link

Optional modules

Untitled

Conformal coating for linear modules

  • 2210.00.00 - Protective coating for LED module only (drivers remain unprotected)
  • 2211.00.00 - Cast IP65 compound for driver(s)
  • A conformal coating provides extra protection against dust and humidity. Min. amount required: 10 meter.
Untitled

Silicone compound for linear modules and driver(s)*

  • 2209.35.00 - IP65 Compound min. 5 meter
  • DOXIS offers IP65 protection on the surface of the LED modules and drivers.
    *Important note: Using IP65 compound increases the CCT (color temperature)
    Example: Utilising 3000K LEDs results in an increase to approx. 4300K

Tridonic BasicDIM module (Casambi)

  • 661.26.00 - Casambi module*
  • Only in combination with DALI drivers
    One module can be connected to max. 4 drivers
    Module is built into luminaire
    *Building Casambi module into LEDIiner35 requires mechanical adjustments to the base profile. Module cannot be fit into profile atter production.

Emergency module for linear modules

  • 659.24.LED-3 - 3Hrs Standard
  • 659.26.LED-3 - 3Hrs Extended (DALI)
  • Emergency modules are equipped with self-testing.
    Extended version with on command testing, status read-out and additional functionality (only compatible with DALI).
    Minimum length RTG 8(suspended) or RTG 7(ceiling mounted)
