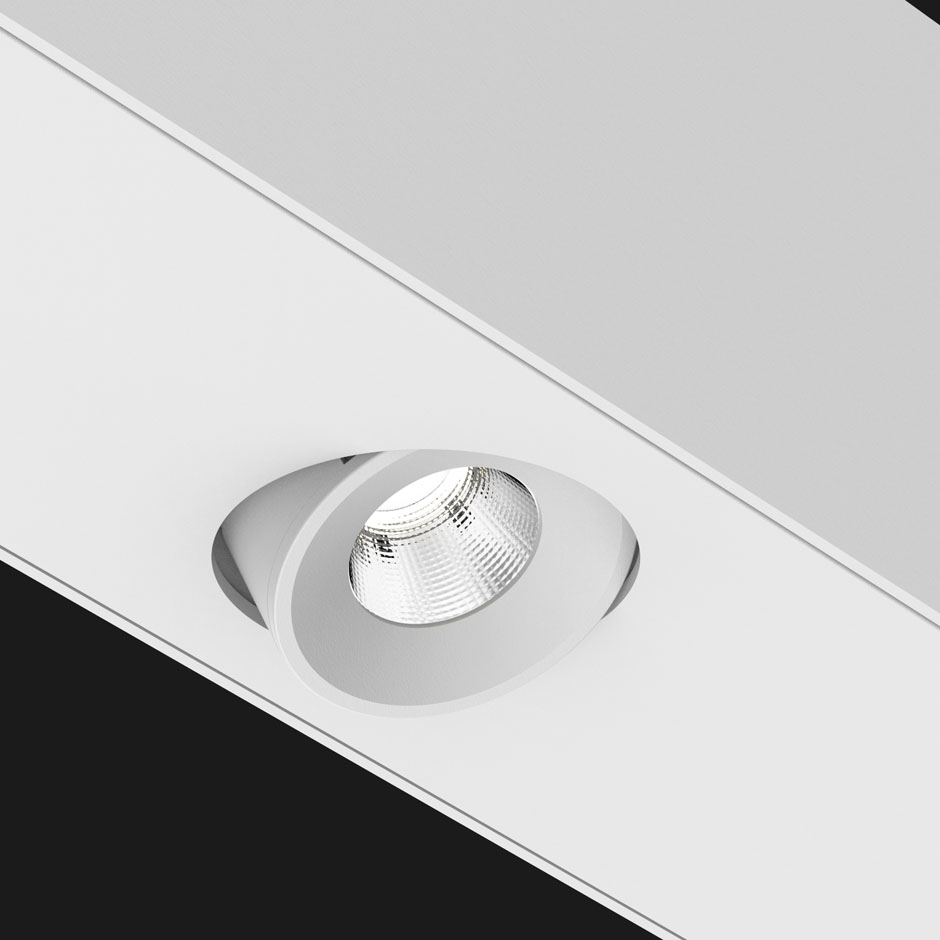

Juno Mix Spot module Reflector
General Specifications
Luminaire Body
Type:
Spot module
Positioning:
Recessed
Material:
Recycled aluminium
Adjustable:
No
Rotation / tilt:
359° / 33°
El. Class:
II (Protective earth not required)
IP:
IP20
Weight:
163g
Lightsource
Dimming:
Dali Dim, Non Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
3
Optics:
Reflector
Luminous flux System:
RA97
RA90
2700K
353lm (91lm/W)
384lm (99lm/W)
3000K
378lm (97lm/W)
399lm (103lm/W)
4000K
401lm (103lm/W)
409lm (105lm/W)
Luminous flux LED:
RA97
RA90
2700K
421lm (120lm/W)
458lm (130lm/W)
3000K
450lm (128lm/W)
476lm (136lm/W)
4000K
478lm (136lm/W)
487lm (139lm/W)
Flux code:
86 98 100 100 99
Beam Angle:
44°
LED Power:
3.5W
System Power:
3.9W
Driver location:
Integrated
Lumen maintenance
L70B50:
>114.000 hrs
L70B20:
>114.000 hrs
L70B10:
>114.000 hrs
L80B50:
>114.000 hrs
L80B20:
>114.000 hrs
L80B10:
>114.000 hrs
L90B50:
>114.000 hrs
L90B20:
112.000 hrs
L90B10:
104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
Anthracite
Black
Bronze
Brown
Champagne
Corten
Gold
Grey
White
Our products can be finished in a RAL colour of your choice on request.
