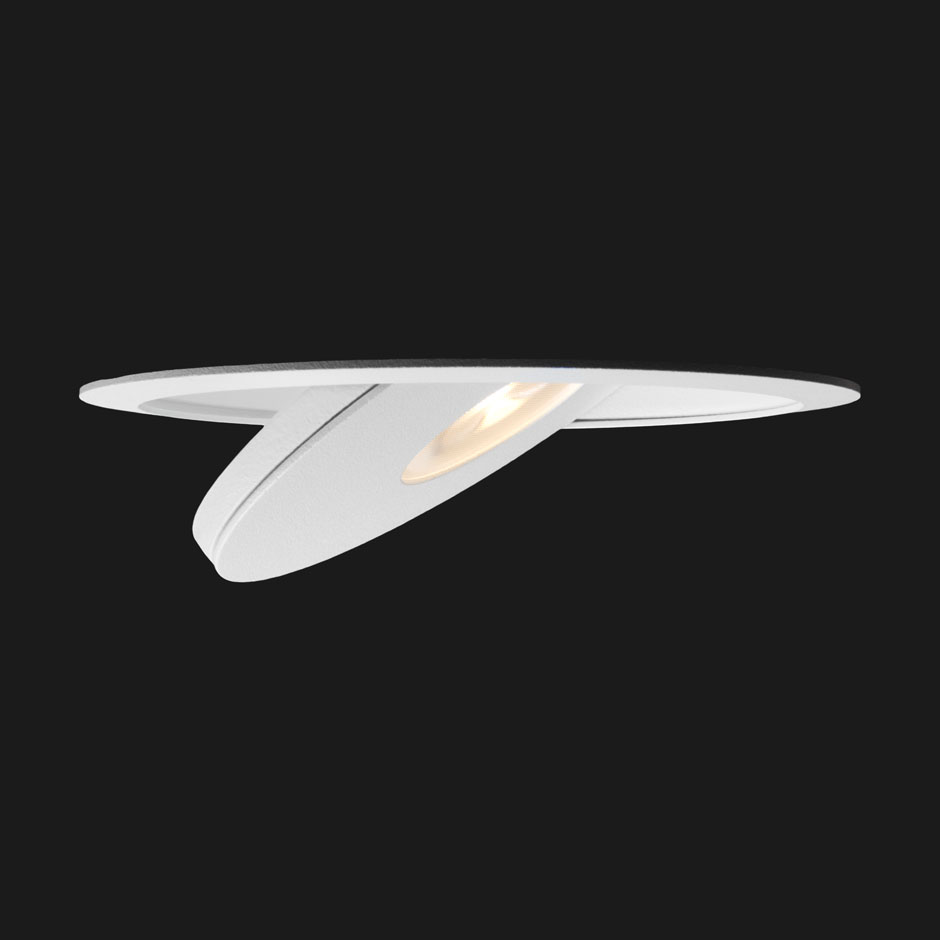

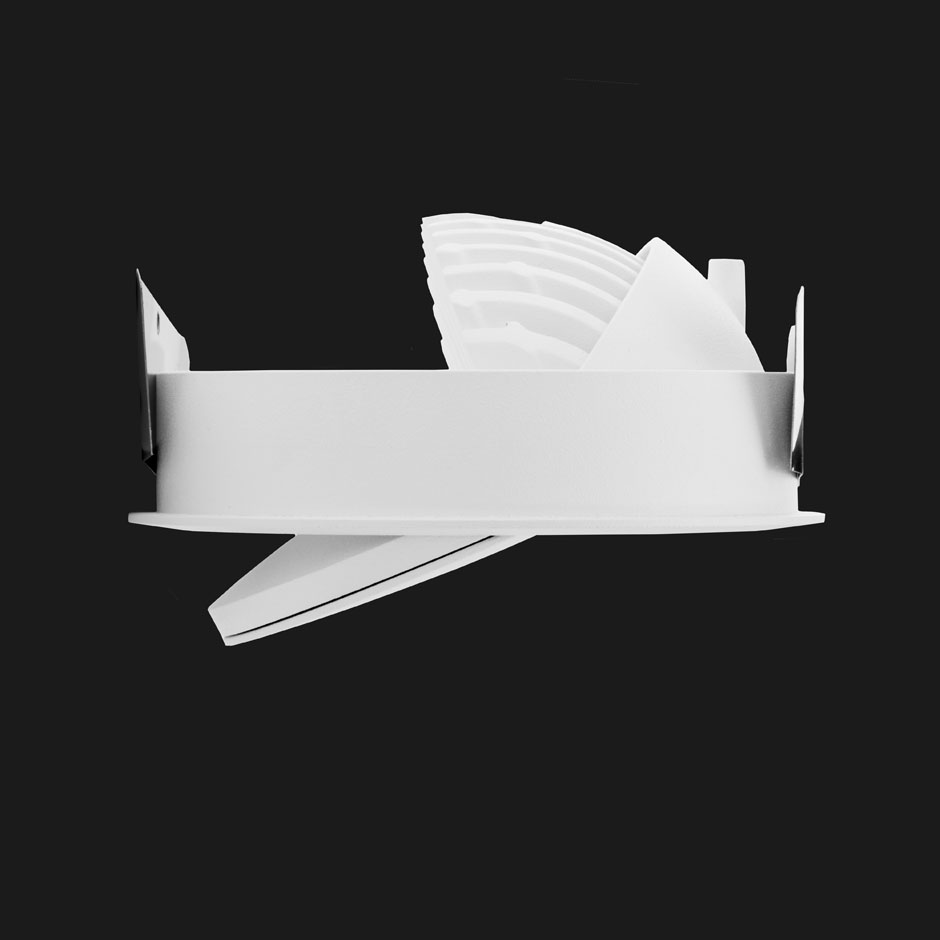

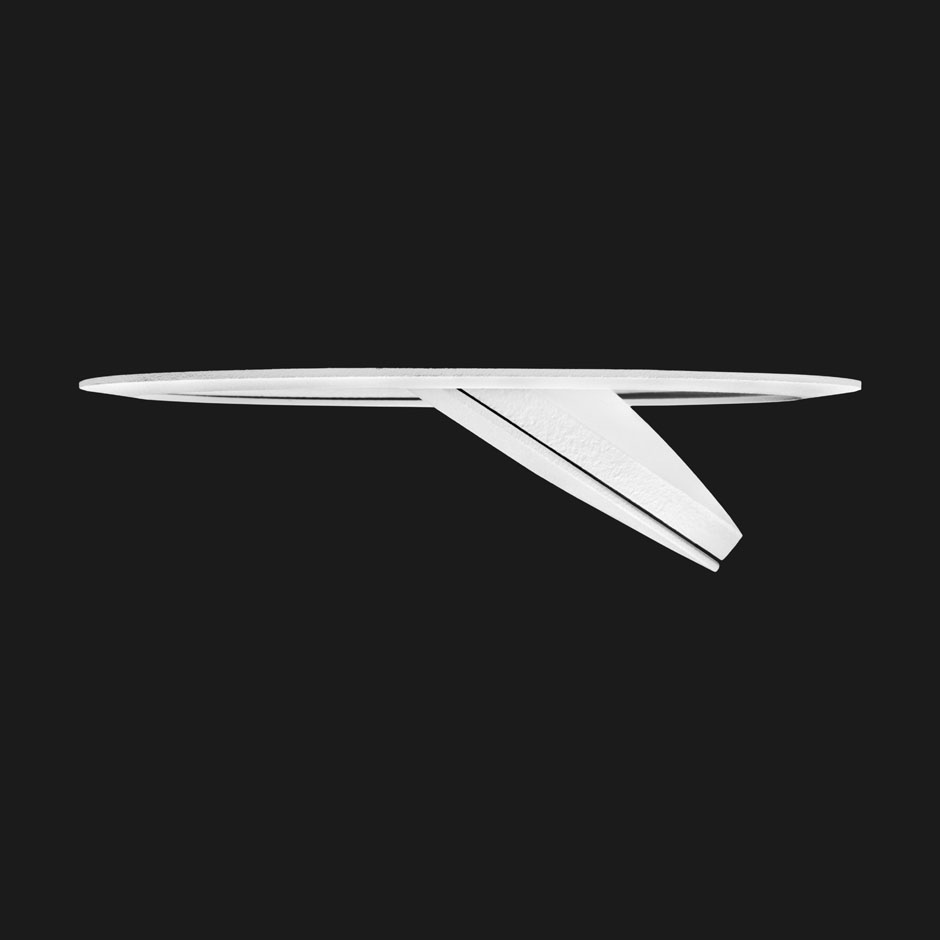

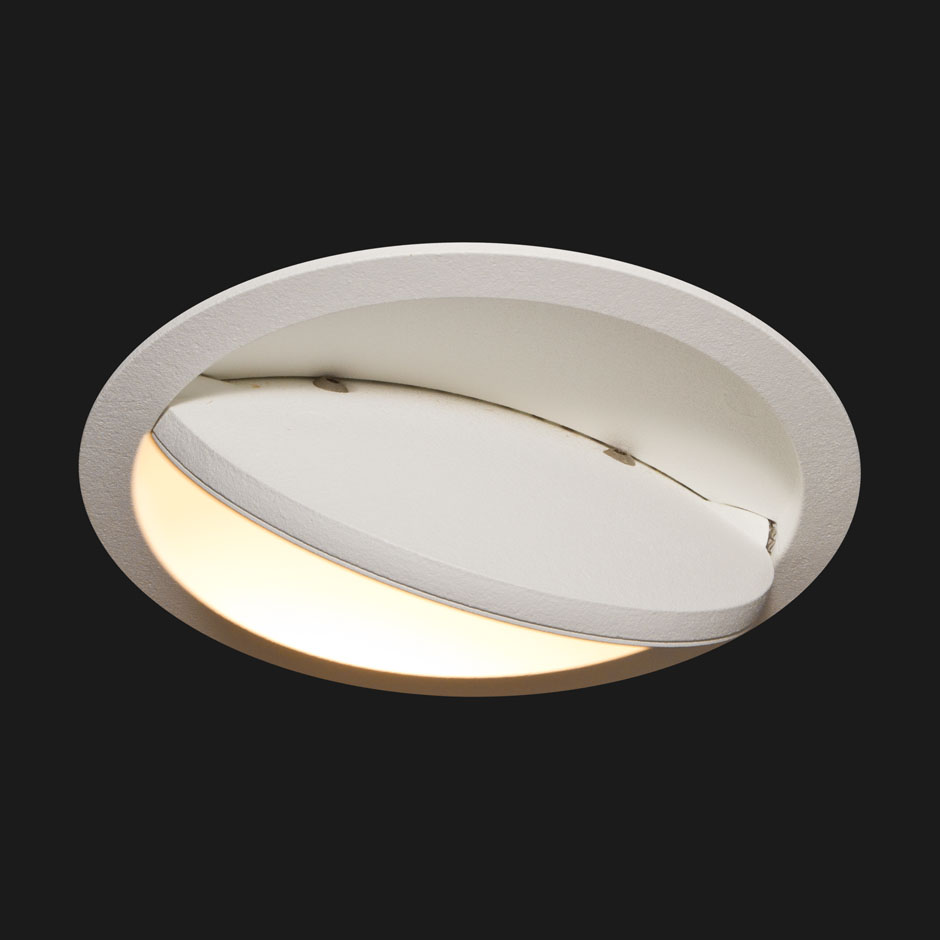

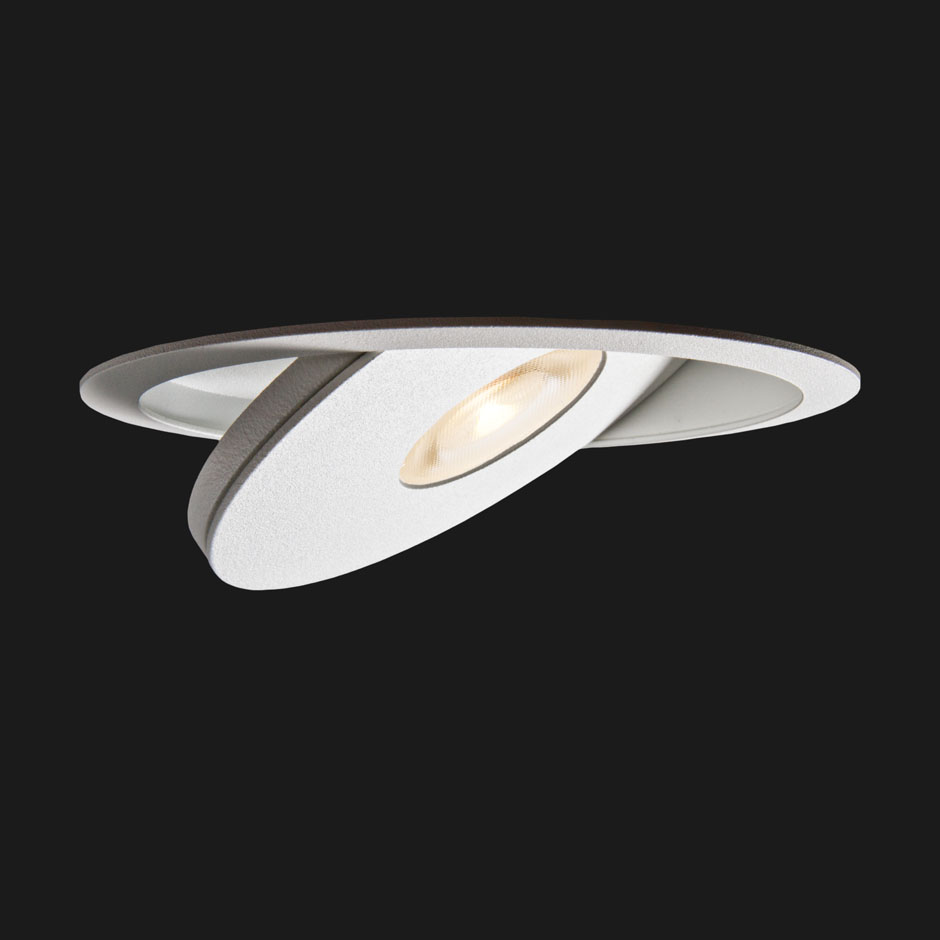

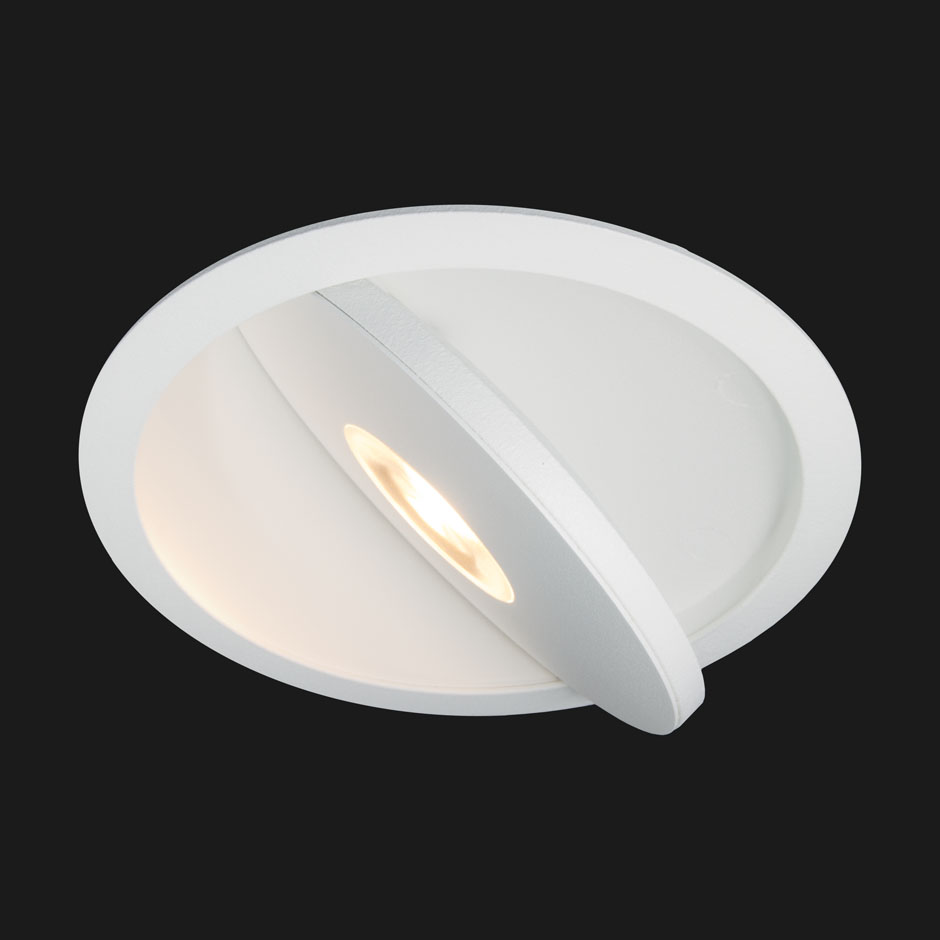

FlatLed T1 Recessed
General Specifications
Luminaire Body
Type:
Recessed Downlight
Positioning:
Recessed
Material:
Recycled aluminium
Adjustable:
Yes

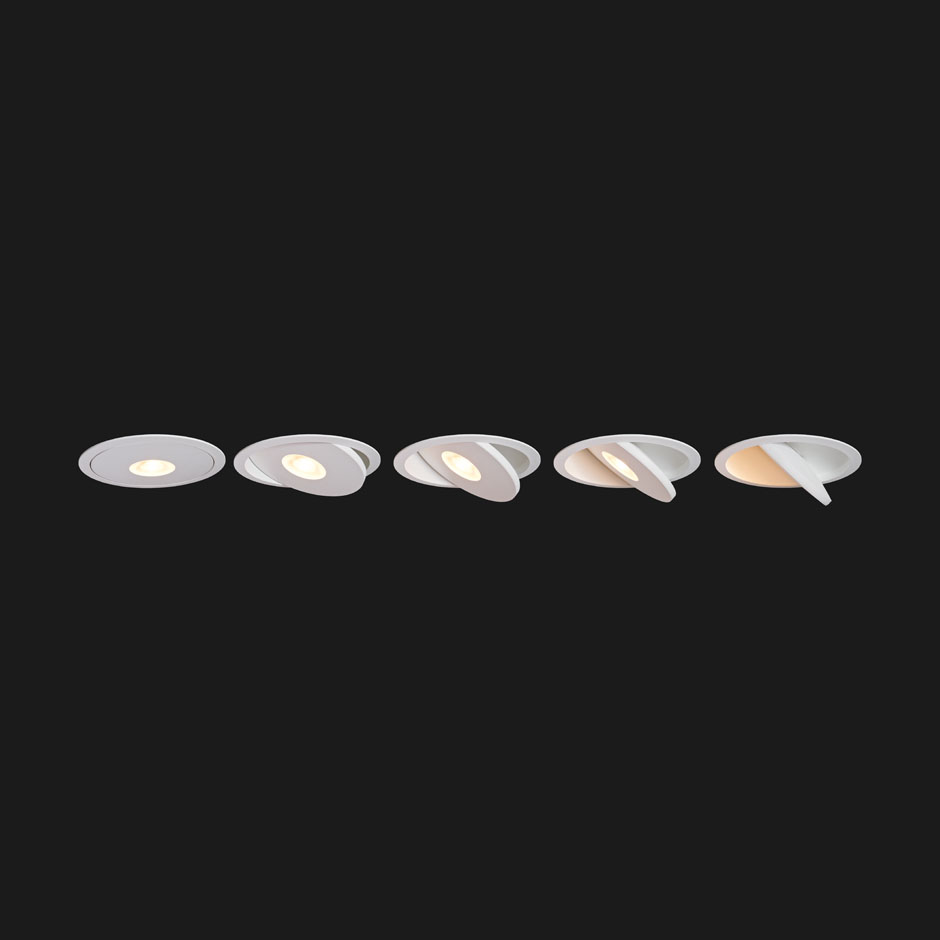

Rotation / tilt:
359° / 55°
El. Class:
II (Protective earth not required)
IP:
IP20
Cut-out diameter:
114mm
Outer diameter:
120mm
Weight:
609g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
2

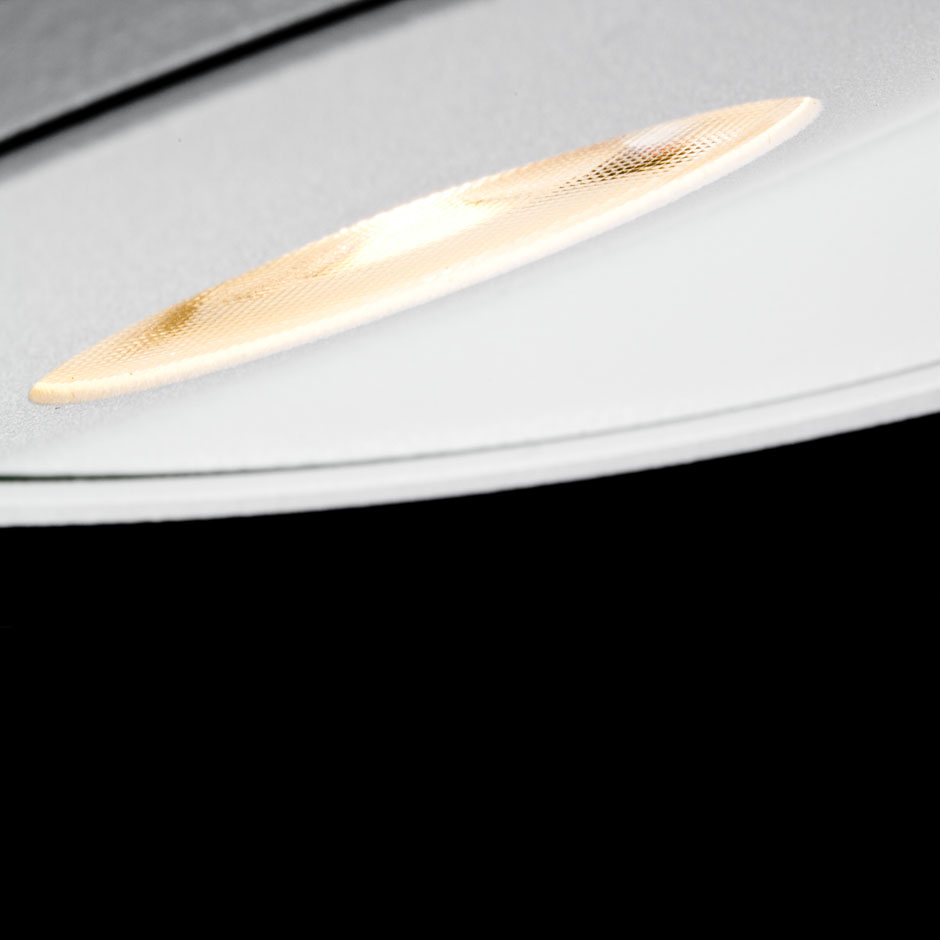

Optics:
Lens
Luminous flux System:
RA97
RA90
2700K
1255lm (98lm/W)
3000K
1317lm (103lm/W)
1403lm (110lm/W)
4000K
1255lm (98lm/W)
1424lm (111lm/W)
Luminous flux LED:
RA97
RA90
2700K
1411lm (122lm/W)
3000K
1480lm (128lm/W)
1577lm (137lm/W)
4000K
1411lm (122lm/W)
1601lm (139lm/W)
Flux code:
74 90 98 100 100
Beam Angle:
37°
LED Power:
11.5W
System Power:
12.8W
Driver location:
Remote
Lumen maintenance
L70B50:
> 50.000 hrs
L70B20:
> 50.000 hrs
L70B10:
> 50.000 hrs
L80B50:
> 50.000 hrs
L80B20:
> 50.000 hrs
L80B10:
> 50.000 hrs
L90B50:
> 50.000 hrs
L90B20:
> 50.000 hrs
L90B10:
> 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors

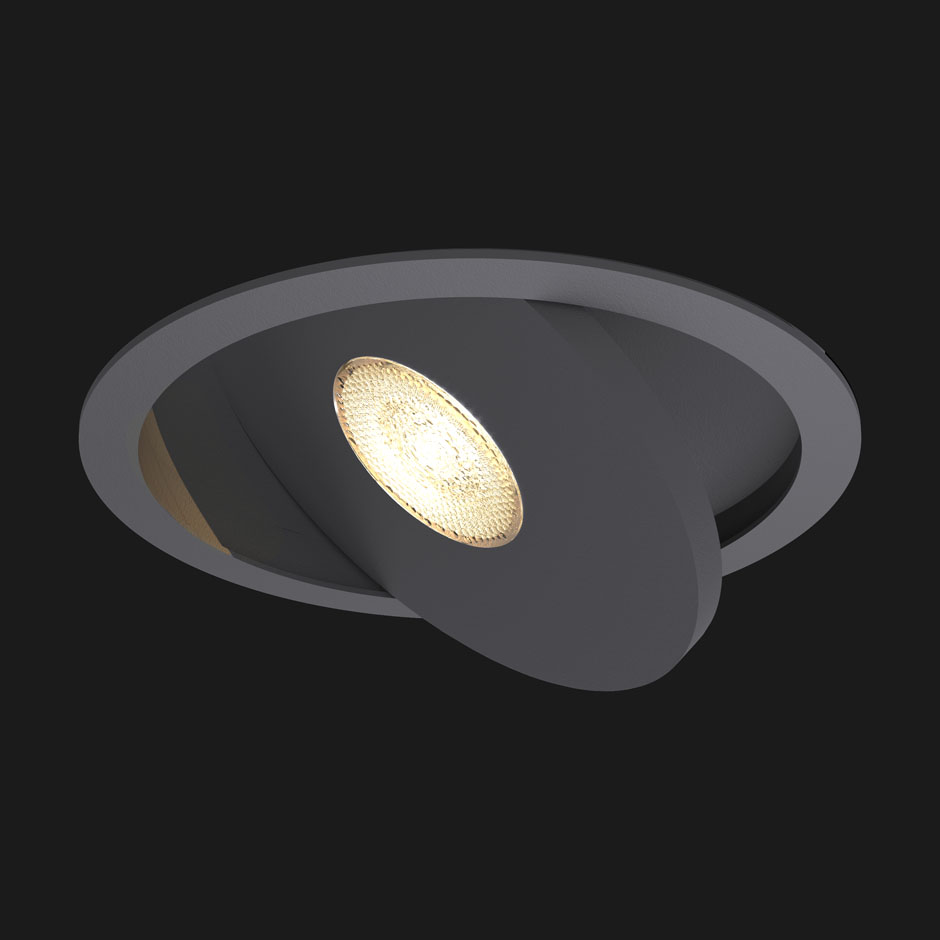

Anthracite

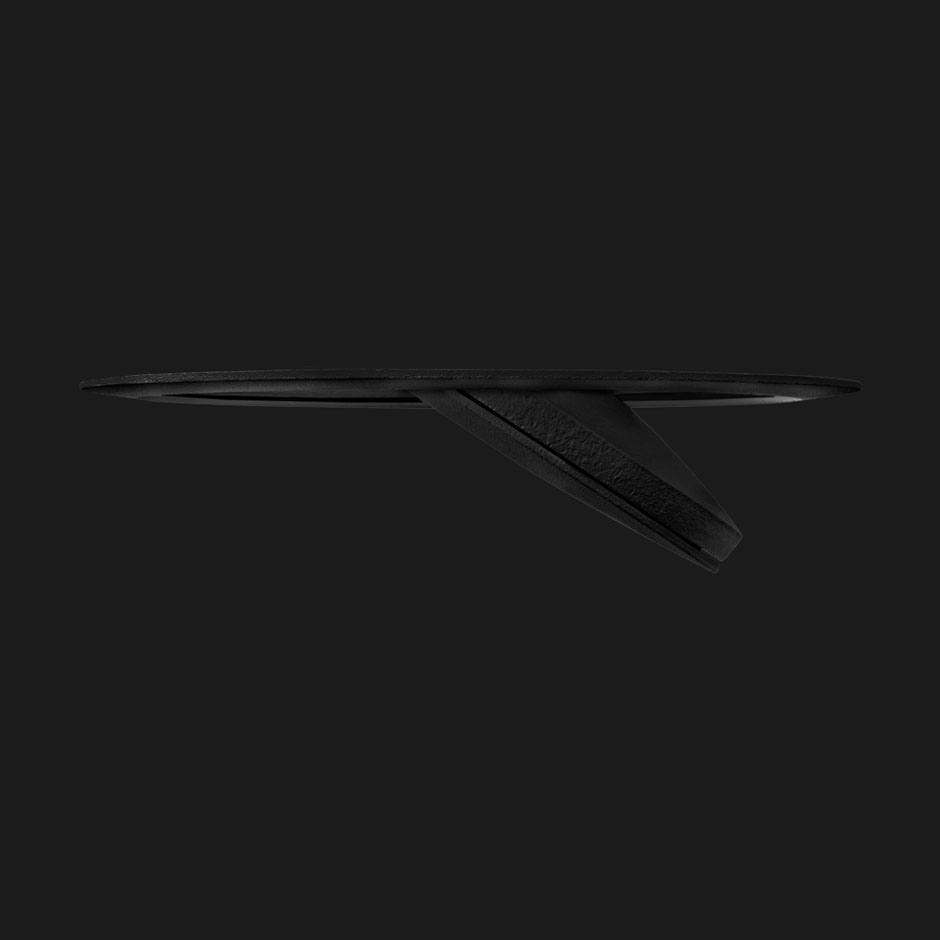

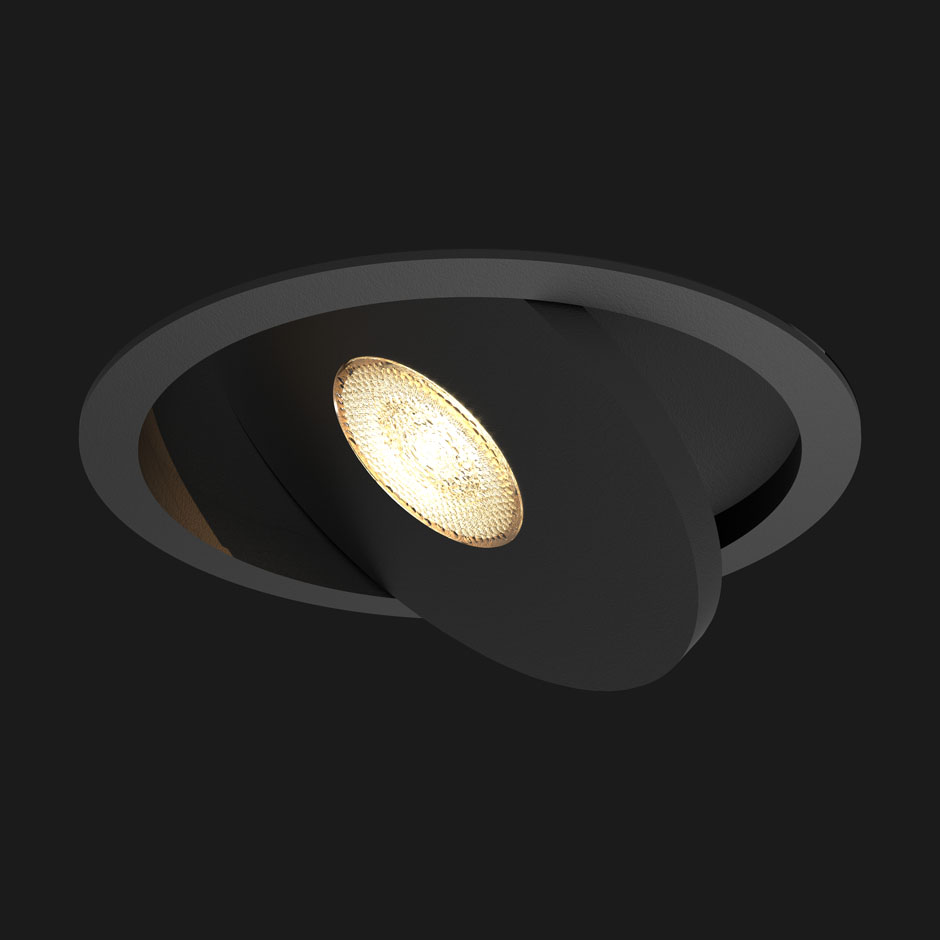

Black

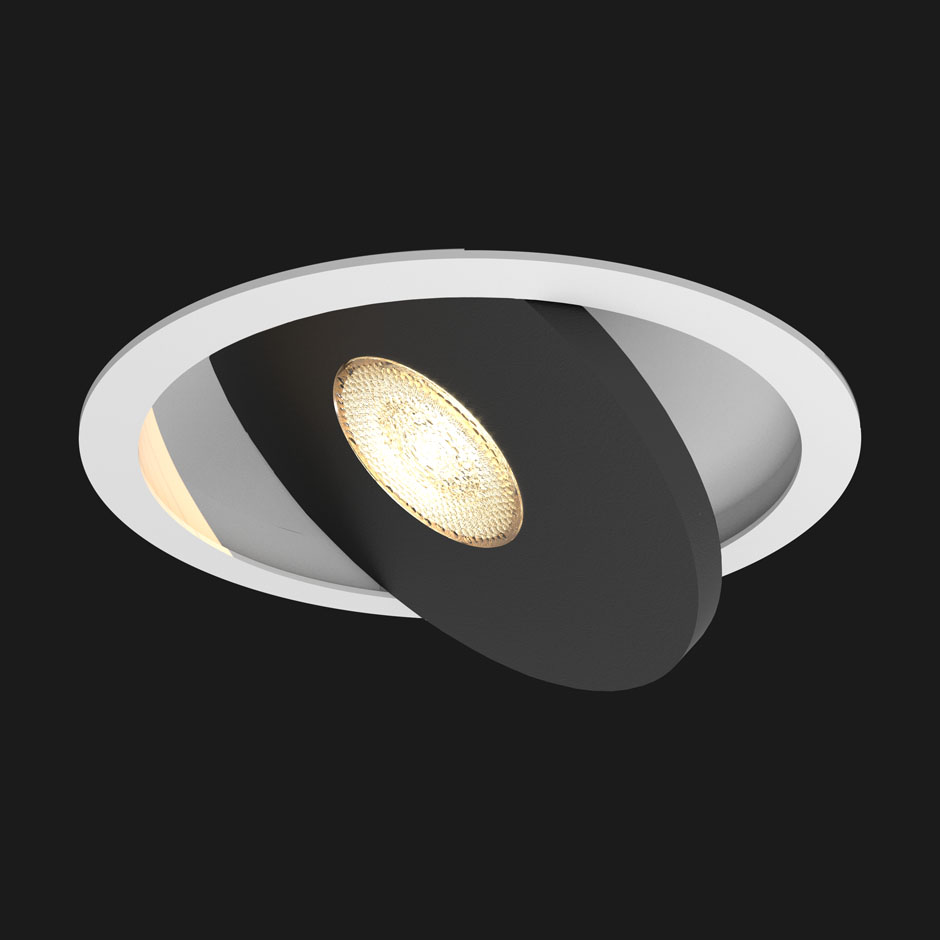

Black / White

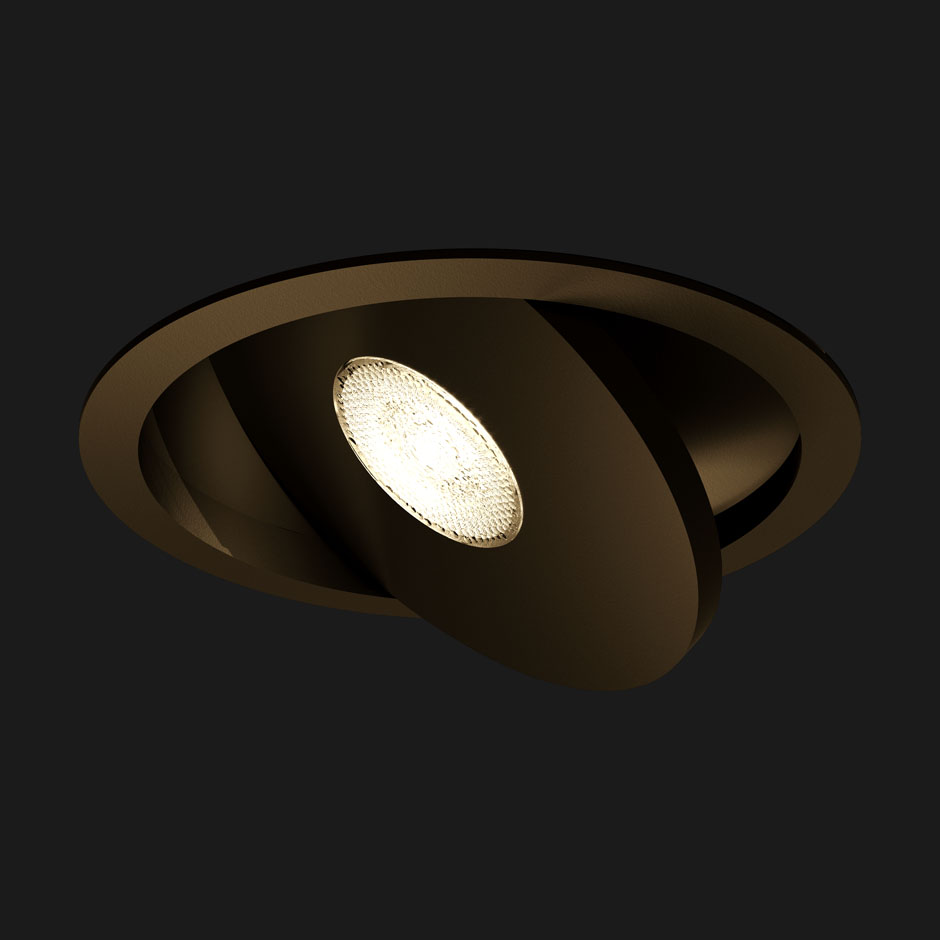

Bronze

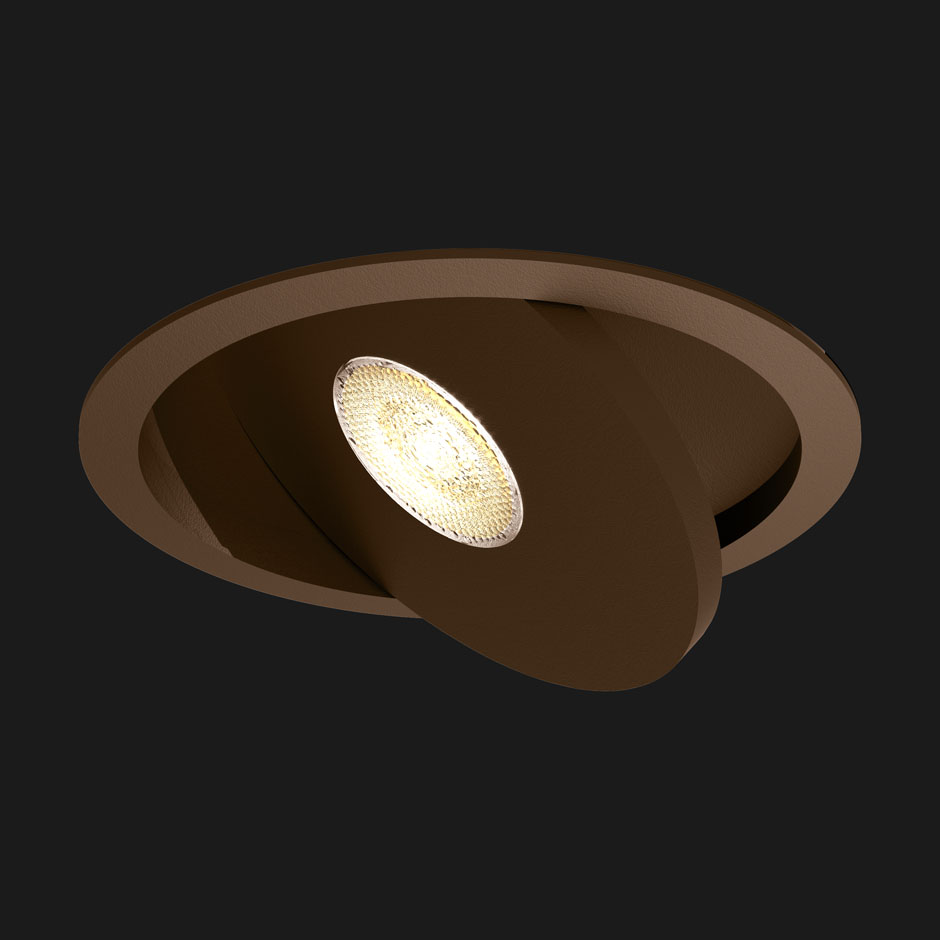

Brown

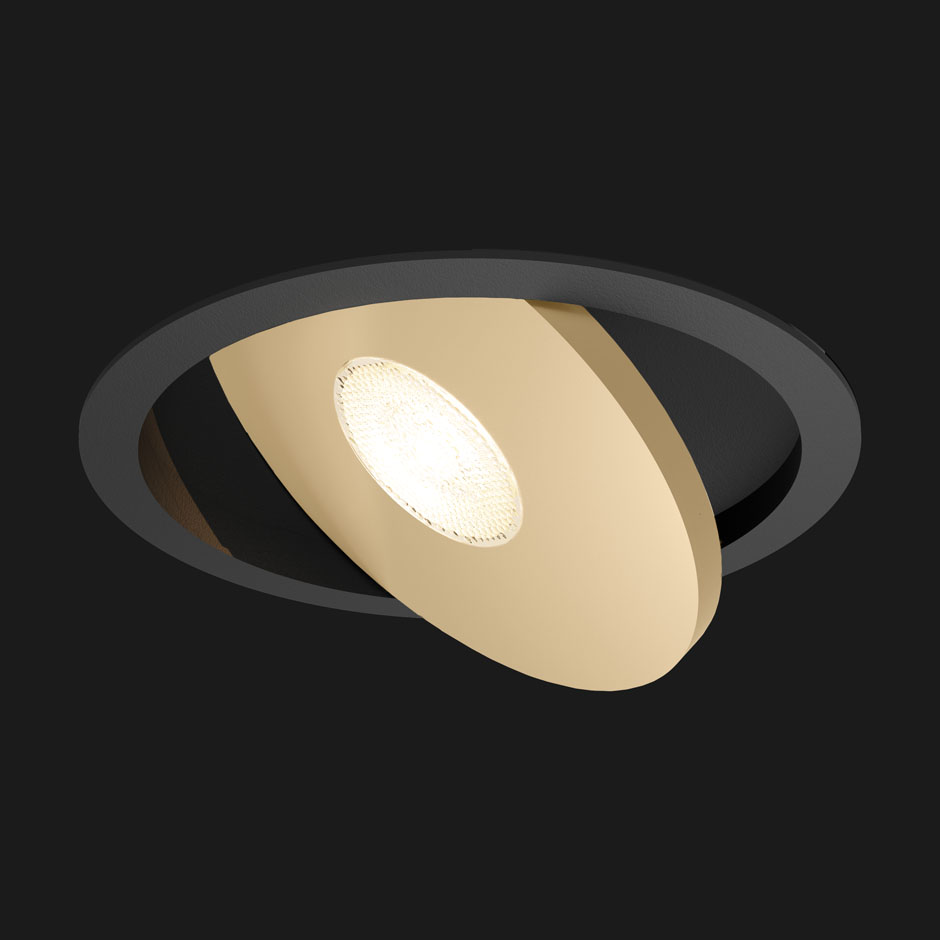

Champagne / Black

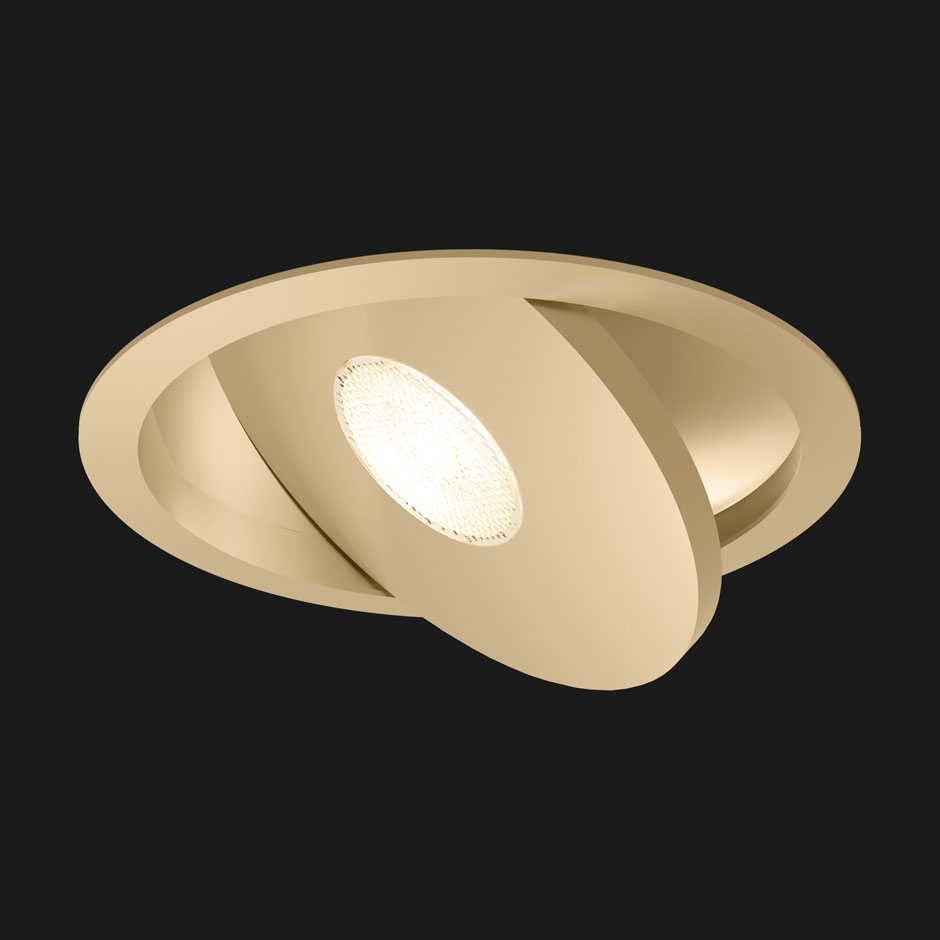

Champagne

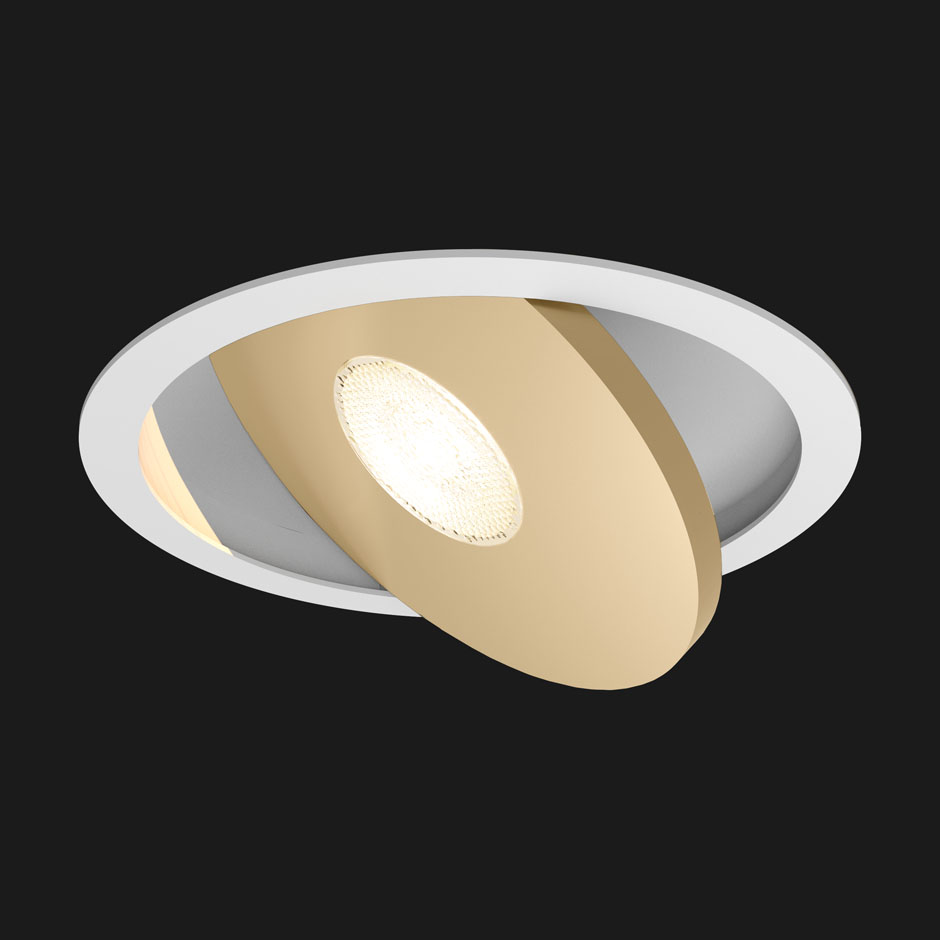

Champagne / White

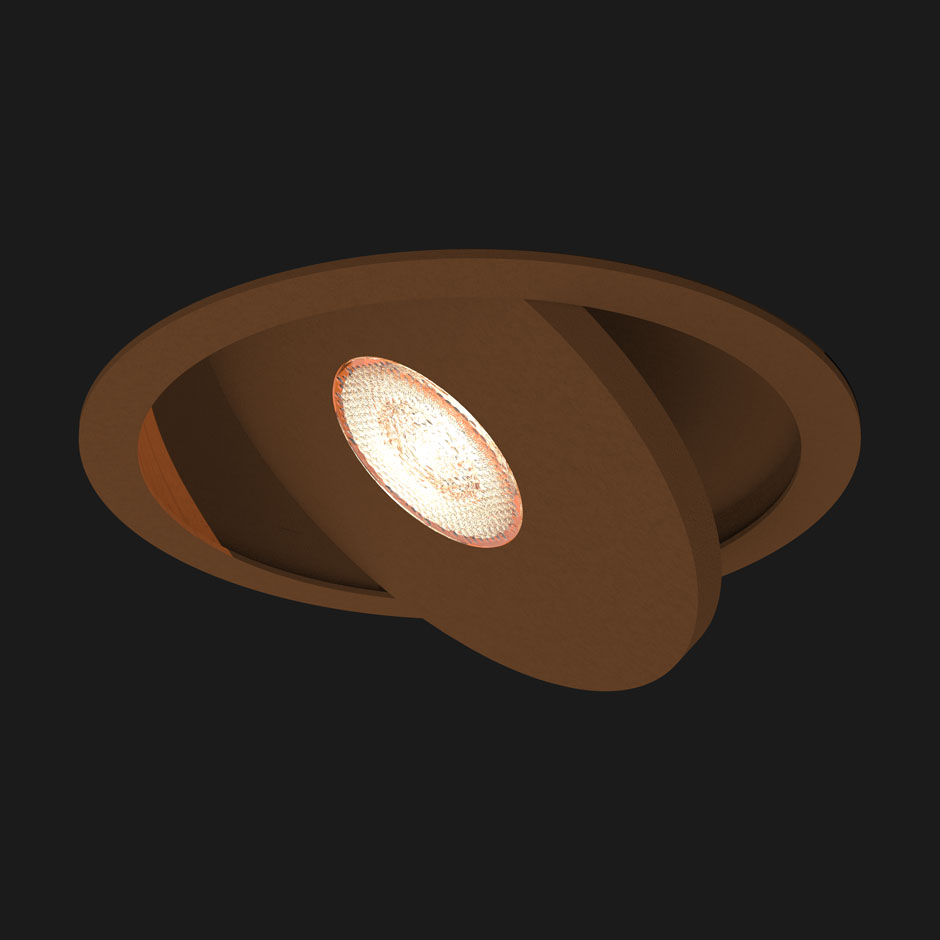

Corten

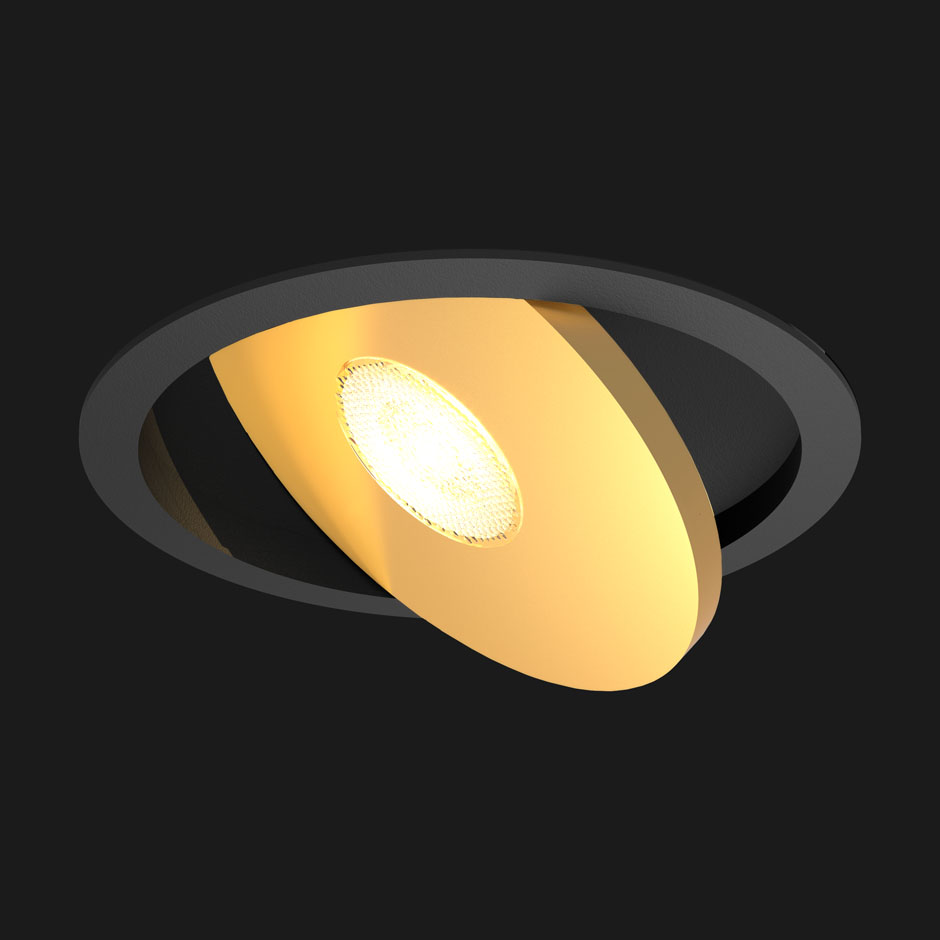

Gold / Black

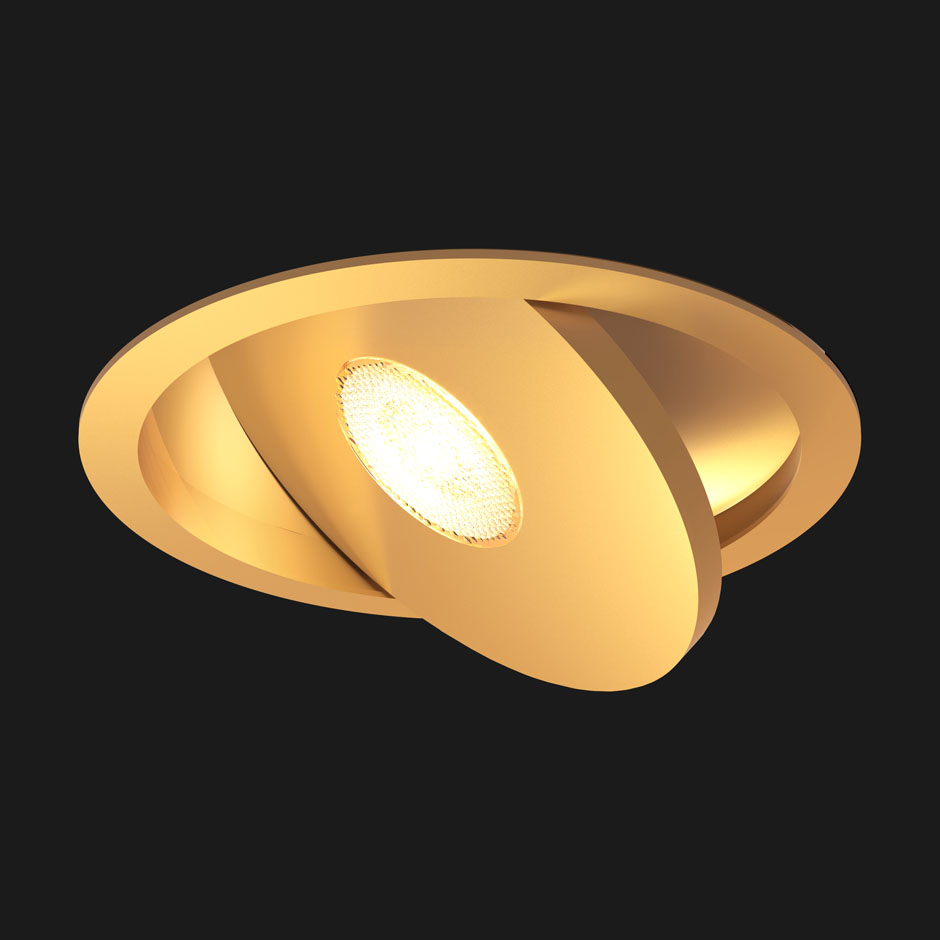

Gold
Gold / White

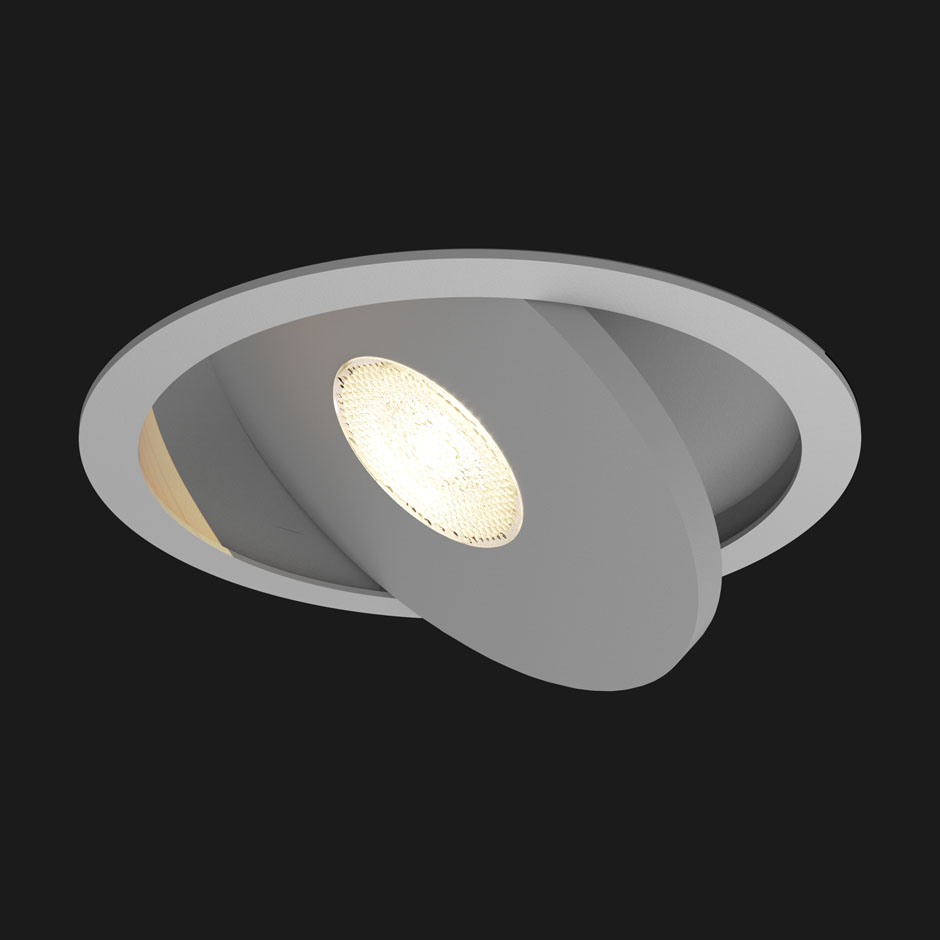

Grey

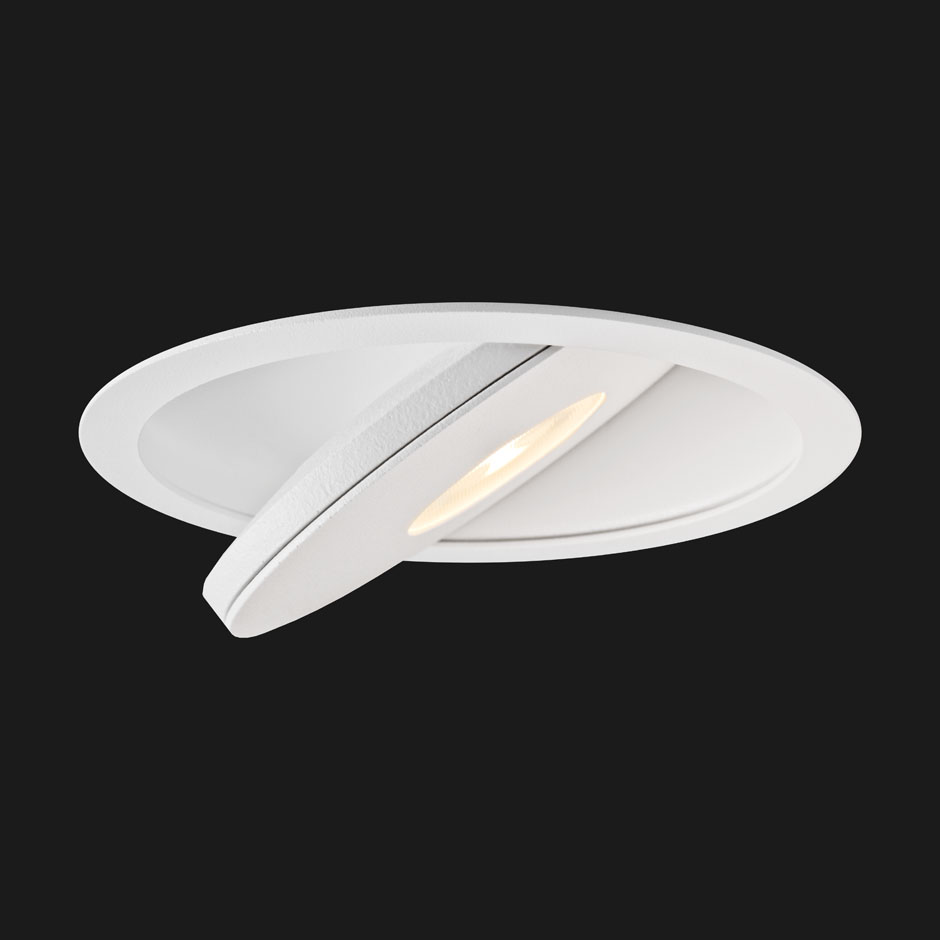

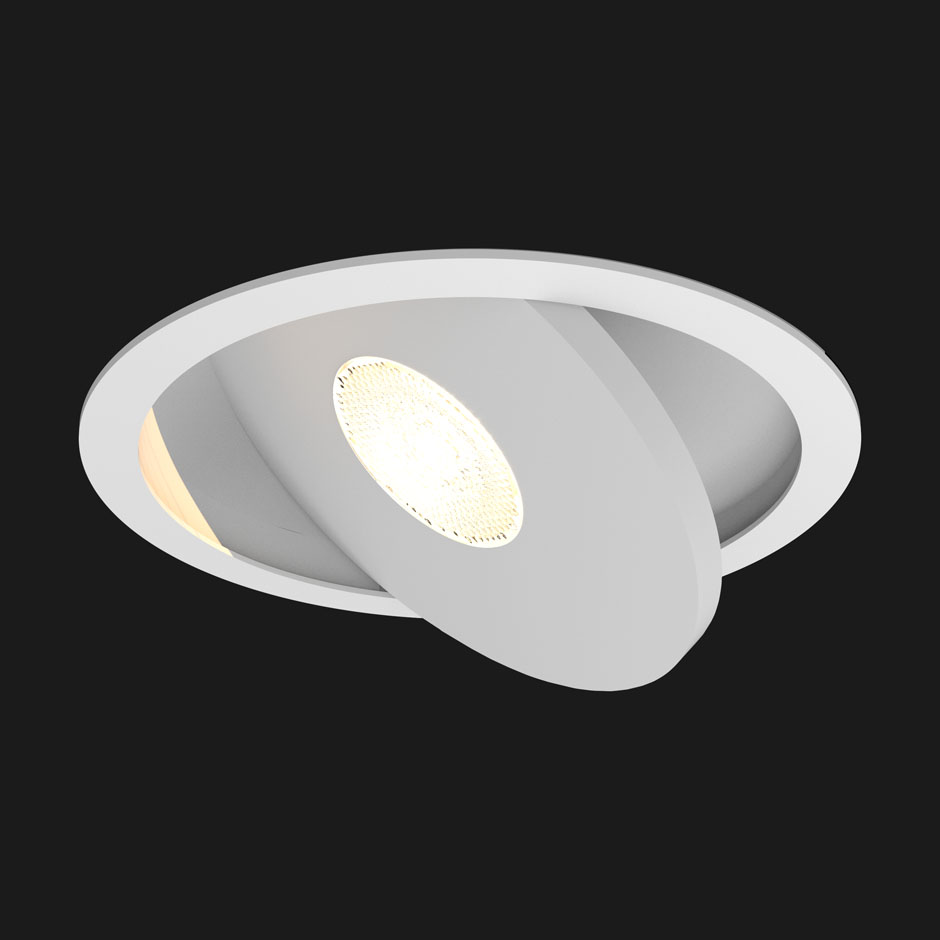

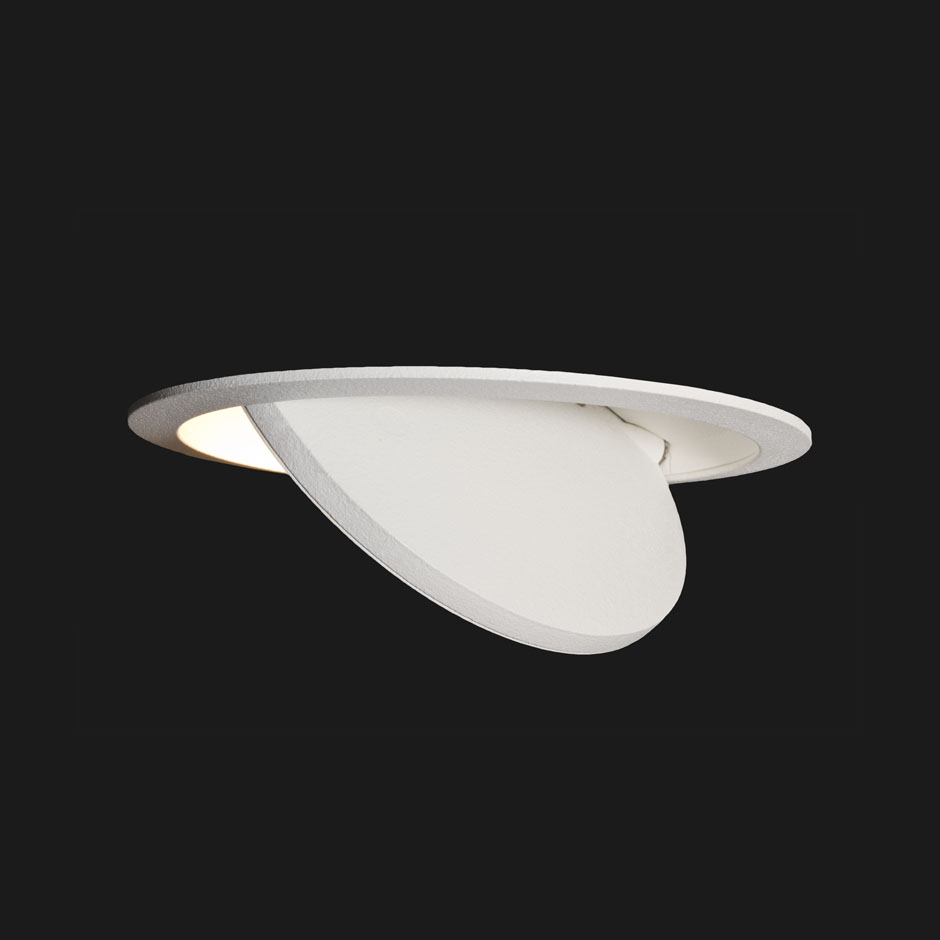

White
Our products can be finished in a RAL colour of your choice on request.
