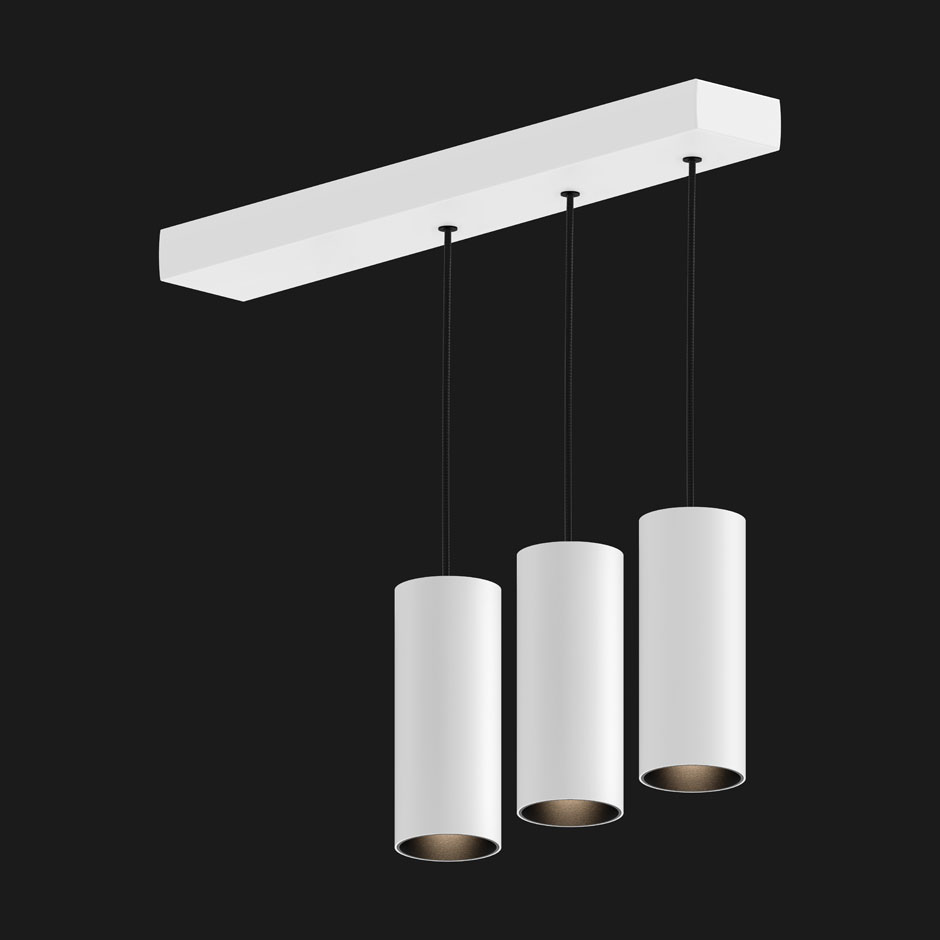

Tektus 60 Slim 3-Way Suspended 150mm Down

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Tektus 60 Slim 3-Way Suspended 150mm Down

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Tektus 60: UGR <13 for 23>

Luminaire Body

Type: Multiple Downlight
Positioning: Suspended
Material: Aluminium + steel
Adjustable: Yes
Rotation / tilt: Fixed / Fixed
El. Class: I (Protective earth required)
IP: IP20
Weight: 2059g

Lightsource

Dimming: Dali Dim, Mains Dim, Non Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 2
Optics: Lens
Luminous flux System:
RA97 RA90
2700K 2793lm (74lm/W)
3000K 2930lm (78lm/W) 3122lm (83lm/W)
4000K 2793lm (74lm/W) 3169lm (84lm/W)
Luminous flux LED:
RA97 RA90
2700K 4233lm (125lm/W)
3000K 4440lm (131lm/W) 4731lm (140lm/W)
4000K 4233lm (125lm/W) 4803lm (142lm/W)
Flux code: 98 100 100 100 86
Beam Angle: 23° / 36° / 48° / 57°
LED Power: 33.8W
System Power: 37.6W
Driver location: Integrated

Lumen maintenance

L70B50: > 50.000 hrs L70B20: > 50.000 hrs L70B10: > 50.000 hrs
L80B50: > 50.000 hrs L80B20: > 50.000 hrs L80B10: > 50.000 hrs
L90B50: > 50.000 hrs L90B20: > 50.000 hrs L90B10: > 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.
