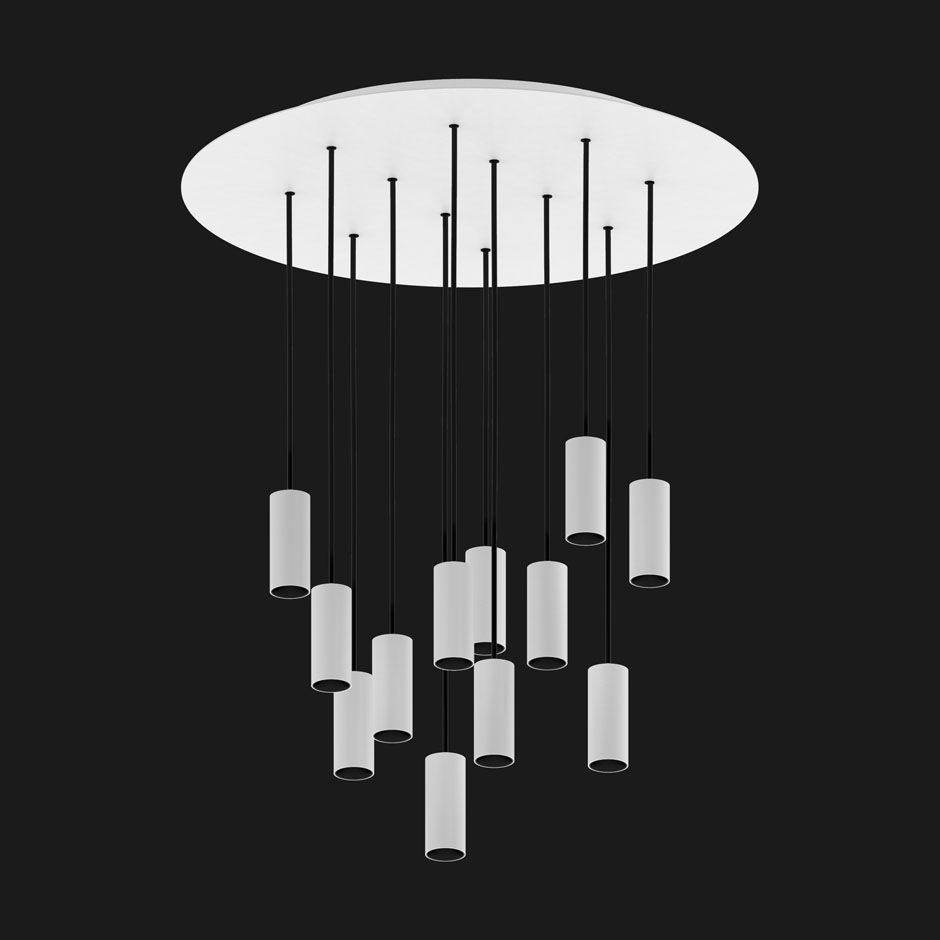

Tektus 45 Suspended Round Diameter 640 114mm 8x module Down

Available Colours

Our products can be finished in a RAL colour of your choice on request.

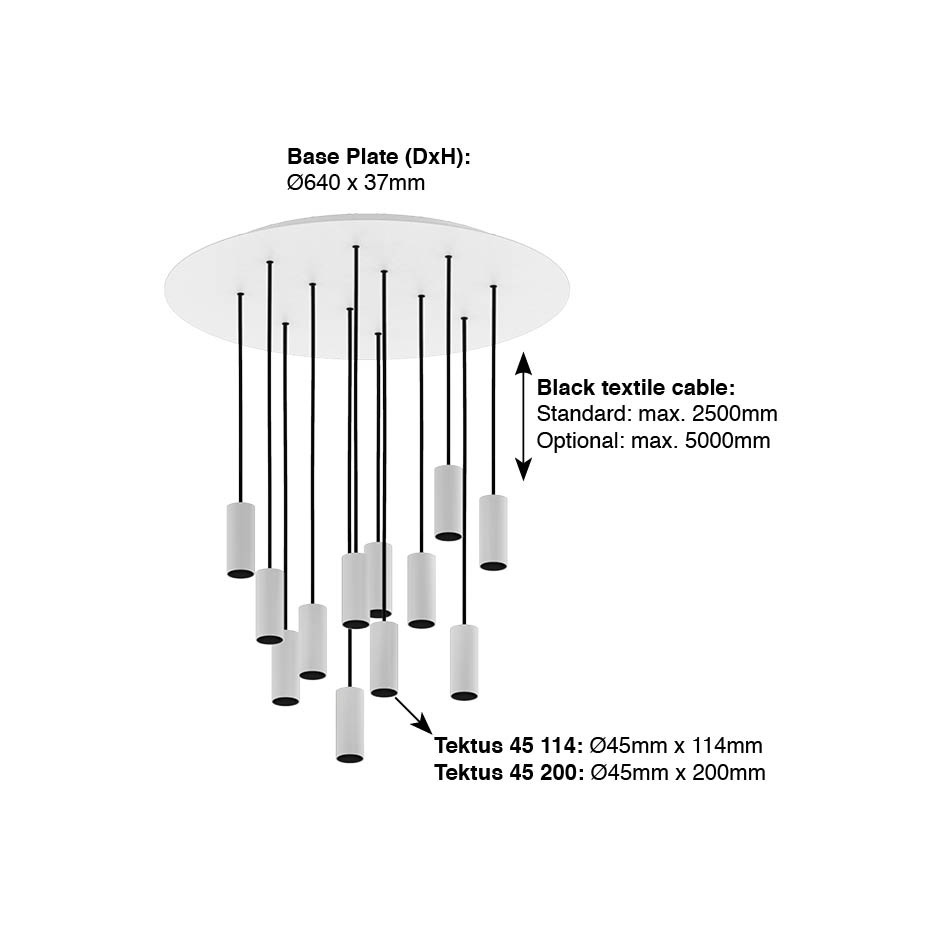

Tektus 45 Suspended Round Diameter 640 114mm 8x module Down

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Tektus 45: UGR <16 for 29° lens, UGR <19 for 40° lens

Luminaire Body

Type: Multiple Downlight
Positioning: Suspended
Material: Aluminium + steel
Adjustable: Yes
Rotation / tilt: Fixed / Fixed
El. Class: I (Protective earth required)
IP: IP20
Weight: 11949g

Lightsource

Dimming: Dali Dim, Non Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Lens
Luminous flux System:
RA97 RA90
2700K 5258lm (68lm/W) 6160lm (80lm/W)
3000K 5616lm (73lm/W) 6473lm (84lm/W)
4000K 5874lm (76lm/W) 6563lm (85lm/W)
Luminous flux LED:
RA97 RA90
2700K 7512lm (108lm/W) 8800lm (126lm/W)
3000K 8024lm (115lm/W) 9248lm (133lm/W)
4000K 8392lm (120lm/W) 9376lm (134lm/W)
Flux code: 100 100 100 100 77
Beam Angle: 29° / 40° / 51°
LED Power: 69.7W
System Power: 77.5W
Driver location: Integrated

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
