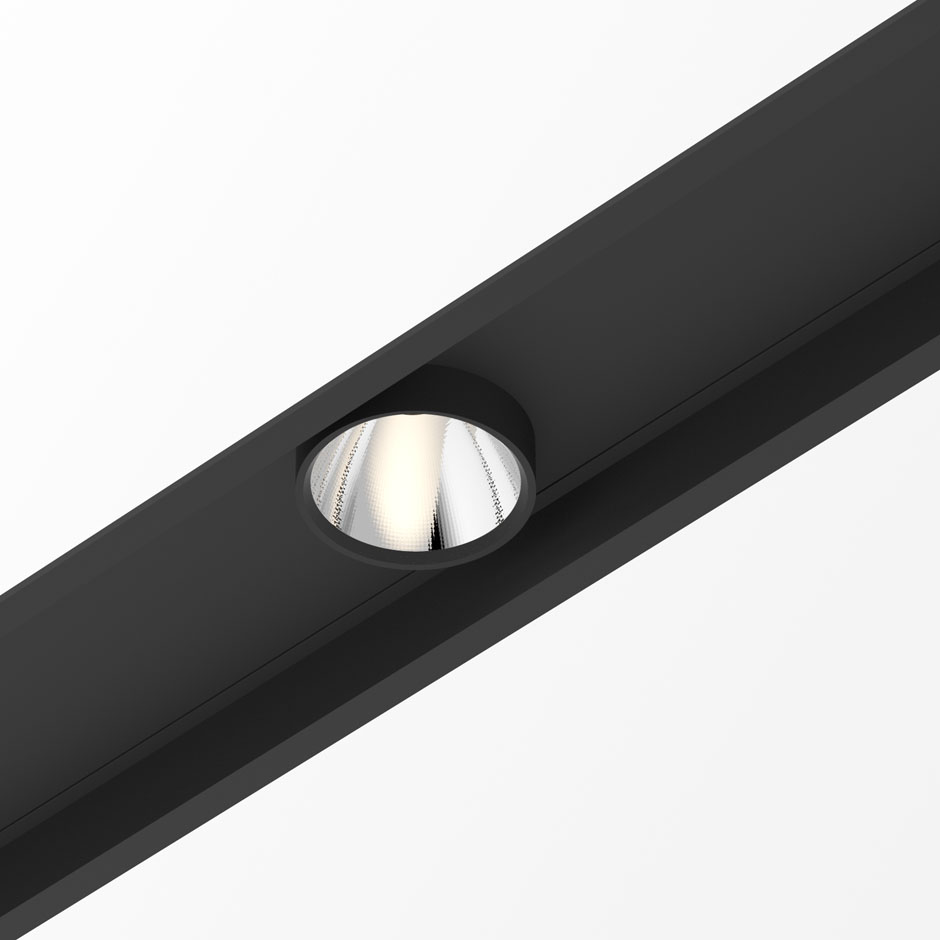

Atlas Recessed Fix Spot module

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Atlas Recessed Fix Spot module

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Atlas: <19 for 22°>

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 79mm
Outer diameter: 85mm
Weight: 979g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Non Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 1786lm (85lm/W) 2093lm (99lm/W)
3000K 1909lm (91lm/W) 2109lm (100lm/W)
4000K 2067lm (98lm/W) 2231lm (106lm/W)
Luminous flux LED:
RA97 RA90
2700K 2206lm (116lm/W) 2585lm (136lm/W)
3000K 2357lm (124lm/W) 2604lm (137lm/W)
4000K 2552lm (135lm/W) 2755lm (145lm/W)
Flux code: 98 99 100 100 100
Beam Angle: 22° / 45° / 58°
LED Power: 19.0W
System Power: 21.1W
Driver location: Integrated

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Black
Grey
White

Our products can be finished in a RAL colour of your choice on request.
