Aster Trimless Deep Square Mix Double

Available Colours

Our products can be finished in a RAL colour of your choice on request.

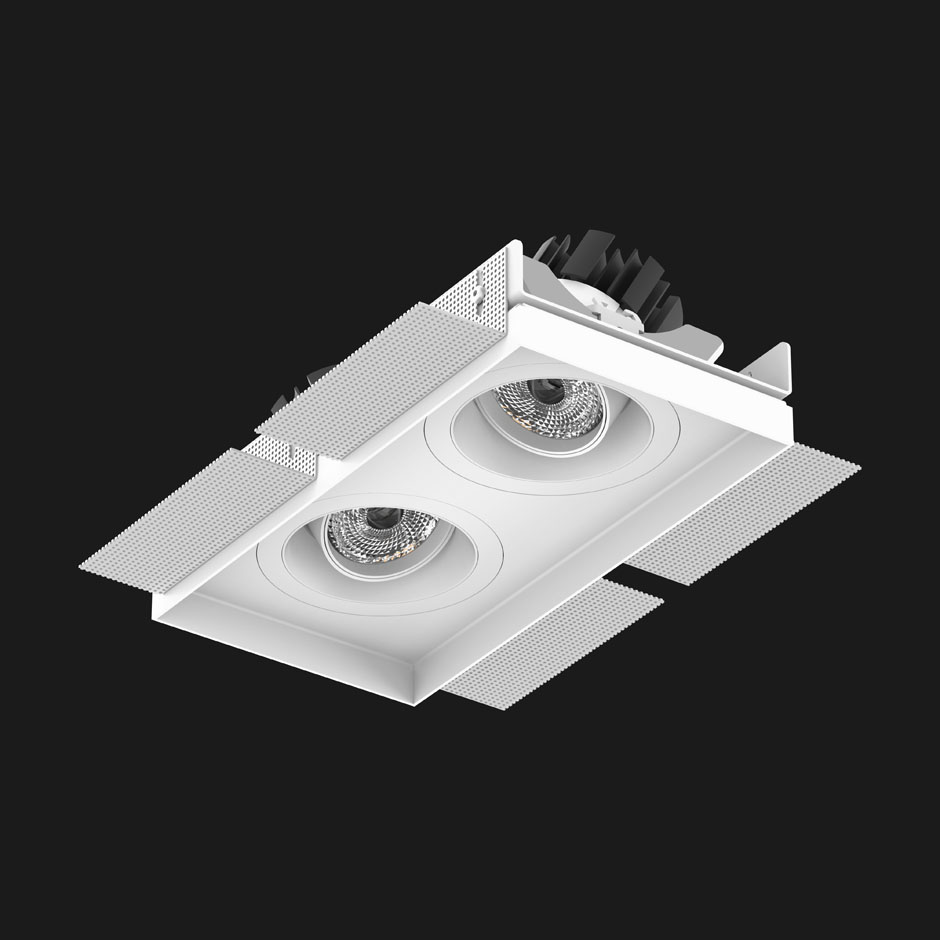

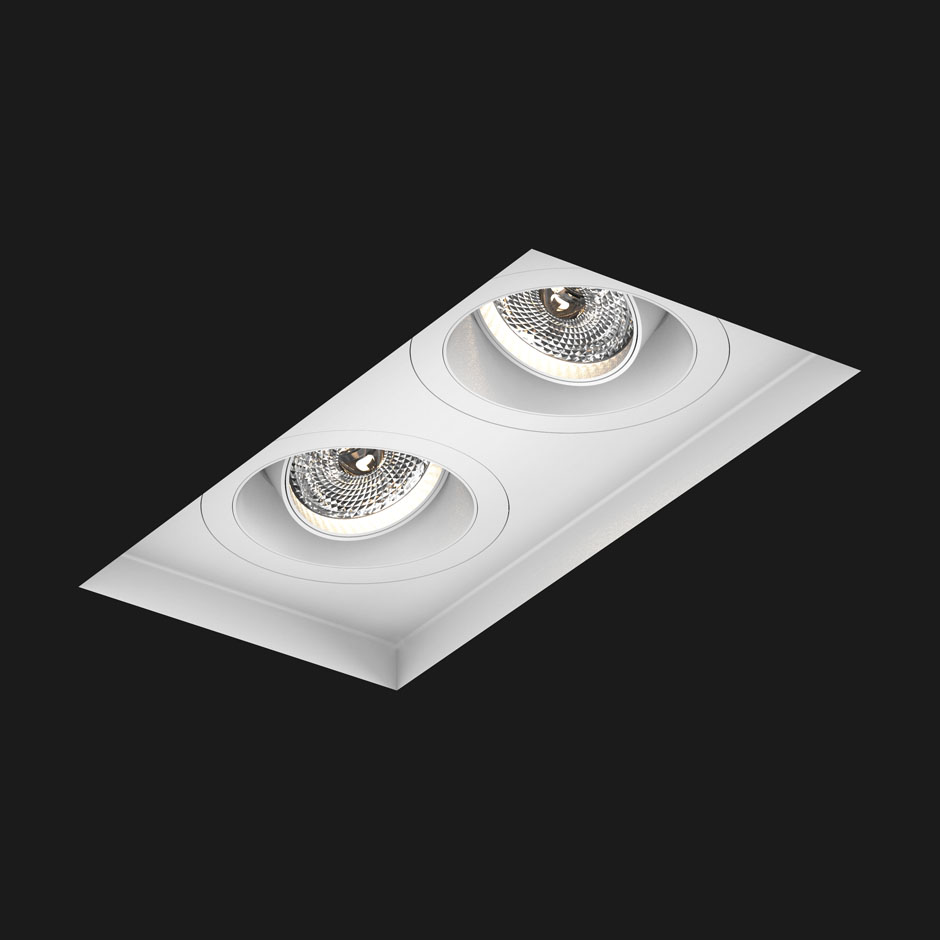

Aster Trimless Deep Square Mix Double

General Specifications

Luminaire Body

Type: Trimless Downlight
Positioning: Trimless
Material: Recycled aluminium
Adjustable: No
Rotation / tilt: 359° / 30°
El. Class: II (Protective earth not required)
IP: IP20
Cut-out dimensions: 262x132mm
Outer dimensions: 130mm
Weight: 2049g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 1800-3000K, 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Lens
Luminous flux System:
RA97 RA90
DTW(1800-3000K) 1548lm (112lm/W)
2700K 2349lm (82lm/W) 2590lm (90lm/W)
3000K 2509lm (87lm/W) 2709lm (94lm/W)
4000K 2601lm (90lm/W) 2865lm (100lm/W)
Luminous flux LED:
RA97 RA90
DTW(1800-3000K) 1720lm (138lm/W)
2700K 2610lm (101lm/W) 2878lm (111lm/W)
3000K 2788lm (108lm/W) 3010lm (116lm/W)
4000K 2890lm (112lm/W) 3184lm (123lm/W)
Flux code: 93 98 99 100 100
Beam Angle: 25° / 36° / 52°
LED Power: 25.9W
System Power: 28.8W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.
