Aster Mix 1-Tone
General Specifications
Luminaire Body
Type:
Recessed Downlight
Positioning:
Recessed
Material:
Recycled aluminium
Adjustable:
Yes
Rotation / tilt:
359° / 30°
El. Class:
II (Protective earth not required)
IP:
IP20
Cut-out diameter:
92mm
Outer diameter:
100mm
Weight:
556g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
1800-3000K, 2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
3
Optics:
Lens
Luminous flux System:
RA97
RA90
DTW(1800-3000K)
774lm (112lm/W)
2700K
1174lm (82lm/W)
1295lm (90lm/W)
3000K
1254lm (87lm/W)
1354lm (94lm/W)
4000K
1300lm (90lm/W)
1432lm (100lm/W)
Luminous flux LED:
RA97
RA90
DTW(1800-3000K)
860lm (138lm/W)
2700K
1305lm (101lm/W)
1439lm (111lm/W)
3000K
1394lm (108lm/W)
1505lm (116lm/W)
4000K
1445lm (112lm/W)
1592lm (123lm/W)
Flux code:
93 98 99 100 100
Beam Angle:
25° / 36° / 52°
LED Power:
13.0W
System Power:
14.4W
Driver location:
Remote
Lumen maintenance
L70B50:
>114.000 hrs
L70B20:
>114.000 hrs
L70B10:
>114.000 hrs
L80B50:
>114.000 hrs
L80B20:
>114.000 hrs
L80B10:
>114.000 hrs
L90B50:
>114.000 hrs
L90B20:
112.000 hrs
L90B10:
104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors

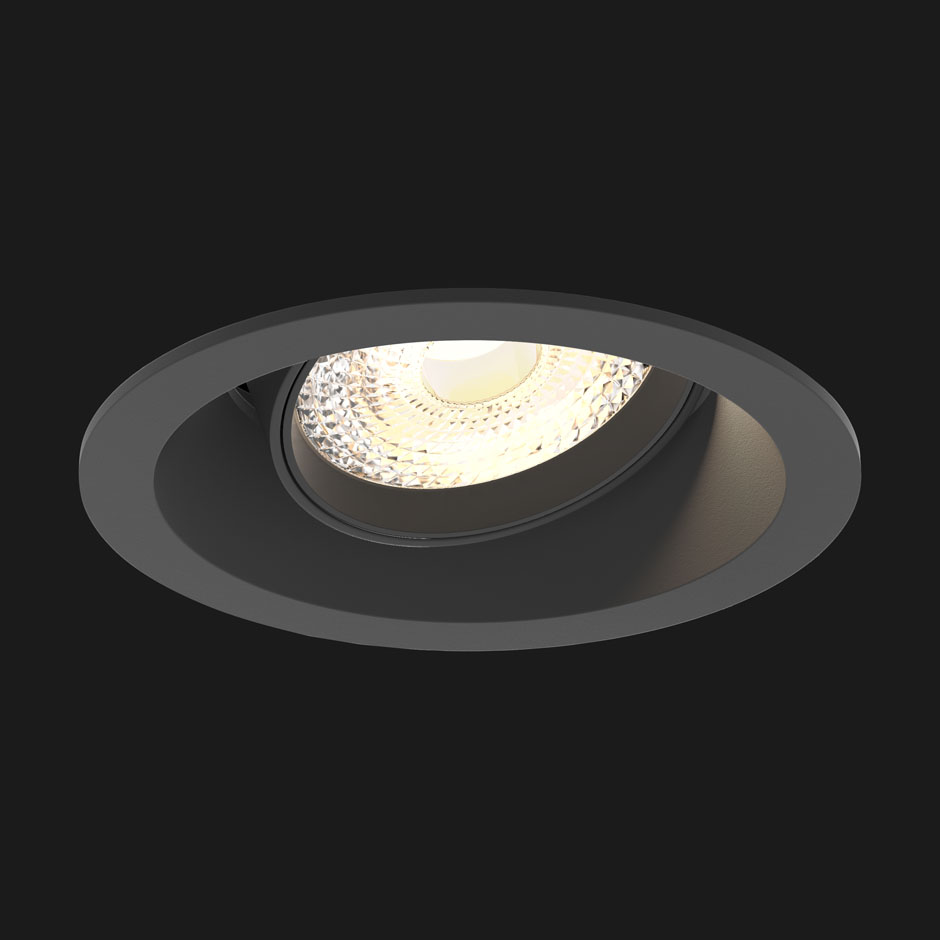

Anthracite

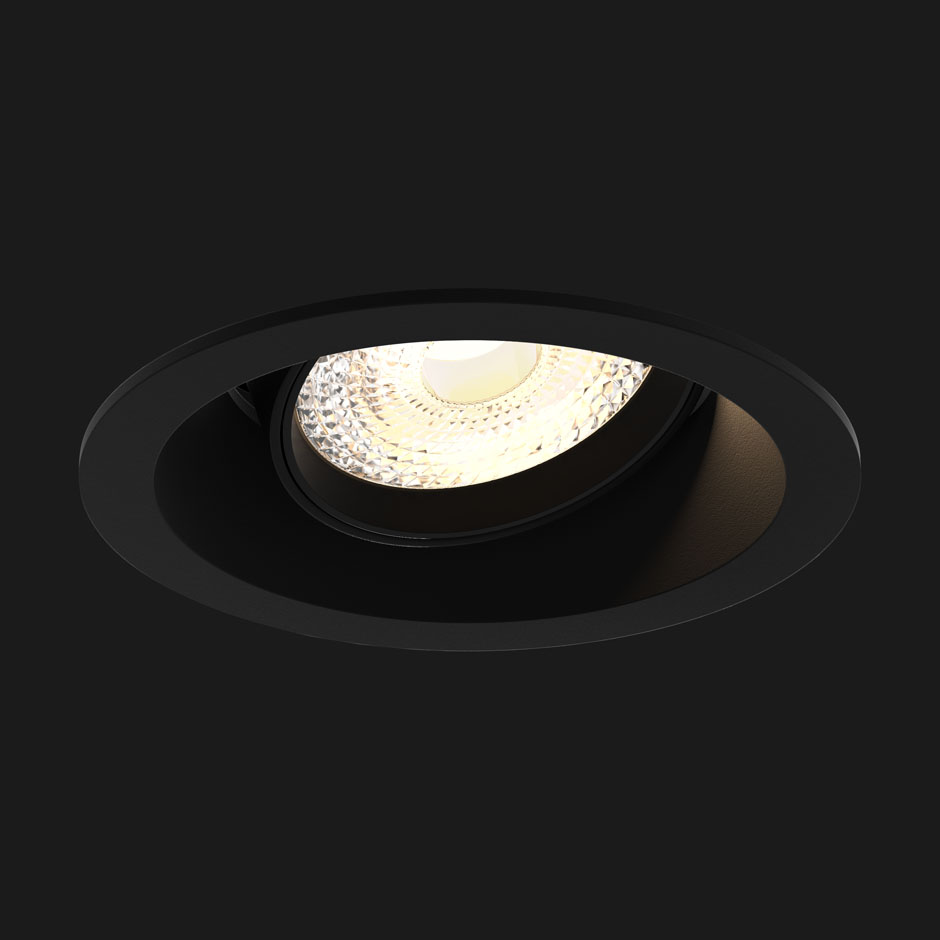

Black
Bronze

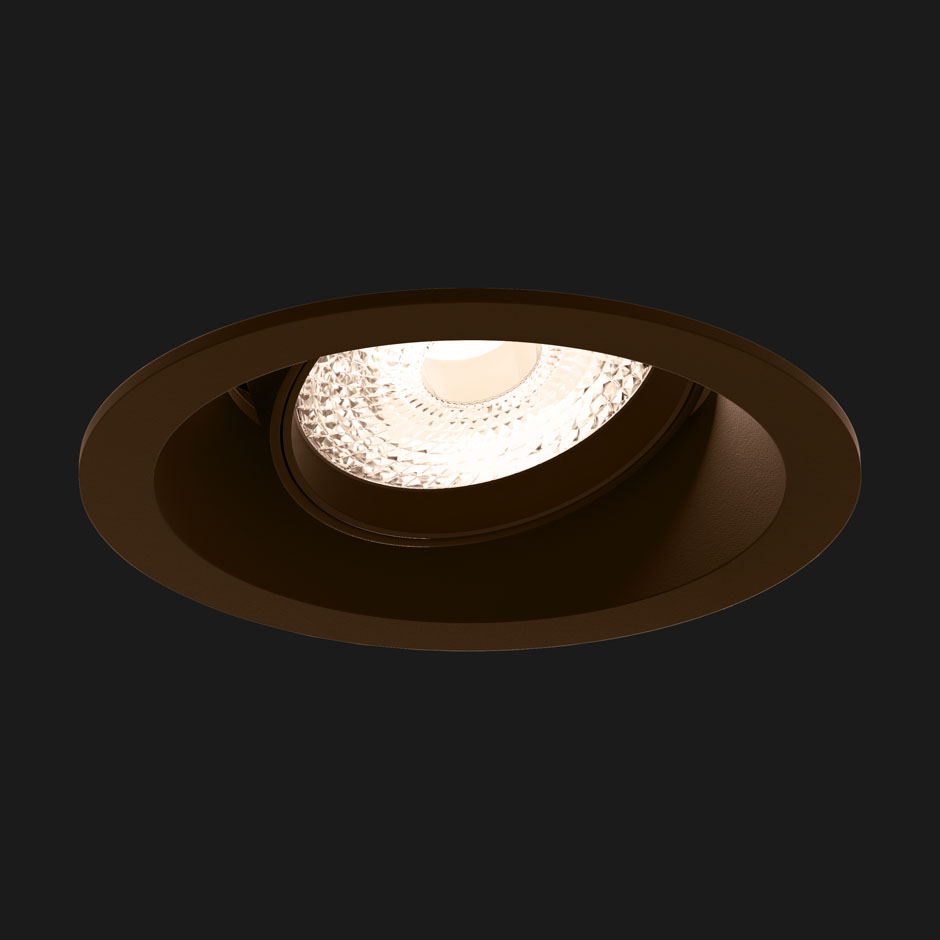

Brown

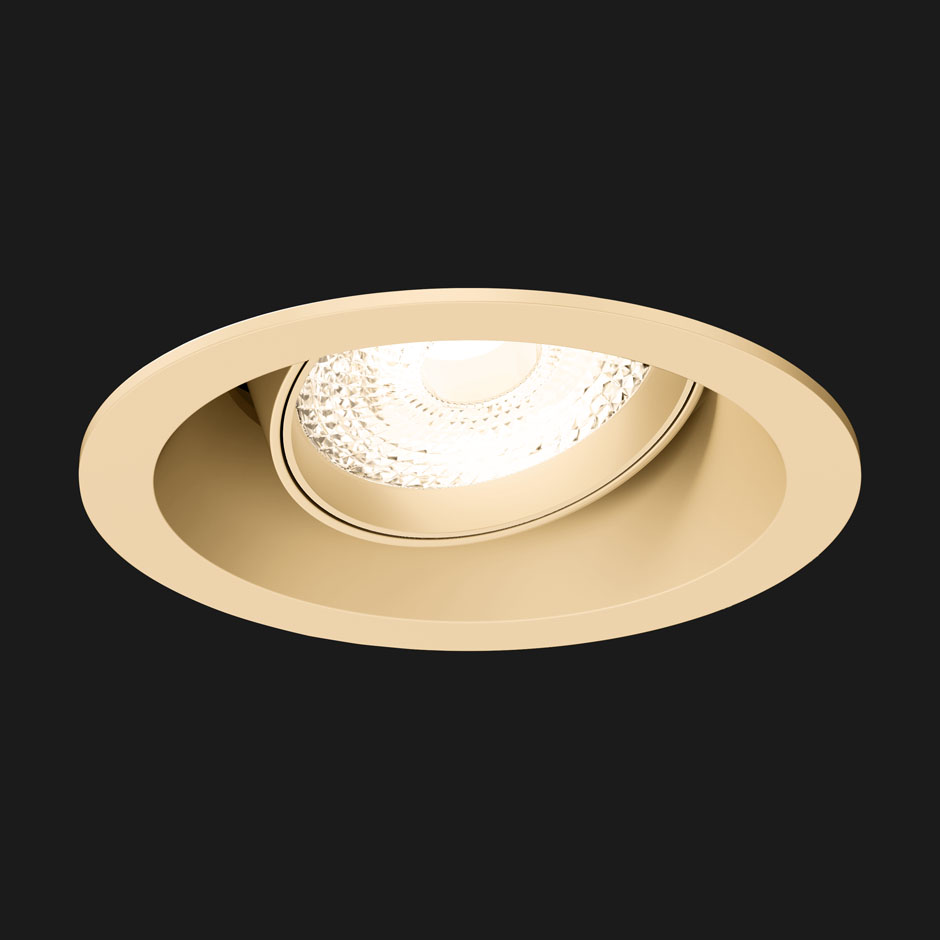

Champagne

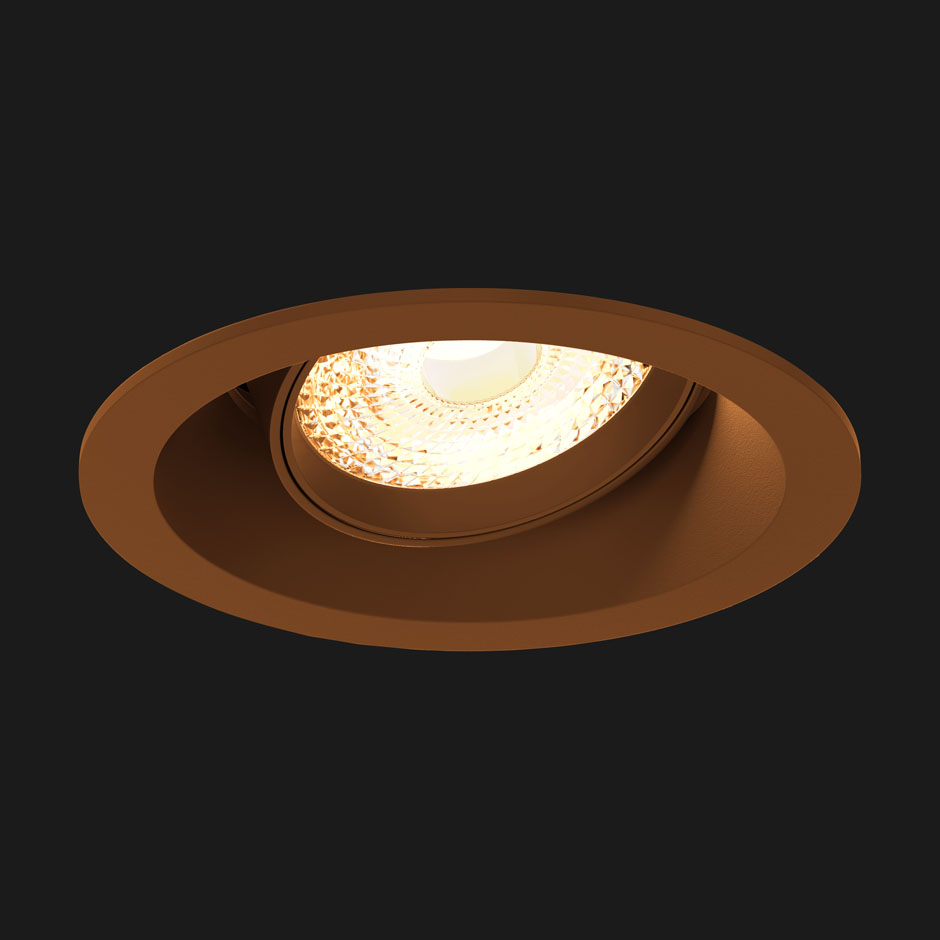

Corten
Gold

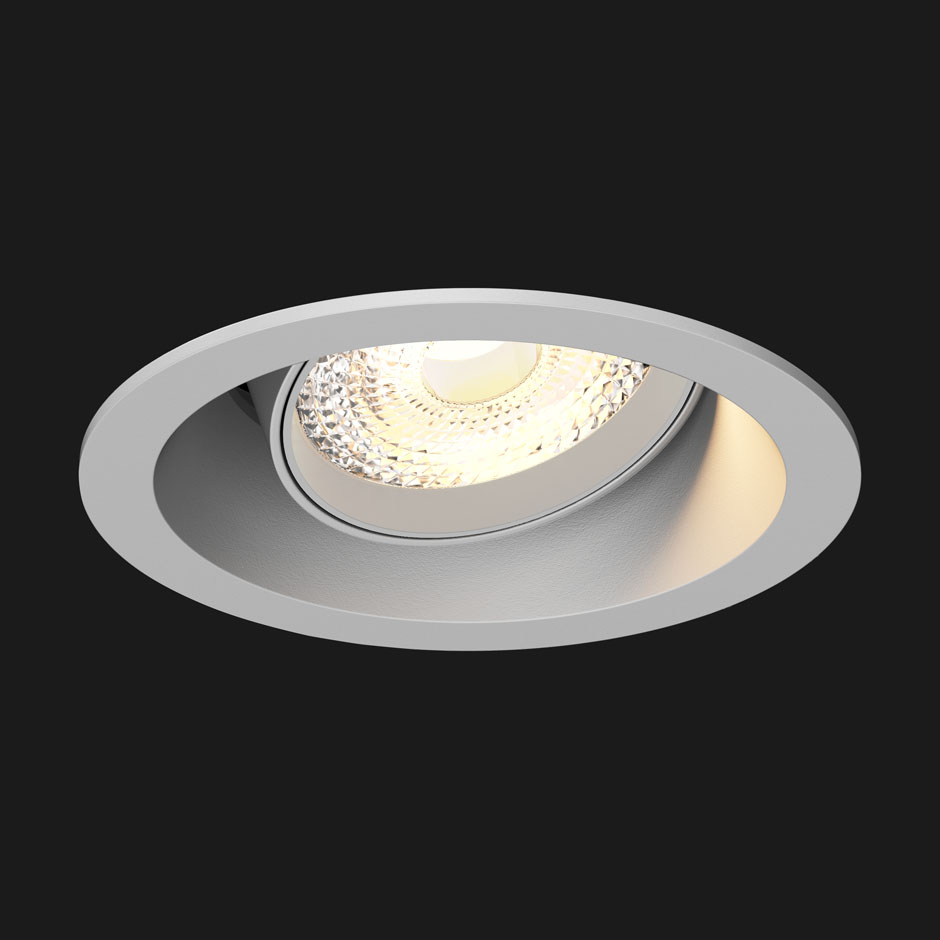

Grey

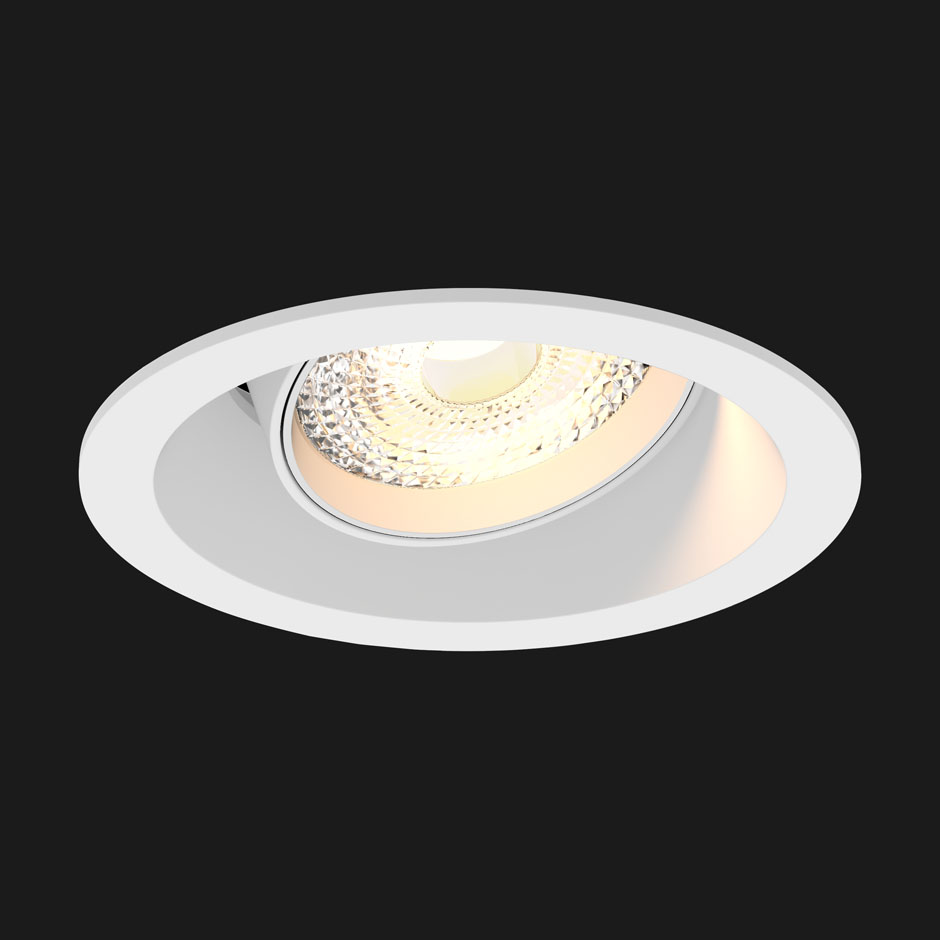

White
