Aster Fix IP44

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Aster Fix IP44

General Specifications

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: II (Protective earth not required)
IP: IP44

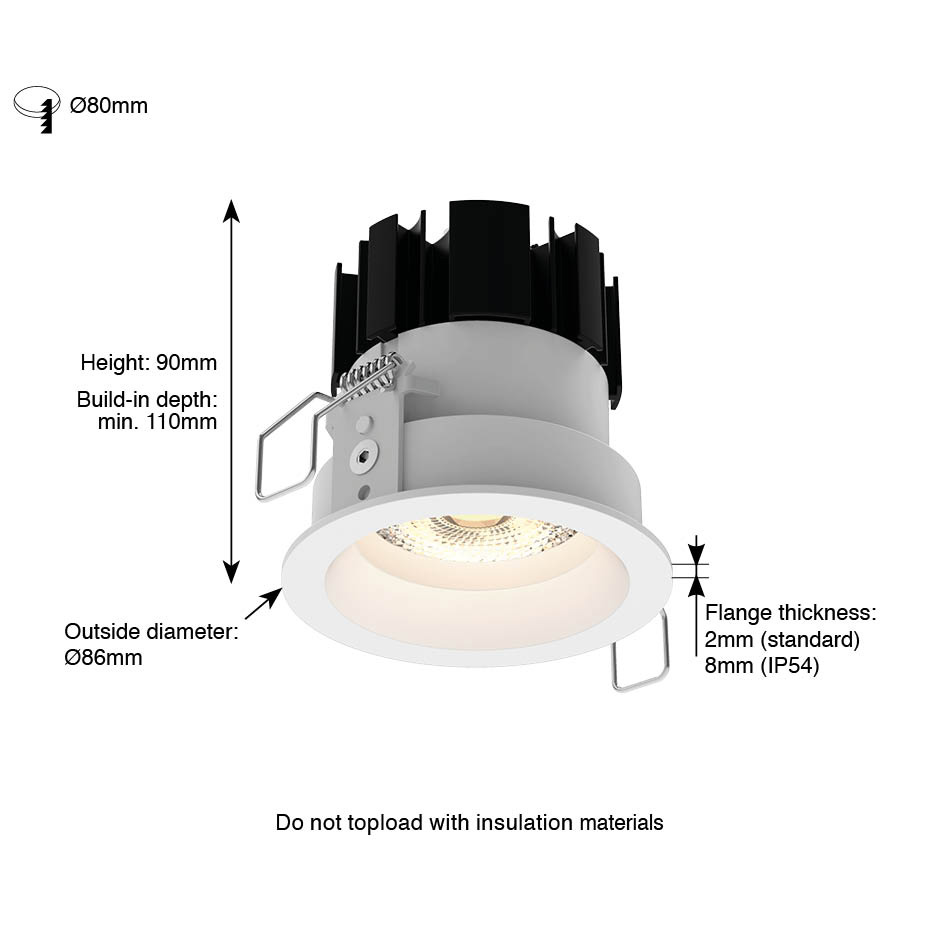

Cut-out diameter: 80mm
Outer diameter: 86mm
Weight: 592g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 1800-3000K, 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Lens
Luminous flux System:
RA97 RA90
DTW(1800-3000K) 774lm (112lm/W)
2700K 1174lm (82lm/W) 1295lm (90lm/W)
3000K 1254lm (87lm/W) 1354lm (94lm/W)
4000K 1300lm (90lm/W) 1432lm (100lm/W)
Luminous flux LED:
RA97 RA90
DTW(1800-3000K) 860lm (138lm/W)
2700K 1305lm (101lm/W) 1439lm (111lm/W)
3000K 1394lm (108lm/W) 1505lm (116lm/W)
4000K 1445lm (112lm/W) 1592lm (123lm/W)
Flux code: 93 98 99 100 100
Beam Angle: 25° / 36° / 52°
LED Power: 13.0W
System Power: 14.4W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.
