stdClass Object
(
    [ID] => 2
    [TypeLichtbron] => COB
    [WebType] => 1
    [Groep] => Spots
    [Montage] => 8
    [SerieNummer] => 1506
    [Aanpasbaar] => 1
    [familie] => 2
    [SubFamilie] => 1506 Juno Mix Square Reflector
    [SerieID] => 290
    [SubFamilieWeb] => 1506-juno-mix-square-reflector
    [ArtikelNummer] => 1506.44.24.927.03
    [Omschrijving] => 54 mm
    [MinVoltage] => 21.00
    [MaxVoltage] => 25.80
    [TypVoltage] => 23.40
    [Amperage] => 150.00
    [LummenFluxLED] => 458.00
    [LummenFluxSysteem] => 380.14
    [ReductieFactor] => 83.00
    [LedPower] => 3.51
    [SystemPower] => 3.90
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 154
    [UGR] => 3
    [TypeSpot] => Recessed Downlight
    [Materiaal] => Recycled aluminium
    [InbouwDiameter] => 54 mm
    [InbouwCategorieID] => 4
    [InbouwHoogte] => 0.00
    [LedID] => 2
    [OptiekID] => 2
    [ElecClassID] => 2
    [ReflectorID] => 12
    [LakKleurID] => 2
    [PrimaryColor] => Black
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 3
    [BevestigingID] => 0
    [SpotOrientatie] => 2
    [SpotVorm] => 1
    [DriverIngebouwd] => 0
    [AantLeds] => 1.00
    [UgrOpmerking] =>
    [Ugr13] => 0
    [Ugr16] => 0
    [Ugr19] => 0
    [ZichtbaarApparaatHoogte] => 3 mm
    [ApparaatDiameter] => 58x58
    [Rotatie] => 359u00b0
    [Tilt] => 33u00b0
    [FluxCode] => 86 98 100 100 99
    [FluxFoto] => 2653 FF - Juno - Reflector 44d.jpg
    [GeenSystemFlux] => 0
    [CRI] => 90
    [CCT] => 2700
    [SDCM] => 3
    [EnergieKlasseID] => 6
    [L70B50] => >114.000 hrs
    [L70B20] => >114.000 hrs
    [L70B10] => >114.000 hrs
    [L80B50] => >114.000 hrs
    [L80B20] => >114.000 hrs
    [L80B10] => >114.000 hrs
    [L90B50] => >114.000 hrs
    [L90B20] => 112.000 hrs
    [L90B10] => 104.000 hrs
    [GatID] => 4
    [GatDiameter] => 54.00
    [Rechthoek] => 0
    [Lengte] => 0.00
    [Breedte] => 0.00
    [FilterDiameter] => 54.00
    [mounting] => Recessed
    [eCode] => II
    [eDesc] => Protective earth not required
    [sdcm] => 3
    [gat_omschrijving] => 54 mm
    [aanpasbaar] => 1
    [materiaal] => Recycled aluminium
    [dimming] => 1-10V Dim, Dali Dim, Non Dim, Push/Touch Dim
    [hoogte] => 0.00
    [diameter] => 54 mm
    [cct] => 2700,3000,4000
    [cri] => 90,97
    [beam_angles] => 44u00b0
    [optiek] => Reflector
    [primaire_kleuren] => Anthracite, Black, Bronze, Brown, Champagne, Corten, Gold, Grey, White
    [secundaire_kleuren] =>
    [kleuren_combos] => Anthracite/Anthracite;Black/Black;Bronze/Bronze;Brown/Brown;Champagne/Champagne;Corten/Corten;Gold/Gold;Grey/Grey;White/White
    [cri_values] => 90/97
    [cct_values] => 2700/3000/4000
    [led_table] => 90/2700/380.14/3.90/458.00/3.51;90/3000/395.08/3.90/476.00/3.51;90/4000/404.21/3.90/487.00/3.51;97/2700/349.43/3.90/421.00/3.51;97/3000/373.50/3.90/450.00/3.51;97/4000/396.74/3.90/478.00/3.51
)

Juno Mix Square Reflector

Available Colours

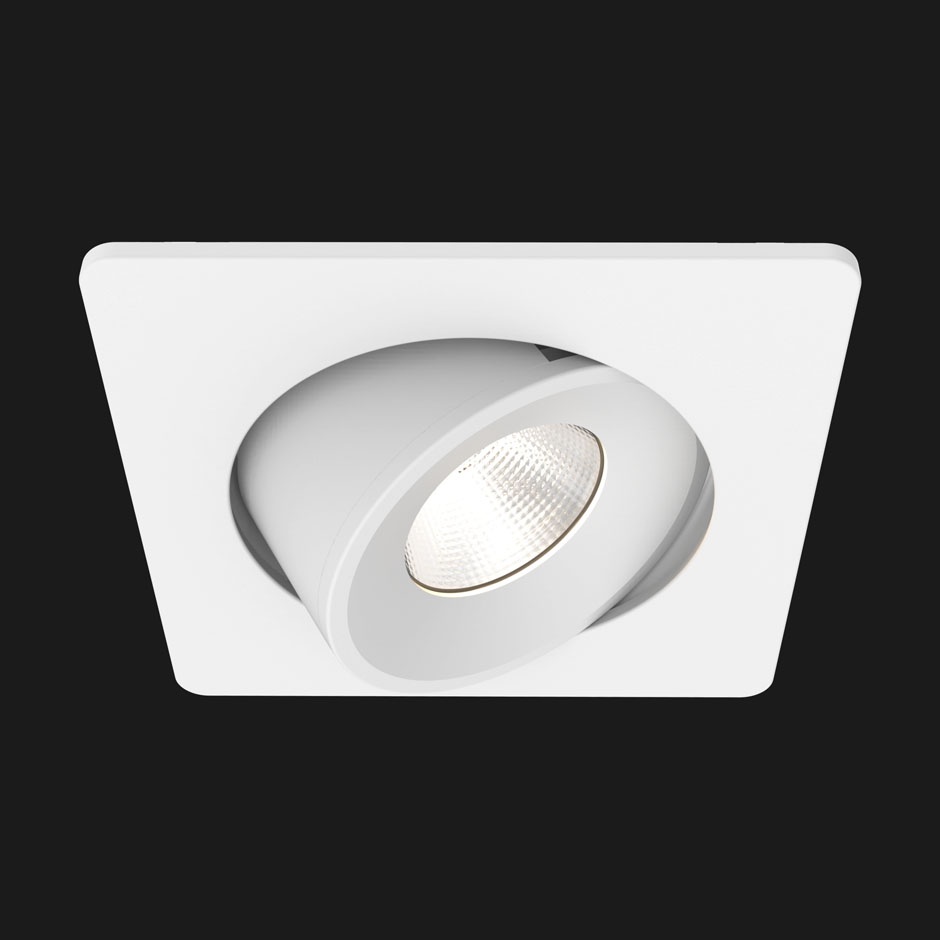

  • White

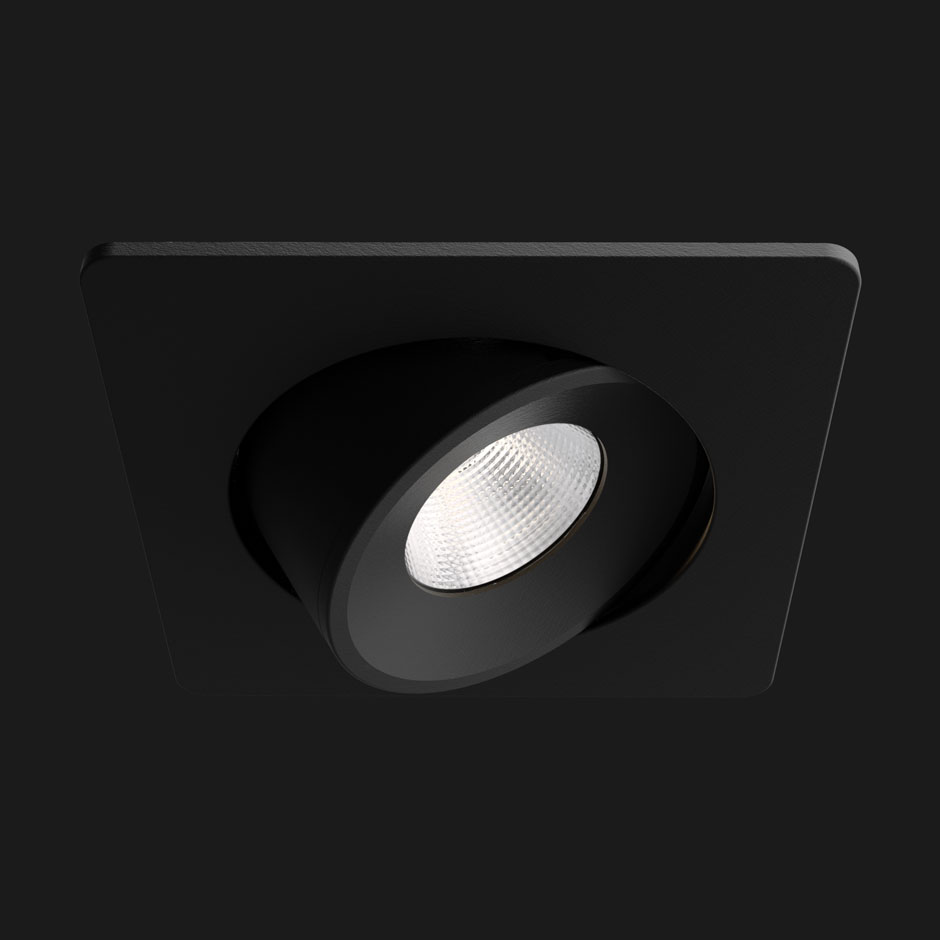

  • Black

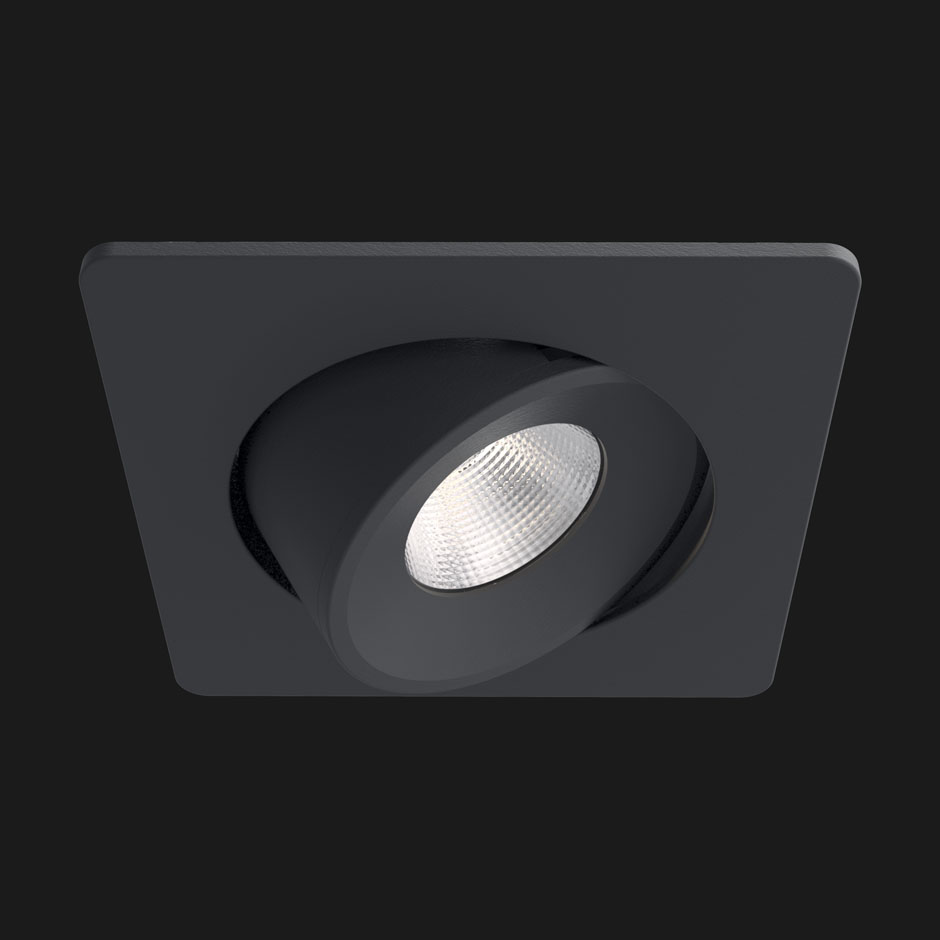

  • Anthracite

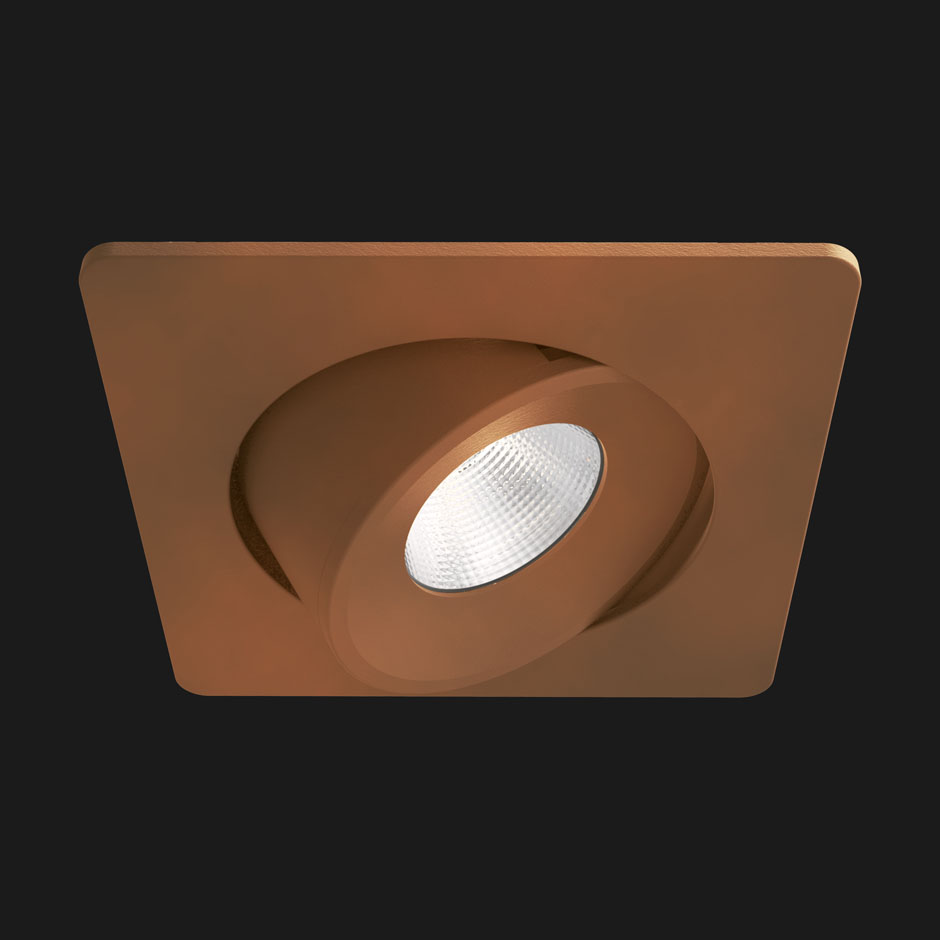

  • Corten

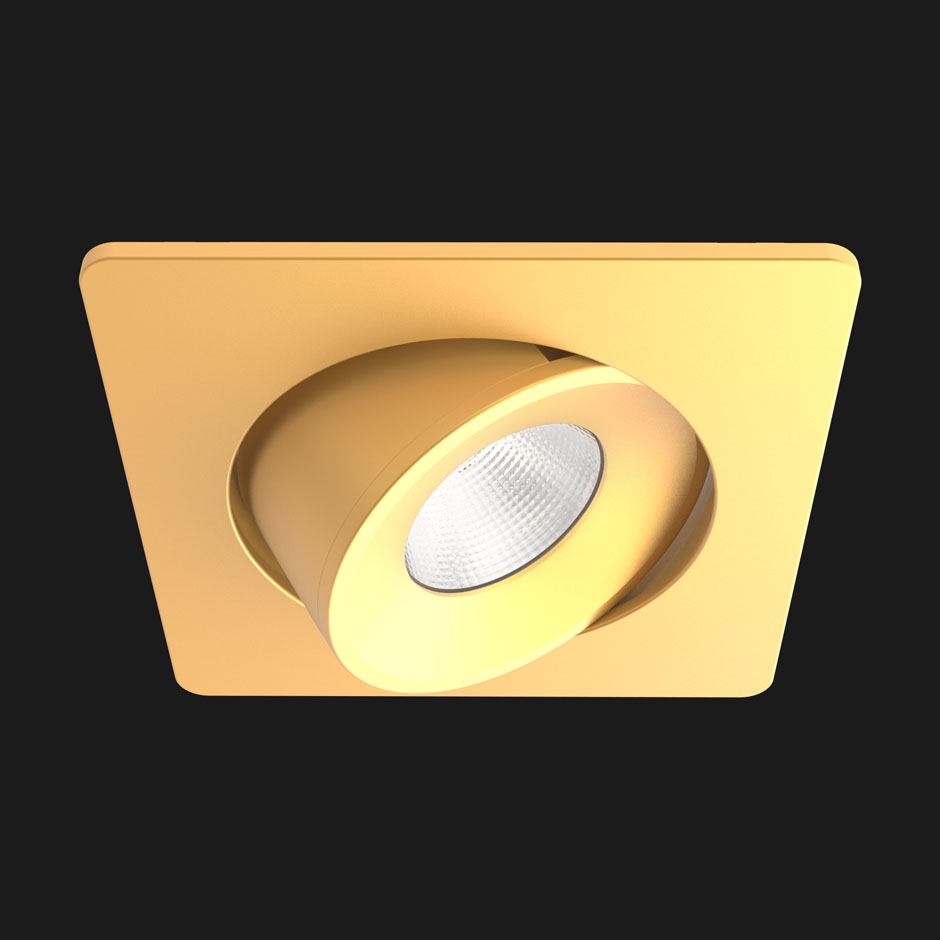

  • Gold

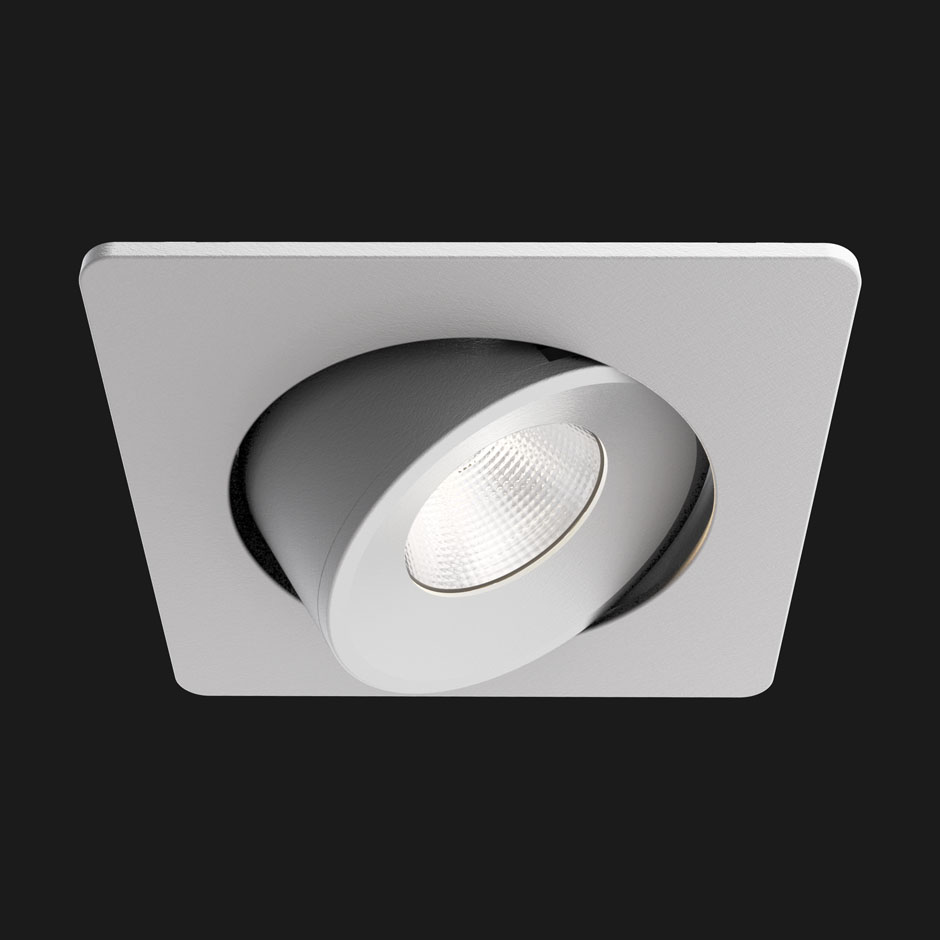

  • Grey
  • Brown

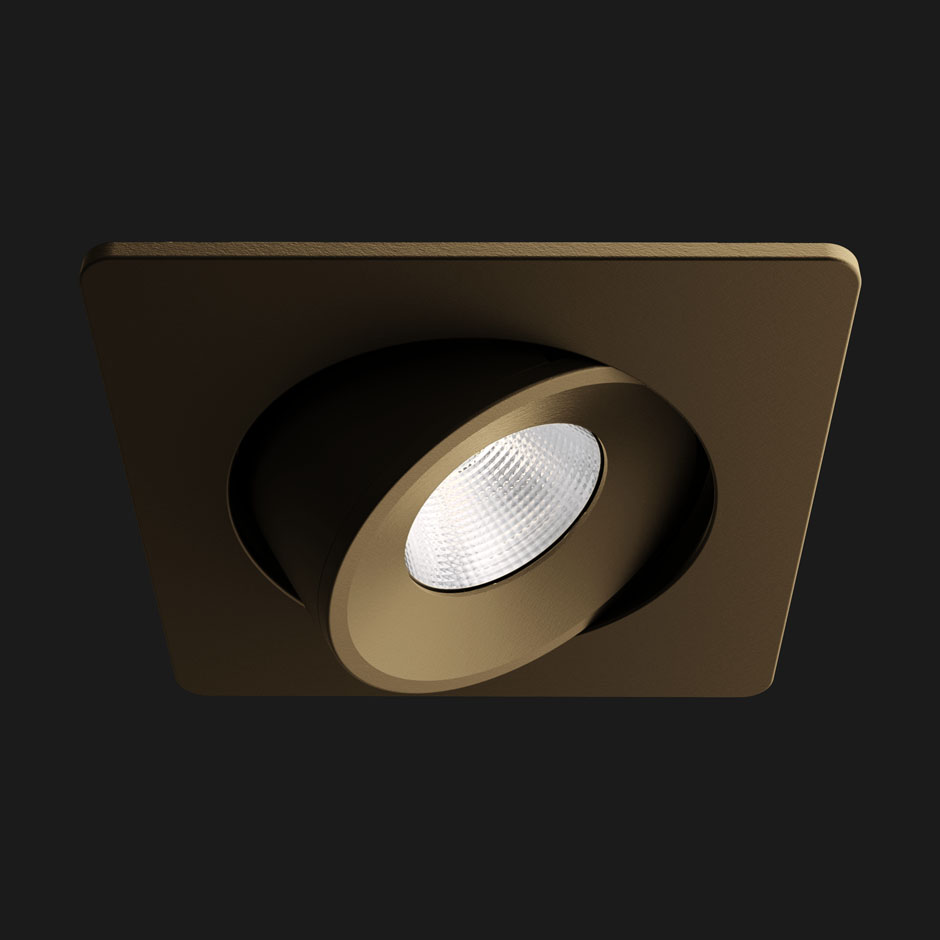

  • Bronze

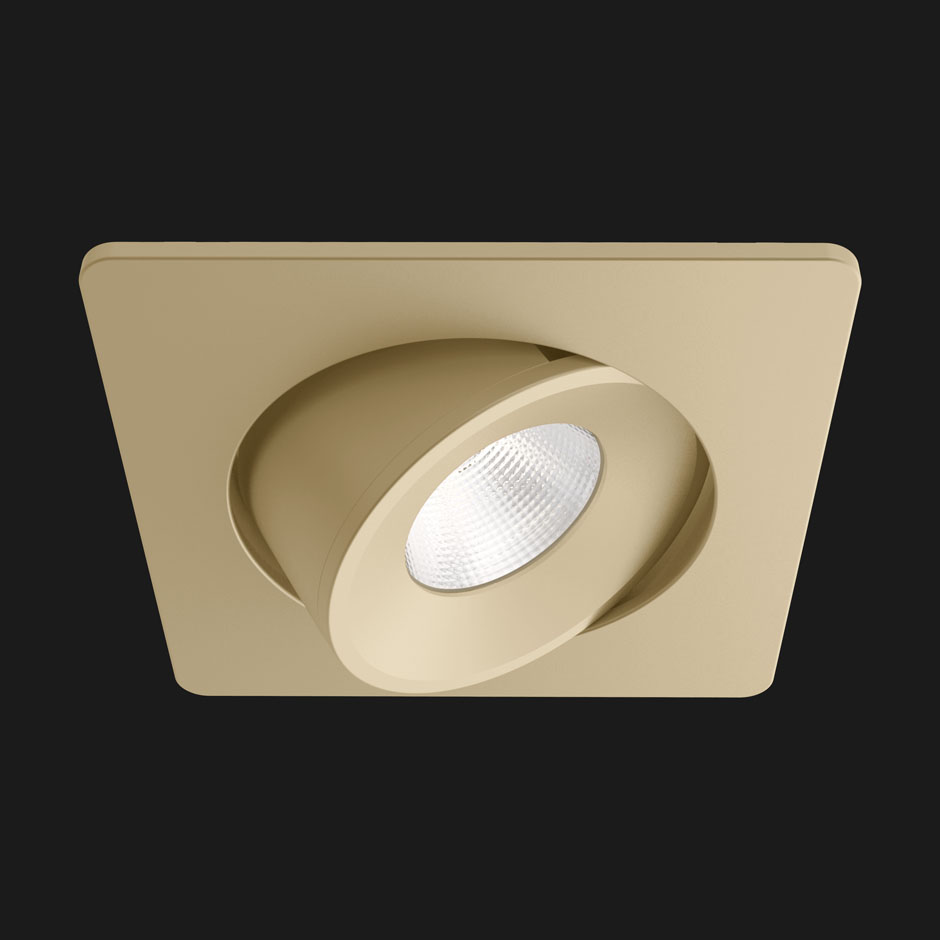

  • Champagne

Our products can be finished in a RAL colour of your choice on request.

Juno Mix Square Reflector

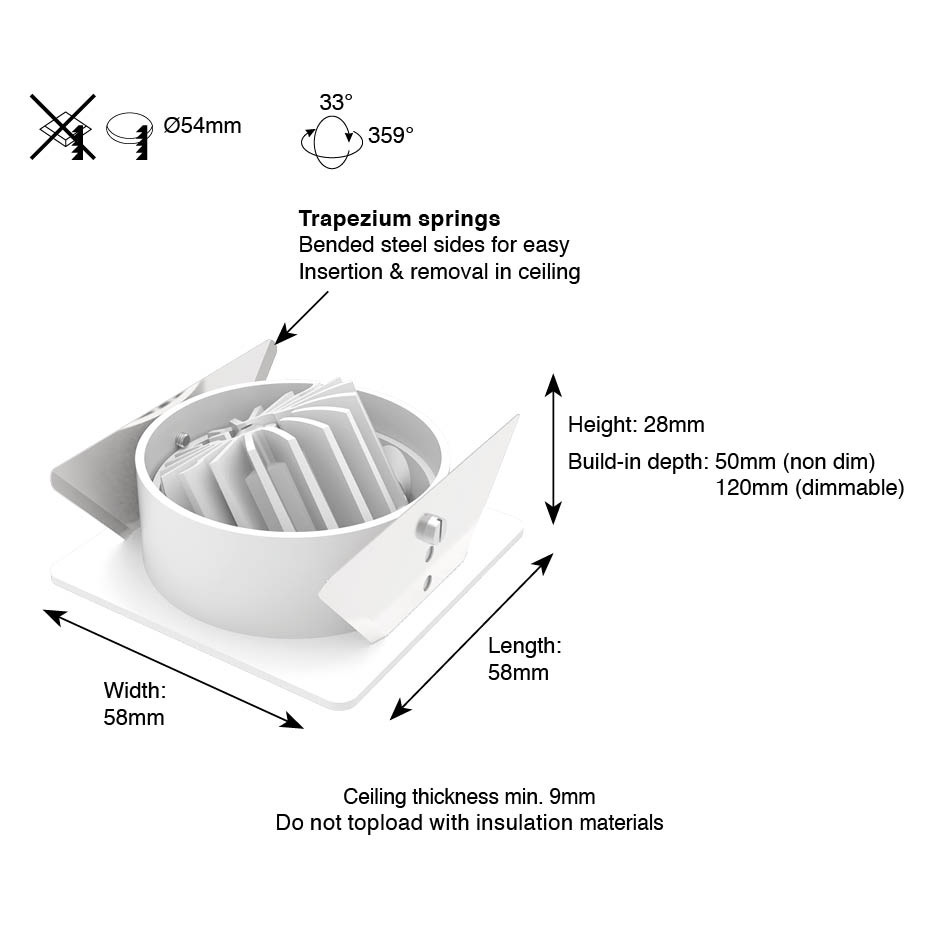

General Specifications

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 33°
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 54mm
Outer diameter: 58mm
Weight: 154g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 349lm (90lm/W) 380lm (97lm/W)
3000K 373lm (96lm/W) 395lm (101lm/W)
4000K 396lm (102lm/W) 404lm (104lm/W)
Luminous flux LED:
RA97 RA90
2700K 421lm (120lm/W) 458lm (130lm/W)
3000K 450lm (128lm/W) 476lm (136lm/W)
4000K 478lm (136lm/W) 487lm (139lm/W)
Flux code: 86 98 100 100 99
Beam Angle: 44°
LED Power: 3.5W
System Power: 3.9W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Bronze
Brown
Champagne
Corten
Gold
Grey
White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
