Focus Trimless Deep Extra (500mA)
General Specifications
Luminaire Body
Type:

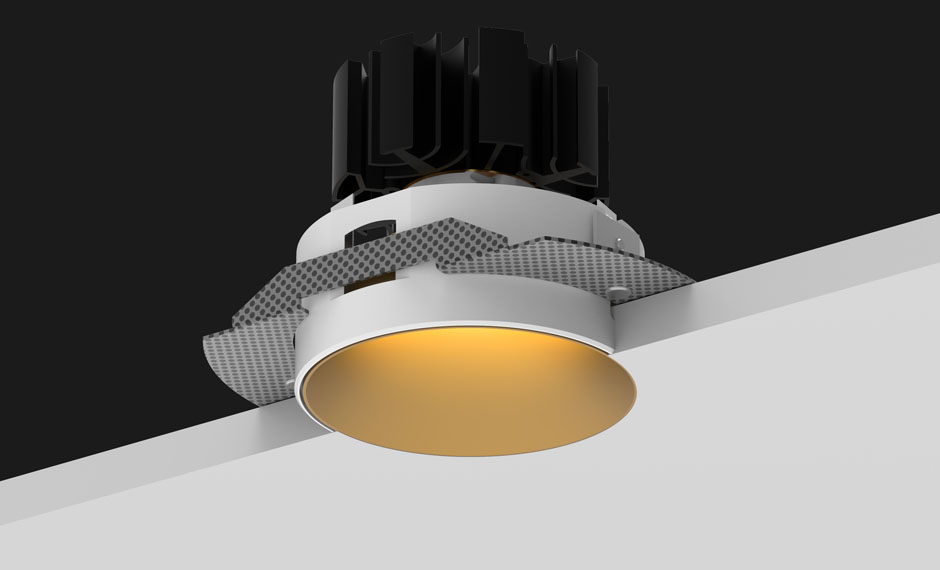

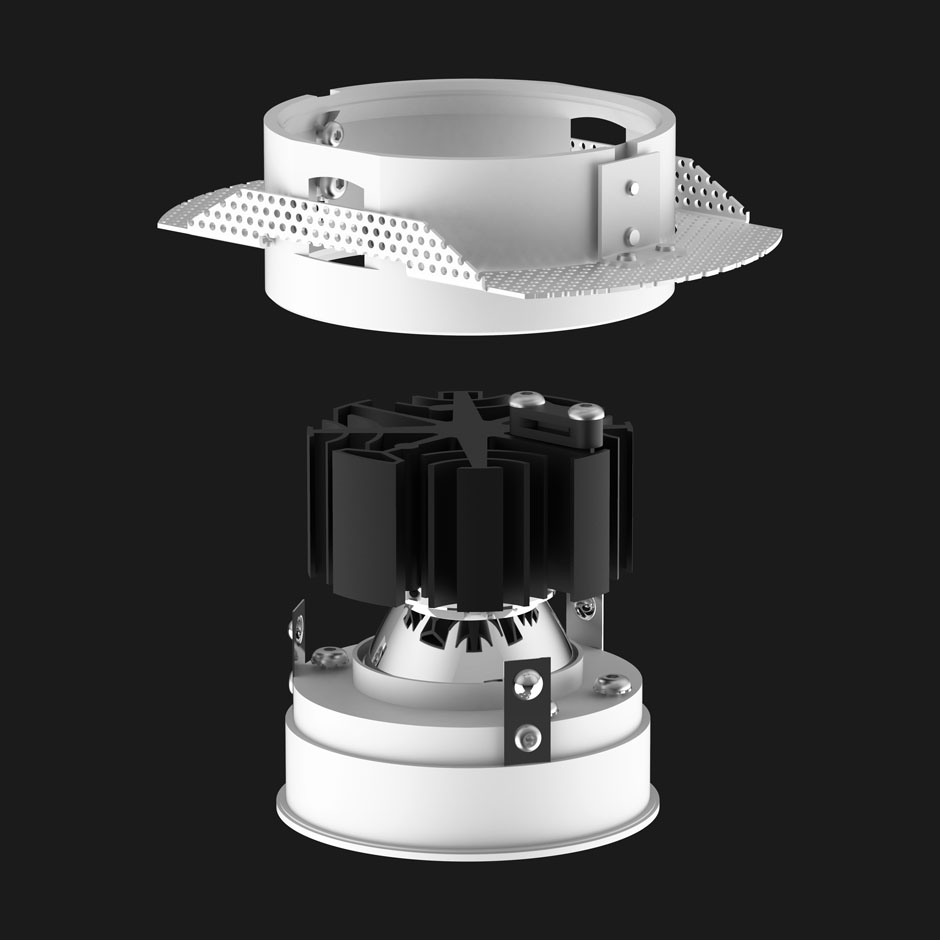

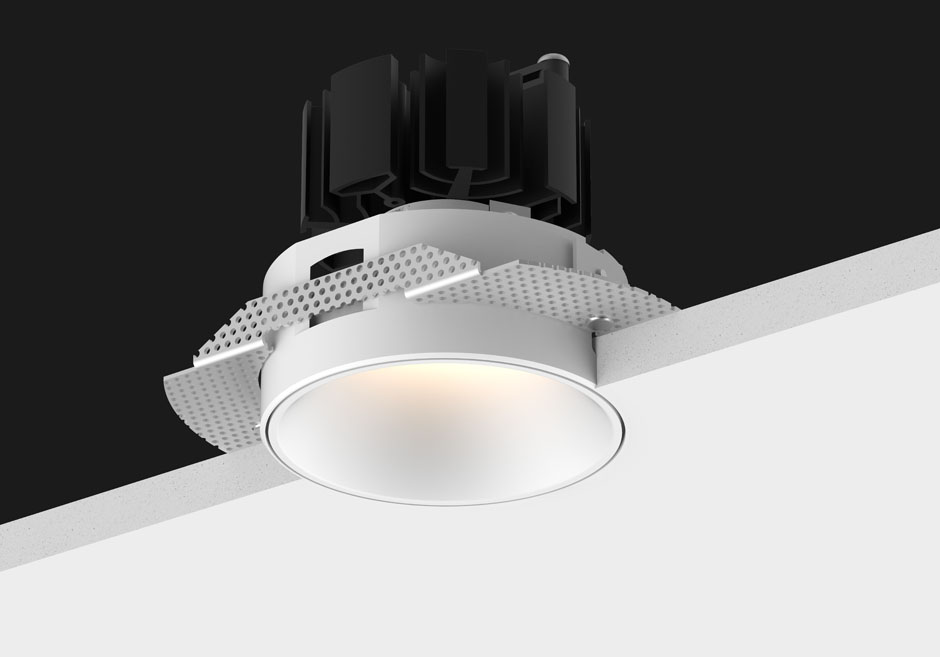

Trimless Downlight
Positioning:
Trimless
Material:
Recycled aluminium
Adjustable:
No
Rotation / tilt:
Fixed / Fixed
El. Class:
II (Protective earth not required)
IP:
IP20

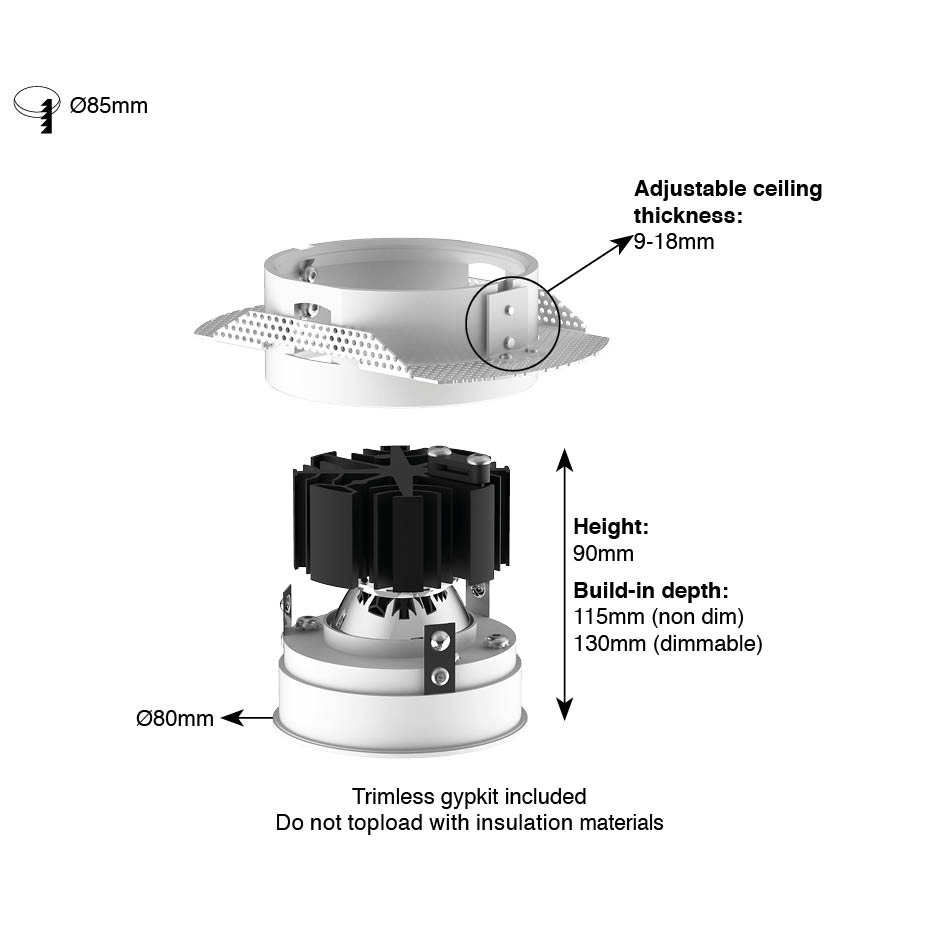

Cut-out diameter:
85mm
Outer diameter:
80mm
Weight:
449g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
2
Optics:
Reflector
Luminous flux System:
RA97
RA90
2700K
0lm
3000K
0lm
0lm
4000K
0lm
0lm
Luminous flux LED:
RA97
RA90
2700K
1974lm (120lm/W)
3000K
2072lm (126lm/W)
2202lm (134lm/W)
4000K
1974lm (120lm/W)
2236lm (136lm/W)
Beam Angle:
24° / 28° / 44°
LED Power:
16.5W
System Power:
18.3W
Driver location:
Remote
Lumen maintenance
L70B50:
> 50.000 hrs
L70B20:
> 50.000 hrs
L70B10:
> 50.000 hrs
L80B50:
> 50.000 hrs
L80B20:
> 50.000 hrs
L80B10:
> 50.000 hrs
L90B50:
> 50.000 hrs
L90B20:
> 50.000 hrs
L90B10:
> 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors

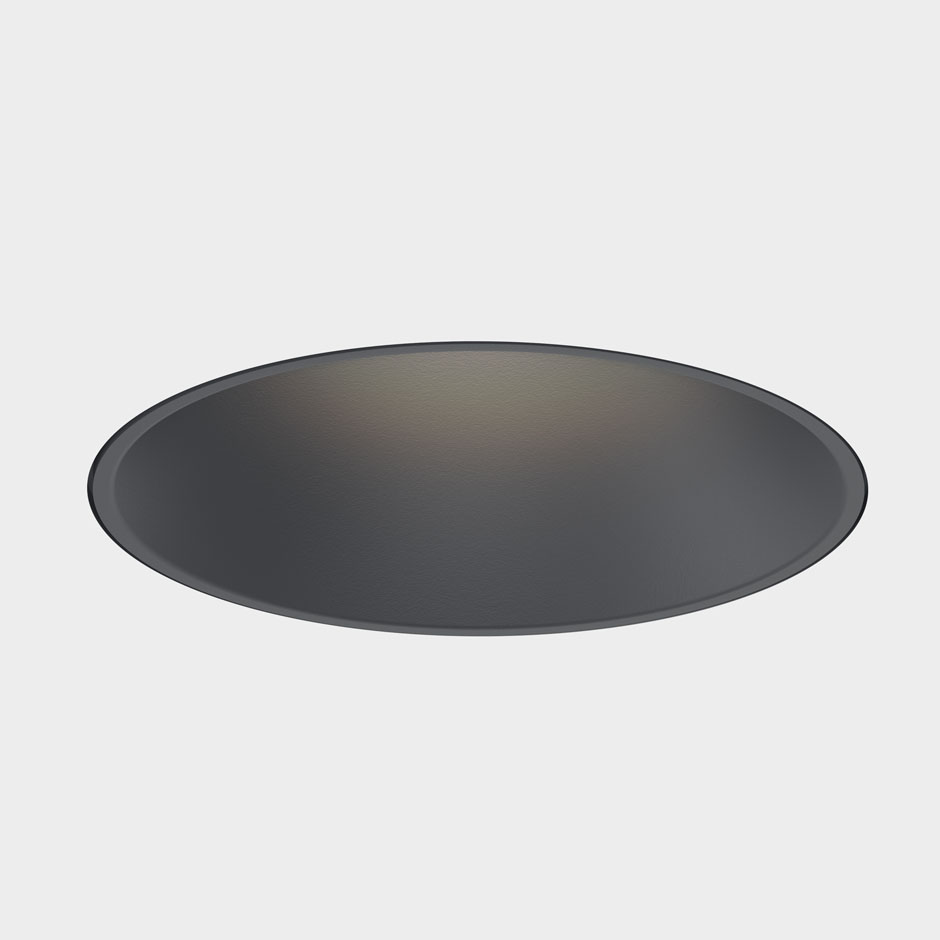

Anthracite

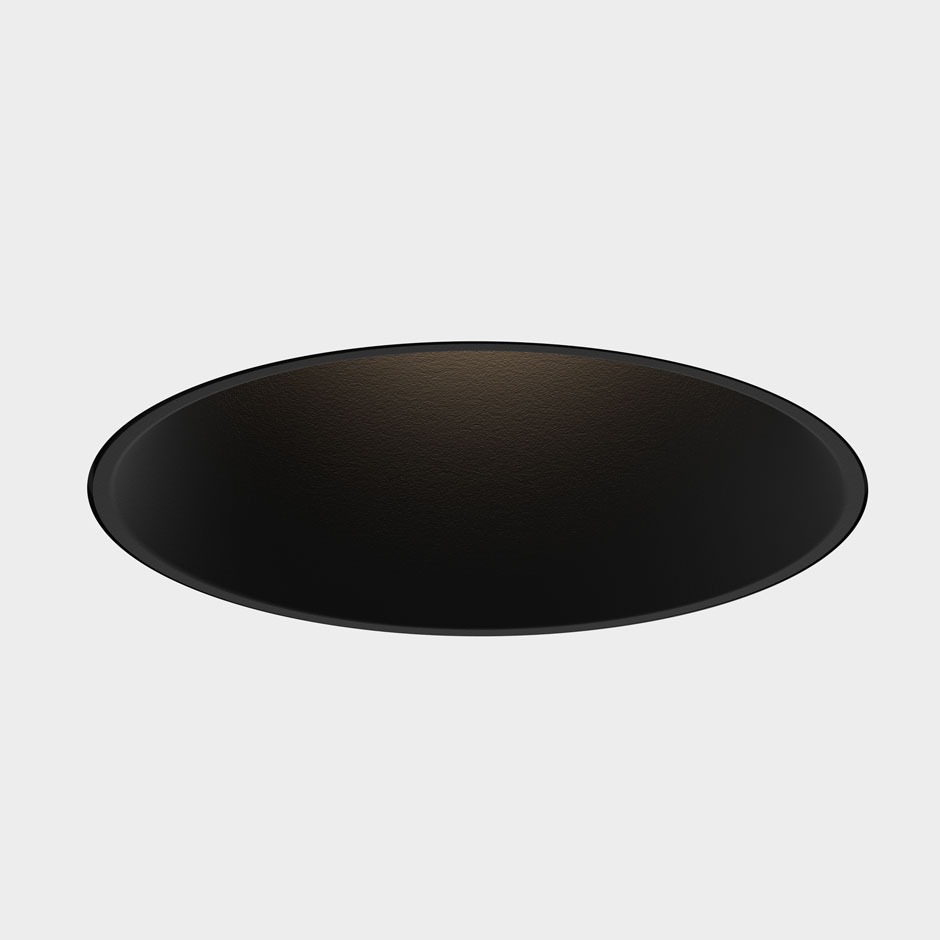

Black

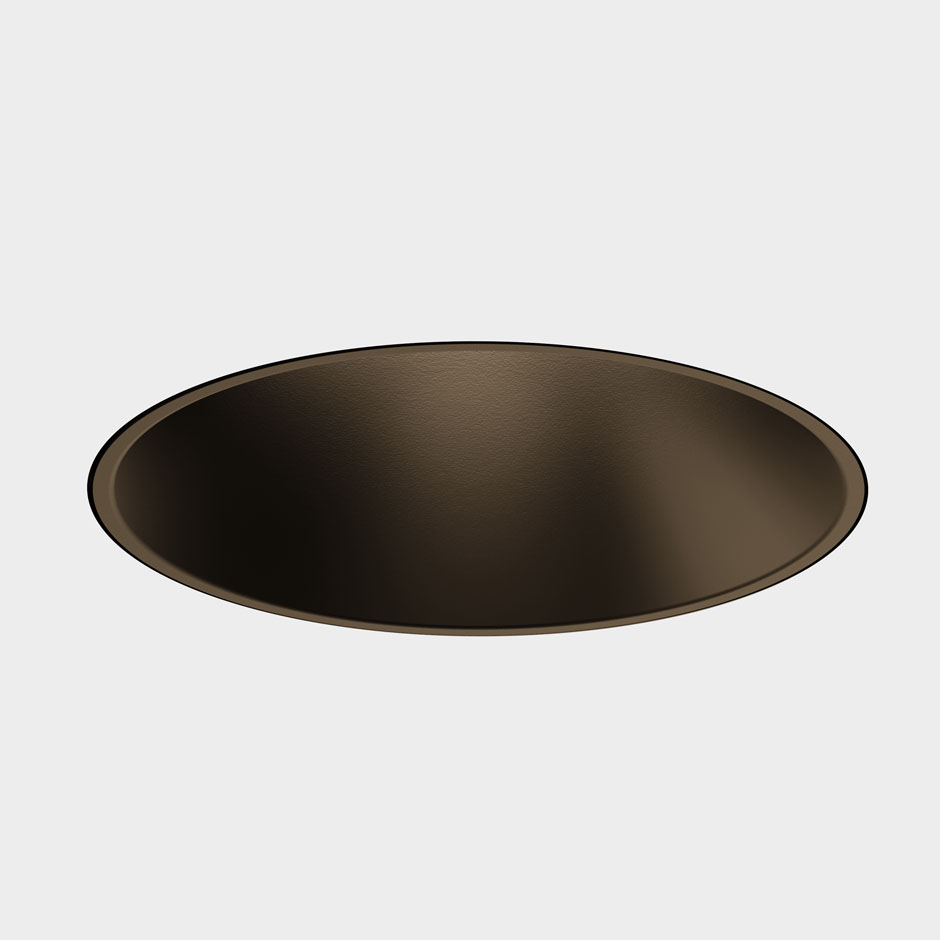

Bronze
Brown

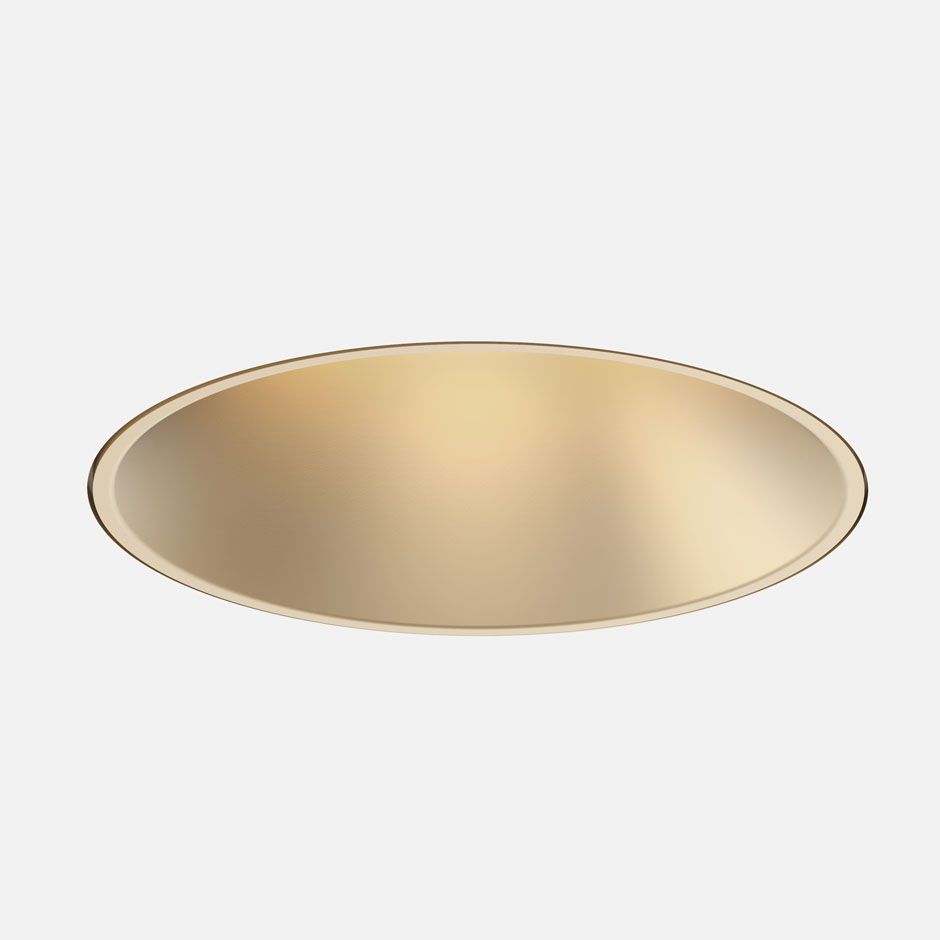

Champagne

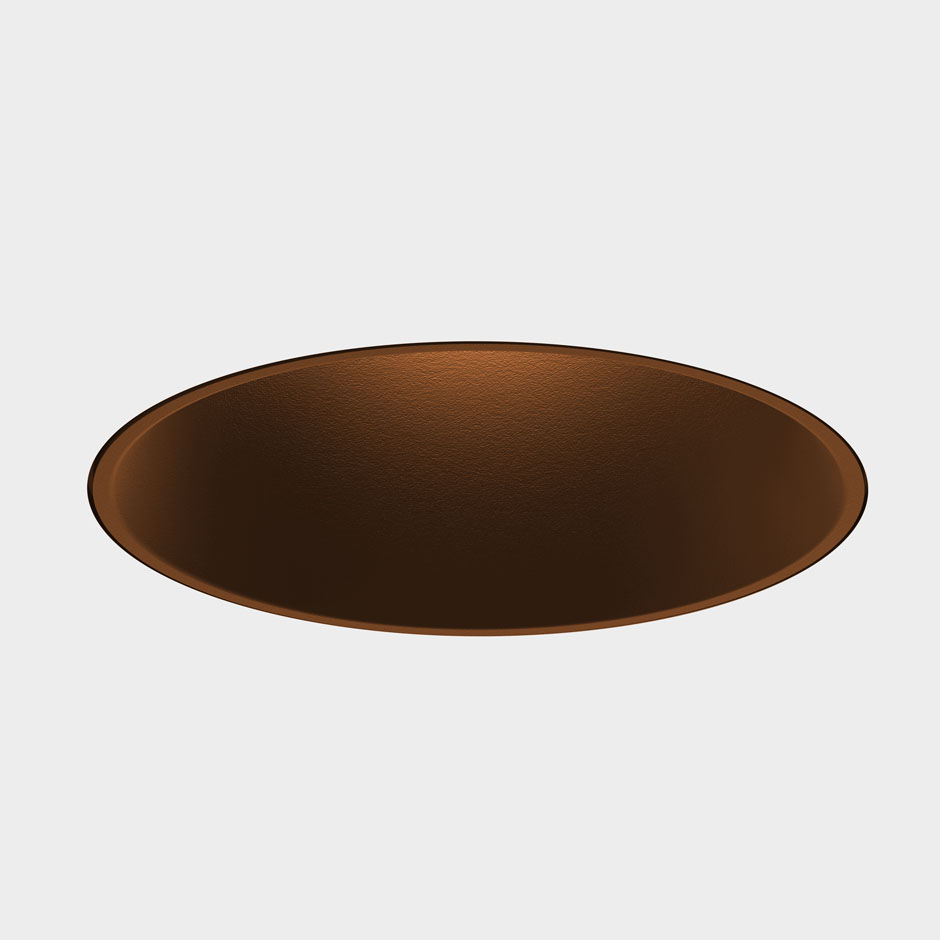

Corten

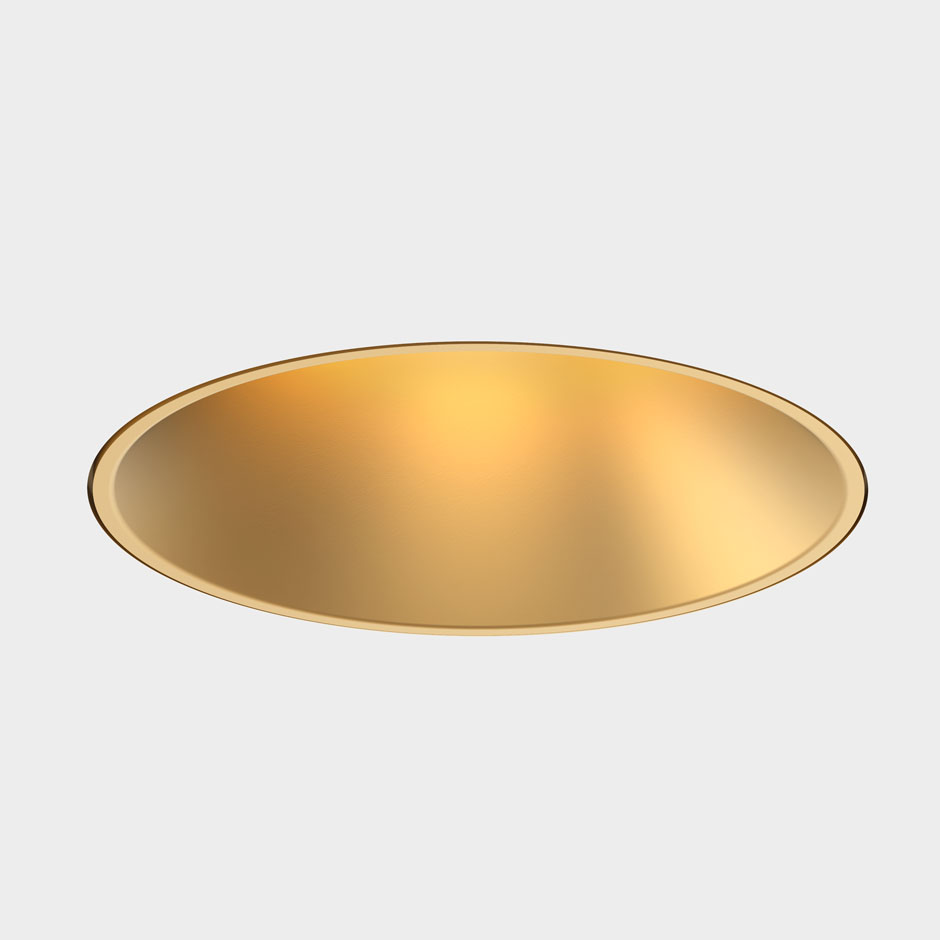

Gold

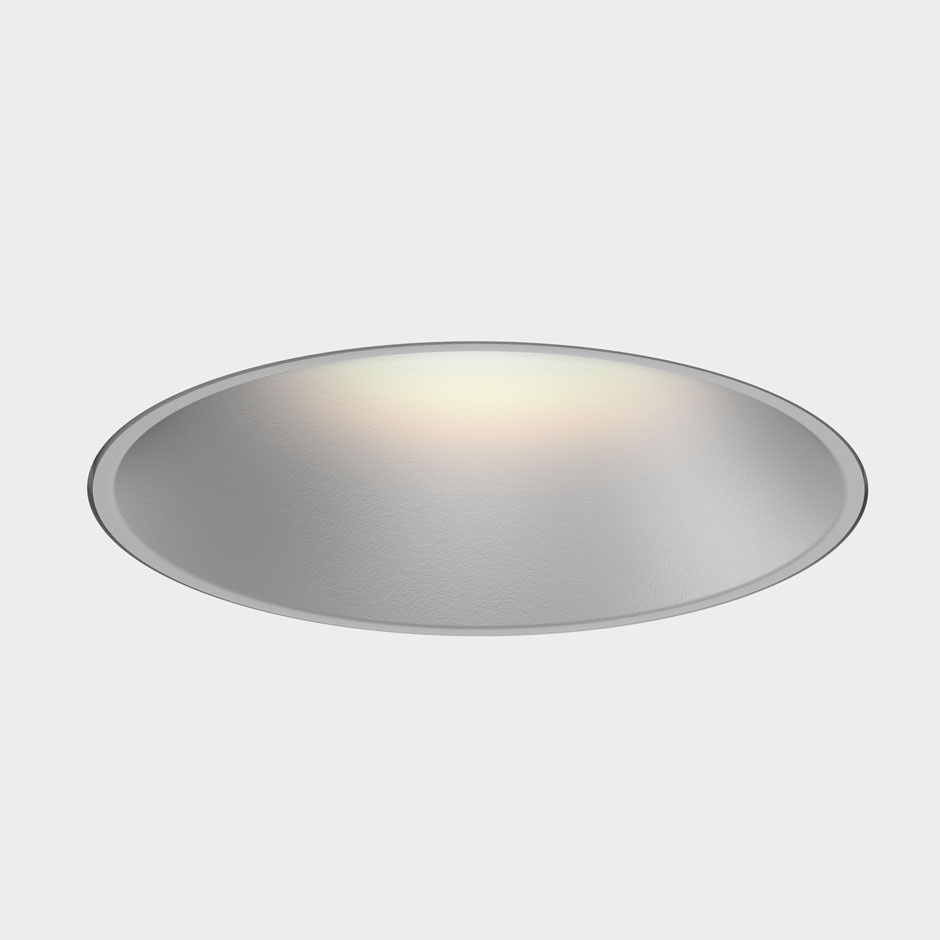

Grey

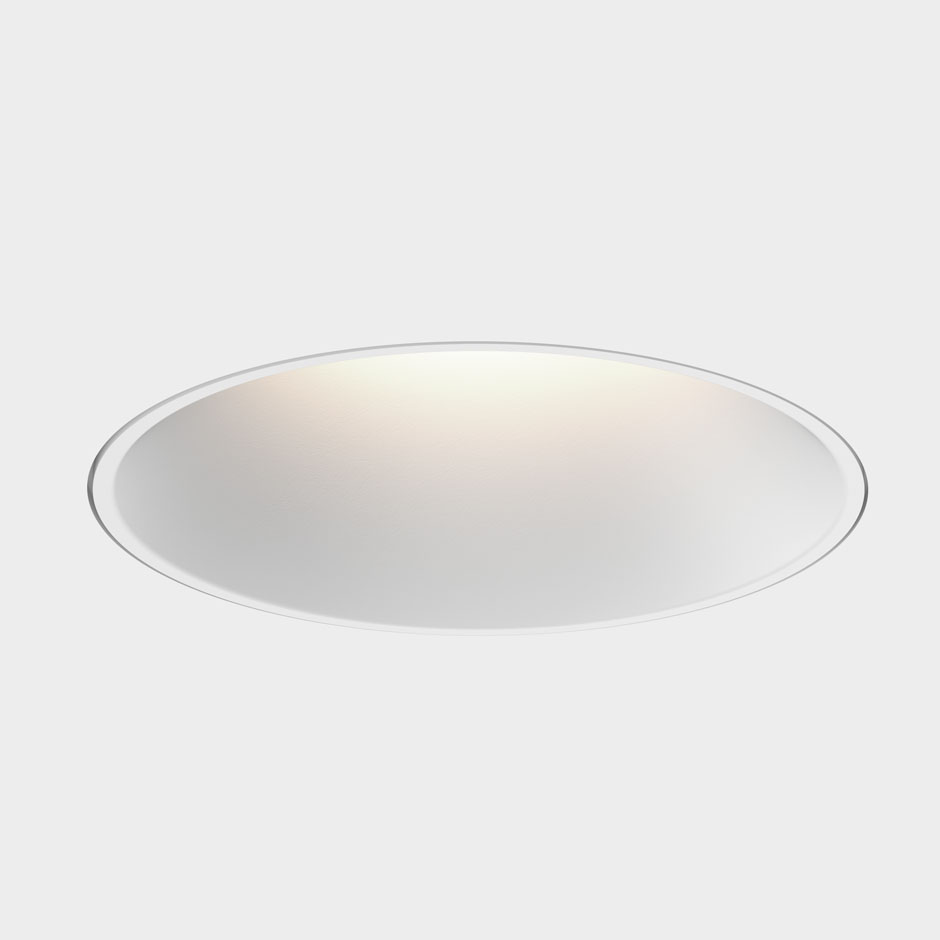

White
