stdClass Object
(
    [ID] => 60
    [TypeLichtbron] => COB
    [WebType] => 1
    [Groep] => Spots
    [Montage] => 7
    [SerieNummer] => 1241
    [Aanpasbaar] => 1
    [familie] => 6
    [SubFamilie] => 1241 FlatLed T1 Trimless
    [SerieID] => 256
    [SubFamilieWeb] => 1241-flatled-t1-trimless
    [ArtikelNummer] => 1241.37.24.927.03
    [Omschrijving] => 121mm Trimless Flatled
    [MinVoltage] => 30.60
    [MaxVoltage] => 35.30
    [TypVoltage] => 32.95
    [Amperage] => 350.00
    [LummenFluxLED] => 1411.00
    [LummenFluxSysteem] => 1241.68
    [ReductieFactor] => 88.00
    [LedPower] => 11.53
    [SystemPower] => 12.81
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 751
    [UGR] => 3
    [TypeSpot] => Trimless Downlight
    [Materiaal] => Recycled aluminium
    [InbouwDiameter] => 121mm Trimless Flatled
    [InbouwCategorieID] => 62
    [InbouwHoogte] => 0.00
    [LedID] => 22
    [OptiekID] => 1
    [ElecClassID] => 2
    [ReflectorID] => 14
    [LakKleurID] => 2
    [PrimaryColor] => Black
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 3
    [BevestigingID] => 0
    [SpotOrientatie] => 2
    [SpotVorm] => 1
    [DriverIngebouwd] => 0
    [AantLeds] => 1.00
    [UgrOpmerking] =>
    [Ugr13] => 0
    [Ugr16] => 0
    [Ugr19] => 0
    [ZichtbaarApparaatHoogte] => N/A
    [ApparaatDiameter] => 120
    [Rotatie] => 359u00b0
    [Tilt] => 55u00b0
    [FluxCode] => 74 90 98 100 100
    [FluxFoto] => 2338 FF - FlatLED T1 - Lens 37d.jpg
    [GeenSystemFlux] => 0
    [CRI] => 97
    [CCT] => 2700
    [SDCM] => 2
    [EnergieKlasseID] => 5
    [L70B50] => > 50.000 hrs
    [L70B20] => > 50.000 hrs
    [L70B10] => > 50.000 hrs
    [L80B50] => > 50.000 hrs
    [L80B20] => > 50.000 hrs
    [L80B10] => > 50.000 hrs
    [L90B50] => > 50.000 hrs
    [L90B20] => > 50.000 hrs
    [L90B10] => > 50.000 hrs
    [GatID] => 62
    [GatDiameter] => 121.00
    [Rechthoek] => 0
    [Lengte] => 0.00
    [Breedte] => 0.00
    [FilterDiameter] => 121.00
    [mounting] => Trimless
    [eCode] => II
    [eDesc] => Protective earth not required
    [sdcm] => 2
    [gat_omschrijving] => 121mm Trimless Flatled
    [aanpasbaar] => 1
    [materiaal] => Recycled aluminium
    [dimming] => 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
    [hoogte] => 0.00
    [diameter] => 121mm Trimless Flatled
    [cct] => 2700,3000,4000
    [cri] => 90,97
    [beam_angles] => 37u00b0
    [optiek] => Lens
    [primaire_kleuren] => Anthracite, Black, Bronze, Brown, Champagne, Corten, Gold, Grey, White
    [secundaire_kleuren] => , Black, White
    [kleuren_combos] => Anthracite/Anthracite;Black/Black;Black/White;Bronze/Bronze;Brown/Brown;Champagne/Black;Champagne/Champagne;Champagne/White;Corten/Corten;Gold/Black;Gold/Gold;Gold/White;Grey/Grey;White/White
    [cri_values] => 90/97
    [cct_values] => 2700/3000/4000
    [led_table] => 90/3000/1387.76/12.81/1577.00/11.53;90/4000/1408.88/12.81/1601.00/11.53;97/2700/1241.68/12.81/1411.00/11.53;97/3000/1302.40/12.81/1480.00/11.53;97/4000/1241.68/12.81/1411.00/11.53
)

FlatLed T1 Trimless

Available Colours

Our products can be finished in a RAL colour of your choice on request.

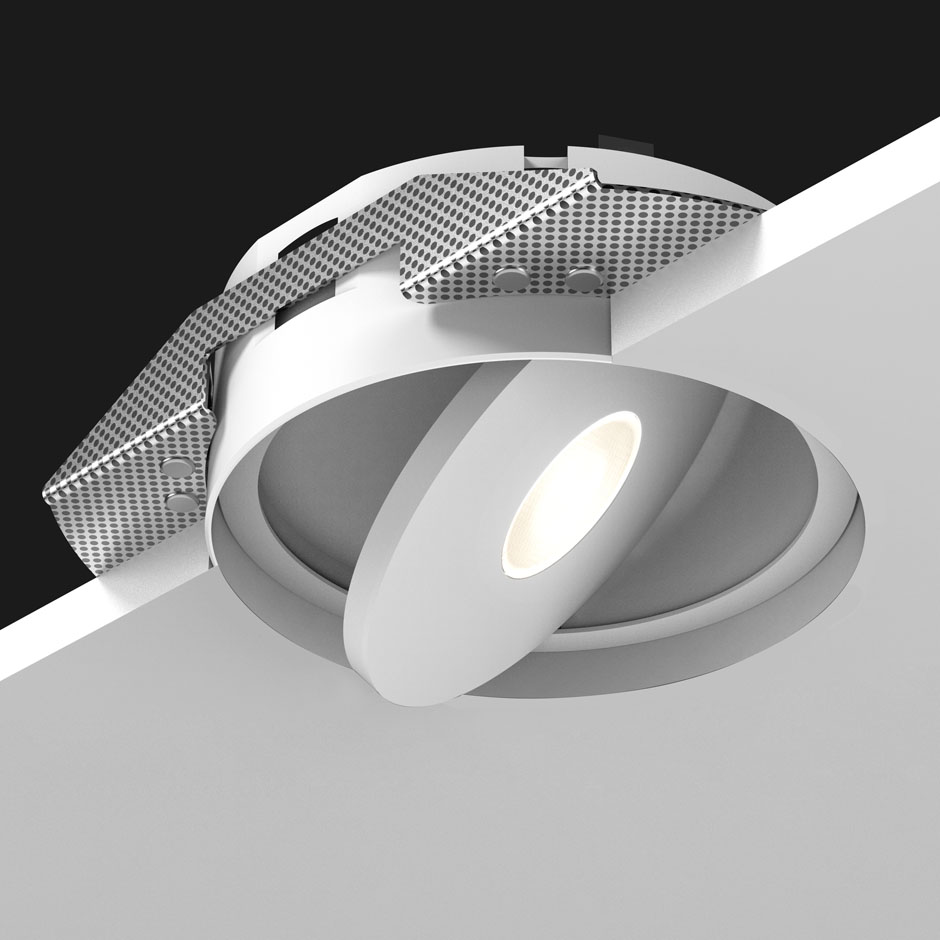

FlatLed T1 Trimless

General Specifications

Luminaire Body

Type: Trimless Downlight
Positioning: Trimless
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 55°
El. Class: II (Protective earth not required)
IP: IP20

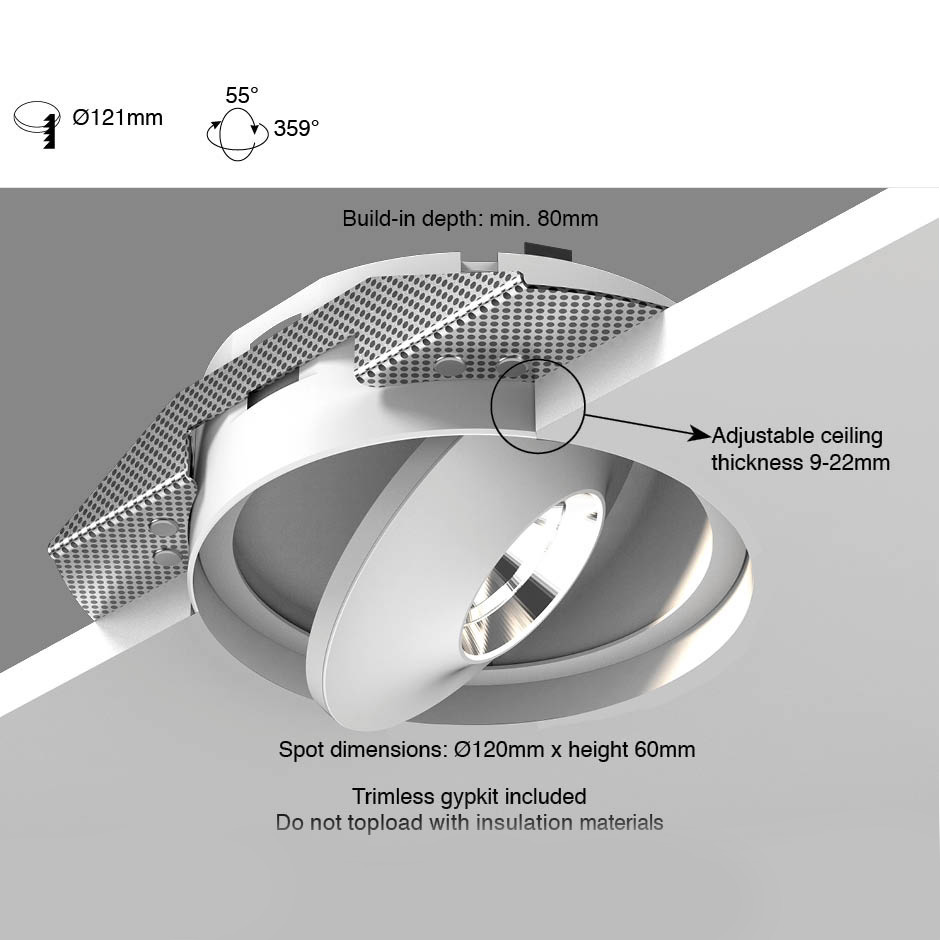

Cut-out diameter: 121mm
Outer diameter: 120mm
Weight: 751g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 2
Optics: Lens
Luminous flux System:
RA97 RA90
2700K 1241lm (97lm/W)
3000K 1302lm (102lm/W) 1387lm (108lm/W)
4000K 1241lm (97lm/W) 1408lm (110lm/W)
Luminous flux LED:
RA97 RA90
2700K 1411lm (122lm/W)
3000K 1480lm (128lm/W) 1577lm (137lm/W)
4000K 1411lm (122lm/W) 1601lm (139lm/W)

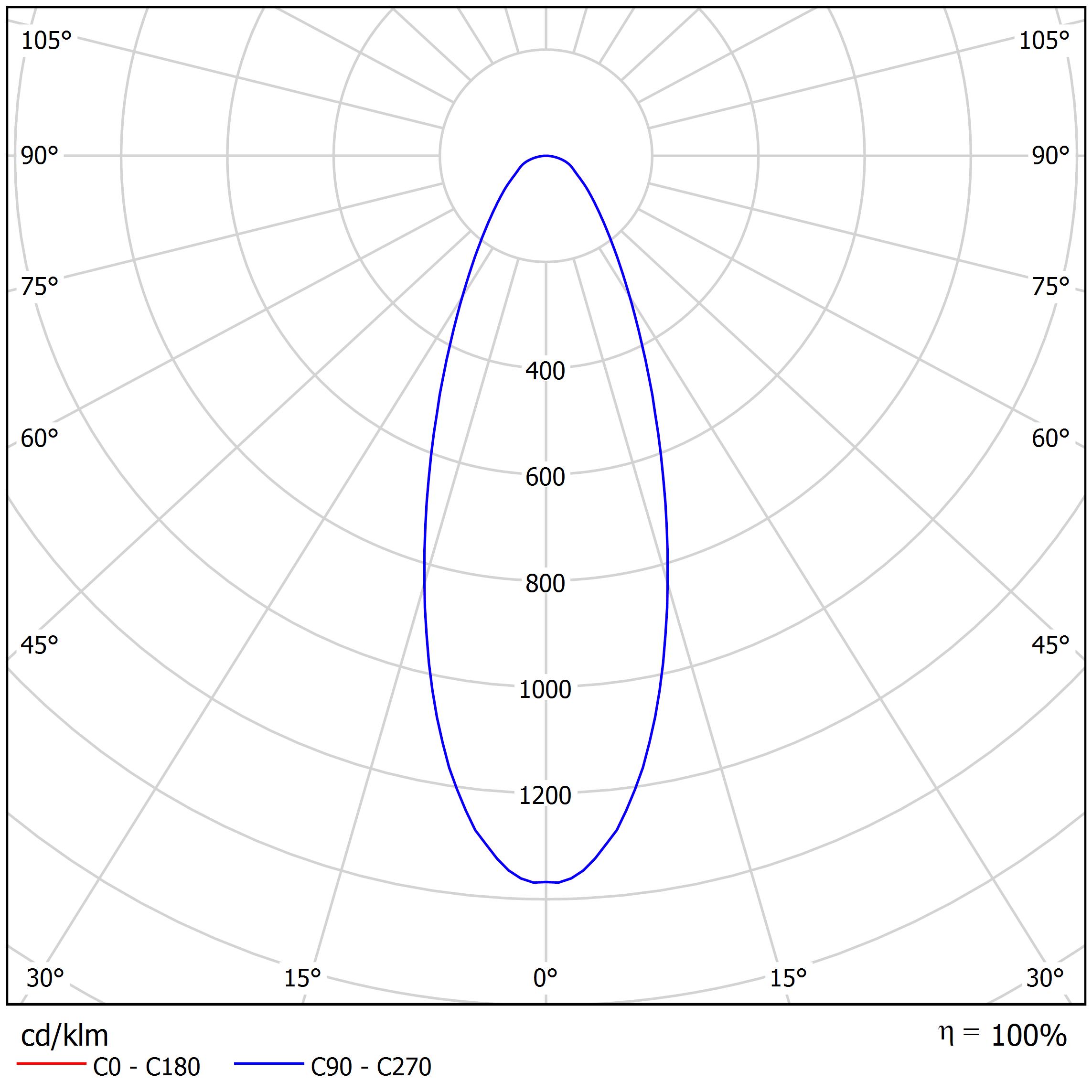

Flux code: 74 90 98 100 100
Beam Angle: 37°
LED Power: 11.5W
System Power: 12.8W
Driver location: Remote

Lumen maintenance

L70B50: > 50.000 hrs L70B20: > 50.000 hrs L70B10: > 50.000 hrs
L80B50: > 50.000 hrs L80B20: > 50.000 hrs L80B10: > 50.000 hrs
L90B50: > 50.000 hrs L90B20: > 50.000 hrs L90B10: > 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.
