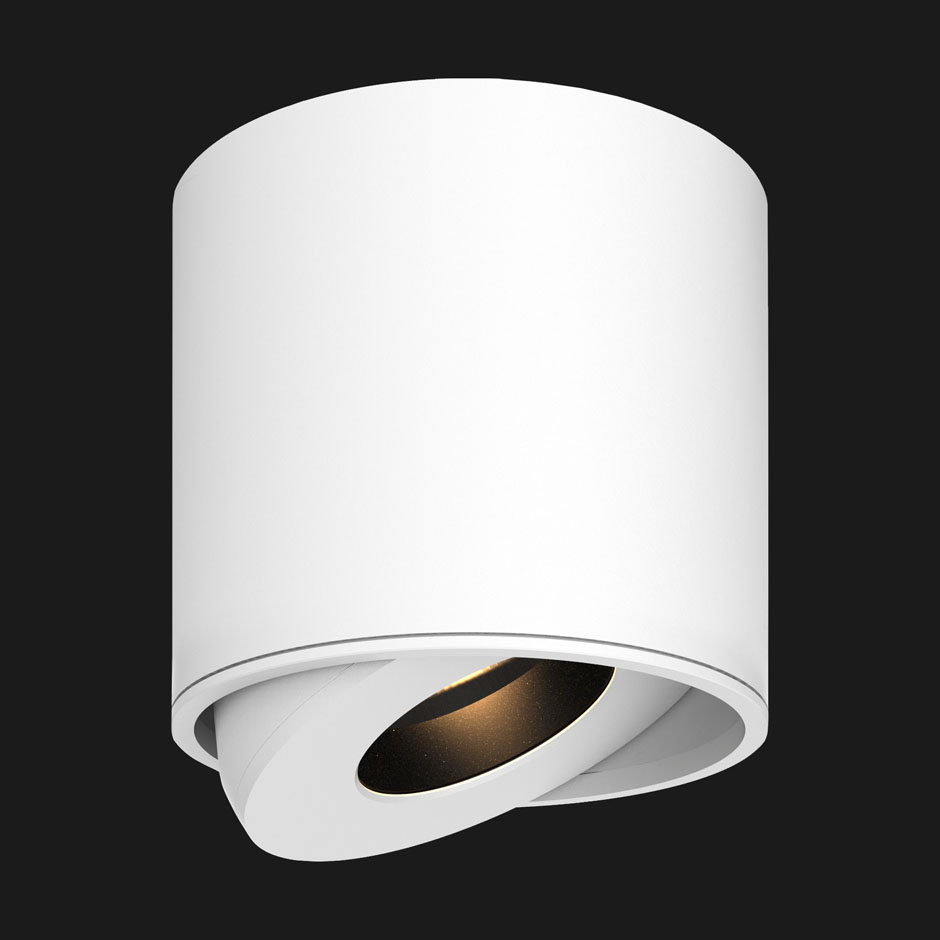

Titan Semi-Recessed Anti-glare
General Specifications
Luminaire Body
Type:
Downlight
Positioning:
Semi-Recessed
Material:
Recycled aluminium
Adjustable:
Yes
Rotation / tilt:
359° / 40°
El. Class:
II (Protective earth not required)
IP:
IP20
Cut-out diameter:
60mm
Outer diameter:
80mm
Weight:
599g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
1800-3000K, 2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
3
Optics:
Reflector AG ring
Luminous flux System:
RA97
RA90
DTW(1800-3000K)
731lm (106lm/W)
2700K
798lm (82lm/W)
935lm (97lm/W)
3000K
852lm (88lm/W)
982lm (102lm/W)
4000K
891lm (92lm/W)
996lm (103lm/W)
Luminous flux LED:
RA97
RA90
DTW(1800-3000K)
860lm (138lm/W)
2700K
939lm (108lm/W)
1100lm (126lm/W)
3000K
1003lm (115lm/W)
1156lm (133lm/W)
4000K
1049lm (120lm/W)
1172lm (134lm/W)
Flux code:
97 99 100 100 100
Beam Angle:
28° / 40°
LED Power:
8.7W
System Power:
9.7W
Driver location:
Remote
Lumen maintenance
L70B50:
>114.000 hrs
L70B20:
>114.000 hrs
L70B10:
>114.000 hrs
L80B50:
>114.000 hrs
L80B20:
>114.000 hrs
L80B10:
>114.000 hrs
L90B50:
>114.000 hrs
L90B20:
112.000 hrs
L90B10:
104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
Anthracite
Black
Black / White
Bronze
Brown
Champagne
Corten
Gold / Black
Gold
Grey
White
Our products can be finished in a RAL colour of your choice on request.
