stdClass Object
(
    [ID] => 4
    [TypeLichtbron] => COB
    [WebType] => 1
    [Groep] => Spots
    [Montage] => 8
    [SerieNummer] => 1145
    [Aanpasbaar] => 0
    [familie] => 32
    [SubFamilie] => 1145 MoonFlare Standard
    [SerieID] => 583
    [SubFamilieWeb] => 1145-moonflare-standard
    [ArtikelNummer] => 1145.00.24.927.01
    [Omschrijving] => 114 mm
    [MinVoltage] => 35.00
    [MaxVoltage] => 36.80
    [TypVoltage] => 35.90
    [Amperage] => 350.00
    [LummenFluxLED] => 2235.00
    [LummenFluxSysteem] => 2235.00
    [ReductieFactor] => 100.00
    [LedPower] => 12.57
    [SystemPower] => 13.96
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 431
    [UGR] => 3
    [TypeSpot] => Downlight
    [Materiaal] => Aluminium + steel
    [InbouwDiameter] => 114 mm
    [InbouwCategorieID] => 6
    [InbouwHoogte] => 0.00
    [LedID] => 101
    [OptiekID] => 7
    [ElecClassID] => 2
    [ReflectorID] => 20
    [LakKleurID] => 5
    [PrimaryColor] => White
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 3
    [BevestigingID] => 0
    [SpotOrientatie] => 1
    [SpotVorm] => 1
    [DriverIngebouwd] => 0
    [AantLeds] => 1.00
    [UgrOpmerking] =>
    [Ugr13] => 0
    [Ugr16] => 0
    [Ugr19] => 0
    [ZichtbaarApparaatHoogte] => 1 mm
    [ApparaatDiameter] => 129
    [Rotatie] => 0u00b0
    [Tilt] => 0u00b0
    [FluxCode] =>
    [FluxFoto] =>
    [GeenSystemFlux] => 0
    [CRI] => 90
    [CCT] => 2700
    [SDCM] => 3
    [EnergieKlasseID] => 0
    [L70B50] =>
    [L70B20] =>
    [L70B10] =>
    [L80B50] => >50.000 hrs
    [L80B20] =>
    [L80B10] =>
    [L90B50] =>
    [L90B20] =>
    [L90B10] =>
    [GatID] => 6
    [GatDiameter] => 114.00
    [Rechthoek] => 0
    [Lengte] => 0.00
    [Breedte] => 0.00
    [FilterDiameter] => 114.00
    [mounting] => Recessed
    [eCode] => II
    [eDesc] => Protective earth not required
    [sdcm] => 3
    [gat_omschrijving] => 114 mm
    [aanpasbaar] => 0
    [materiaal] => Aluminium + steel
    [dimming] => 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
    [hoogte] => 0.00
    [diameter] => 114 mm
    [cct] => 2700,3000,4000
    [cri] => 90
    [beam_angles] => Diffuse
    [optiek] => Soft beam
    [primaire_kleuren] => Anthracite, Bronze, Brown, Champagne, Corten, Gold, Grey, White
    [secundaire_kleuren] => , Black, White
    [kleuren_combos] => Anthracite/Anthracite;Bronze/Bronze;Brown/Brown;Champagne/Black;Champagne/Champagne;Champagne/White;Corten/Corten;Gold/Black;Gold/Gold;Gold/White;Grey/Grey;White/Black;White/White
    [cri_values] => 90
    [cct_values] => 2700/3000/4000
    [led_table] => 90/2700/2235.00/13.96/2235.00/12.57;90/3000/2325.00/13.96/2325.00/12.57;90/4000/2325.00/13.96/2325.00/12.57
)

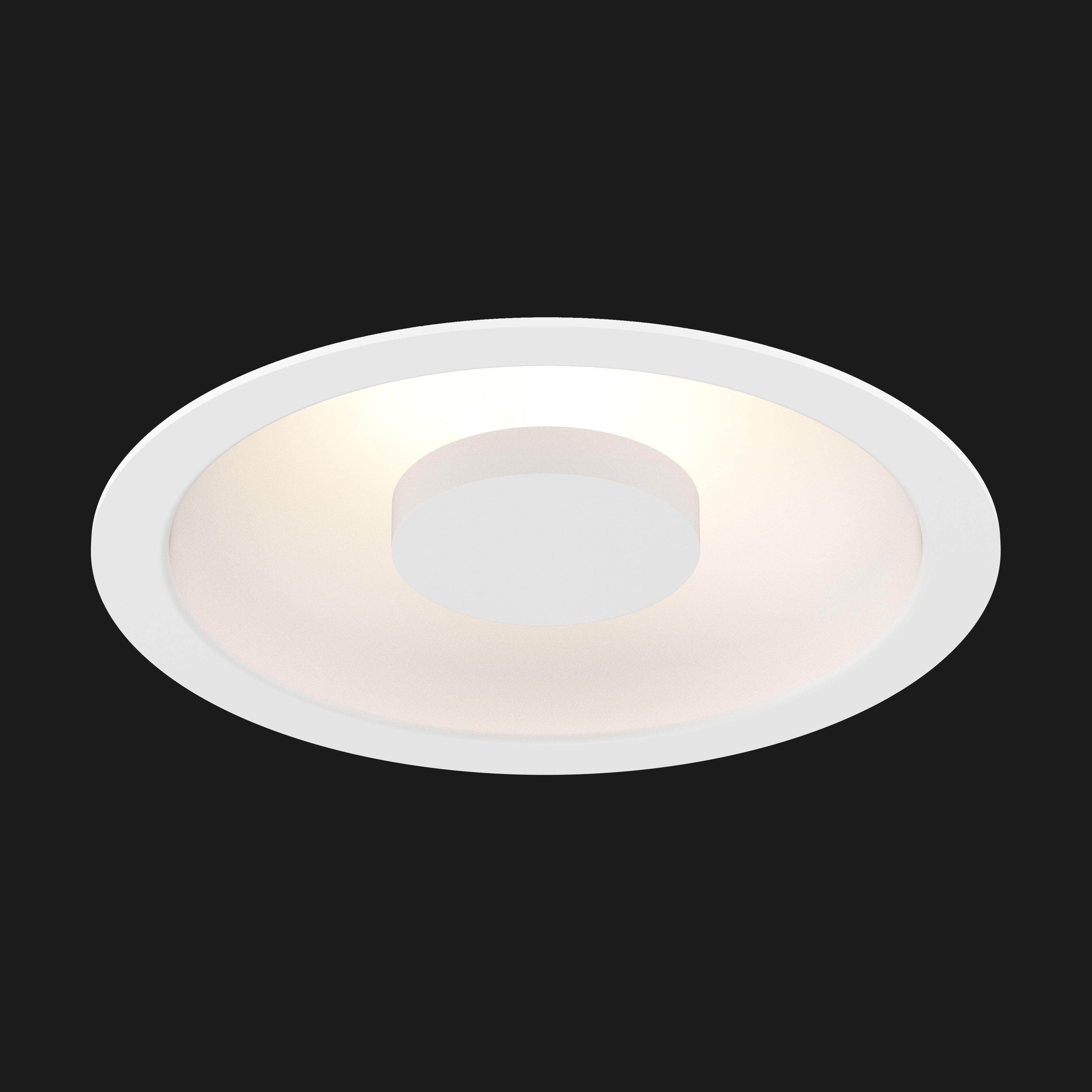

MoonFlare Standard

Available Colours

Our products can be finished in a RAL colour of your choice on request.

MoonFlare Standard

General Specifications

Luminaire Body

Type: Downlight
Positioning: Recessed
Material: Aluminium + steel
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 114mm
Outer diameter: 129mm
Weight: 431g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90
SDCM: 3
Optics: Soft beam
Luminous flux System:
RA90
2700K 2235lm (160lm/W)
3000K 2325lm (167lm/W)
4000K 2325lm (167lm/W)
Luminous flux LED:
RA90
2700K 2235lm (178lm/W)
3000K 2325lm (185lm/W)
4000K 2325lm (185lm/W)
Beam Angle: Diffuse
LED Power: 12.6W
System Power: 14.0W
Driver location: Remote

Lumen maintenance

L80B50: >50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White / Black
White

Our products can be finished in a RAL colour of your choice on request.
