Kana 500mA

Available Colours

  • White

Our products can be finished in a RAL colour of your choice on request.

Kana 500mA

General Specifications

Luminaire Body

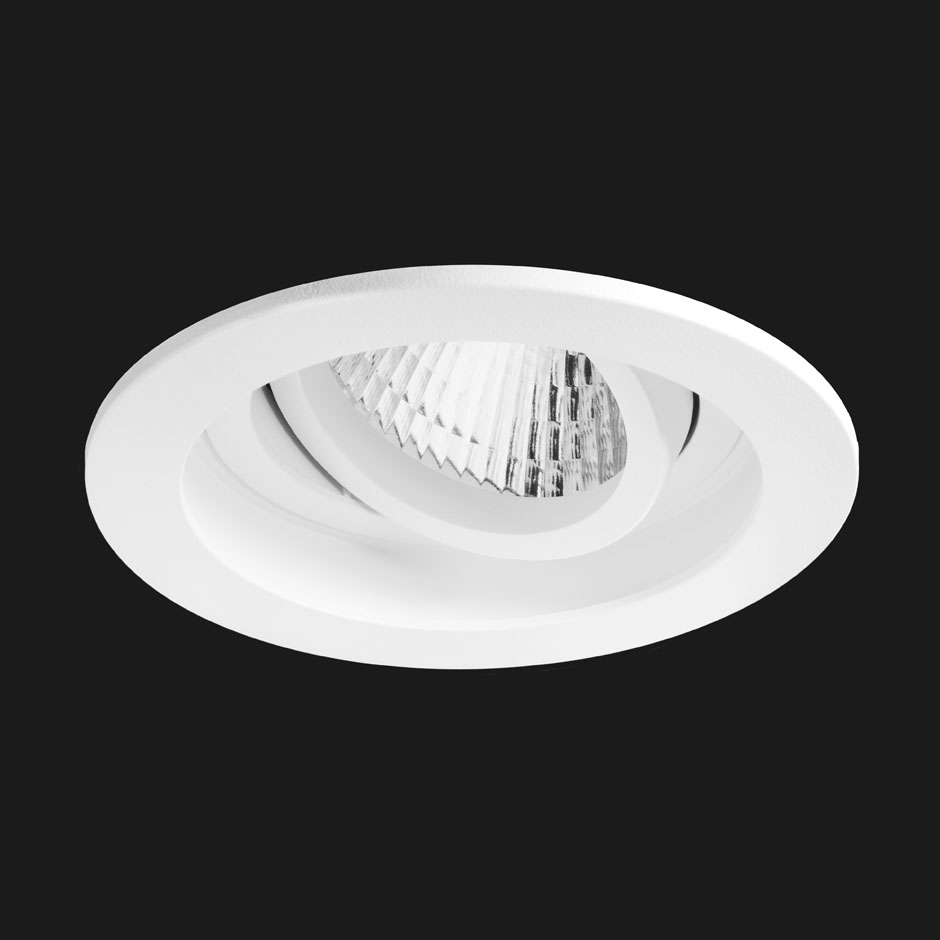

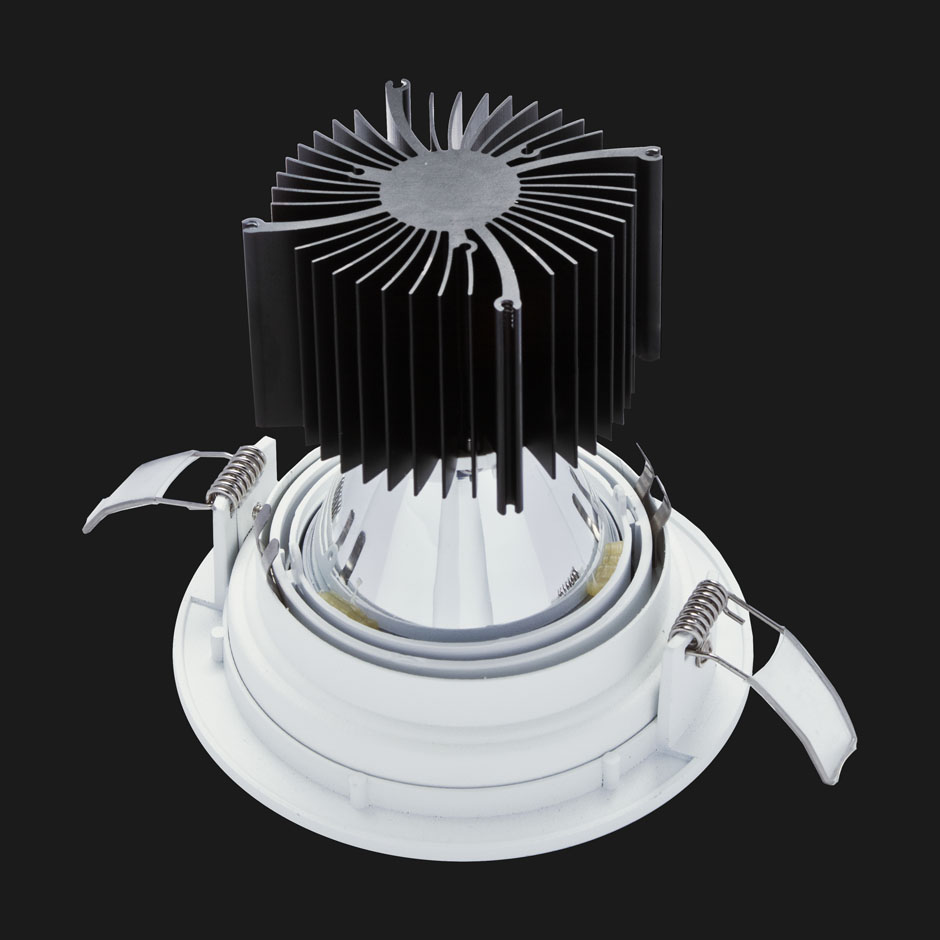

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 30°
El. Class: II (Protective earth not required)
IP: IP20

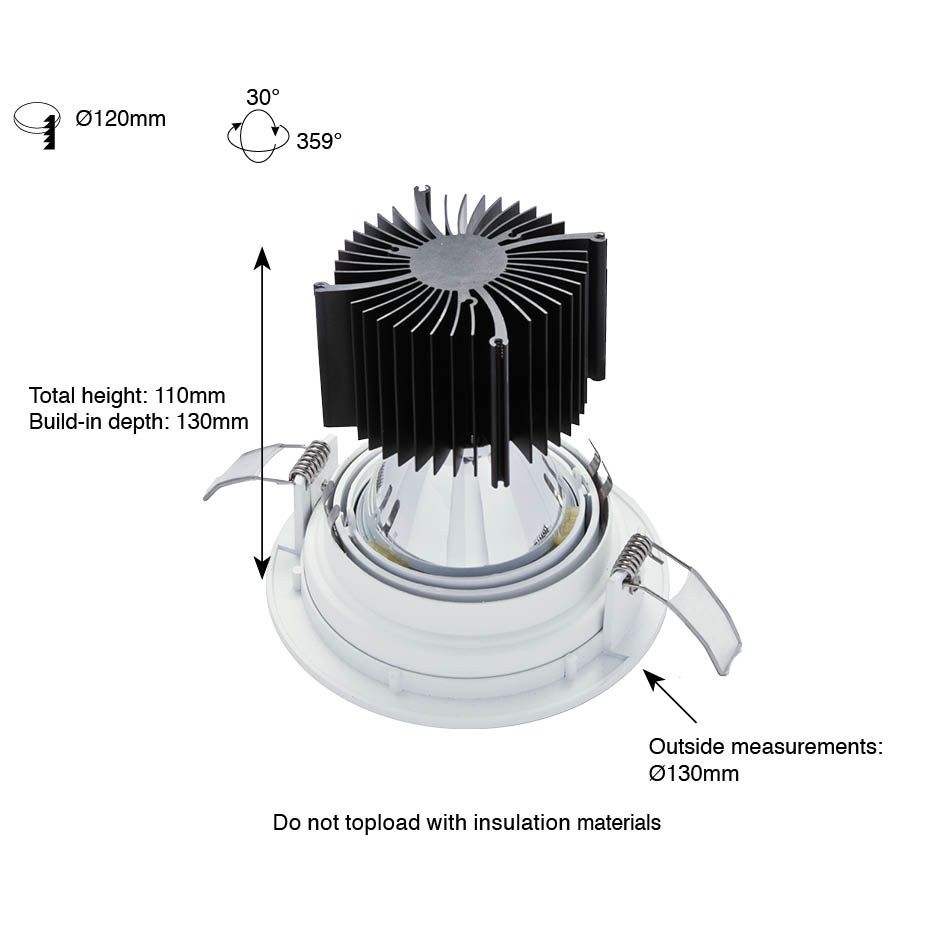

Cut-out diameter: 120mm
Outer diameter: 130mm
Weight: 541g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 2
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 0lm
3000K 0lm 0lm
4000K 0lm 0lm
Luminous flux LED:
RA97 RA90
2700K 1974lm (118lm/W)
3000K 2072lm (124lm/W) 2202lm (132lm/W)
4000K 1974lm (118lm/W) 2236lm (134lm/W)
Beam Angle: 41° / 57°
LED Power: 16.7W
System Power: 18.6W
Driver location: Remote

Lumen maintenance

L70B50: > 50.000 hrs L70B20: > 50.000 hrs L70B10: > 50.000 hrs
L80B50: > 50.000 hrs L80B20: > 50.000 hrs L80B10: > 50.000 hrs
L90B50: > 50.000 hrs L90B20: > 50.000 hrs L90B10: > 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
