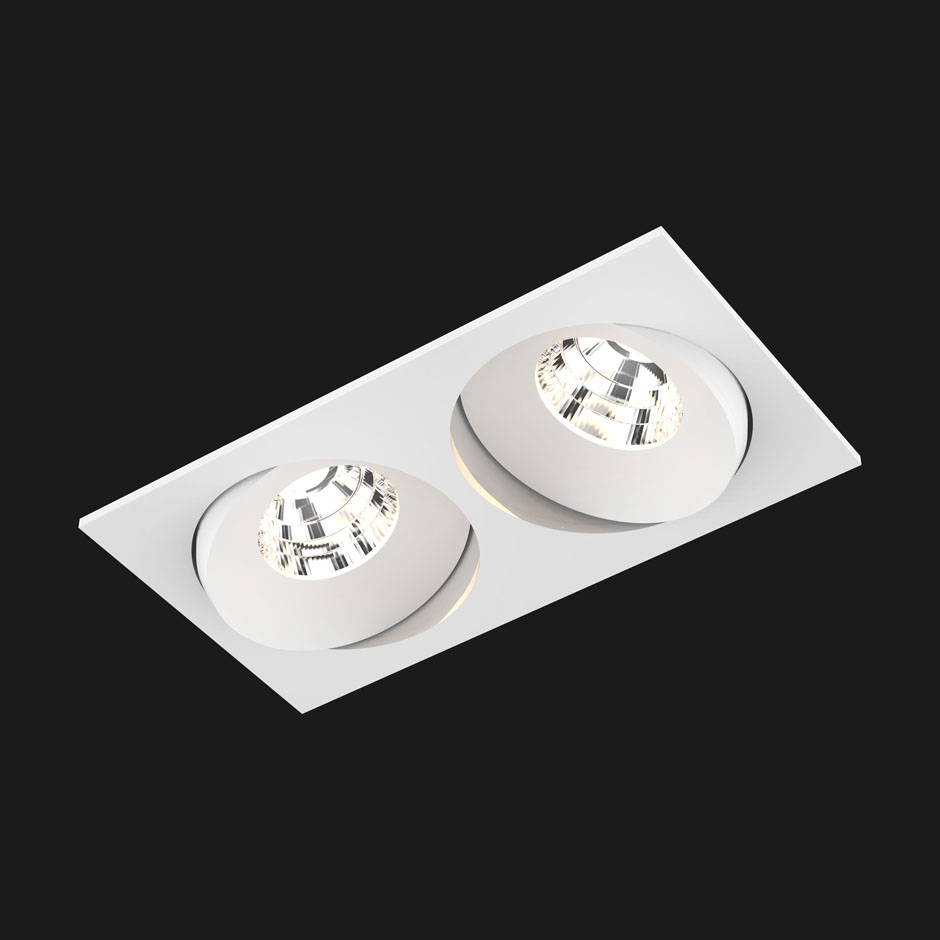

Titan Double Rectangle Cone

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Titan Double Rectangle Cone

General Specifications

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 40°
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 84mm
Outer diameter: 172mm
Weight: 903g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 1800-3000K, 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
DTW(1800-3000K) 1462lm (106lm/W)
2700K 1596lm (82lm/W) 1870lm (97lm/W)
3000K 1705lm (88lm/W) 1965lm (101lm/W)
4000K 1783lm (92lm/W) 1992lm (103lm/W)
Luminous flux LED:
RA97 RA90
DTW(1800-3000K) 1720lm (138lm/W)
2700K 1878lm (108lm/W) 2200lm (126lm/W)
3000K 2006lm (115lm/W) 2312lm (133lm/W)
4000K 2098lm (120lm/W) 2344lm (134lm/W)
Flux code: 97 99 100 100 100
Beam Angle: 28° / 40°
LED Power: 17.4W
System Power: 19.4W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
