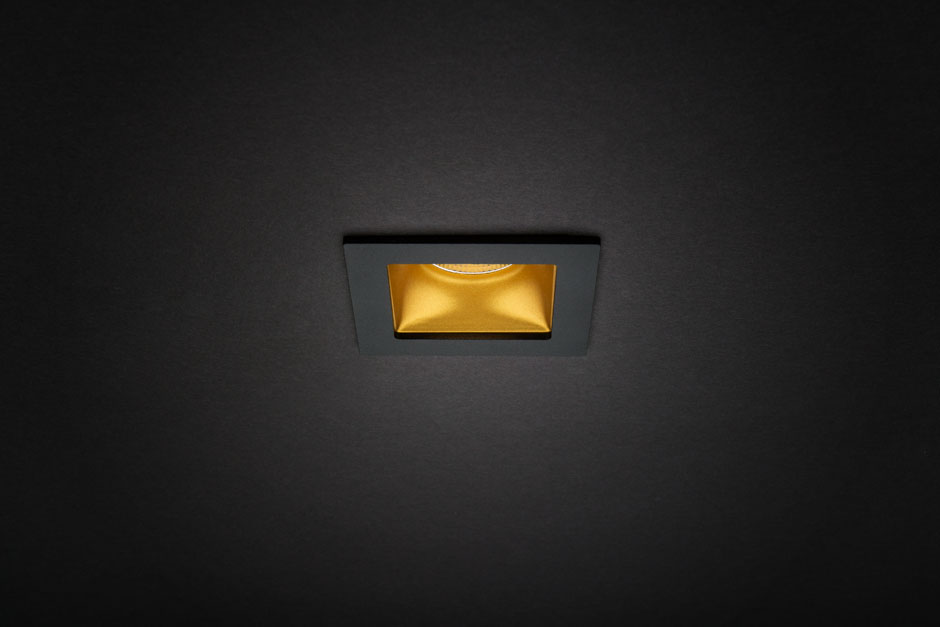

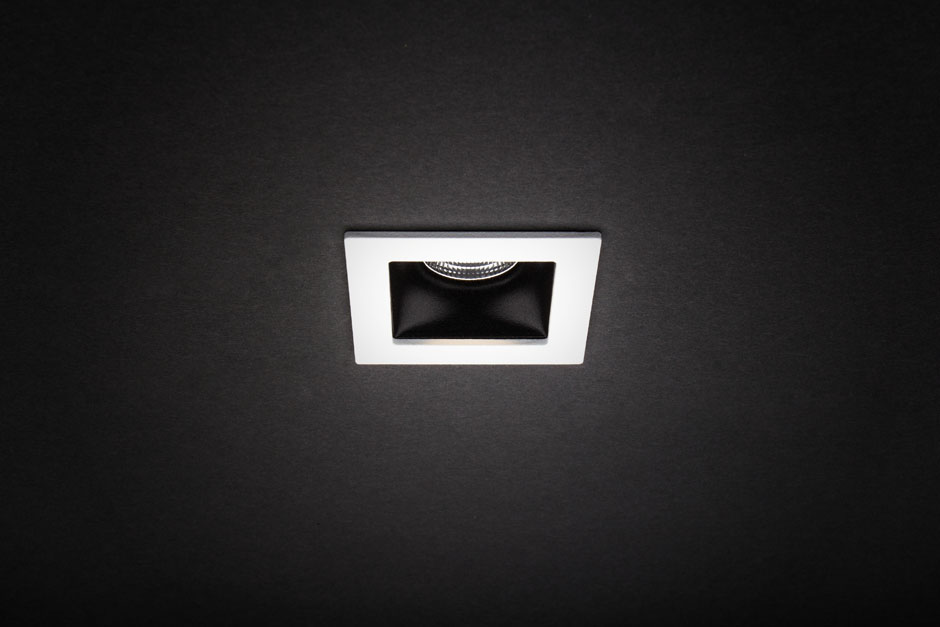

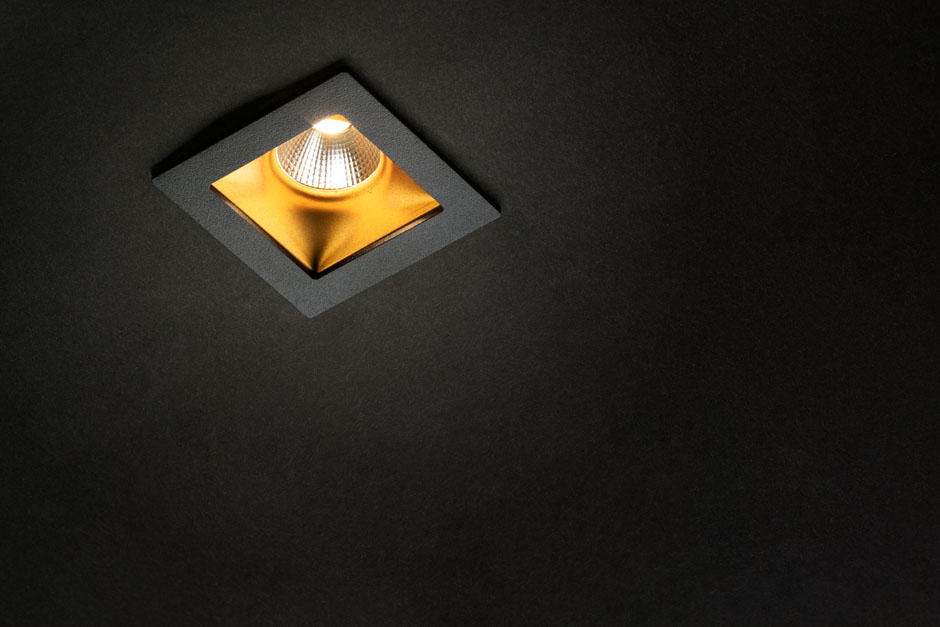

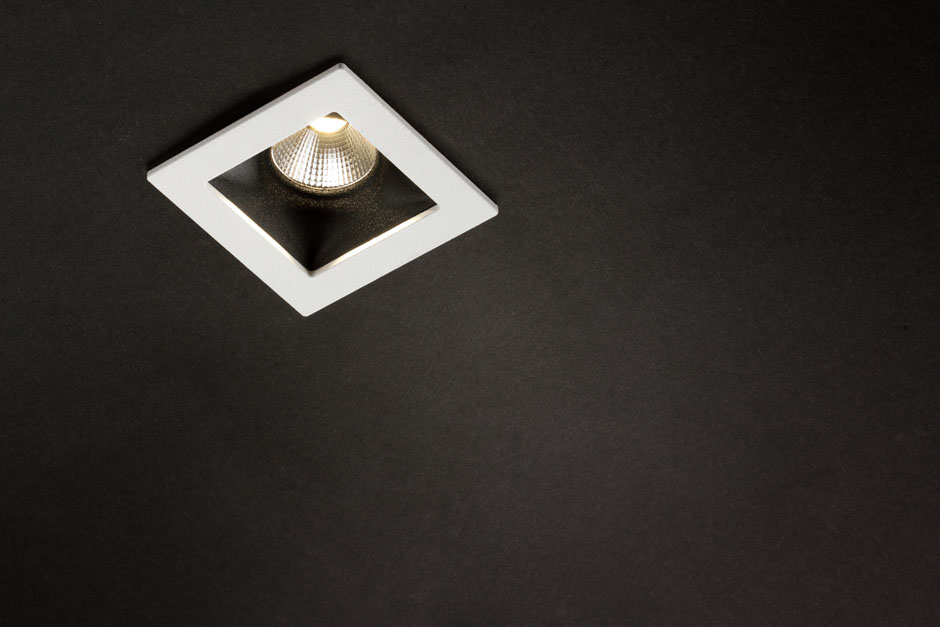

Vesto 500 Single

Available Colours

Our products can be finished in a RAL colour of your choice on request.

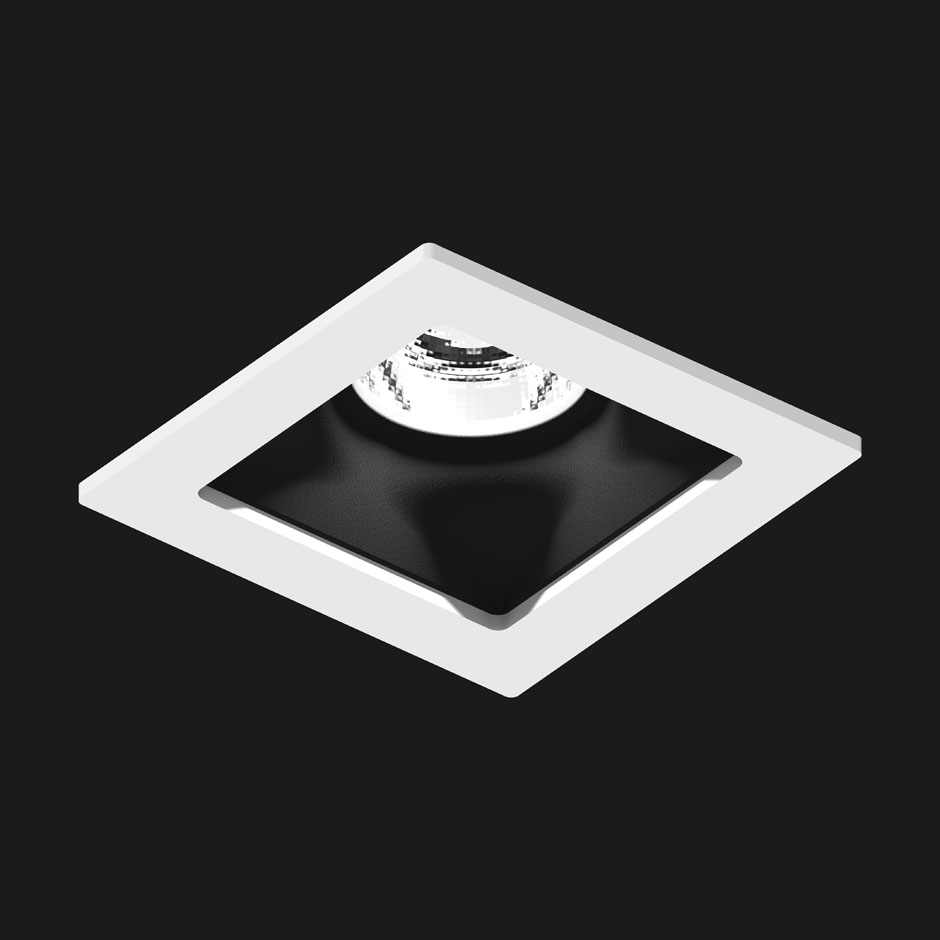

Vesto 500 Single

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Vesto: <19 for 36°>

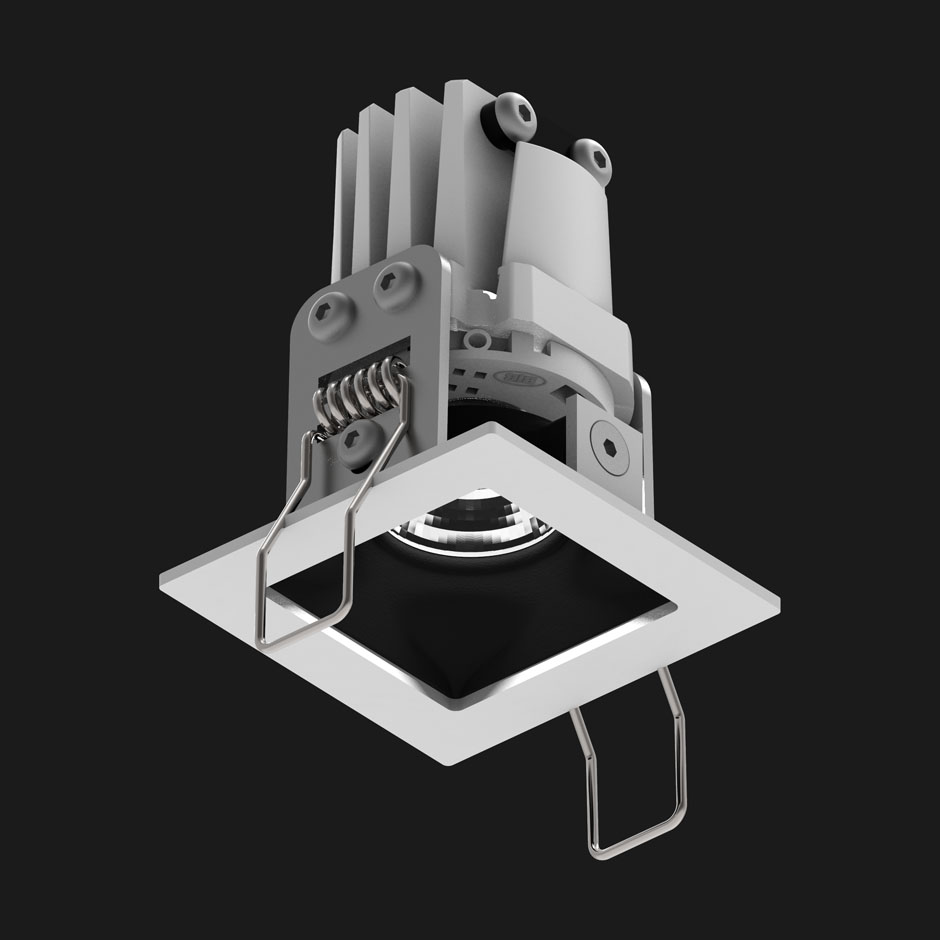

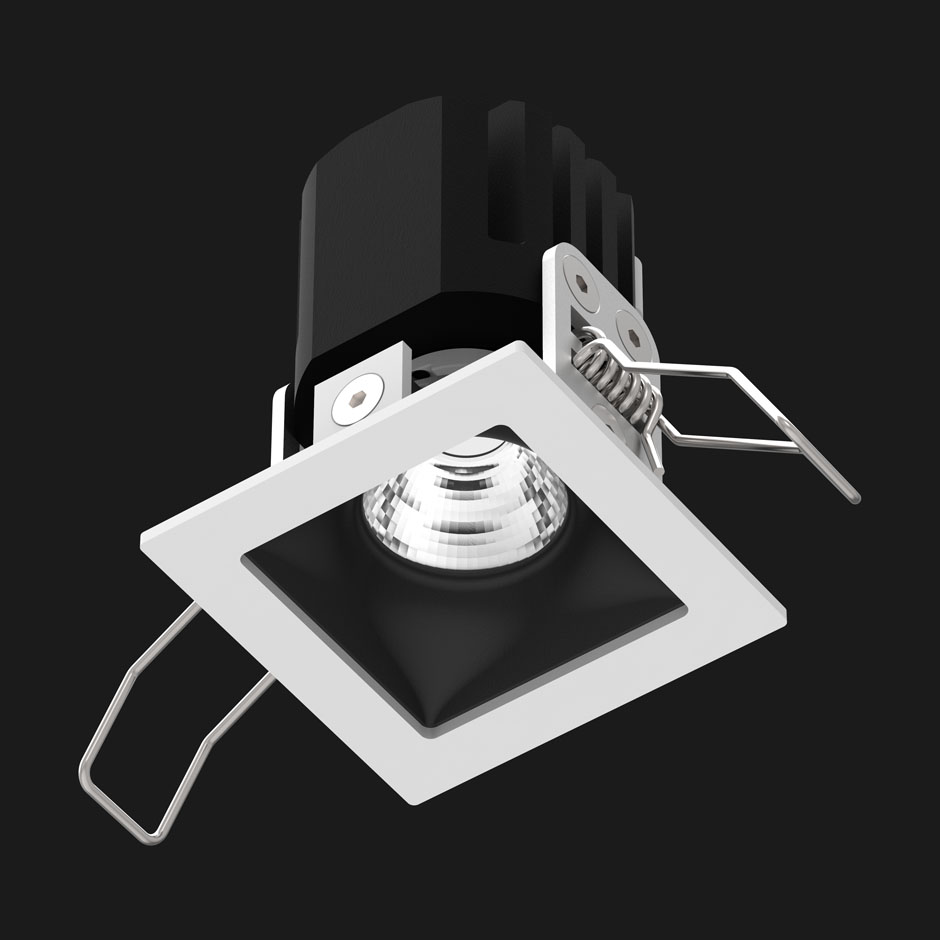

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Aluminium + steel
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: II (Protective earth not required)
IP: IP20

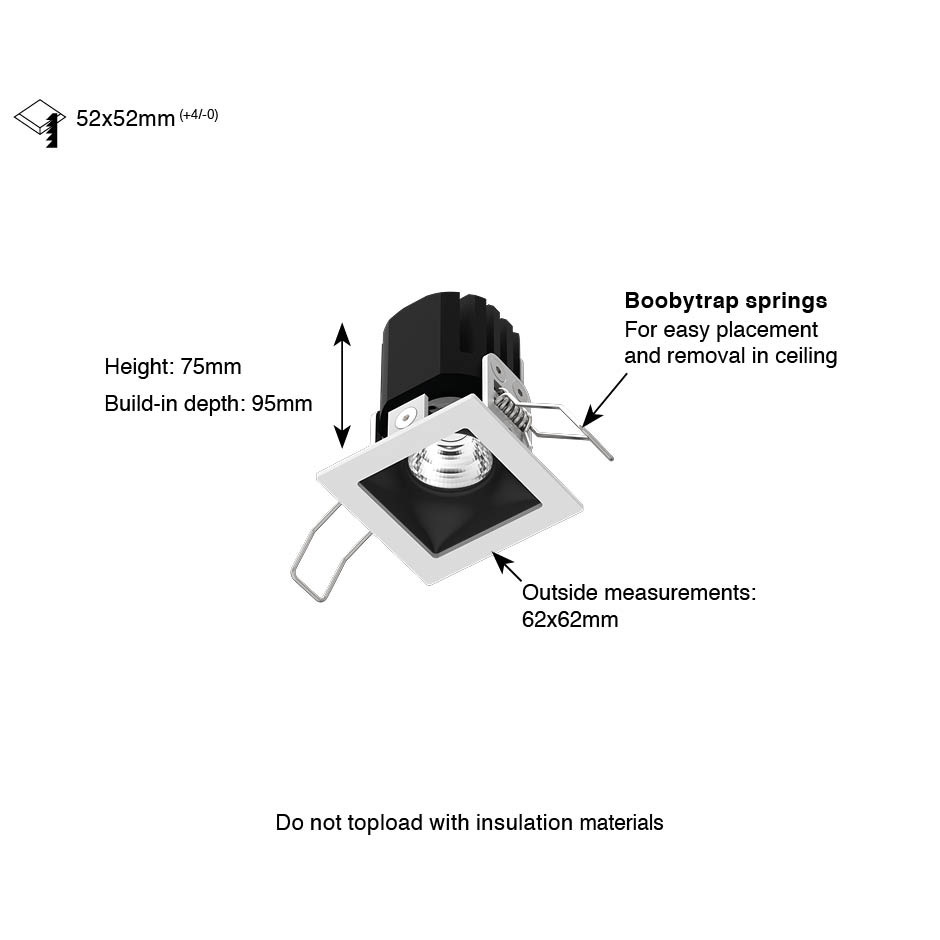

Cut-out dimensions: 52x52mm
Outer dimensions: 62mm
Weight: 401g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90
SDCM: 3
Optics: Reflector
Luminous flux System:
RA90
2700K 379lm (77lm/W)
3000K 409lm (83lm/W)
4000K 439lm (89lm/W)
Luminous flux LED:
RA90
2700K 468lm (105lm/W)
3000K 505lm (113lm/W)
4000K 542lm (122lm/W)
Flux code: 100 100 100 100 100
Beam Angle: 36° / 55°
LED Power: 4.5W
System Power: 4.9W
Driver location: Remote

Lumen maintenance

L70B50: >60.000 hrs L70B20: >60.000 hrs L70B10: >60.000 hrs
L80B50: >60.000 hrs L80B20: >60.000 hrs L80B10: >60.000 hrs
L90B50: >60.000 hrs L90B20: >60.000 hrs L90B10: >60.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

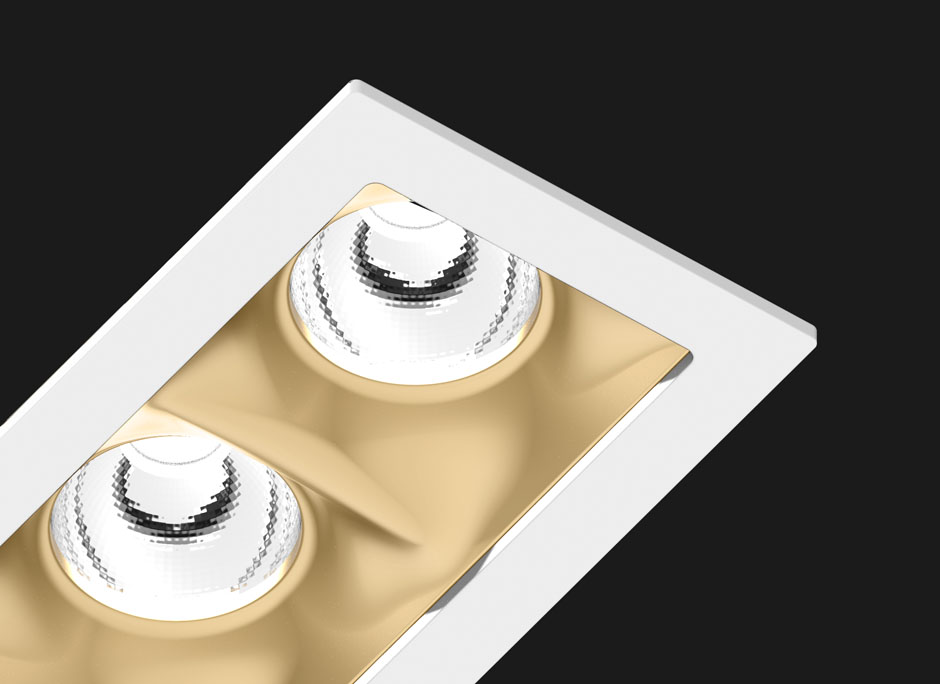

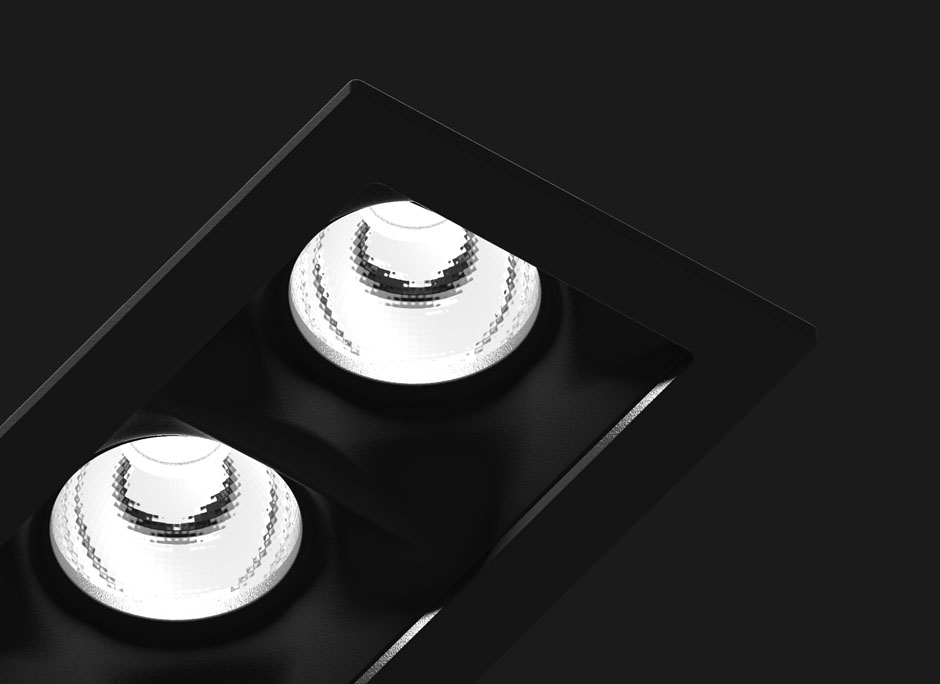

Available Colors

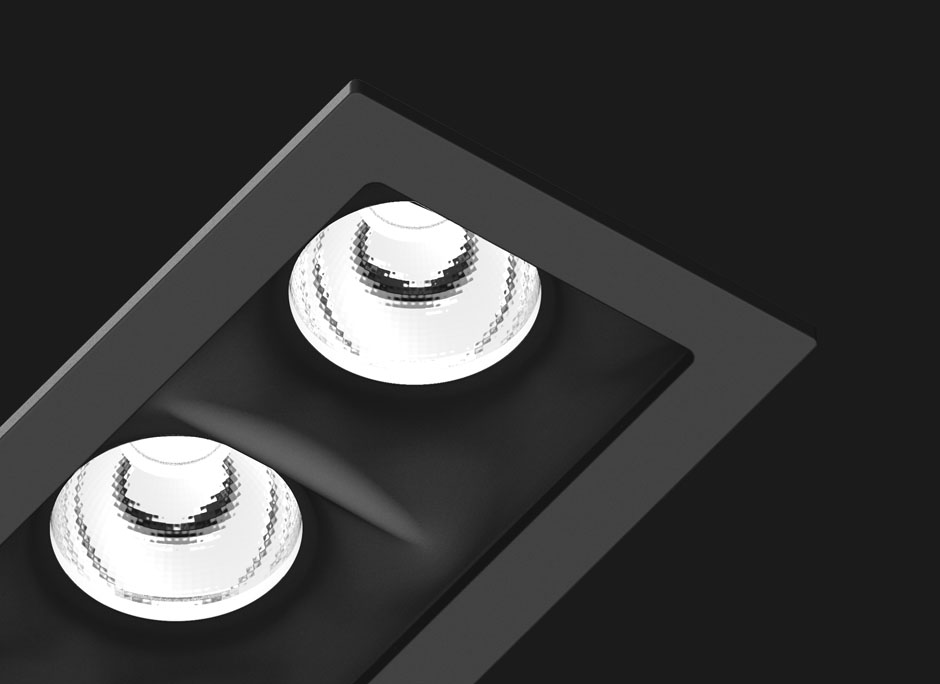

Anthracite
Black
Black / White

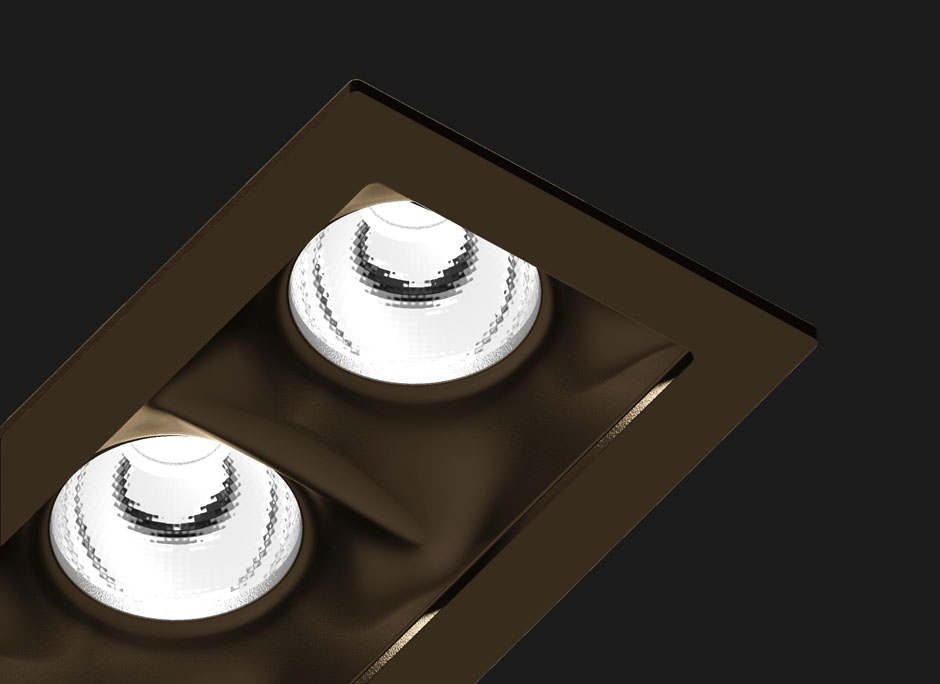

Bronze

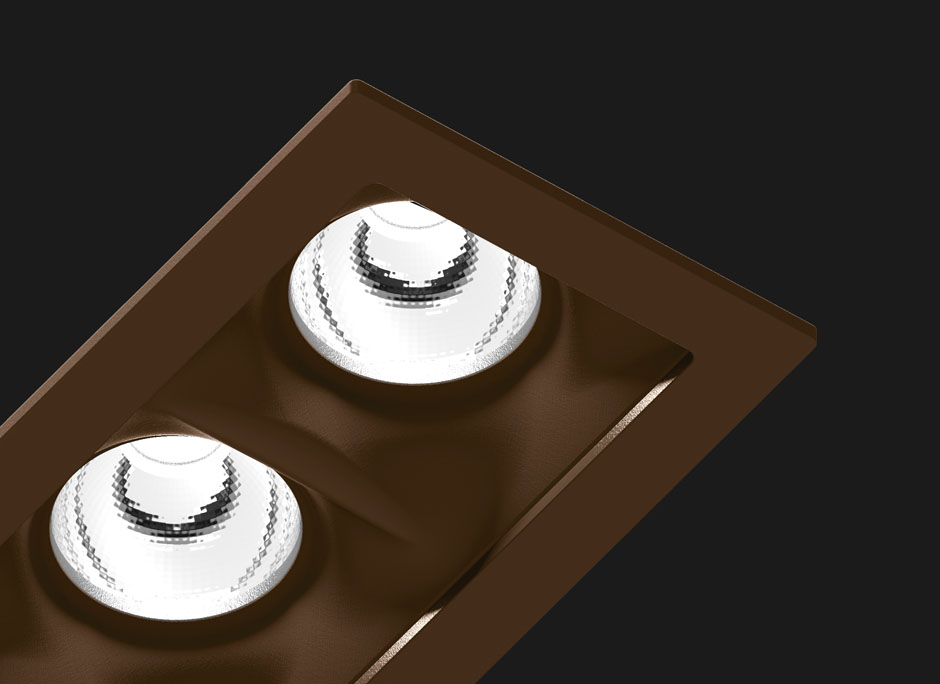

Brown

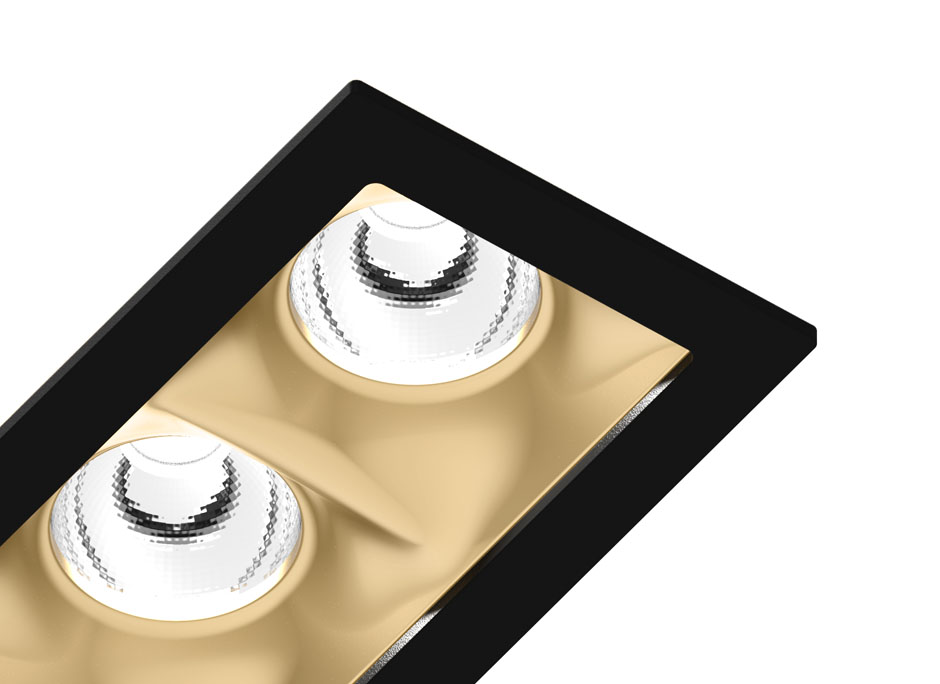

Champagne / Black

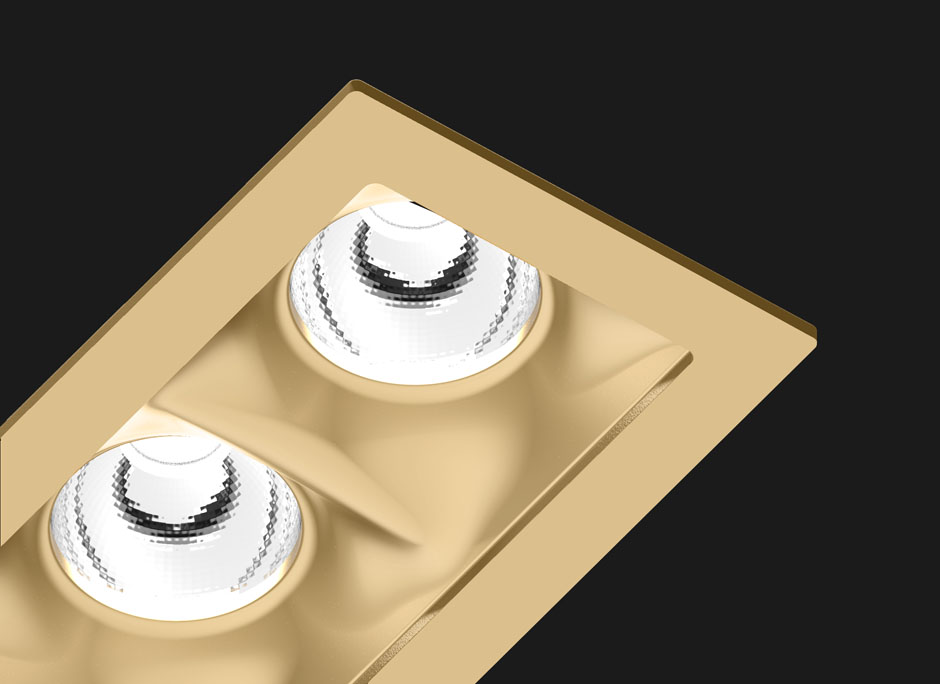

Champagne
Champagne / White

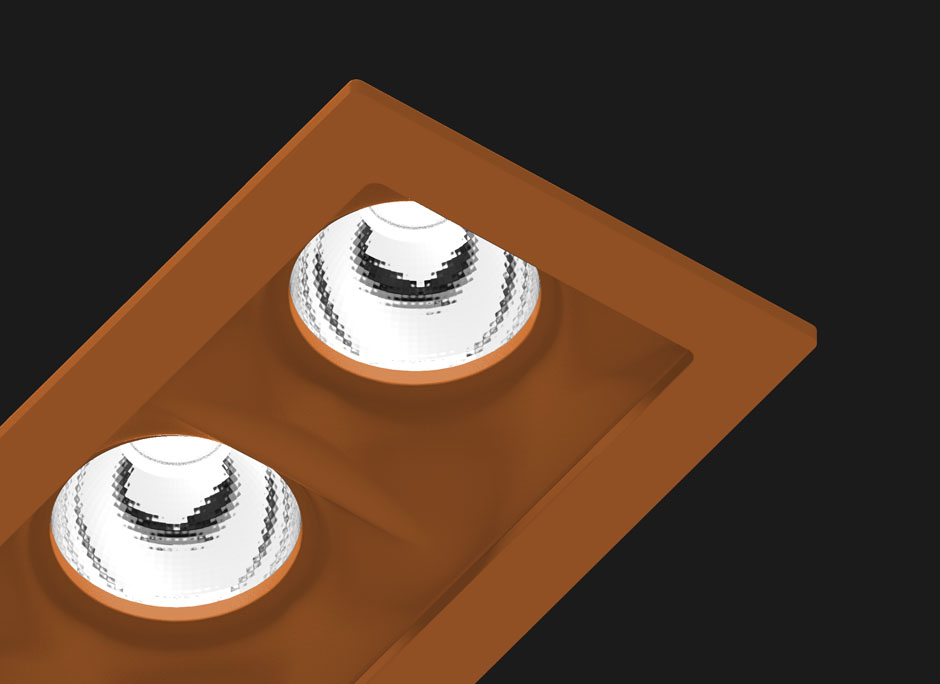

Corten

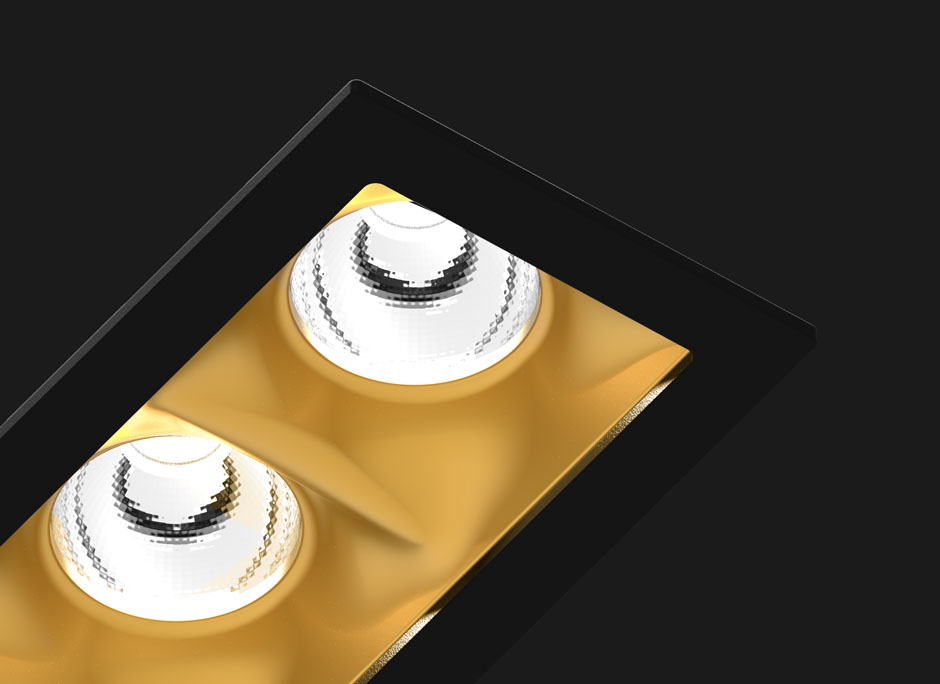

Gold / Black

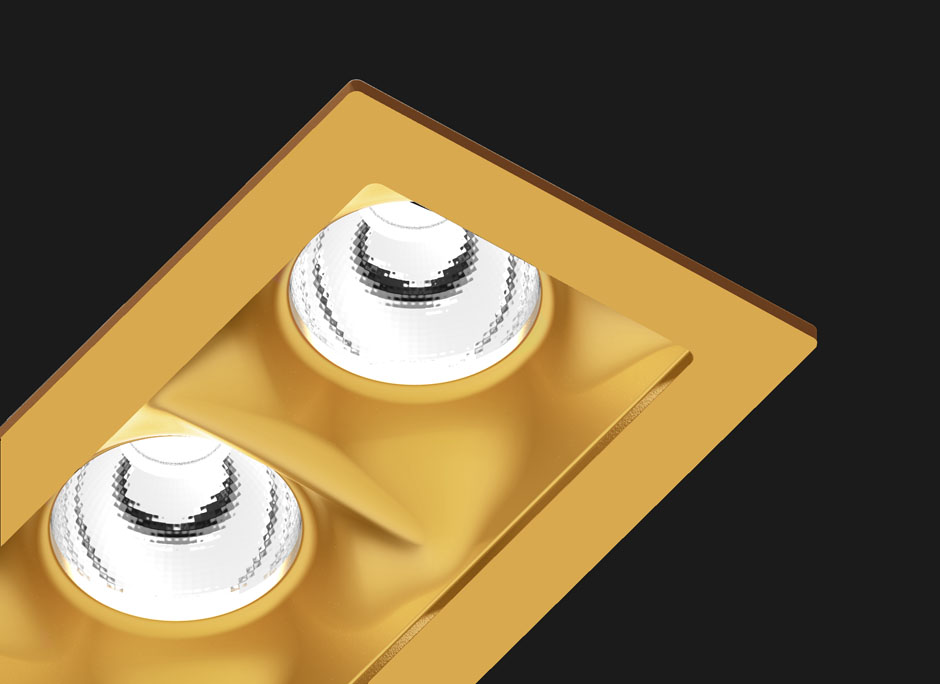

Gold

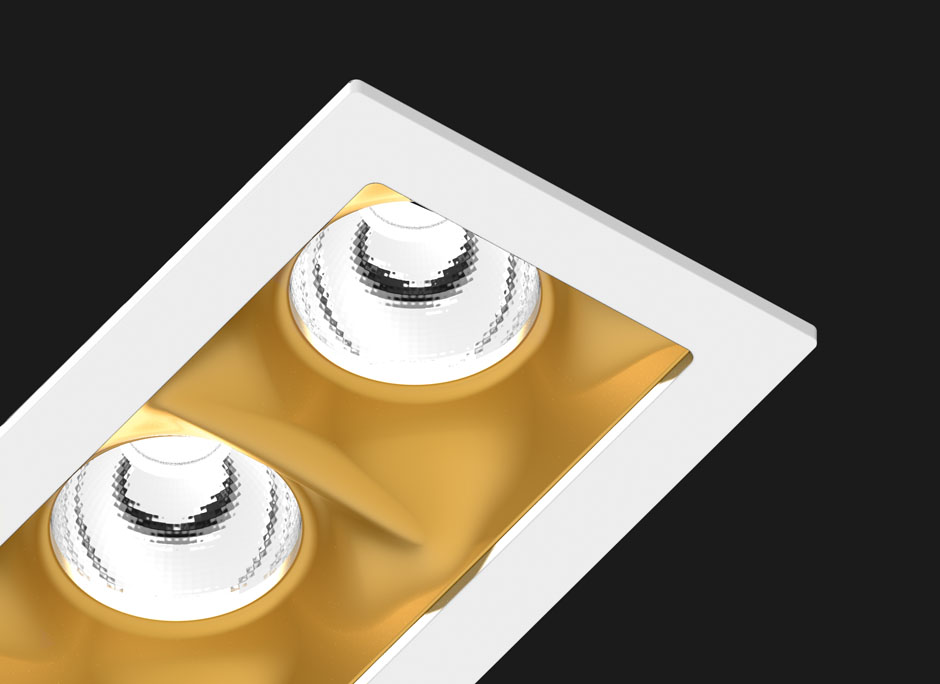

Gold / White

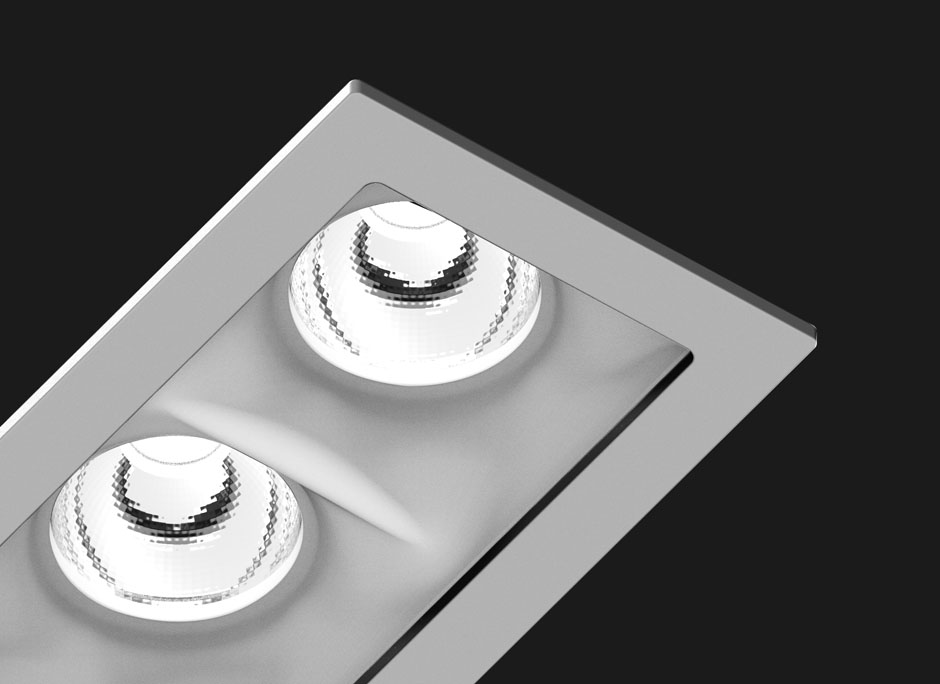

Grey

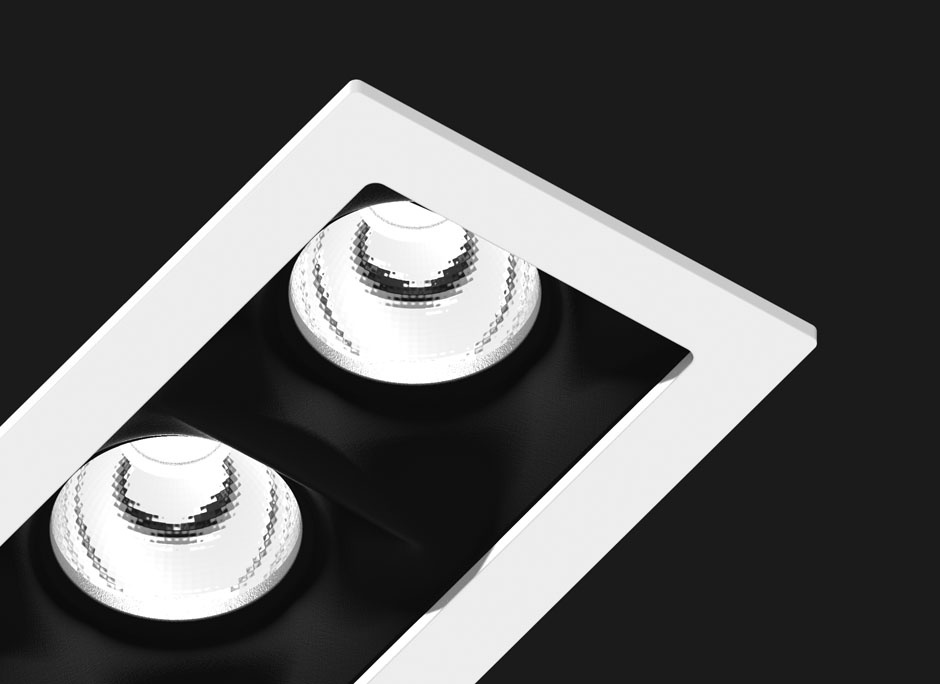

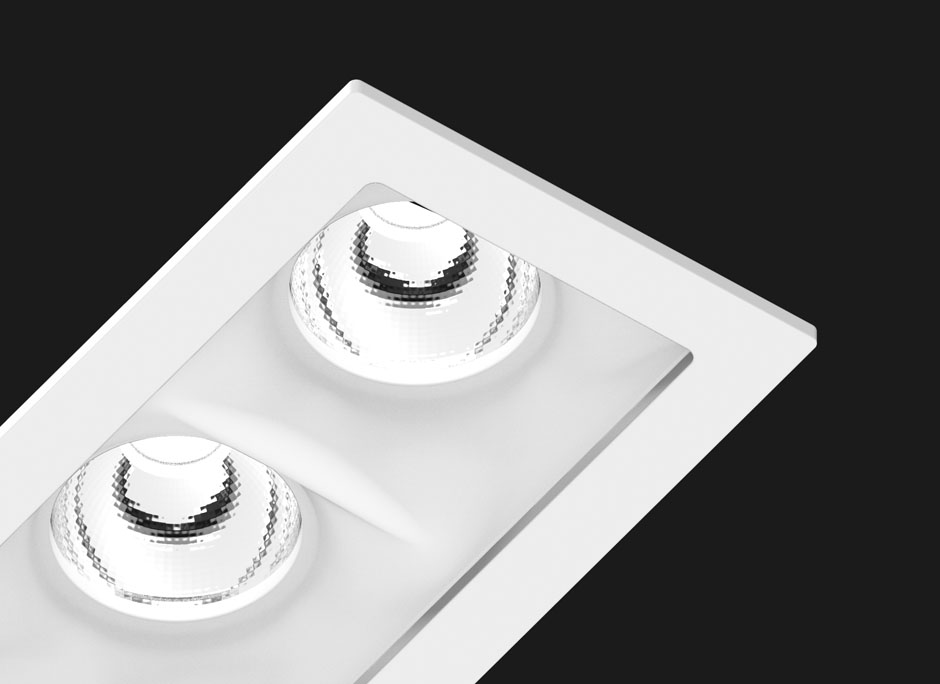

White

Our products can be finished in a RAL colour of your choice on request.
