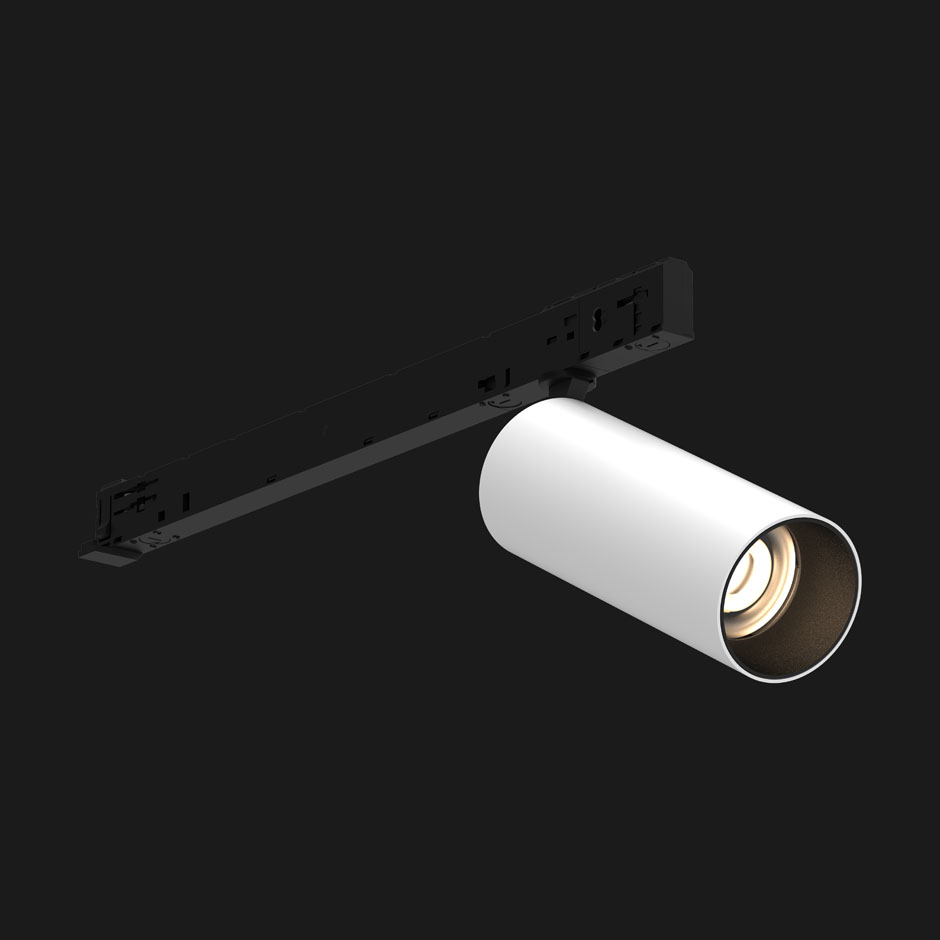

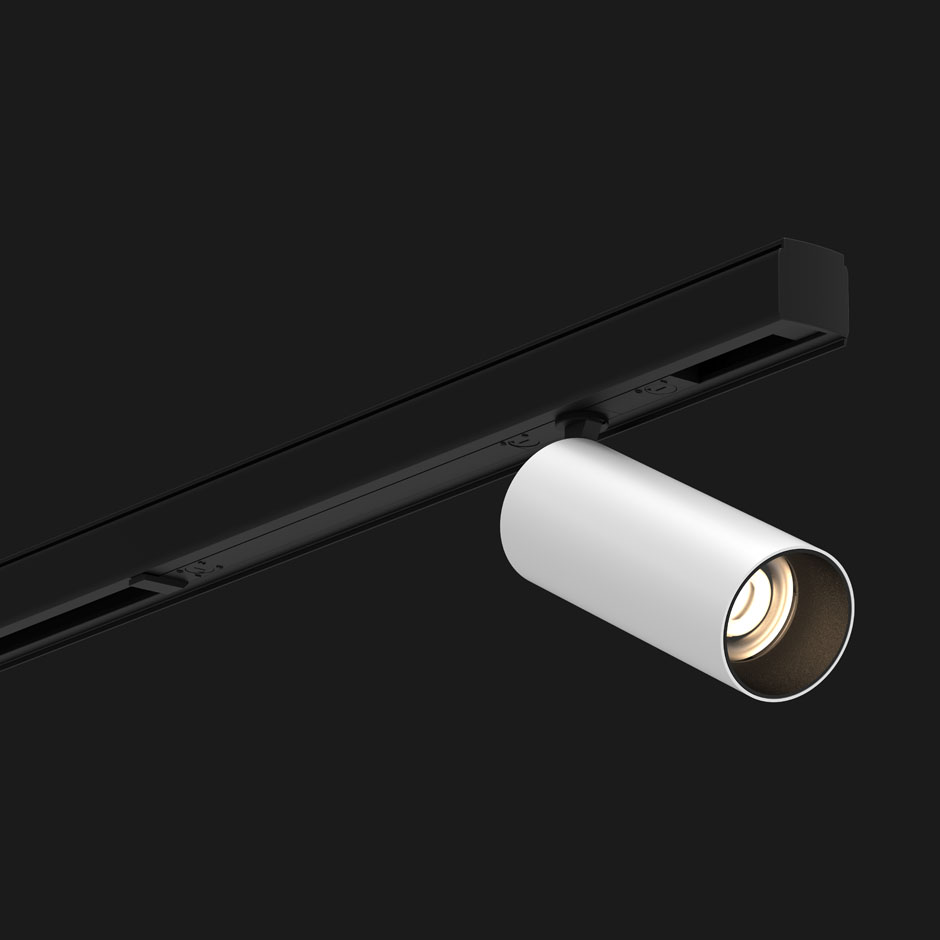

Tektus 60 3-Phase Flush 350mA

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Tektus 60 3-Phase Flush 350mA

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Tektus 60: UGR <13 for 23>

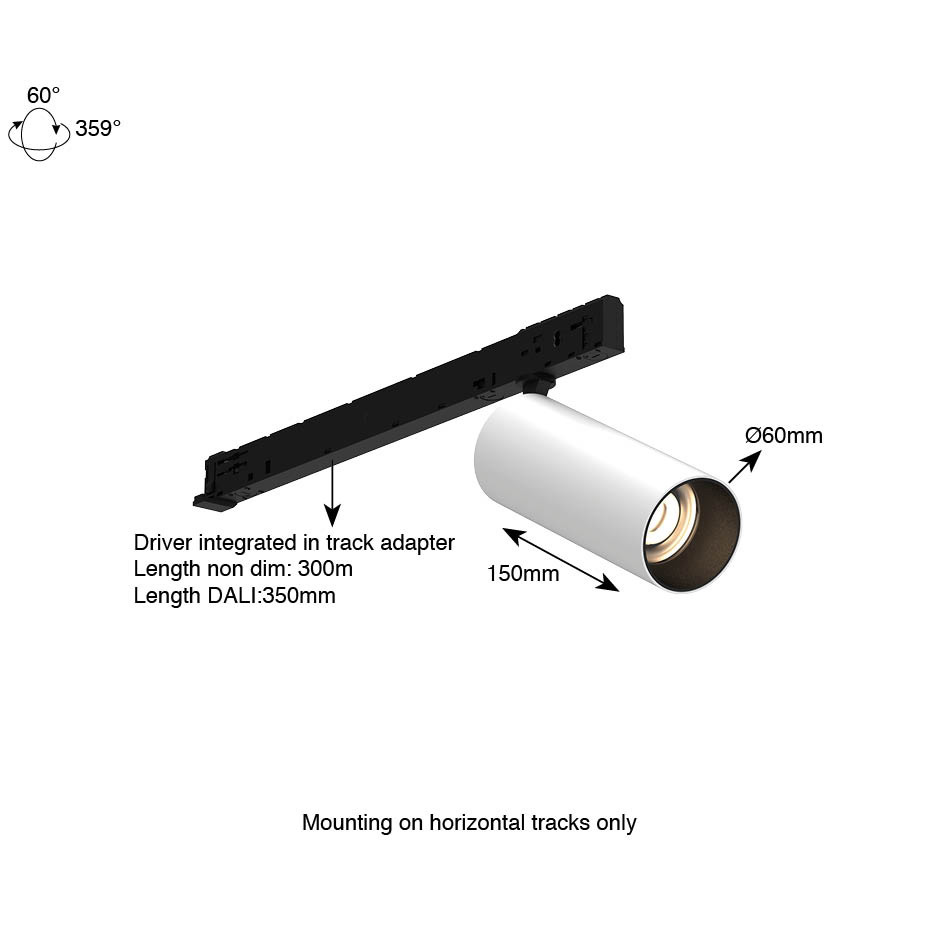

Luminaire Body

Type: Spot-/Downlight
Positioning: 3 phase rail mounted
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 60°
El. Class: I (Protective earth required)
IP: IP20
Weight: 686g

Lightsource

Dimming: Dali Dim, Non Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Lens
Luminous flux System:
RA97 RA90
2700K 931lm (73lm/W) 1001lm (78lm/W)
3000K 976lm (76lm/W) 1040lm (81lm/W)
4000K 931lm (73lm/W) 1056lm (82lm/W)
Luminous flux LED:
RA97 RA90
2700K 1411lm (122lm/W) 1517lm (132lm/W)
3000K 1480lm (128lm/W) 1577lm (137lm/W)
4000K 1411lm (122lm/W) 1601lm (139lm/W)
Flux code: 98 100 100 100 86
Beam Angle: 23° / 36° / 48° / 57°
LED Power: 11.5W
System Power: 12.8W
Driver location: Remote

Lumen maintenance

L70B50: > 50.000 hrs L70B20: > 50.000 hrs L70B10: > 50.000 hrs
L80B50: > 50.000 hrs L80B20: > 50.000 hrs L80B10: > 50.000 hrs
L90B50: > 50.000 hrs L90B20: > 50.000 hrs L90B10: > 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Bronze
Brown
Champagne
Corten
Gold
Grey
White

Our products can be finished in a RAL colour of your choice on request.
