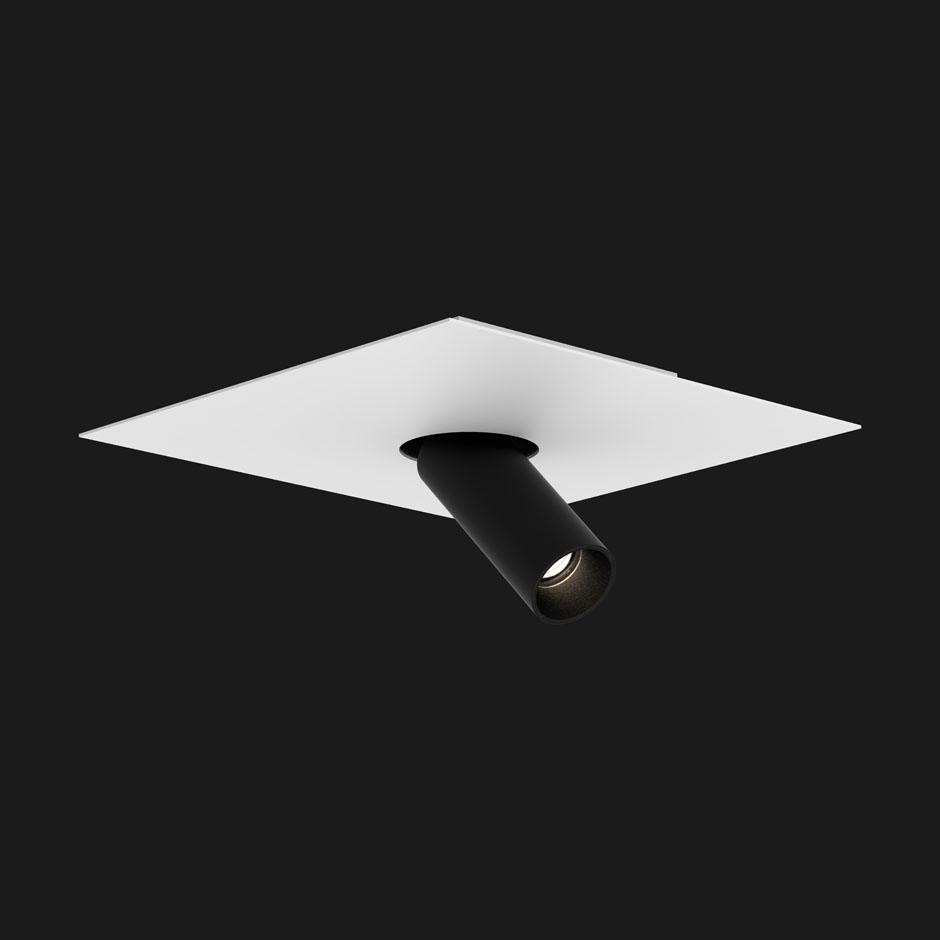

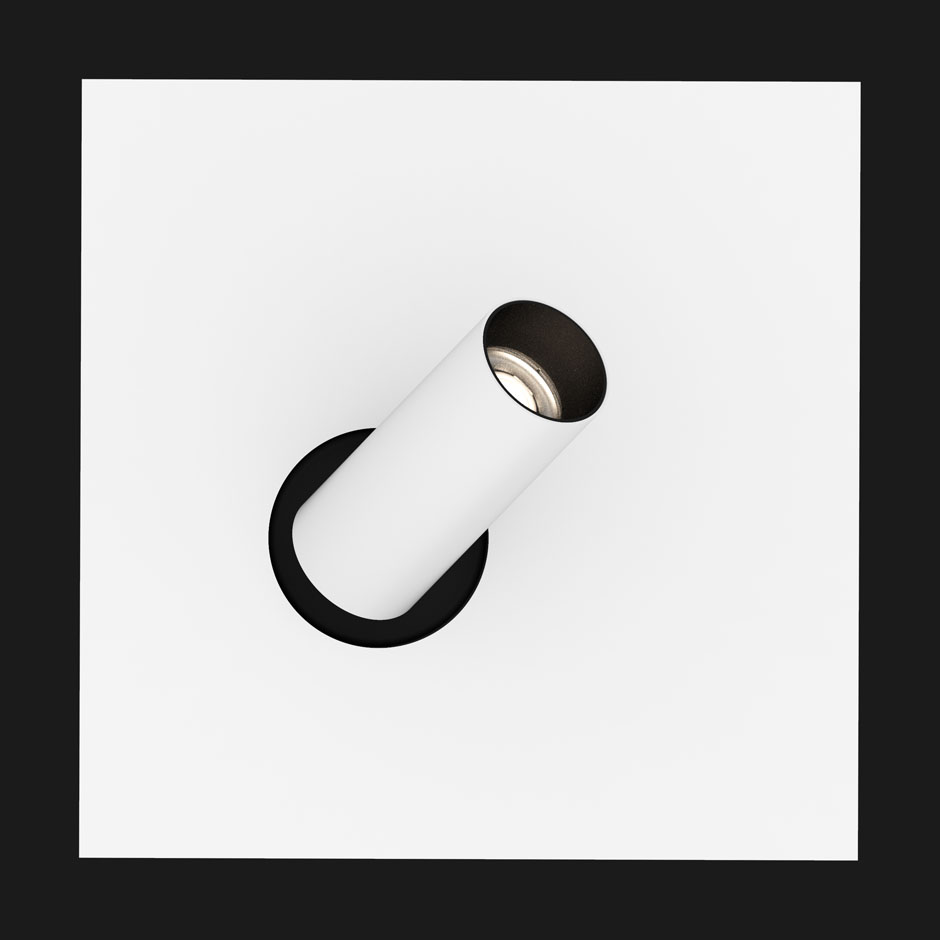

Tektus 45 Square 1-Way
General Specifications
Visual Comfort
UGR <13*
UGR <16*
UGR <19*
Tektus 45: UGR <16 for 29° lens, UGR <19 for 40° lens
Luminaire Body
Type:
Spot-/Downlight
Positioning:
Ceiling and wall mounted
Material:
Aluminium + steel
Adjustable:
Yes

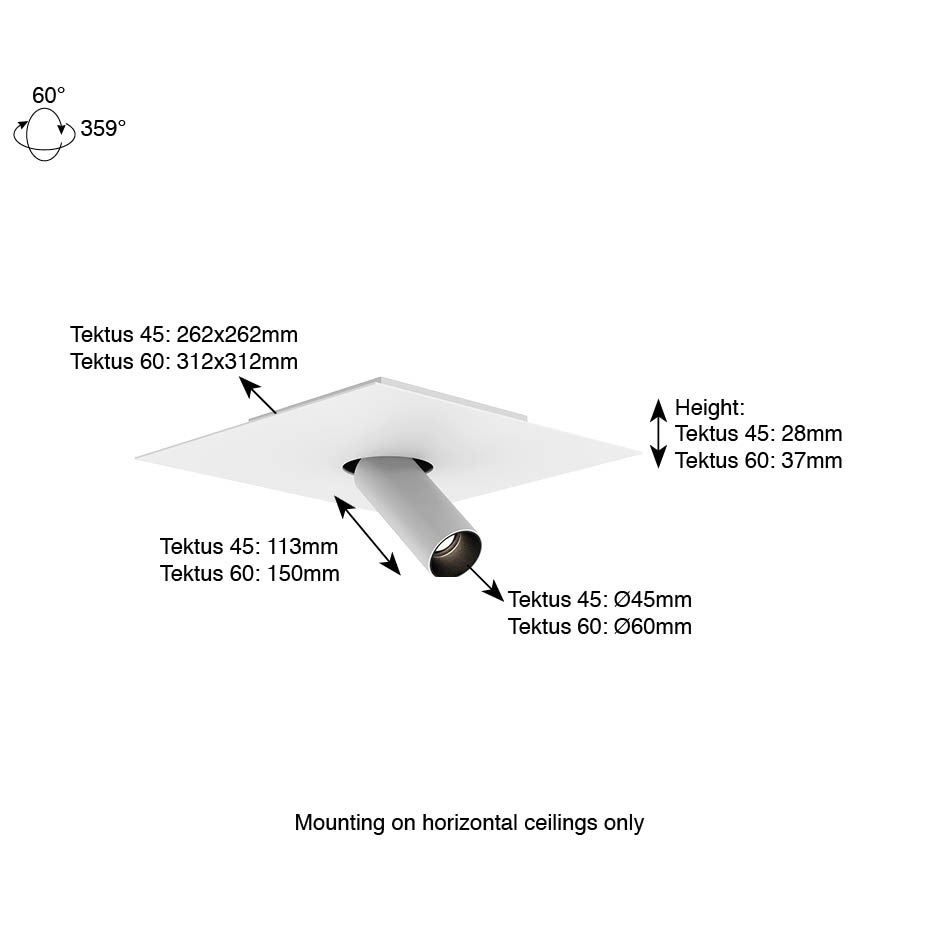

Rotation / tilt:
359° / 60°
El. Class:
I (Protective earth required)
IP:
IP20
Weight:
2905g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
1800-3000K, 2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
3
Optics:
Lens
Luminous flux System:
RA97
RA90
DTW(1800-3000K)
602lm (87lm/W)
2700K
657lm (68lm/W)
770lm (80lm/W)
3000K
702lm (73lm/W)
809lm (84lm/W)
4000K
734lm (76lm/W)
820lm (85lm/W)
Luminous flux LED:
RA97
RA90
DTW(1800-3000K)
860lm (138lm/W)
2700K
939lm (108lm/W)
1100lm (126lm/W)
3000K
1003lm (115lm/W)
1156lm (133lm/W)
4000K
1049lm (120lm/W)
1172lm (134lm/W)
Flux code:
100 100 100 100 77
Beam Angle:
29° / 40° / 51°
LED Power:
8.7W
System Power:
9.7W
Driver location:
Integrated
Lumen maintenance
L70B50:
>114.000 hrs
L70B20:
>114.000 hrs
L70B10:
>114.000 hrs
L80B50:
>114.000 hrs
L80B20:
>114.000 hrs
L80B10:
>114.000 hrs
L90B50:
>114.000 hrs
L90B20:
112.000 hrs
L90B10:
104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
Anthracite

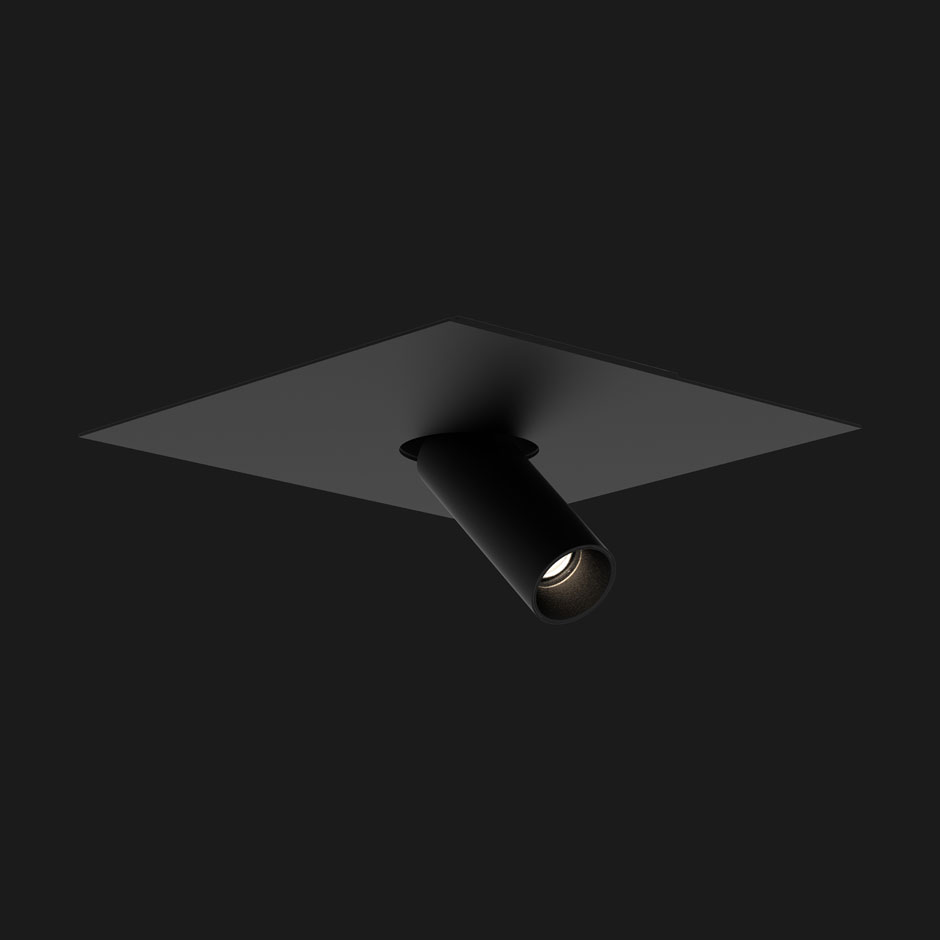

Black

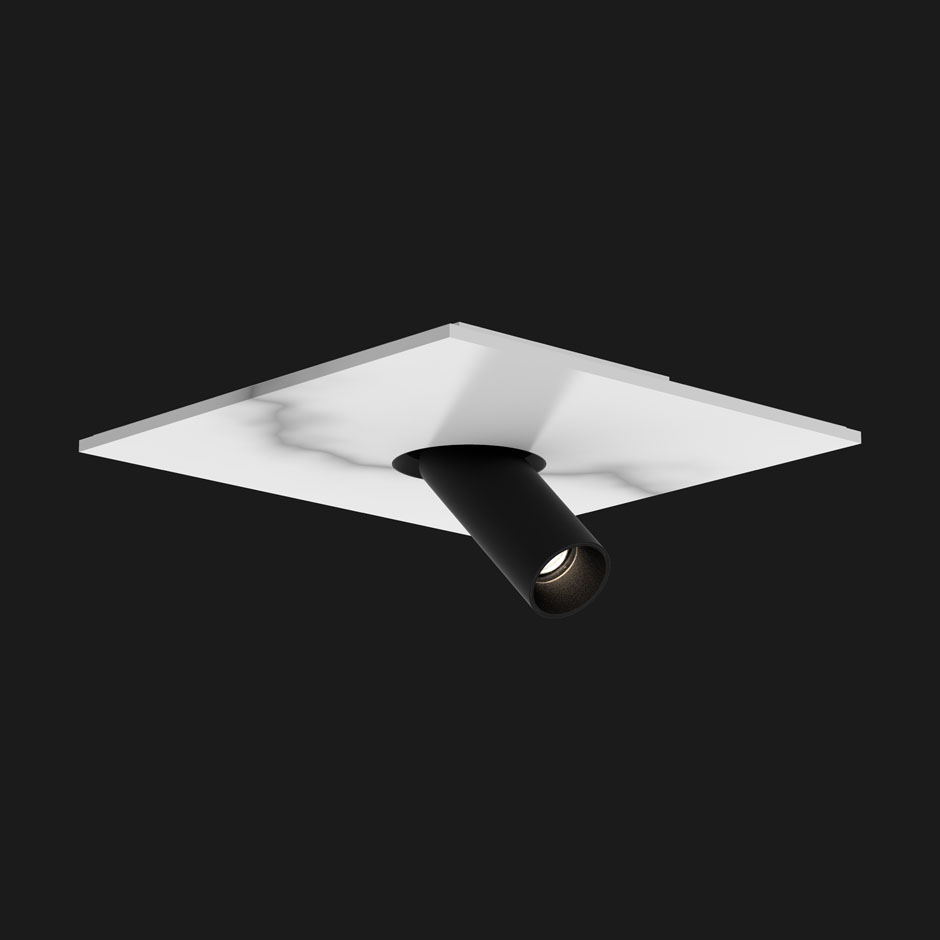

Black / Marble
Black / White
Bronze
Brown
Champagne / Black
Champagne / Marble
Champagne / White

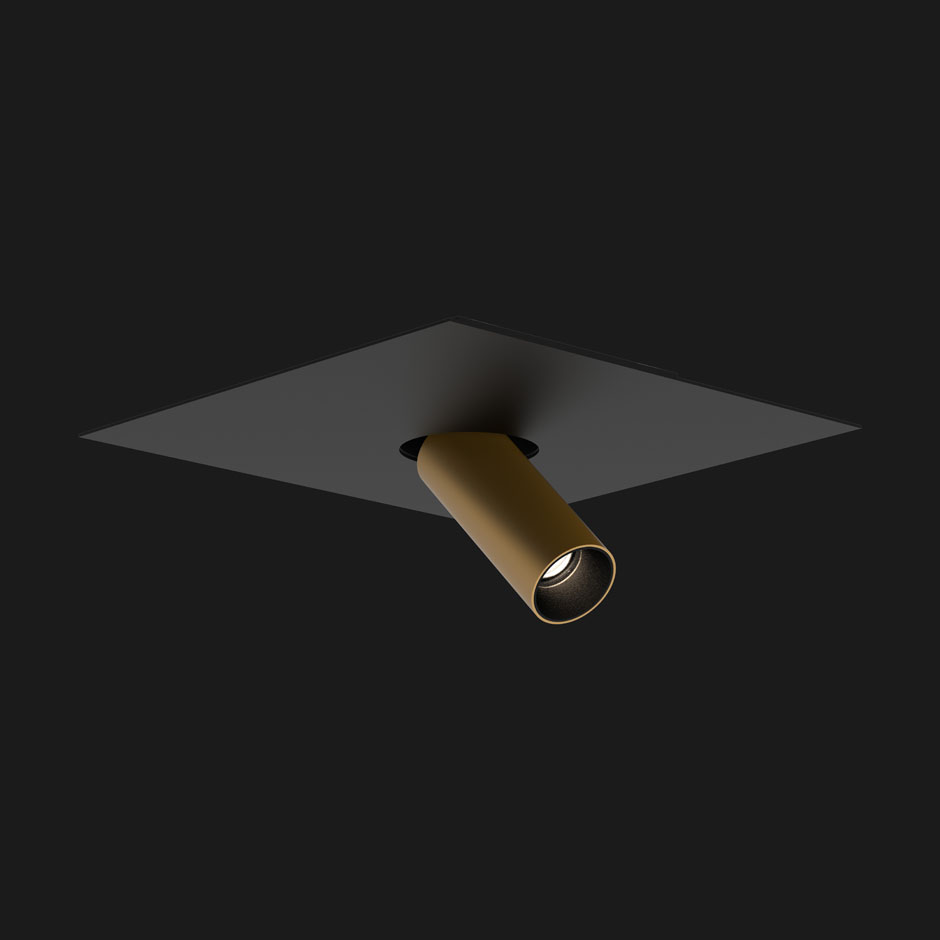

Gold / Black

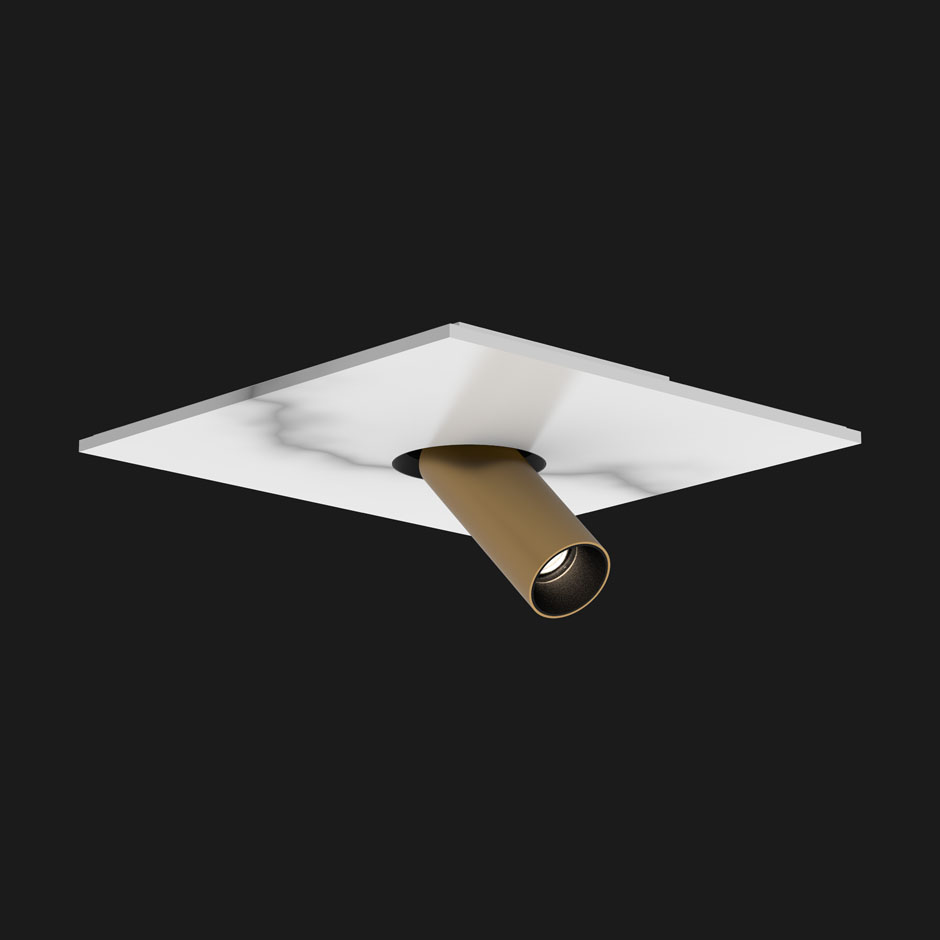

Gold / Marble

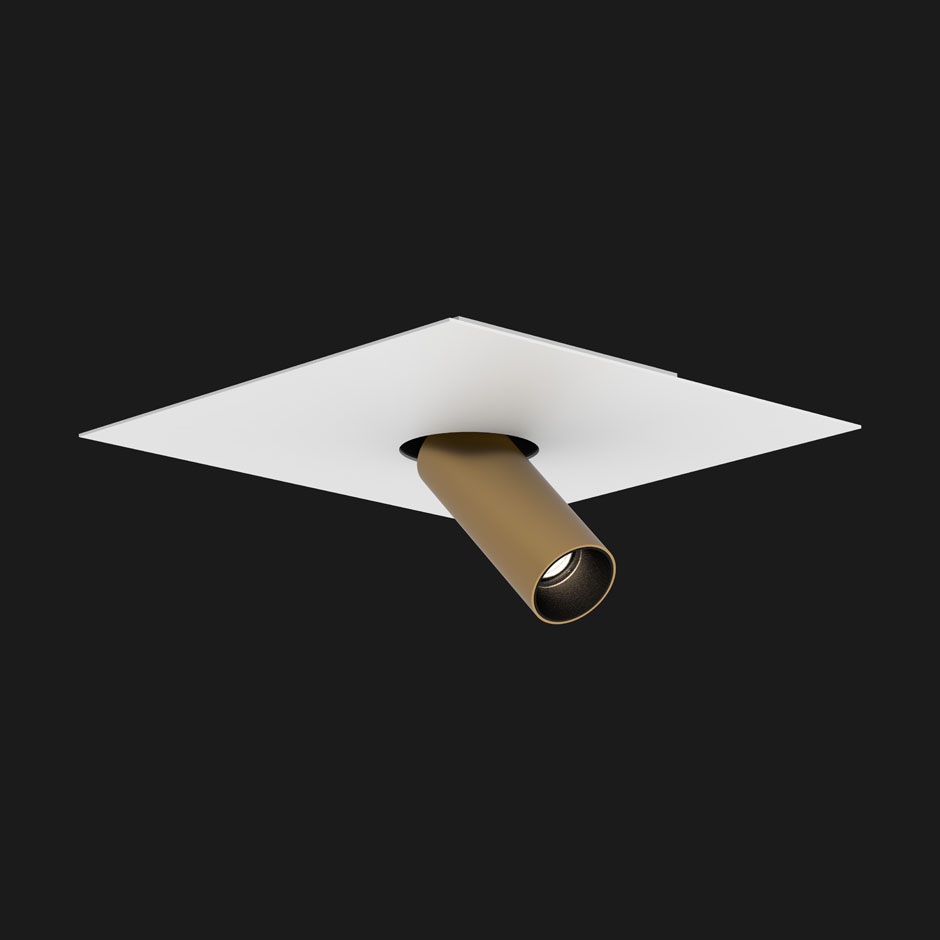

Gold / White
Grey

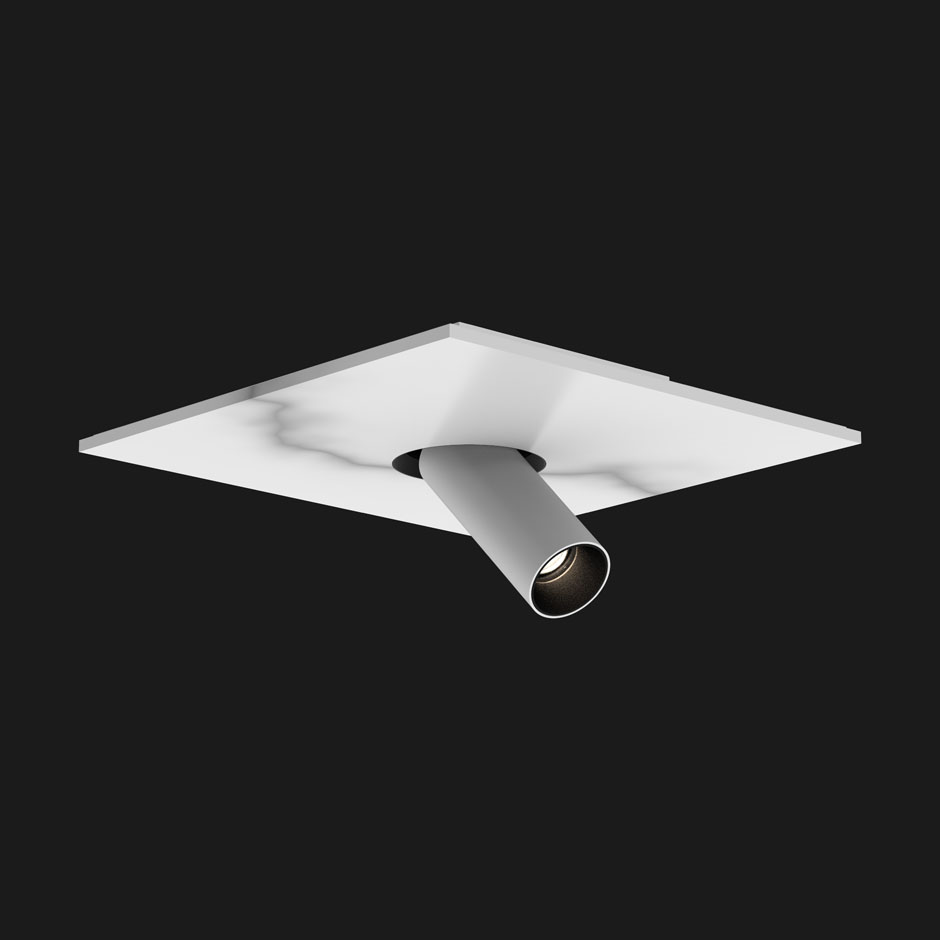

White / Marble

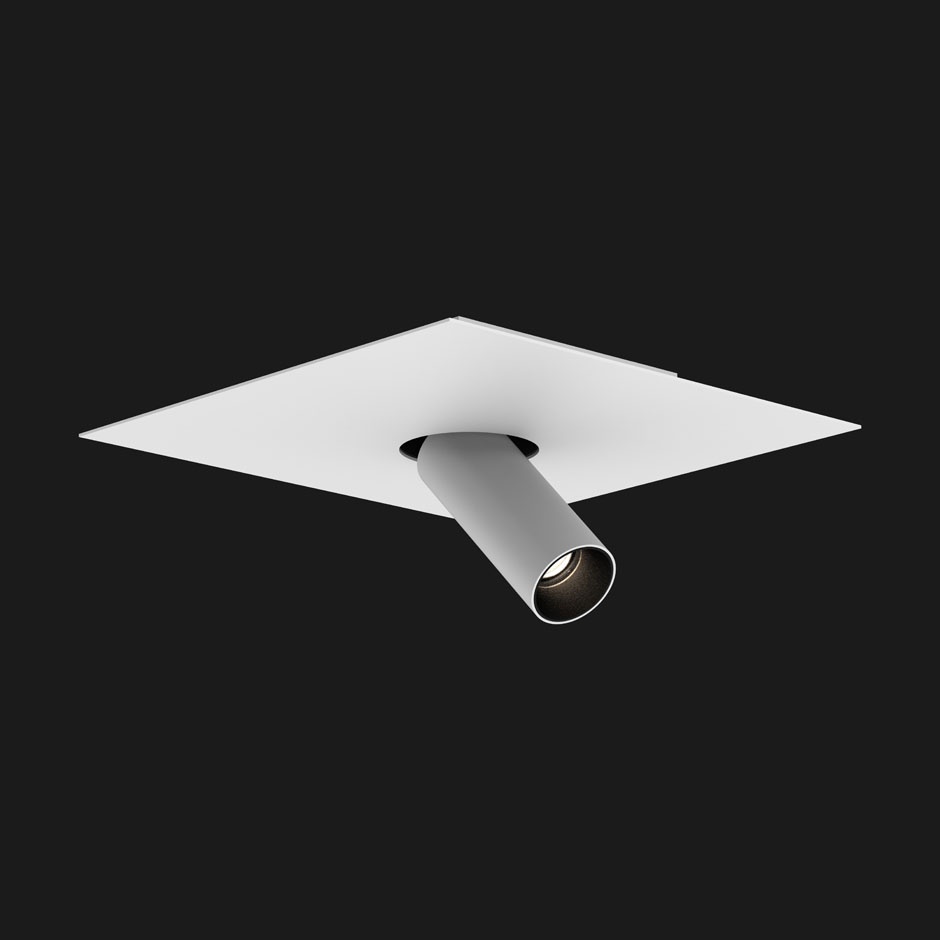

White
