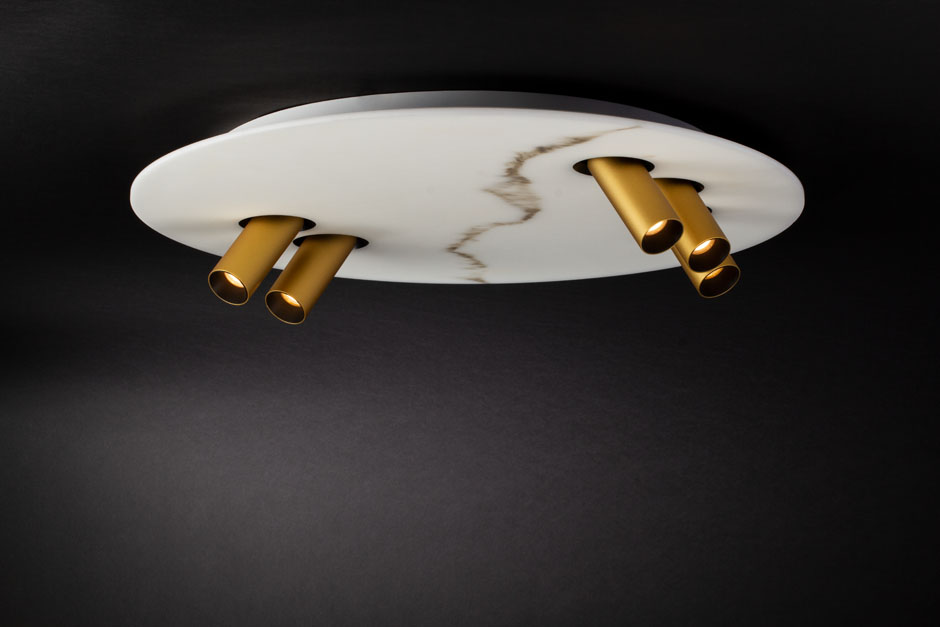

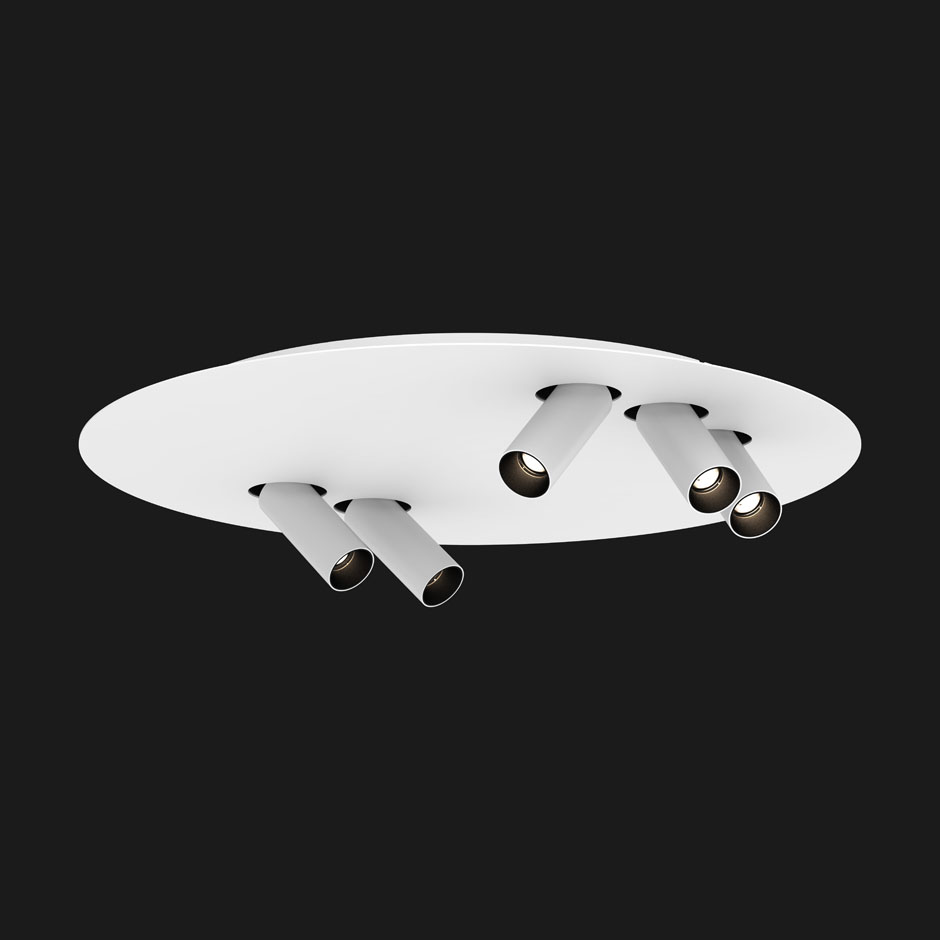

Tektus 45 Round 5-Way

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Tektus 45 Round 5-Way

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Tektus 45: UGR <16 for 29° lens, UGR <19 for 40° lens

Luminaire Body

Type: Spot-/Downlight
Positioning: Ceiling mounted
Material: Aluminium + steel
Adjustable: Yes
Rotation / tilt: 359° / 60°
El. Class: I (Protective earth required)
IP: IP20
Weight: 9977g

Lightsource

Dimming: Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 1800-3000K, 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Lens
Luminous flux System:
RA97 RA90
DTW(1800-3000K) 3010lm (87lm/W)
2700K 3286lm (68lm/W) 3850lm (80lm/W)
3000K 3510lm (73lm/W) 4046lm (84lm/W)
4000K 3671lm (76lm/W) 4102lm (85lm/W)
Luminous flux LED:
RA97 RA90
DTW(1800-3000K) 4300lm (138lm/W)
2700K 4695lm (108lm/W) 5500lm (126lm/W)
3000K 5015lm (115lm/W) 5780lm (133lm/W)
4000K 5245lm (120lm/W) 5860lm (134lm/W)
Flux code: 100 100 100 100 77
Beam Angle: 29° / 40° / 51°
LED Power: 43.6W
System Power: 48.4W
Driver location: Integrated

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / Marble
Black / White
Bronze / Black
Bronze
Bronze / Sand
Brown
Champagne / Black
Champagne / Marble
Champagne / White
Gold / Black
Gold / Marble
Gold / White
Grey
White / Corten
White / Marble
White

Our products can be finished in a RAL colour of your choice on request.
