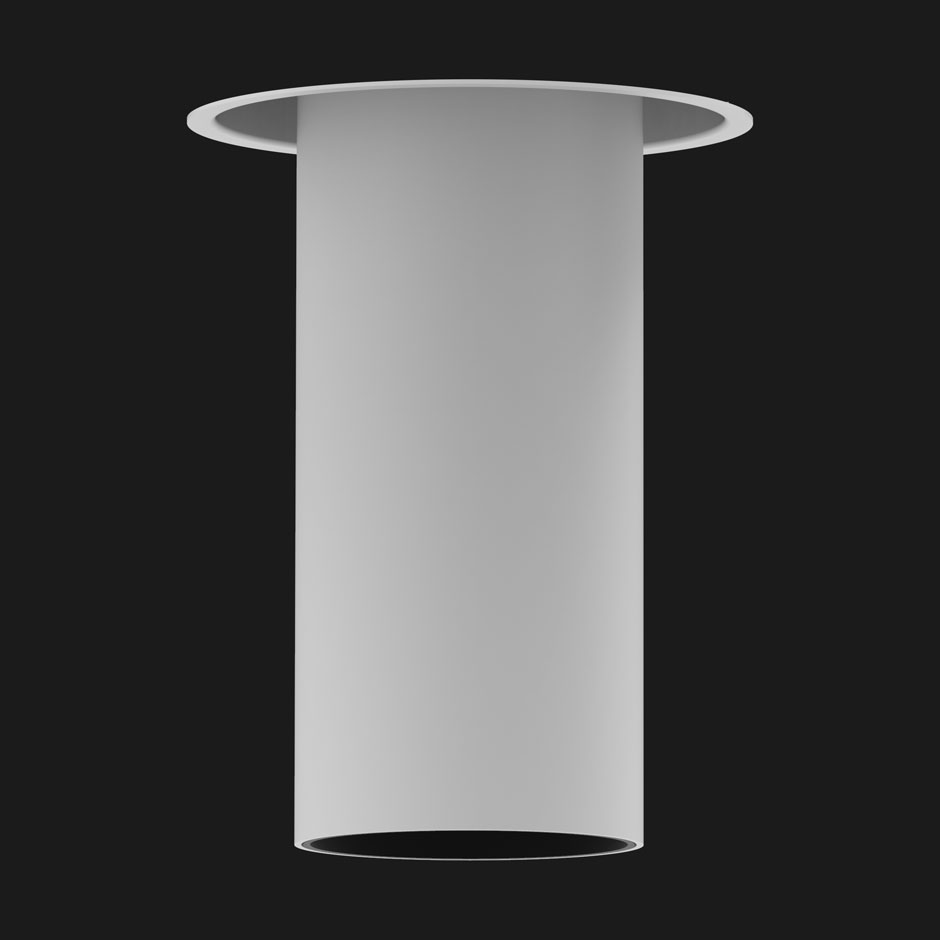

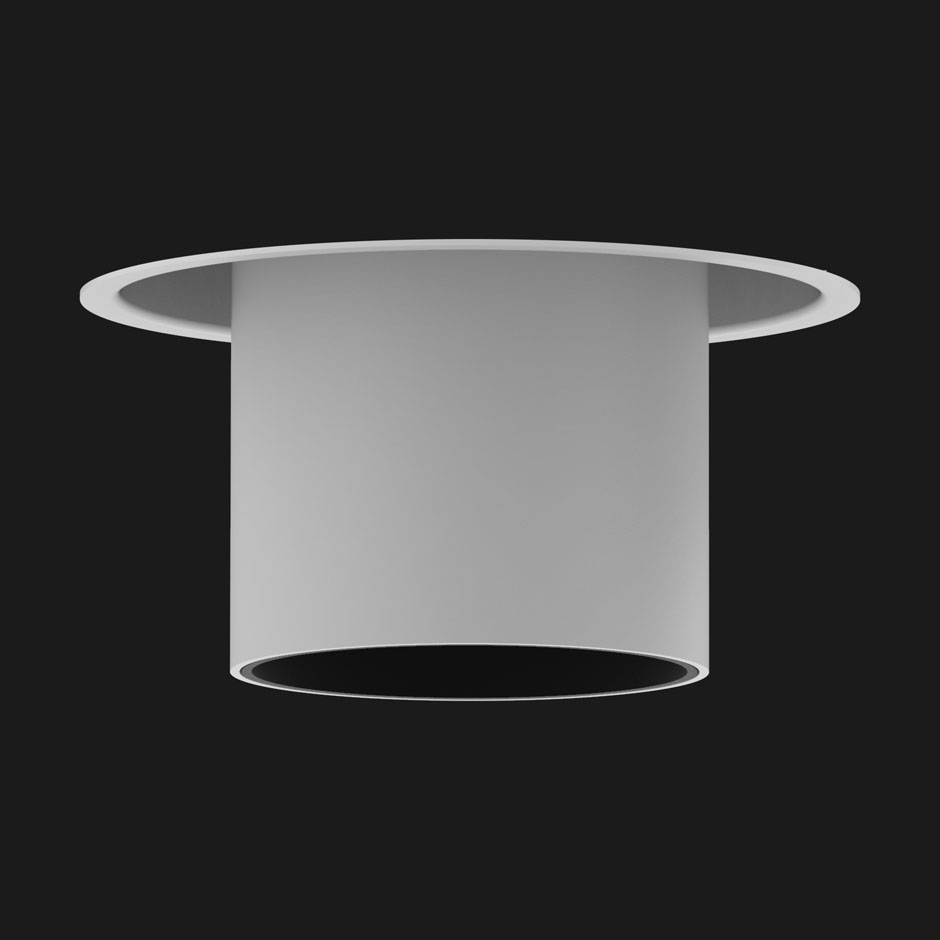

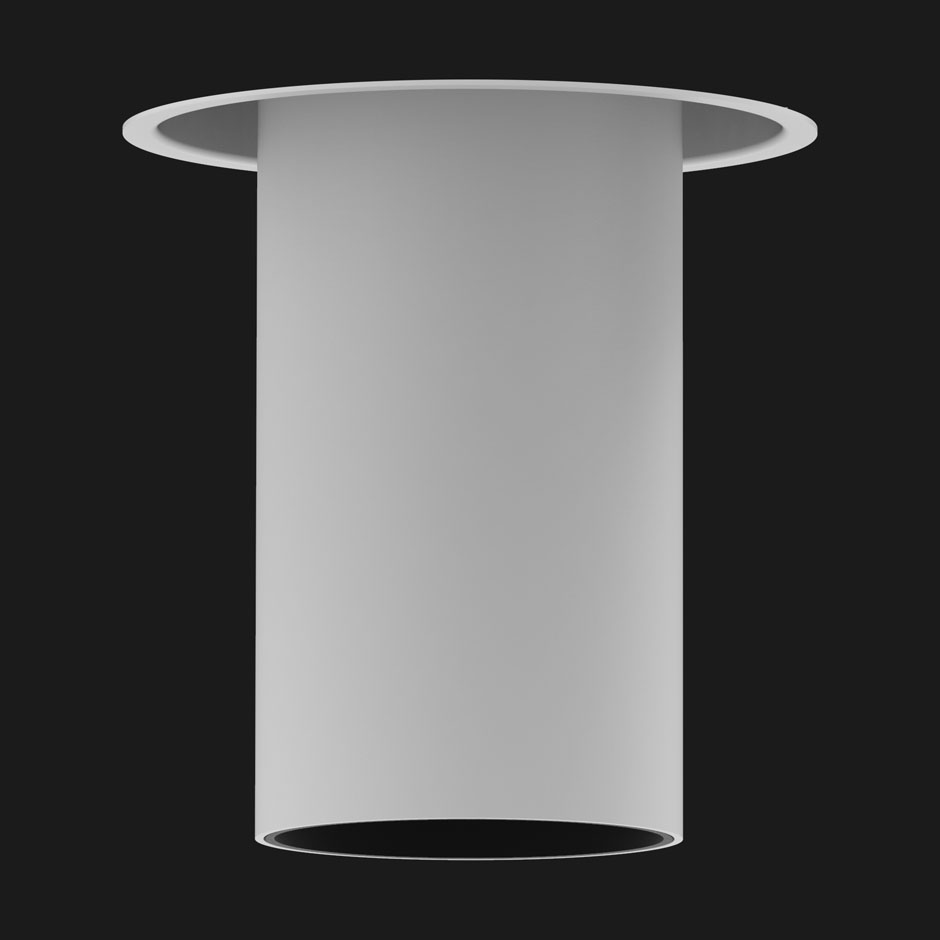

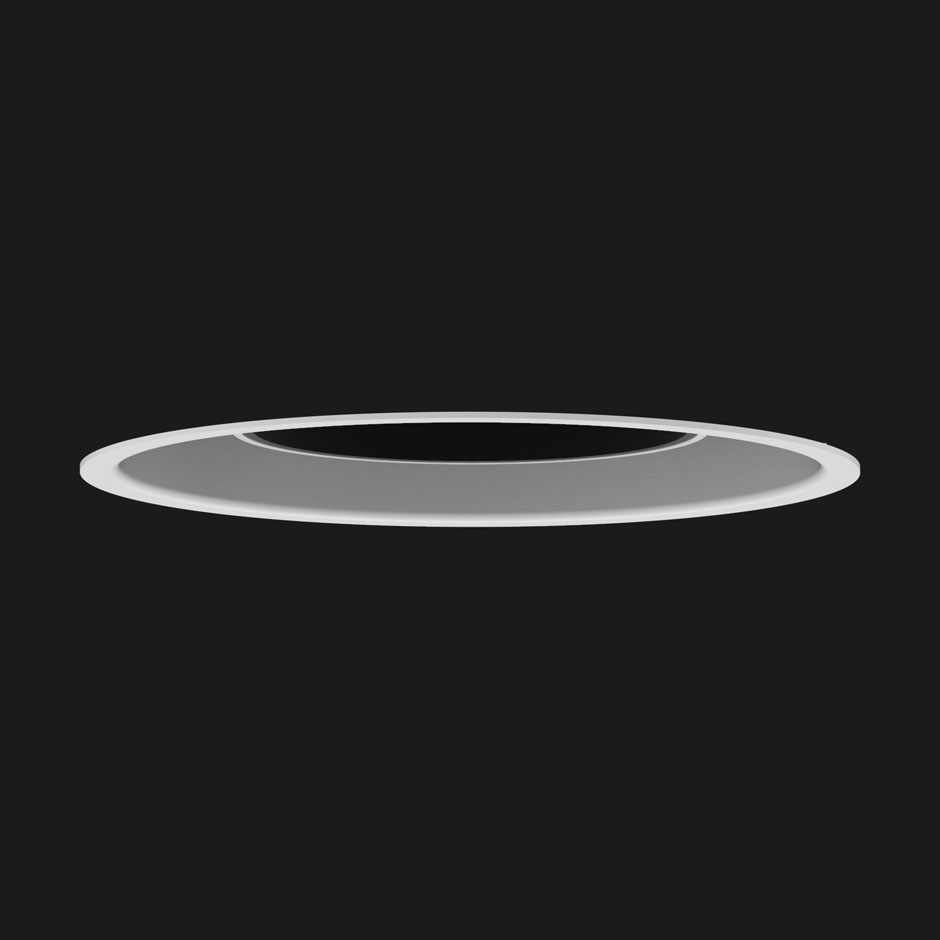

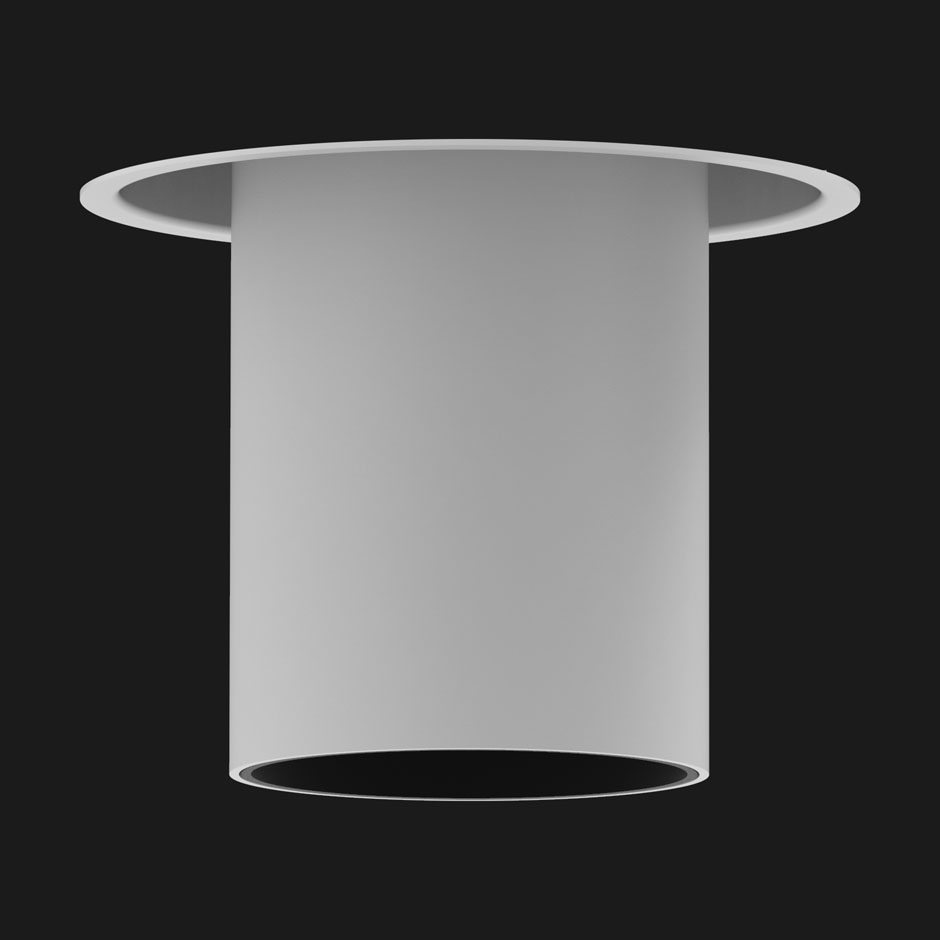

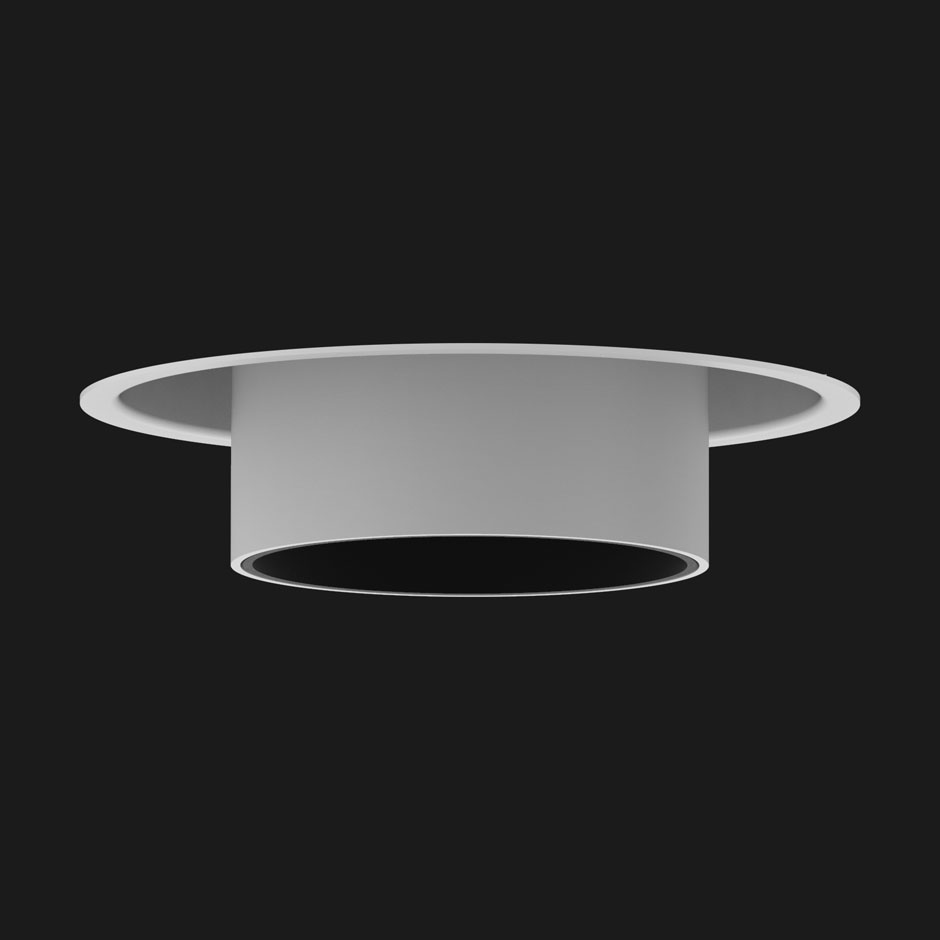

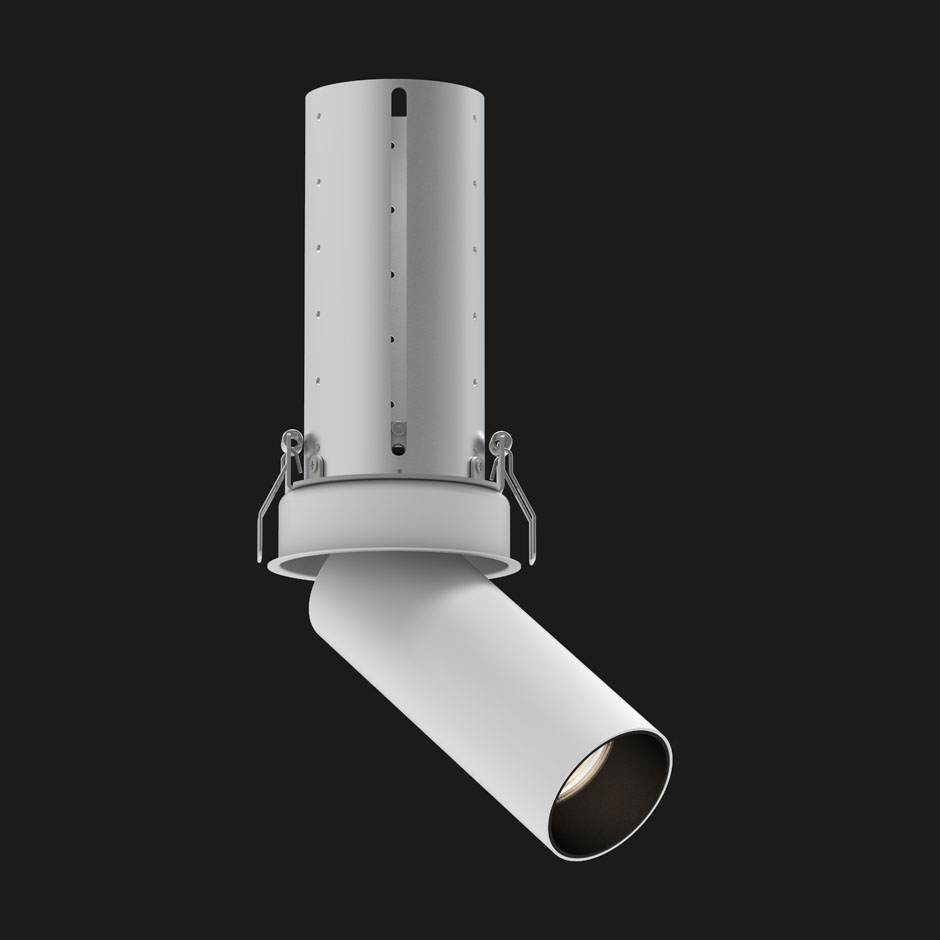

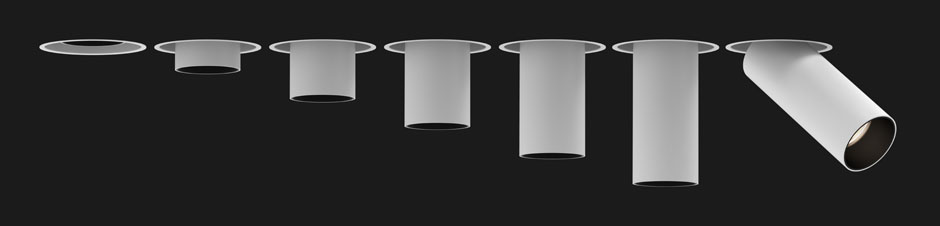

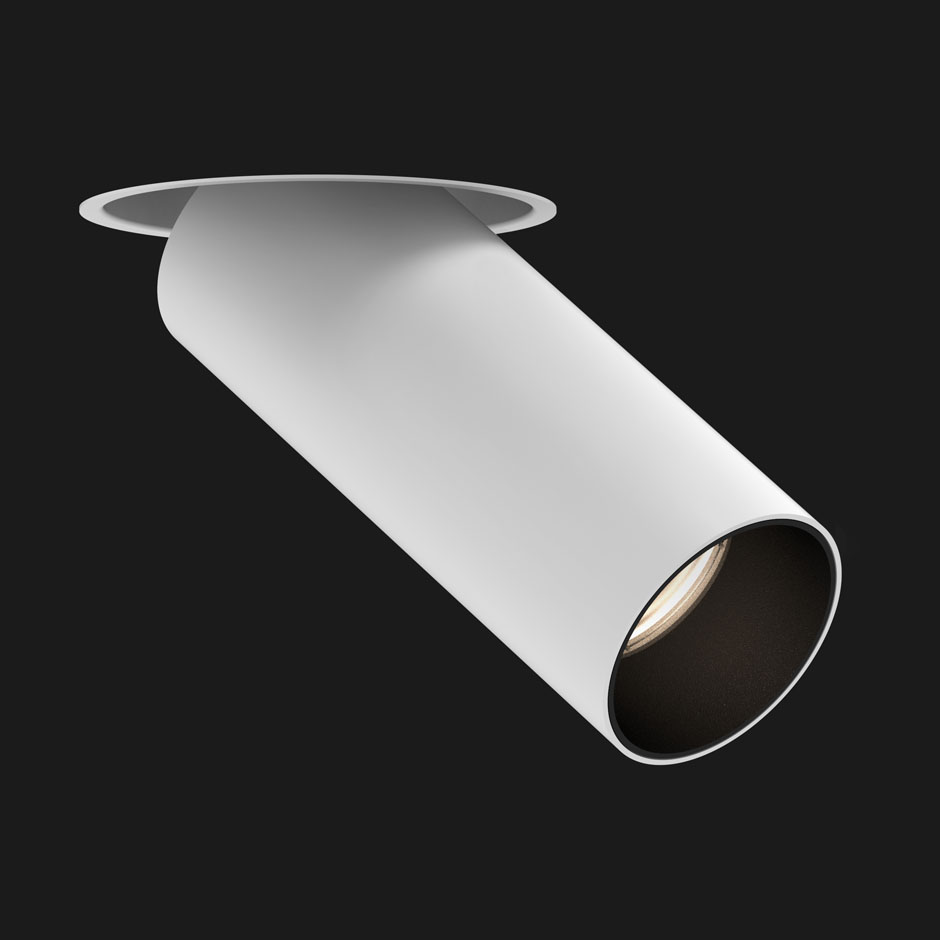

Tektus 60 Telescopic 350mA
General Specifications
Visual Comfort
UGR <13*
UGR <16*
UGR <19*
Tektus 60: UGR <13 for 23>
Luminaire Body
Type:
Spot-/Downlight
Positioning:
Recessed
Material:
Recycled aluminium
Adjustable:
Yes
Rotation / tilt:
359° / 60°
El. Class:
II (Protective earth not required)
IP:
IP20
Cut-out diameter:
92mm
Outer diameter:
98mm
Weight:
990g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
3
Optics:
Lens
Luminous flux System:
RA97
RA90
2700K
931lm (73lm/W)
1001lm (78lm/W)
3000K
976lm (76lm/W)
1040lm (81lm/W)
4000K
931lm (73lm/W)
1056lm (82lm/W)
Luminous flux LED:
RA97
RA90
2700K
1411lm (122lm/W)
1517lm (132lm/W)
3000K
1480lm (128lm/W)
1577lm (137lm/W)
4000K
1411lm (122lm/W)
1601lm (139lm/W)
Flux code:
98 100 100 100 86
Beam Angle:
23° / 36° / 48° / 57°
LED Power:
11.5W
System Power:
12.8W
Driver location:
Remote
Lumen maintenance
L70B50:
> 50.000 hrs
L70B20:
> 50.000 hrs
L70B10:
> 50.000 hrs
L80B50:
> 50.000 hrs
L80B20:
> 50.000 hrs
L80B10:
> 50.000 hrs
L90B50:
> 50.000 hrs
L90B20:
> 50.000 hrs
L90B10:
> 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
Anthracite
Black
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White / Black

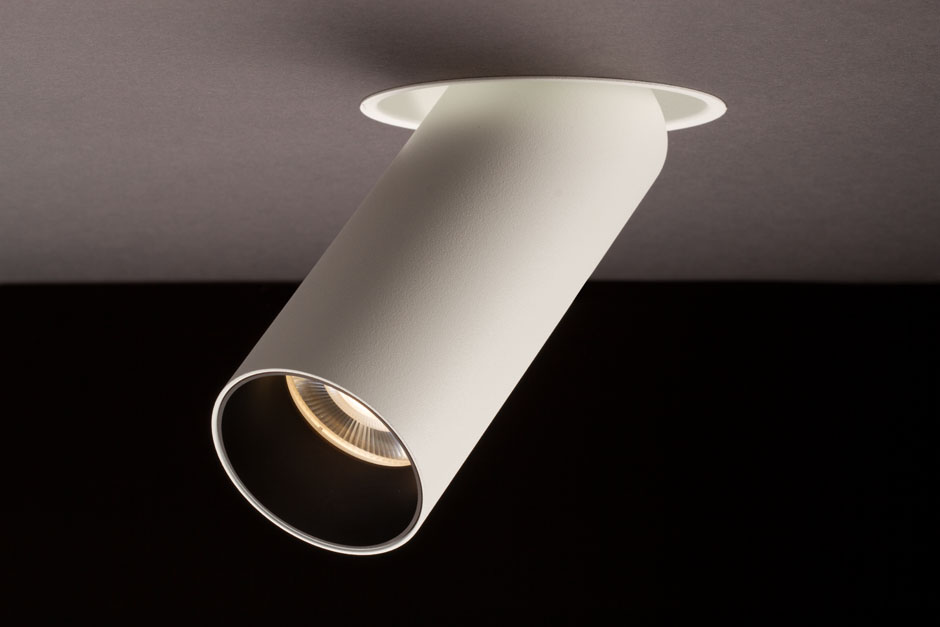

White
Our products can be finished in a RAL colour of your choice on request.
