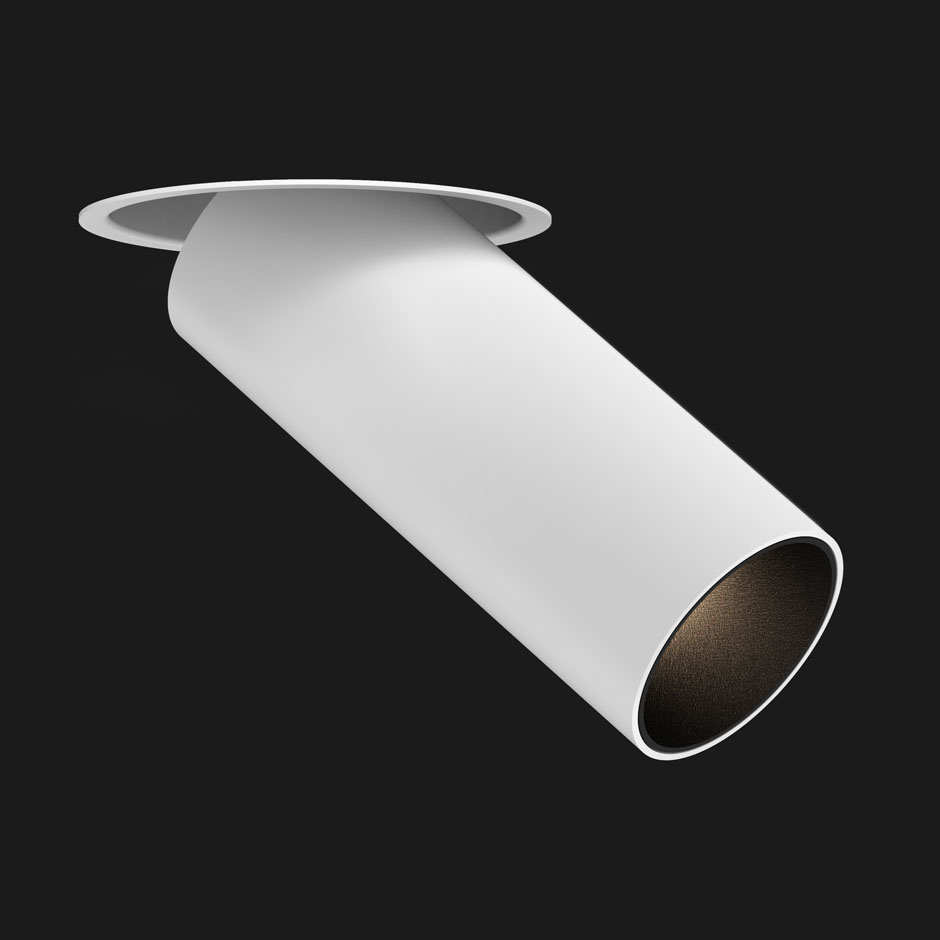

Tektus 45 Telescopic

Available Colours

Our products can be finished in a RAL colour of your choice on request.

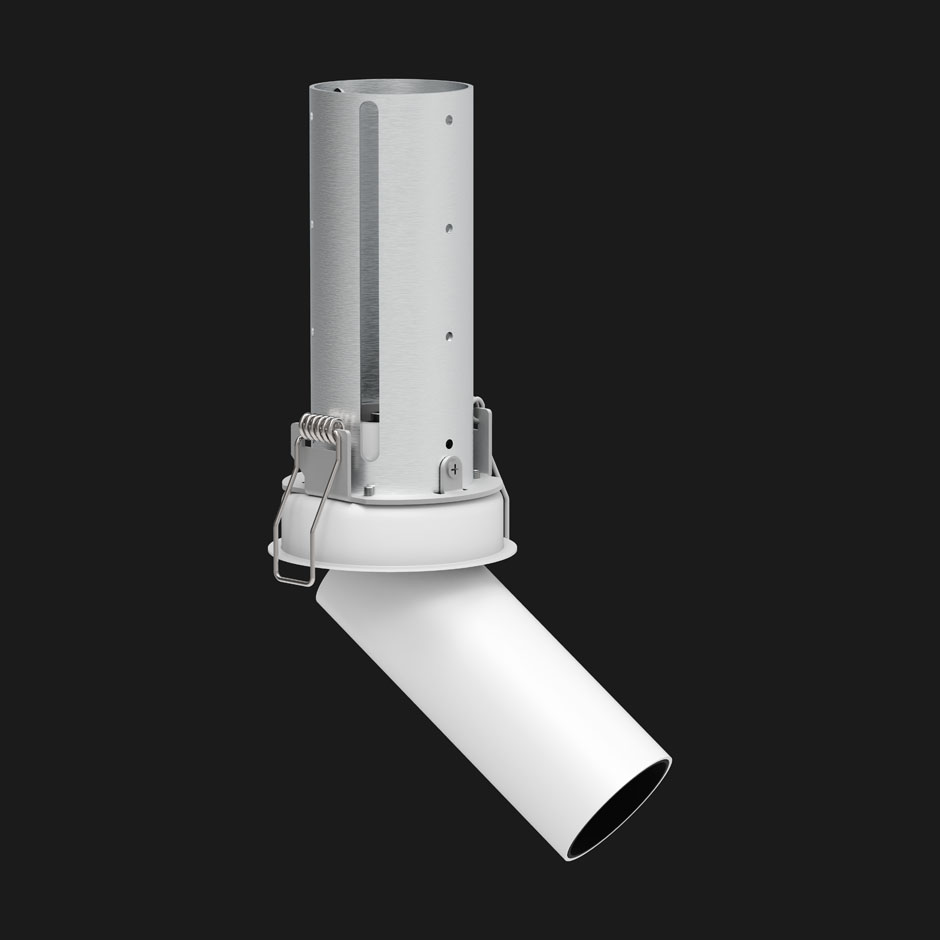

Tektus 45 Telescopic

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Tektus 45: UGR <16 for 29° lens, UGR <19 for 40° lens

Luminaire Body

Type: Spot-/Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: Yes

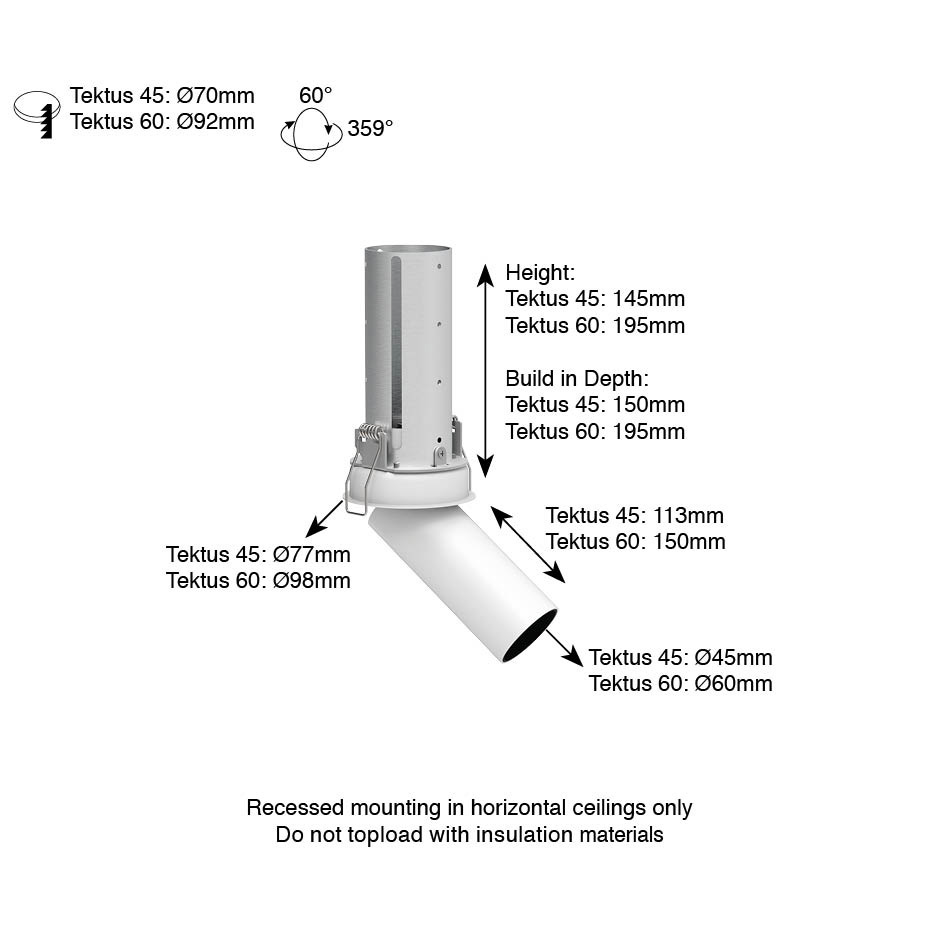

Rotation / tilt: 359° / 60°
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 70mm
Outer diameter: 77mm
Weight: 650g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 1800-3000K, 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Lens
Luminous flux System:
RA97 RA90
DTW(1800-3000K) 602lm (87lm/W)
2700K 657lm (68lm/W) 770lm (80lm/W)
3000K 702lm (73lm/W) 809lm (84lm/W)
4000K 734lm (76lm/W) 820lm (85lm/W)
Luminous flux LED:
RA97 RA90
DTW(1800-3000K) 860lm (138lm/W)
2700K 939lm (108lm/W) 1100lm (126lm/W)
3000K 1003lm (115lm/W) 1156lm (133lm/W)
4000K 1049lm (120lm/W) 1172lm (134lm/W)
Flux code: 100 100 100 100 77
Beam Angle: 29° / 40° / 51°
LED Power: 8.7W
System Power: 9.7W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

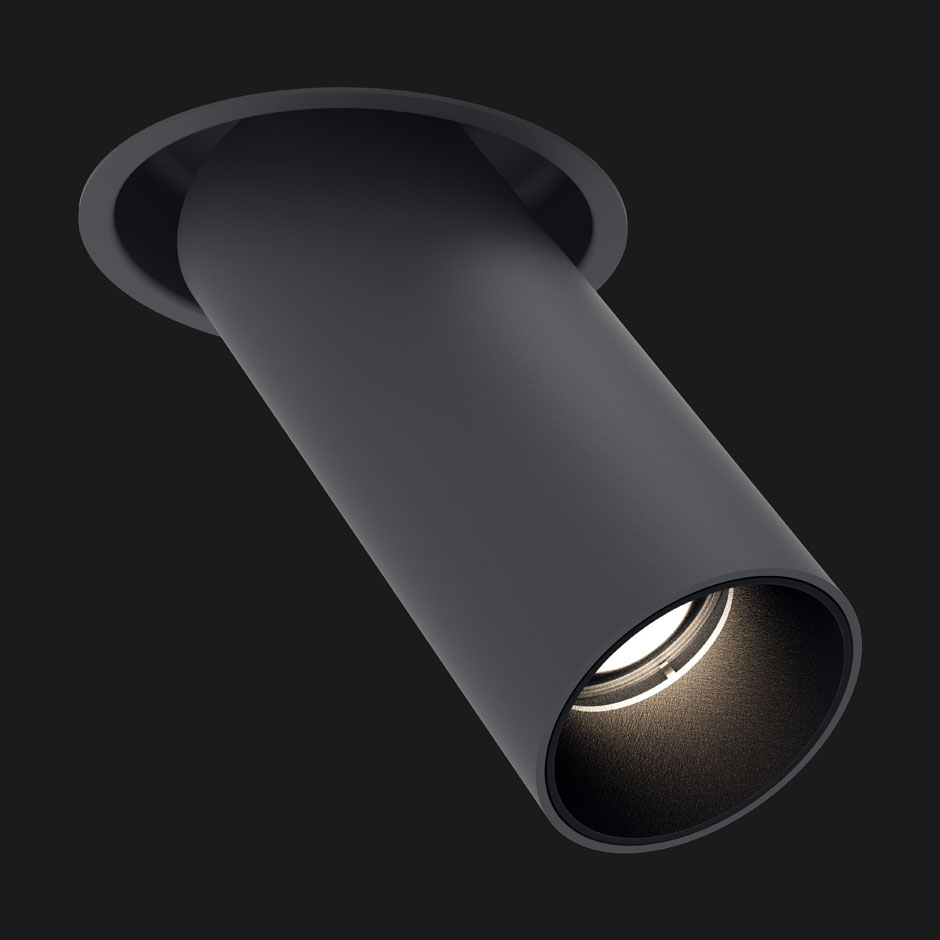

Anthracite

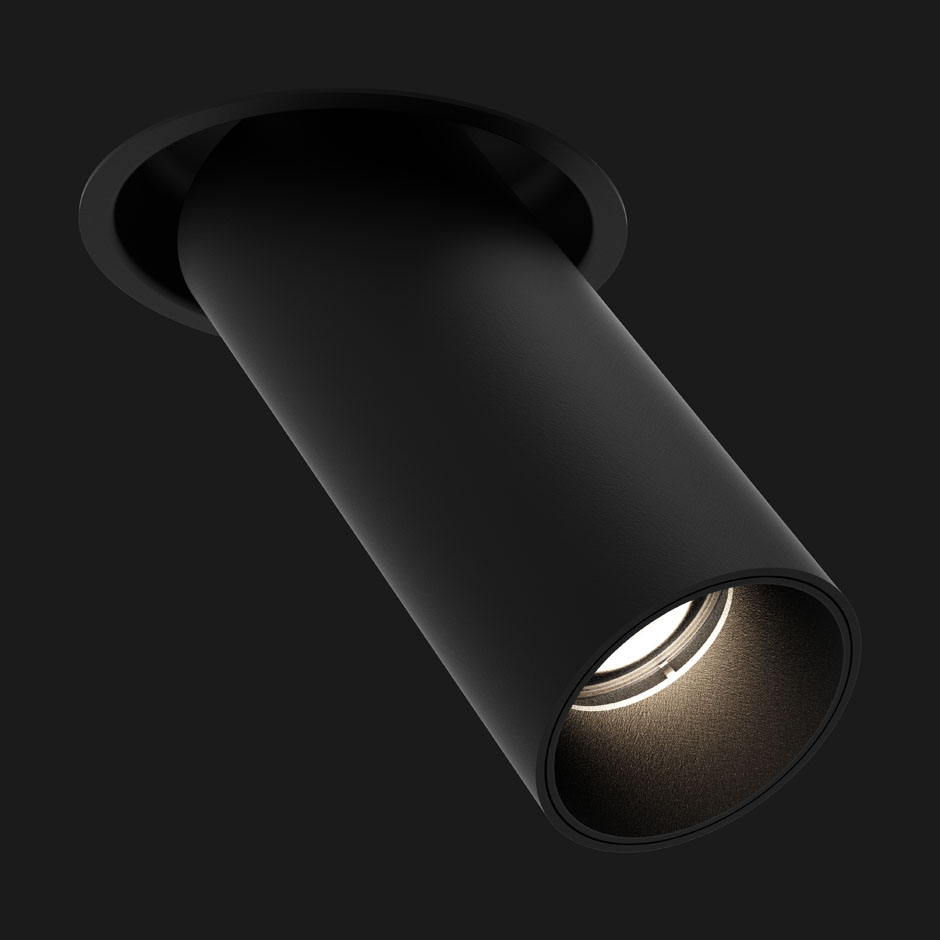

Black

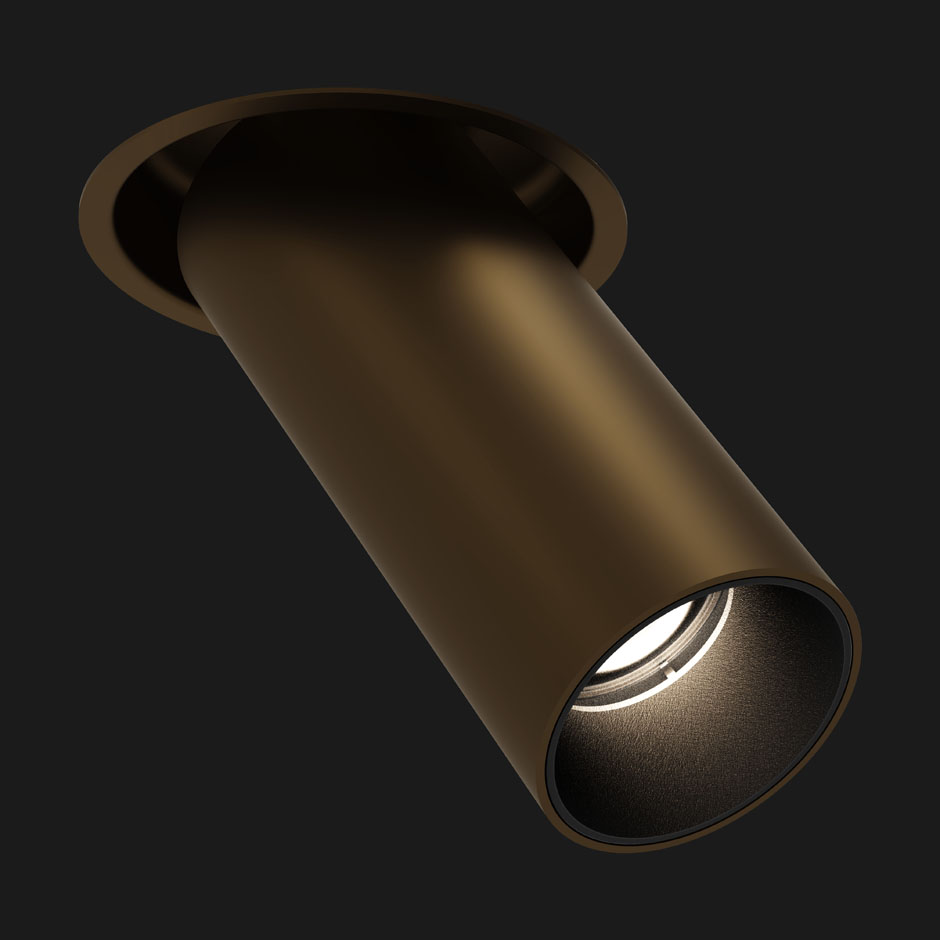

Bronze
Brown

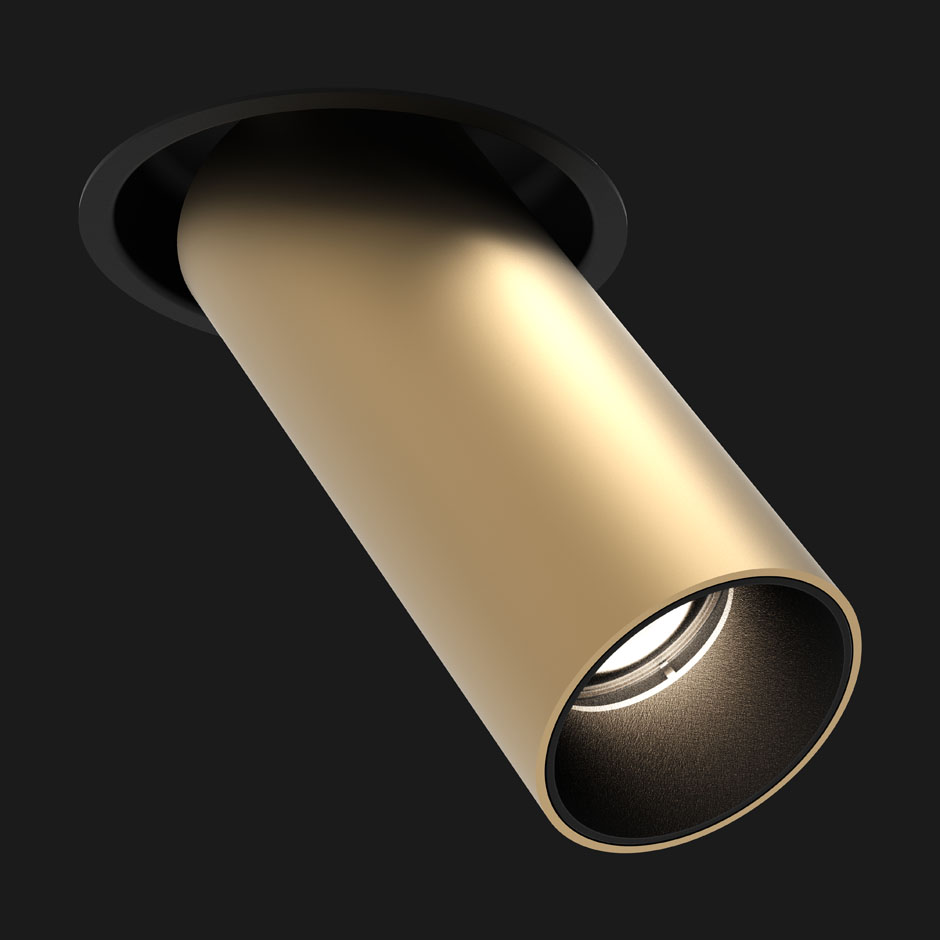

Champagne / Black

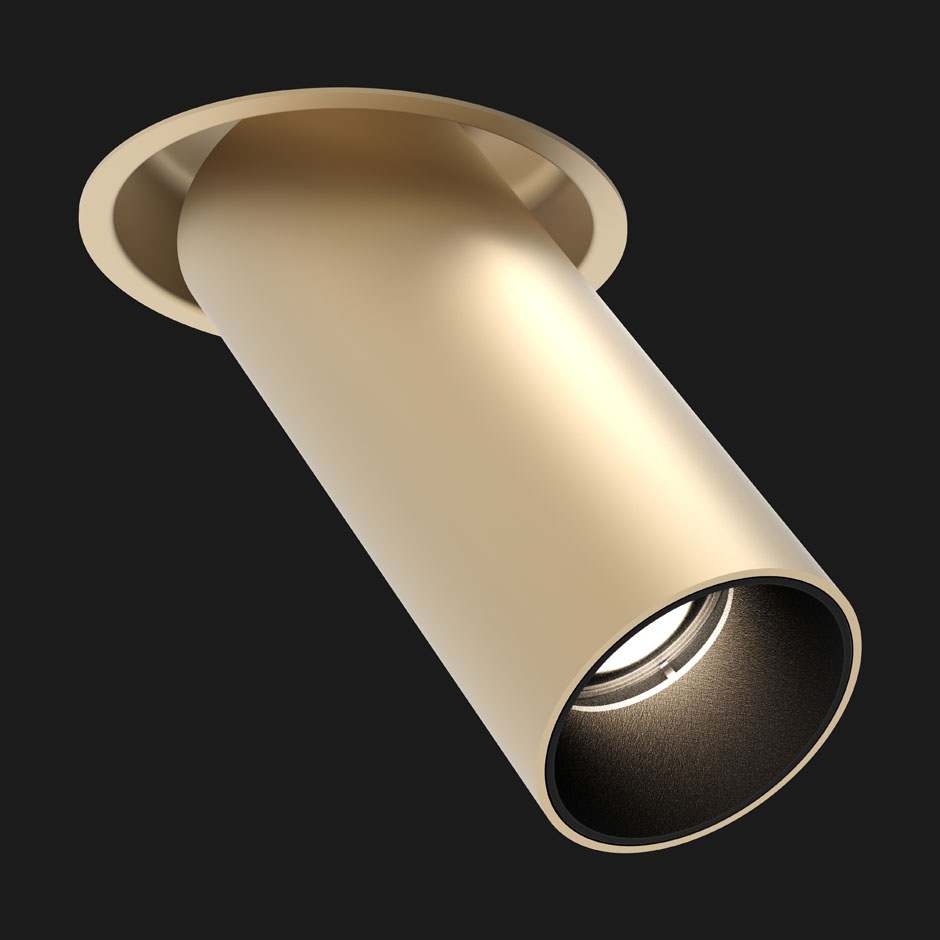

Champagne

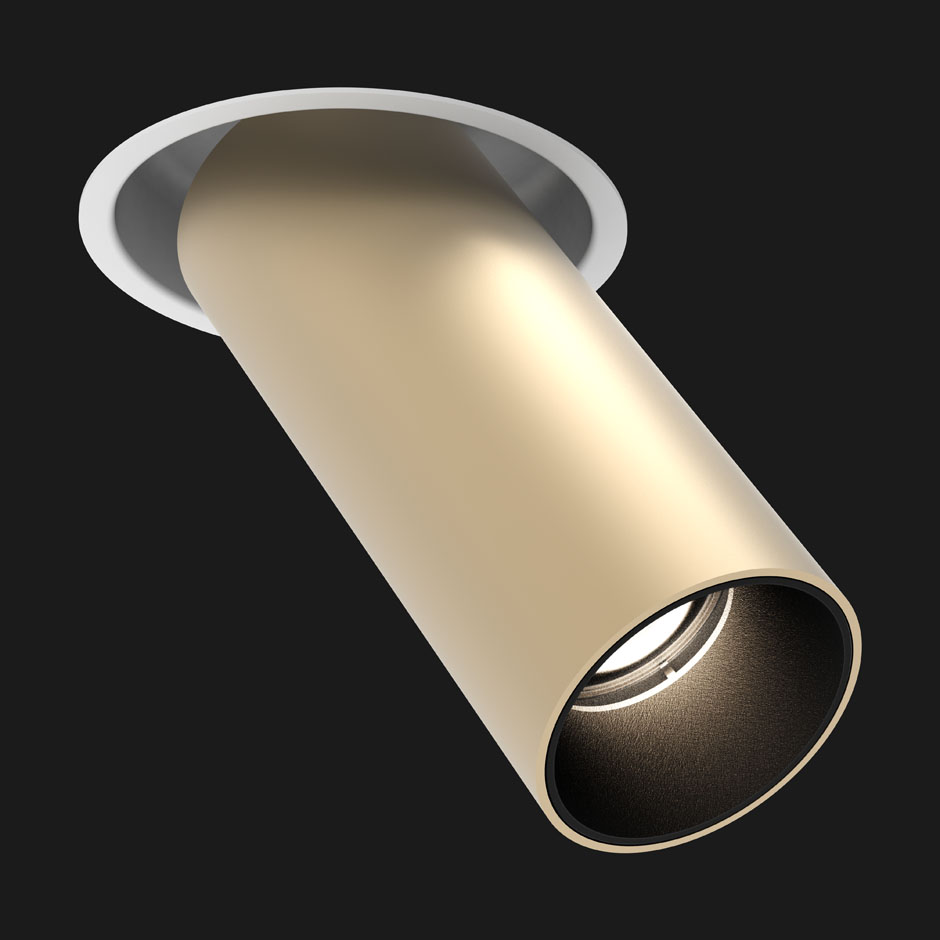

Champagne / White

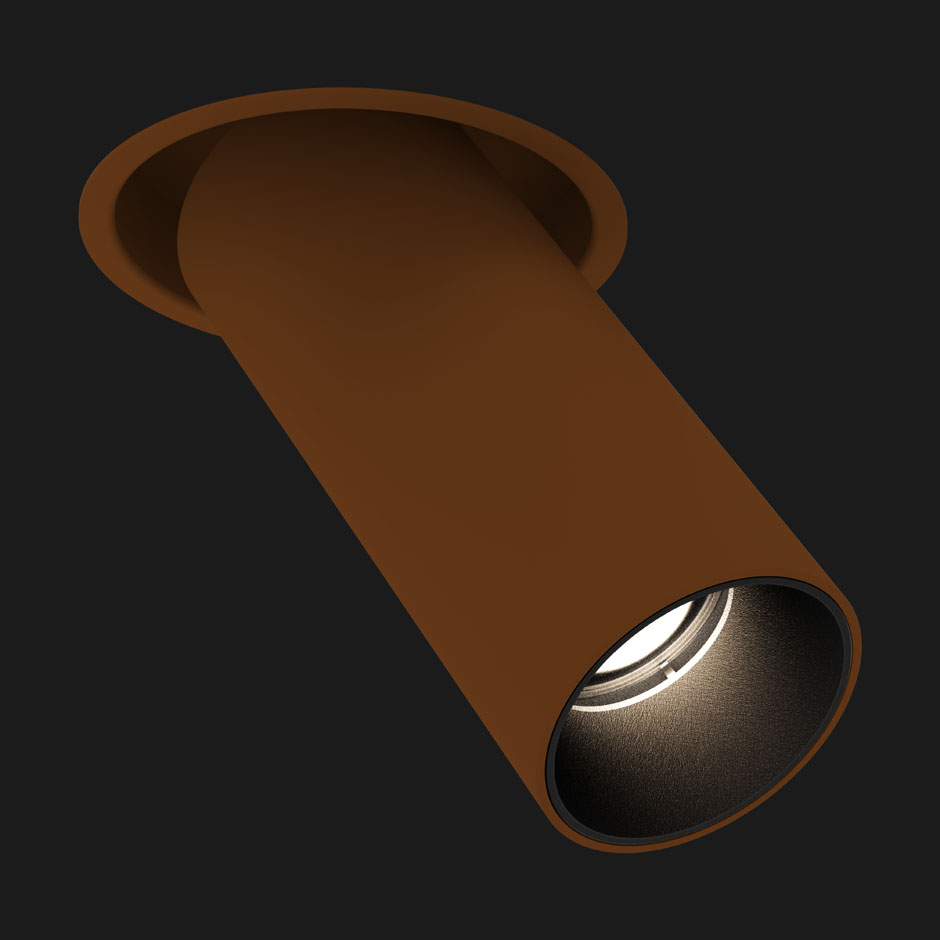

Corten
Gold / Black

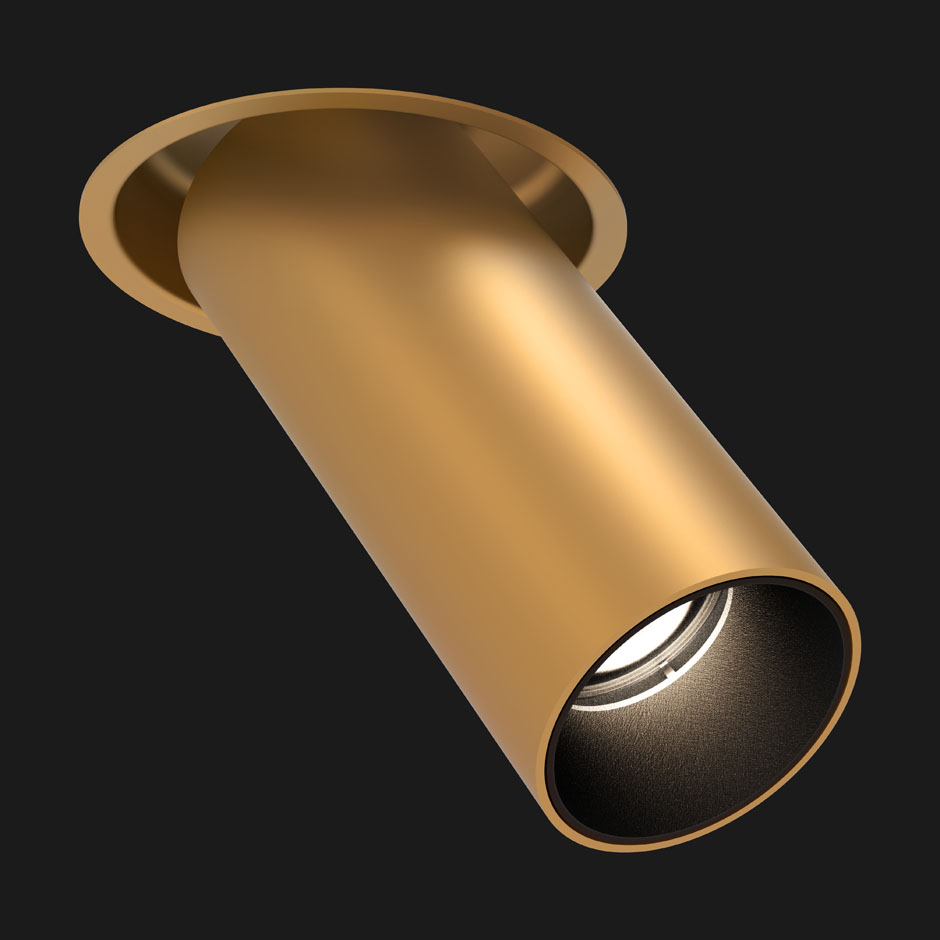

Gold

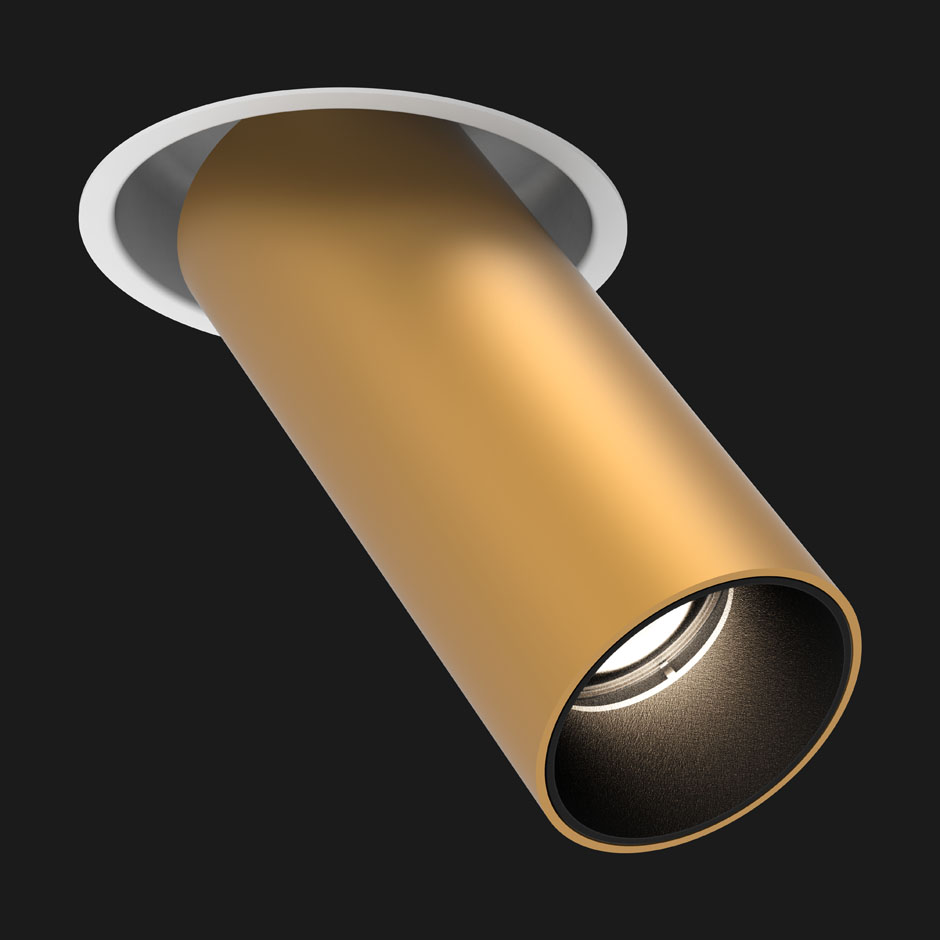

Gold / White

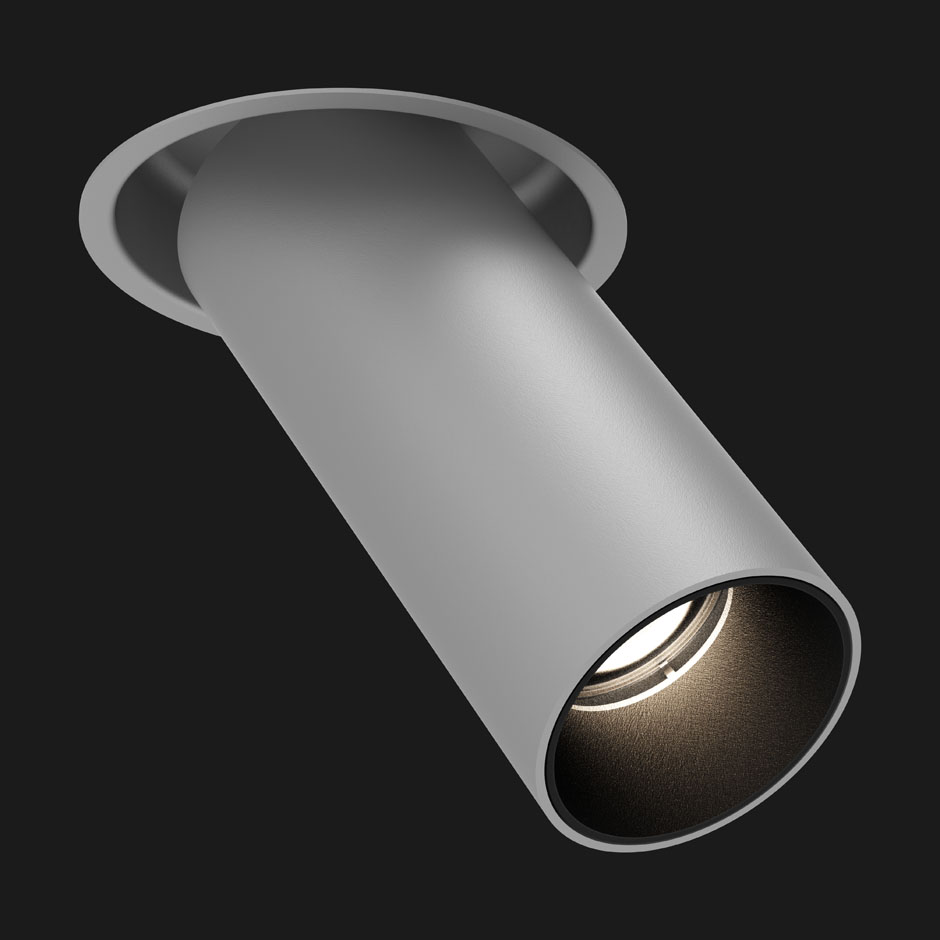

Grey

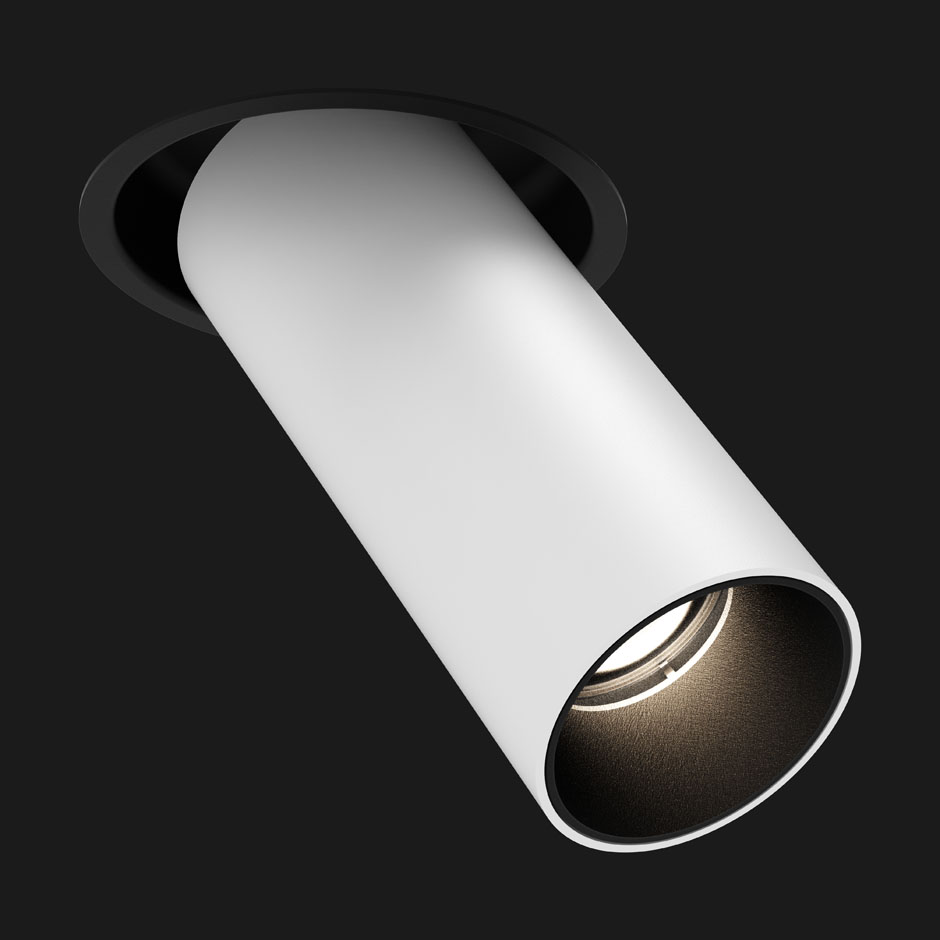

White / Black
White

Our products can be finished in a RAL colour of your choice on request.
