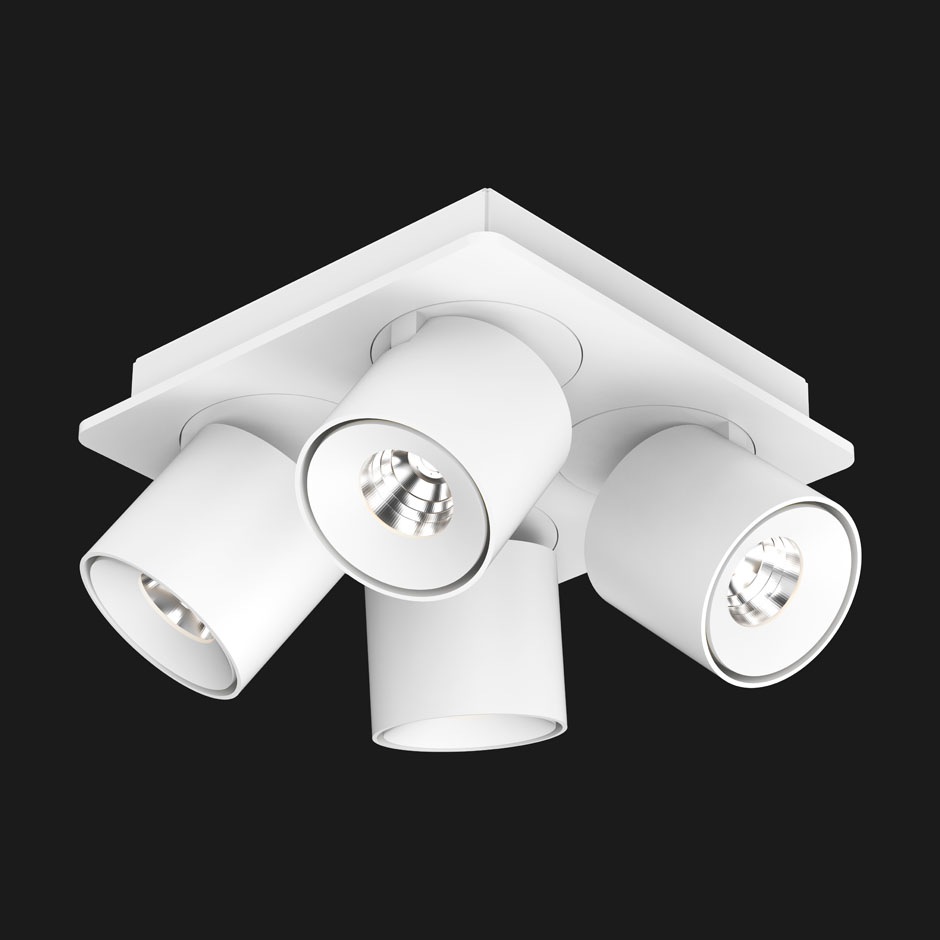

Titan Multi Quadro

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Titan Multi Quadro

General Specifications

Luminaire Body

Type: Multiple Downlight
Positioning: Ceiling mounted
Material: Aluminium + steel
Adjustable: Yes
Rotation / tilt: 359° / 90°
El. Class: I (Protective earth required)
IP: IP20
Weight: 3734g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 1800-3000K, 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
DTW(1800-3000K) 2924lm (106lm/W)
2700K 3192lm (82lm/W) 3740lm (97lm/W)
3000K 3410lm (88lm/W) 3930lm (101lm/W)
4000K 3566lm (92lm/W) 3984lm (103lm/W)
Luminous flux LED:
RA97 RA90
DTW(1800-3000K) 3440lm (138lm/W)
2700K 3756lm (108lm/W) 4400lm (126lm/W)
3000K 4012lm (115lm/W) 4624lm (133lm/W)
4000K 4196lm (120lm/W) 4688lm (134lm/W)
Flux code: 97 99 100 100 100
Beam Angle: 28° / 40°
LED Power: 34.9W
System Power: 38.7W
Driver location: Integrated

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
