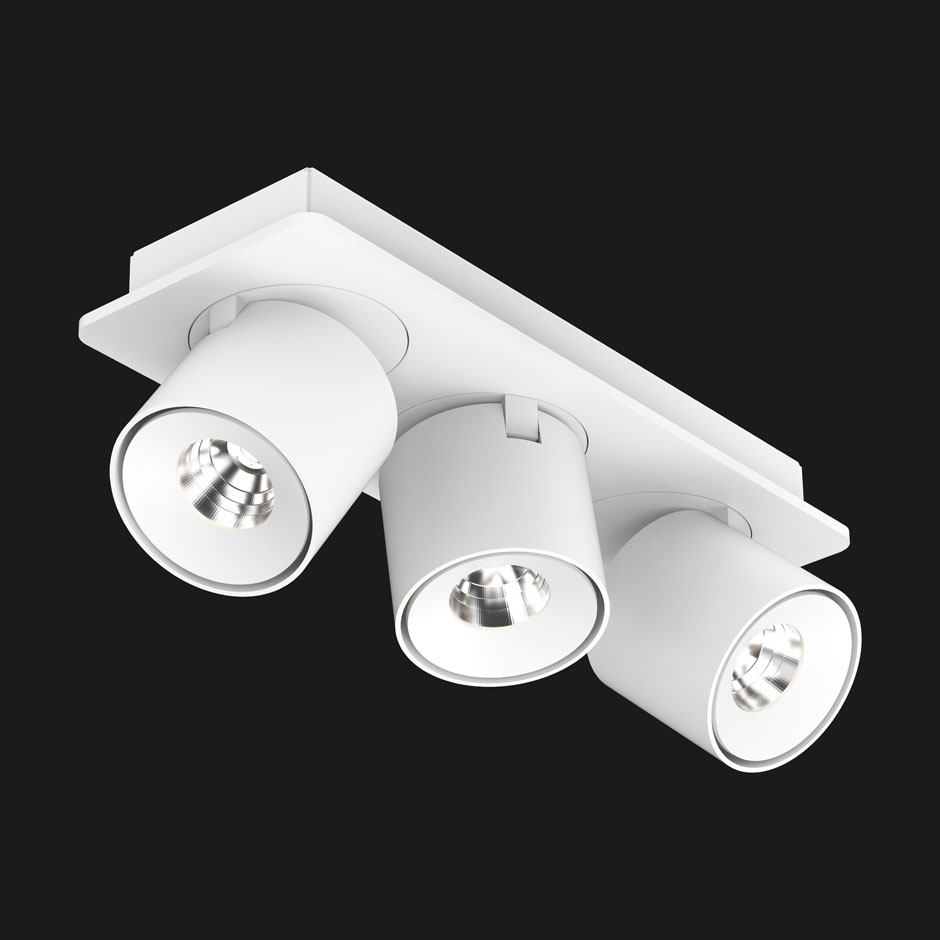

Titan Multi Triple
General Specifications
Luminaire Body
Type:
Multiple Downlight
Positioning:
Ceiling mounted
Material:
Aluminium + steel
Adjustable:
Yes
Rotation / tilt:
359° / 90°
El. Class:
I (Protective earth required)
IP:
IP20
Weight:
2888g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
1800-3000K, 2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
3
Optics:
Reflector
Luminous flux System:
RA97
RA90
DTW(1800-3000K)
2193lm (106lm/W)
2700K
2394lm (82lm/W)
2805lm (97lm/W)
3000K
2557lm (88lm/W)
2947lm (101lm/W)
4000K
2674lm (92lm/W)
2988lm (103lm/W)
Luminous flux LED:
RA97
RA90
DTW(1800-3000K)
2580lm (138lm/W)
2700K
2817lm (108lm/W)
3300lm (126lm/W)
3000K
3009lm (115lm/W)
3468lm (133lm/W)
4000K
3147lm (120lm/W)
3516lm (134lm/W)
Flux code:
97 99 100 100 100
Beam Angle:
28° / 40°
LED Power:
26.2W
System Power:
29.1W
Driver location:
Integrated
Lumen maintenance
L70B50:
>114.000 hrs
L70B20:
>114.000 hrs
L70B10:
>114.000 hrs
L80B50:
>114.000 hrs
L80B20:
>114.000 hrs
L80B10:
>114.000 hrs
L90B50:
>114.000 hrs
L90B20:
112.000 hrs
L90B10:
104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White
