Vesto 350 Triple
General Specifications
Visual Comfort
UGR <13*
UGR <16*
UGR <19*
Vesto: <19 for 36°>
Luminaire Body
Type:
Recessed Downlight
Positioning:
Recessed
Material:
Aluminium + steel
Adjustable:
No
Rotation / tilt:
Fixed / Fixed
El. Class:
II (Protective earth not required)
IP:
IP20

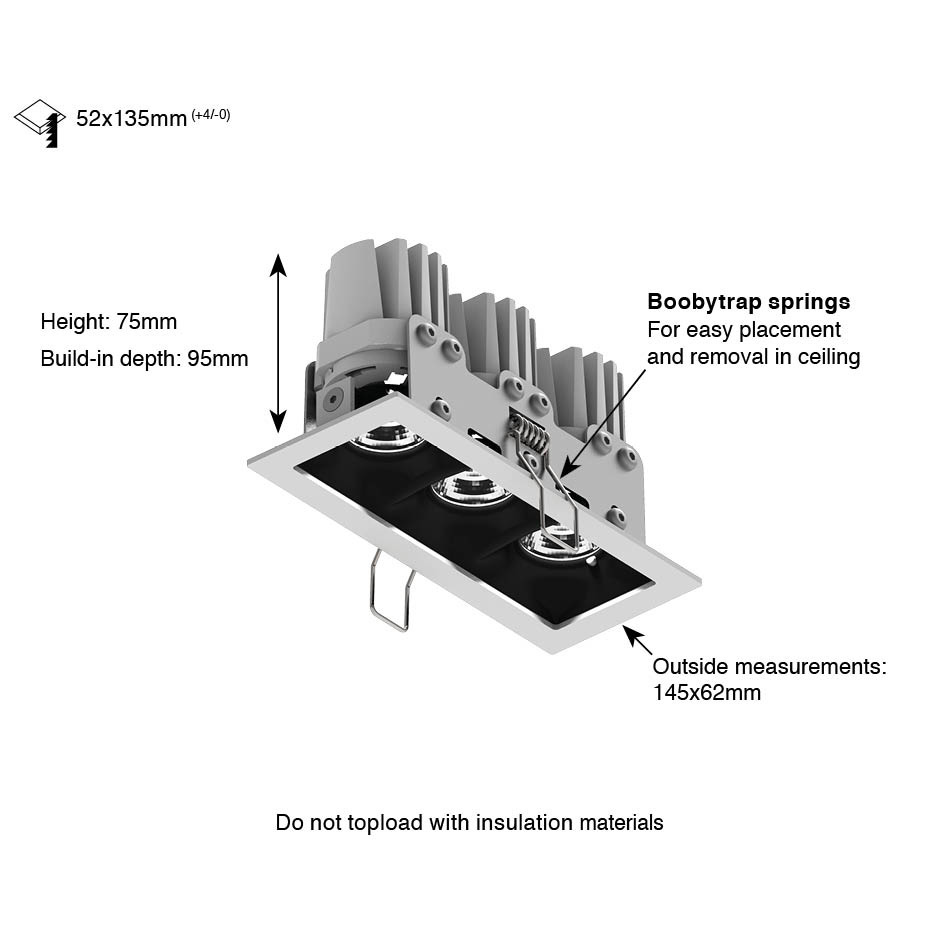

Cut-out dimensions:
135x52mm
Outer dimensions:
145mm
Weight:
740g
Lightsource
Dimming:
1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90
SDCM:
3
Optics:
Reflector
Luminous flux System:
RA90
2700K
884lm (88lm/W)
3000K
908lm (91lm/W)
4000K
974lm (97lm/W)
Luminous flux LED:
RA90
2700K
1092lm (121lm/W)
3000K
1122lm (124lm/W)
4000K
1203lm (133lm/W)
Flux code:
100 100 100 100 100
Beam Angle:
36° / 55°
LED Power:
9.0W
System Power:
10.0W
Driver location:
Remote
Lumen maintenance
L70B50:
>60.000 hrs
L70B20:
>60.000 hrs
L70B10:
>60.000 hrs
L80B50:
>60.000 hrs
L80B20:
>60.000 hrs
L80B10:
>60.000 hrs
L90B50:
>60.000 hrs
L90B20:
>60.000 hrs
L90B10:
>60.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White
Our products can be finished in a RAL colour of your choice on request.
