stdClass Object
(
    [ID] => 35
    [TypeLichtbron] => COB
    [WebType] => 1
    [Groep] => Spots
    [Montage] => 8
    [SerieNummer] => 1064
    [Aanpasbaar] => 1
    [familie] => 7
    [SubFamilie] => 1064 Atlas Double Rectangle 1050mA
    [SerieID] => 143
    [SubFamilieWeb] => 1064-atlas-double-rectangle-1050ma
    [ArtikelNummer] => 1064.22.24.927.03
    [Omschrijving] => 2x 114 mm
    [MinVoltage] => 24.40
    [MaxVoltage] => 29.80
    [TypVoltage] => 27.10
    [Amperage] => 1050.00
    [LummenFluxLED] => 7508.00
    [LummenFluxSysteem] => 6006.40
    [ReductieFactor] => 80.00
    [LedPower] => 56.91
    [SystemPower] => 63.23
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 2051
    [UGR] => 3
    [TypeSpot] => Recessed Downlight
    [Materiaal] => Recycled aluminium
    [InbouwDiameter] => 2x 114 mm
    [InbouwCategorieID] => 37
    [InbouwHoogte] => 0.00
    [LedID] => 1
    [OptiekID] => 2
    [ElecClassID] => 2
    [ReflectorID] => 4
    [LakKleurID] => 2
    [PrimaryColor] => Black
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 3
    [BevestigingID] => 0
    [SpotOrientatie] => 2
    [SpotVorm] => 3
    [DriverIngebouwd] => 0
    [AantLeds] => 2.00
    [UgrOpmerking] =>
    [Ugr13] => 0
    [Ugr16] => 0
    [Ugr19] => 1
    [ZichtbaarApparaatHoogte] => 5 mm
    [ApparaatDiameter] => 120x240
    [Rotatie] => 359u00b0
    [Tilt] => 30u00b0
    [FluxCode] => 98 99 100 100 100
    [FluxFoto] => 2335 FF - Atlas - Reflector 22d.jpg
    [GeenSystemFlux] => 0
    [CRI] => 90
    [CCT] => 2700
    [SDCM] => 3
    [EnergieKlasseID] => 6
    [L70B50] => >114.000 hrs
    [L70B20] => >114.000 hrs
    [L70B10] => >114.000 hrs
    [L80B50] => >114.000 hrs
    [L80B20] => >114.000 hrs
    [L80B10] => >114.000 hrs
    [L90B50] => >114.000 hrs
    [L90B20] => 112.000 hrs
    [L90B10] => 104.000 hrs
    [GatID] => 37
    [GatDiameter] => 114.00
    [Rechthoek] => 0
    [Lengte] => 0.00
    [Breedte] => 0.00
    [FilterDiameter] => 114.00
    [mounting] => Recessed
    [eCode] => II
    [eDesc] => Protective earth not required
    [sdcm] => 3
    [gat_omschrijving] => 2x 114 mm
    [aanpasbaar] => 1
    [materiaal] => Recycled aluminium
    [dimming] => Dali Dim, Non Dim, Push/Touch Dim
    [hoogte] => 0.00
    [diameter] => 2x 114 mm
    [cct] => 2700,3000,4000
    [cri] => 90,97
    [beam_angles] => 22u00b0,45u00b0,58u00b0
    [optiek] => Reflector
    [primaire_kleuren] => Anthracite, Black, Bronze, Brown, Champagne, Corten, Gold, Grey, White
    [secundaire_kleuren] => , Black, White
    [kleuren_combos] => Anthracite/Anthracite;Black/Black;Black/White;Bronze/Bronze;Brown/Brown;Champagne/Black;Champagne/Champagne;Champagne/White;Corten/Corten;Gold/Black;Gold/Gold;Gold/White;Grey/Grey;White/White
    [cri_values] => 90/97
    [cct_values] => 2700/3000/4000
    [led_table] => 90/2700/6006.40/63.23/7508.00/56.91;90/3000/6051.20/63.23/7564.00/56.91;90/4000/6401.60/63.23/8002.00/56.91;97/2700/5160.00/63.23/6450.00/56.91;97/3000/5513.60/63.23/6892.00/56.91;97/4000/5787.20/63.23/7234.00/56.91
)

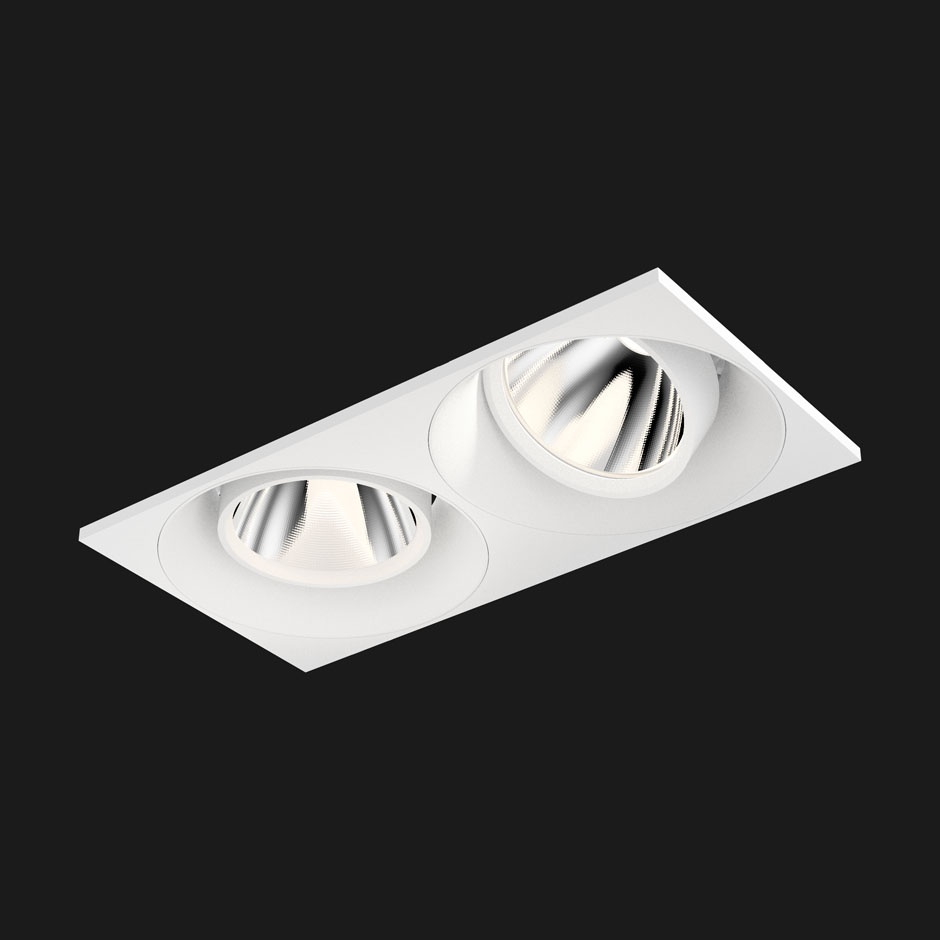

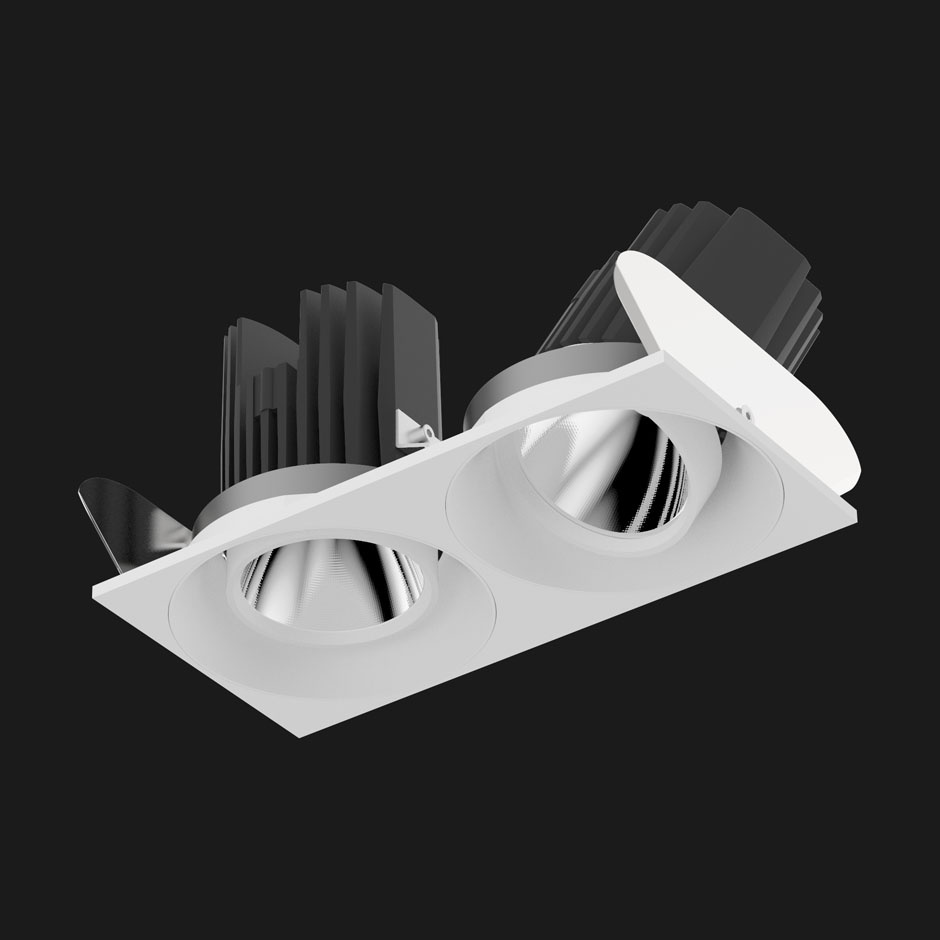

Atlas Double Rectangle 1050mA

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Atlas Double Rectangle 1050mA

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: Yes

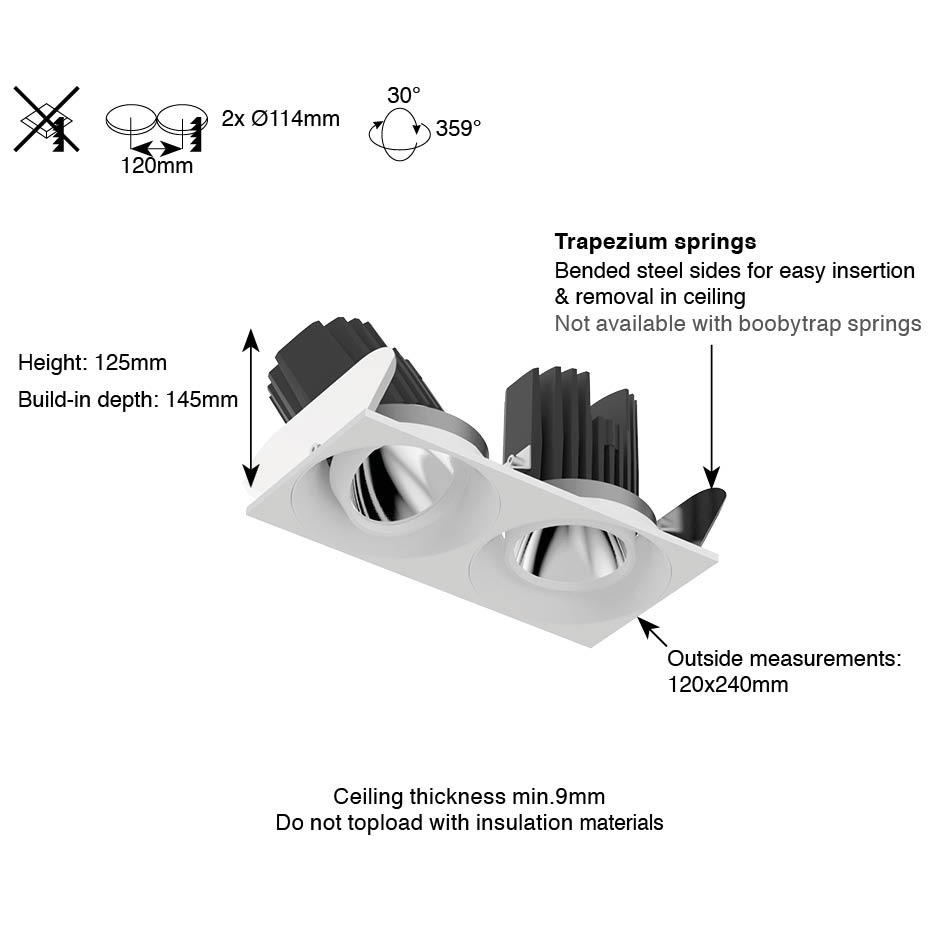

Rotation / tilt: 359° / 30°
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 114mm
Outer diameter: 120mm
Weight: 2051g

Lightsource

Dimming: Dali Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 5160lm (82lm/W) 6006lm (95lm/W)
3000K 5513lm (87lm/W) 6051lm (96lm/W)
4000K 5787lm (92lm/W) 6401lm (101lm/W)
Luminous flux LED:
RA97 RA90
2700K 6450lm (113lm/W) 7508lm (132lm/W)
3000K 6892lm (121lm/W) 7564lm (133lm/W)
4000K 7234lm (127lm/W) 8002lm (141lm/W)
Flux code: 98 99 100 100 100
Beam Angle: 22° / 45° / 58°
LED Power: 56.9W
System Power: 63.2W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.
