Atlas Fix Round 1050mA

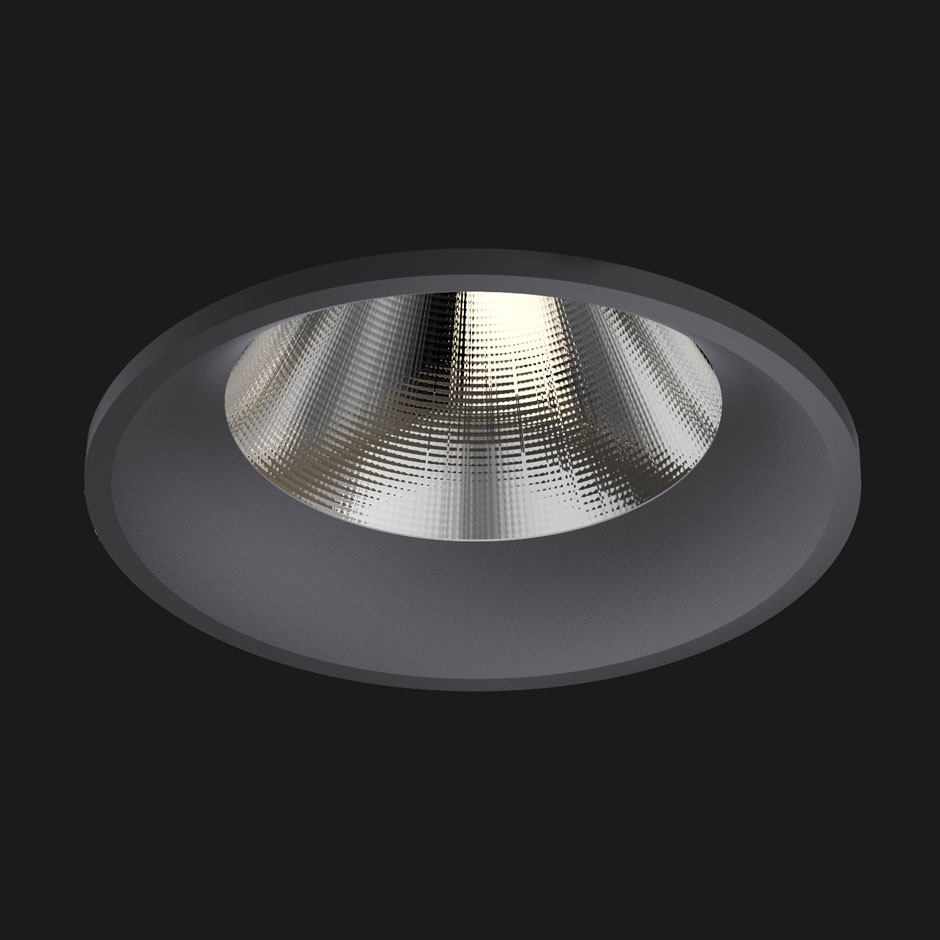

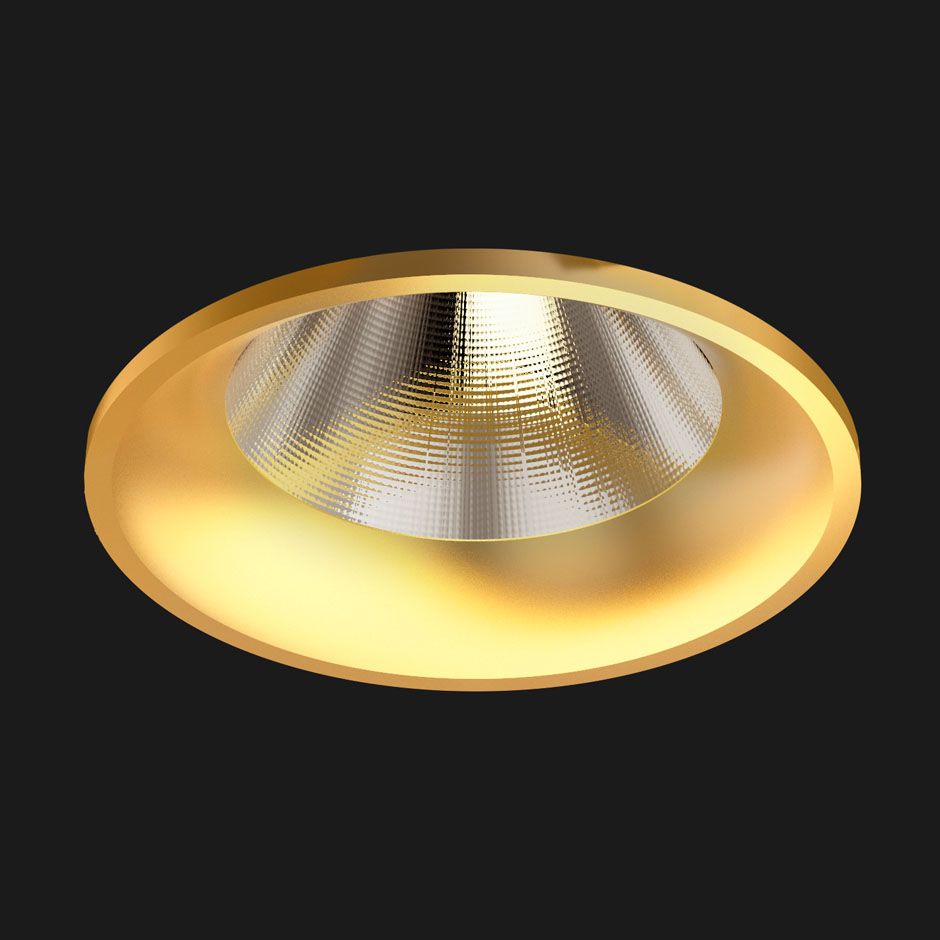

Available Colours

  • White

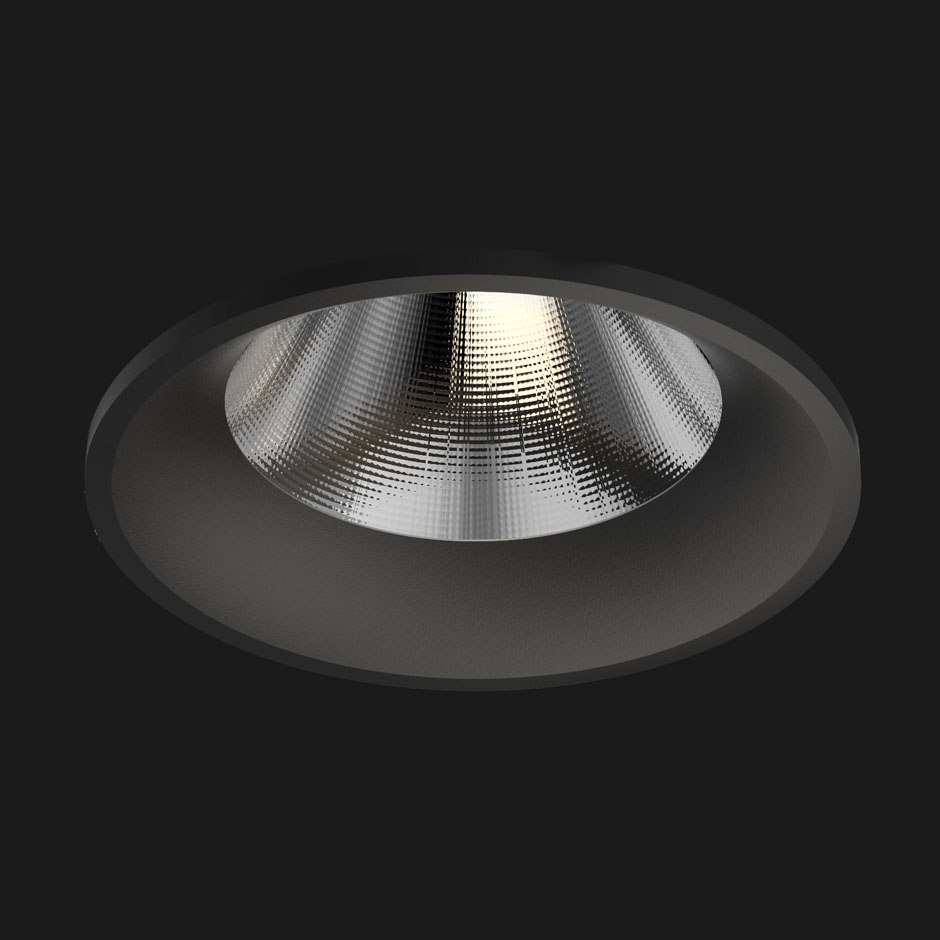

  • Black
  • Anthracite

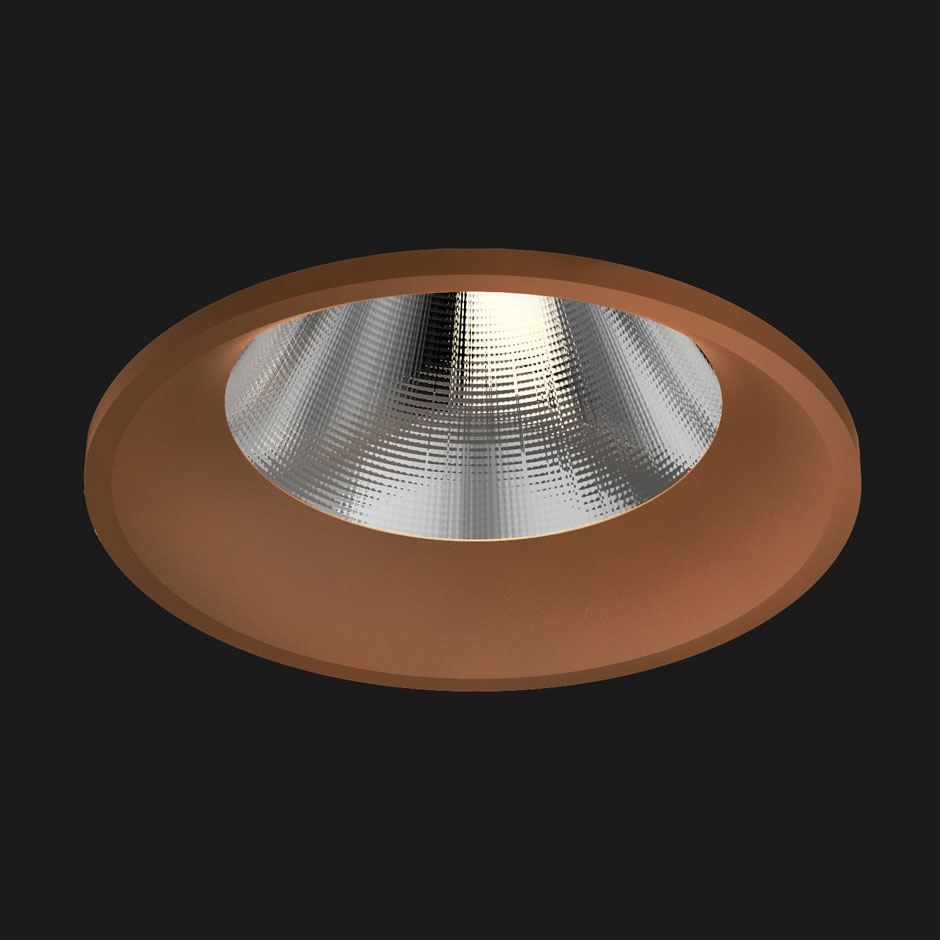

  • Corten
  • Gold

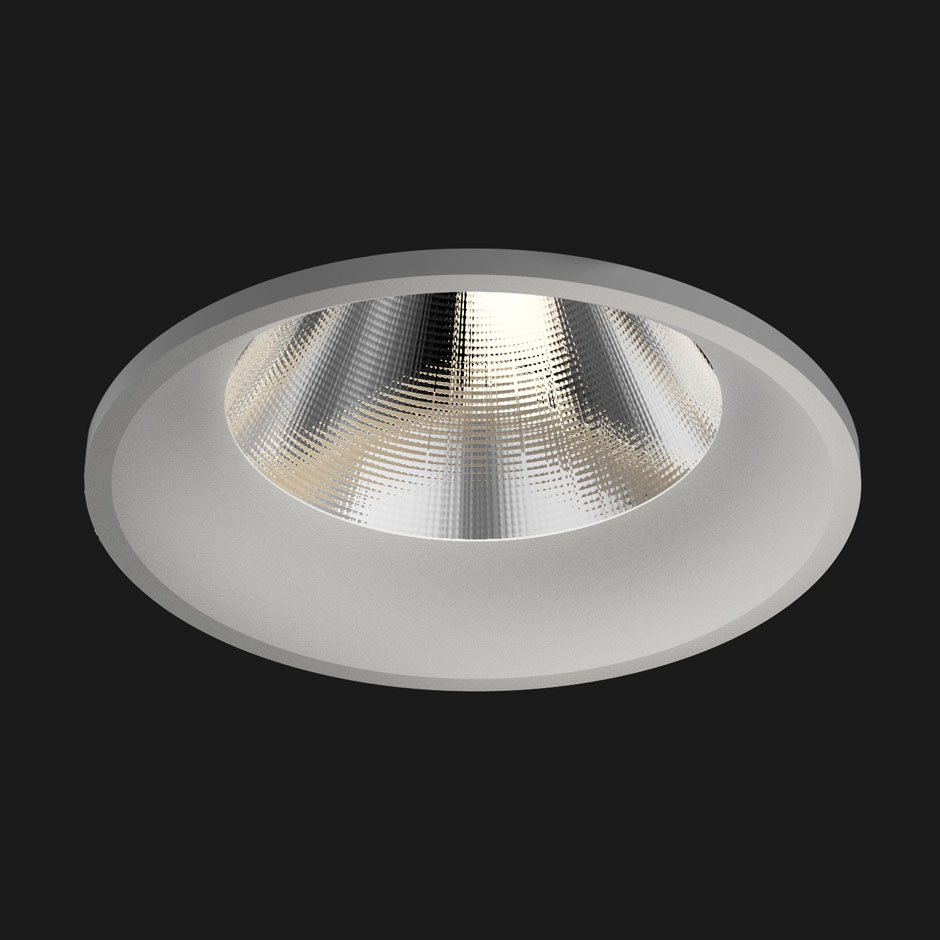

  • Grey

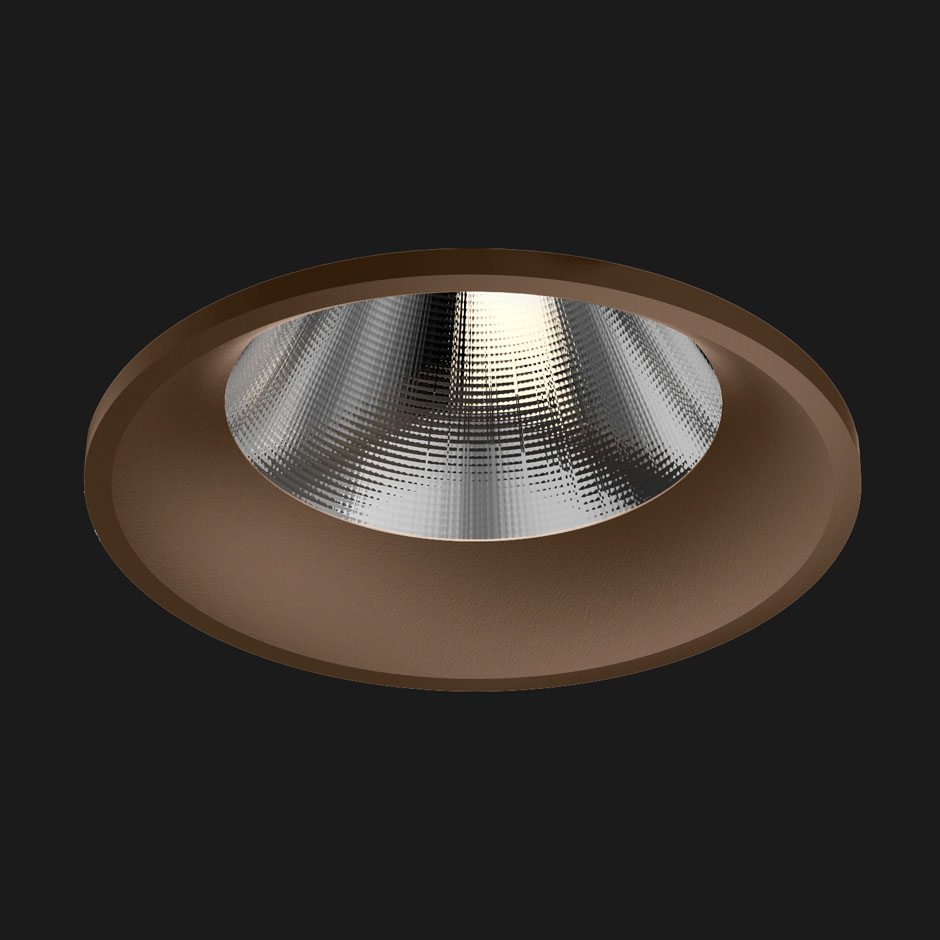

  • Brown

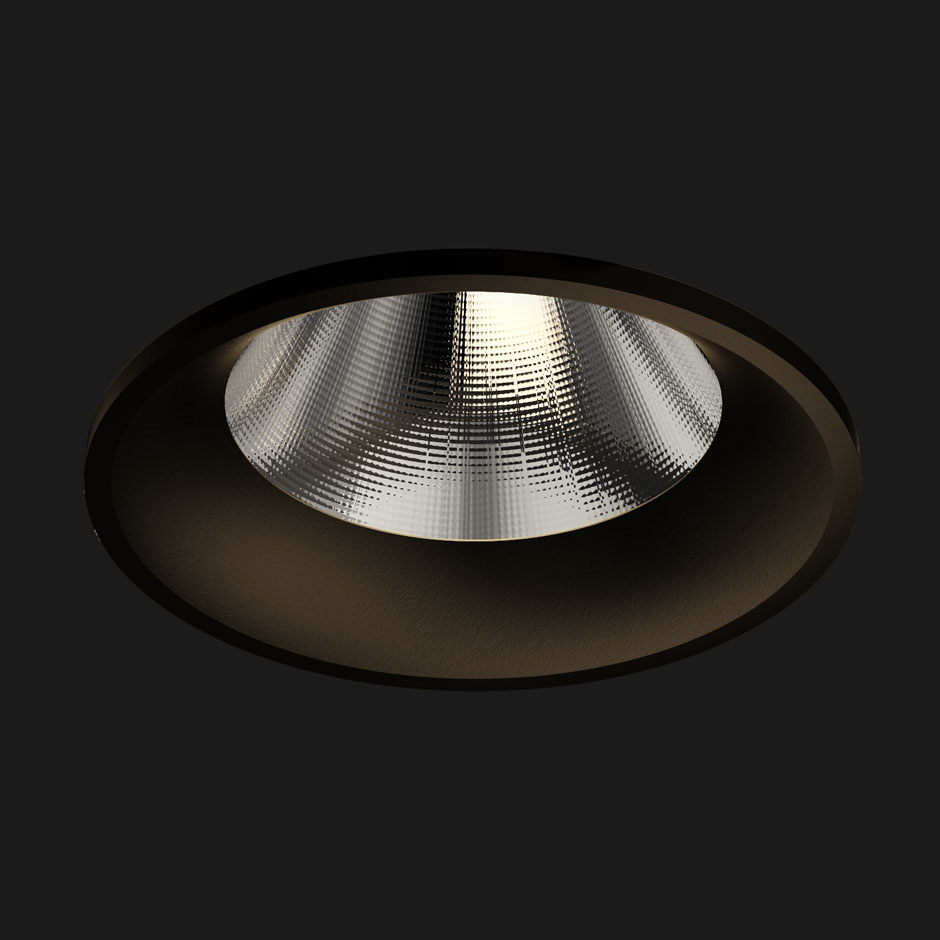

  • Bronze

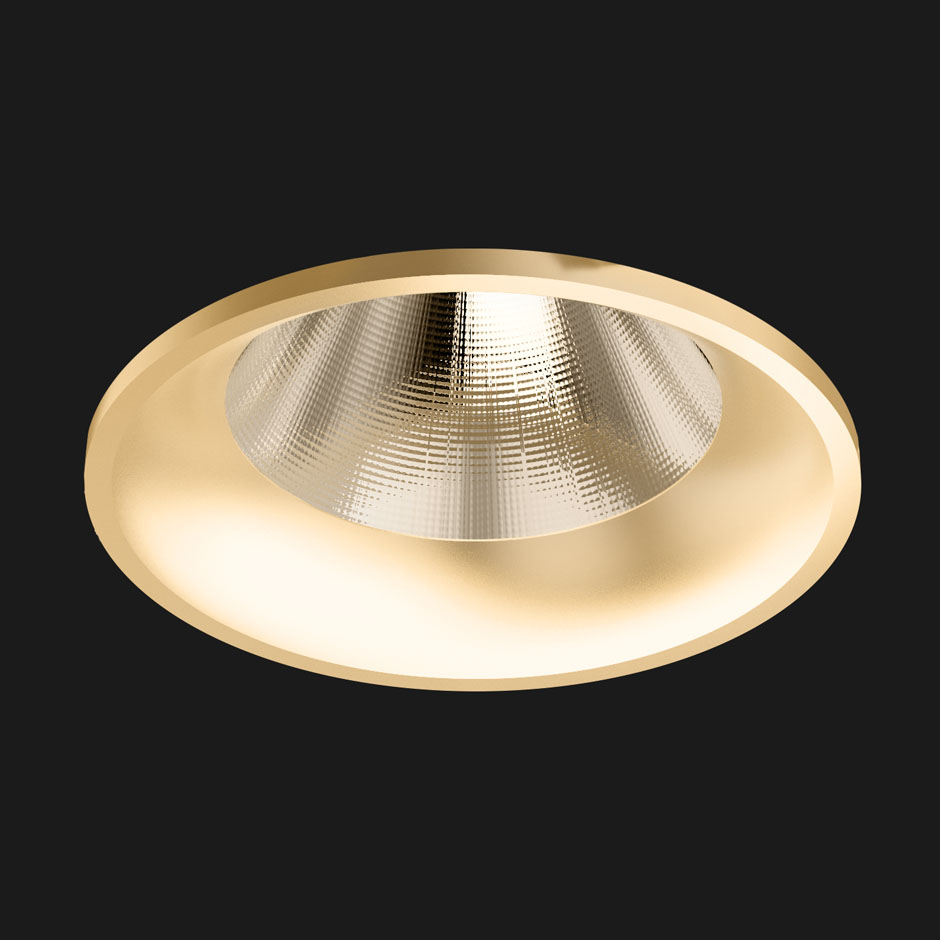

  • Champagne

Our products can be finished in a RAL colour of your choice on request.

Atlas Fix Round 1050mA

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Atlas: <19 for 22°>

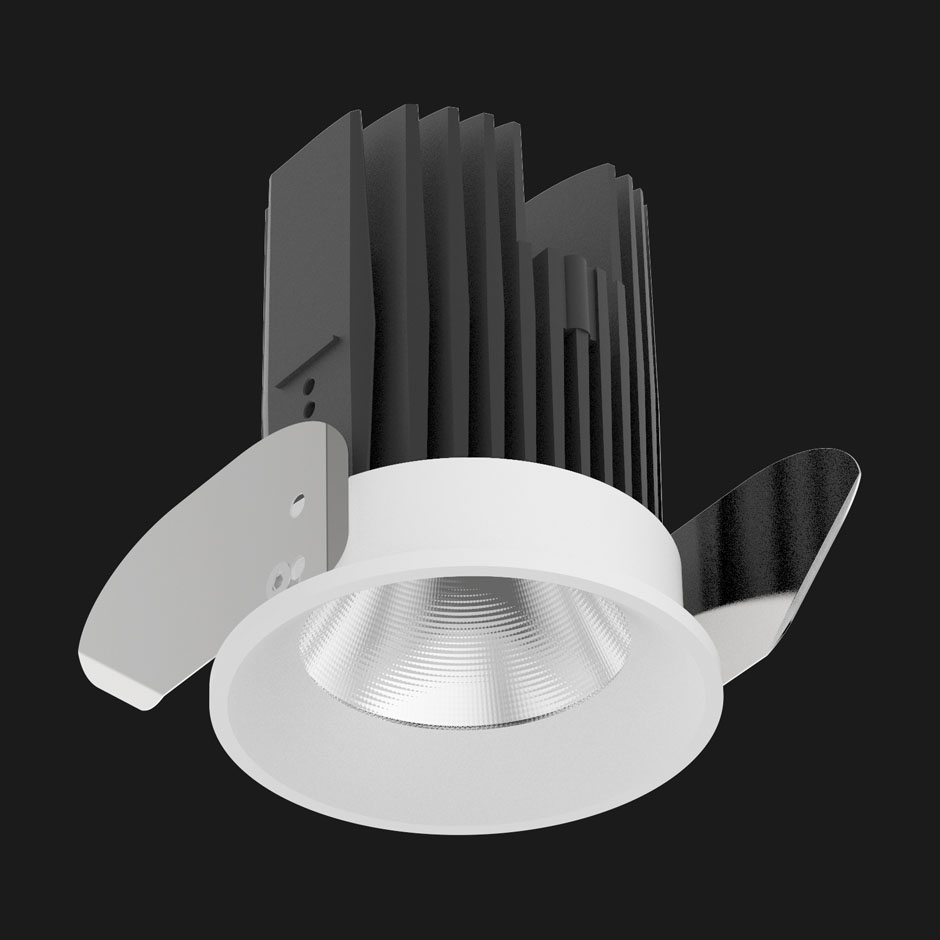

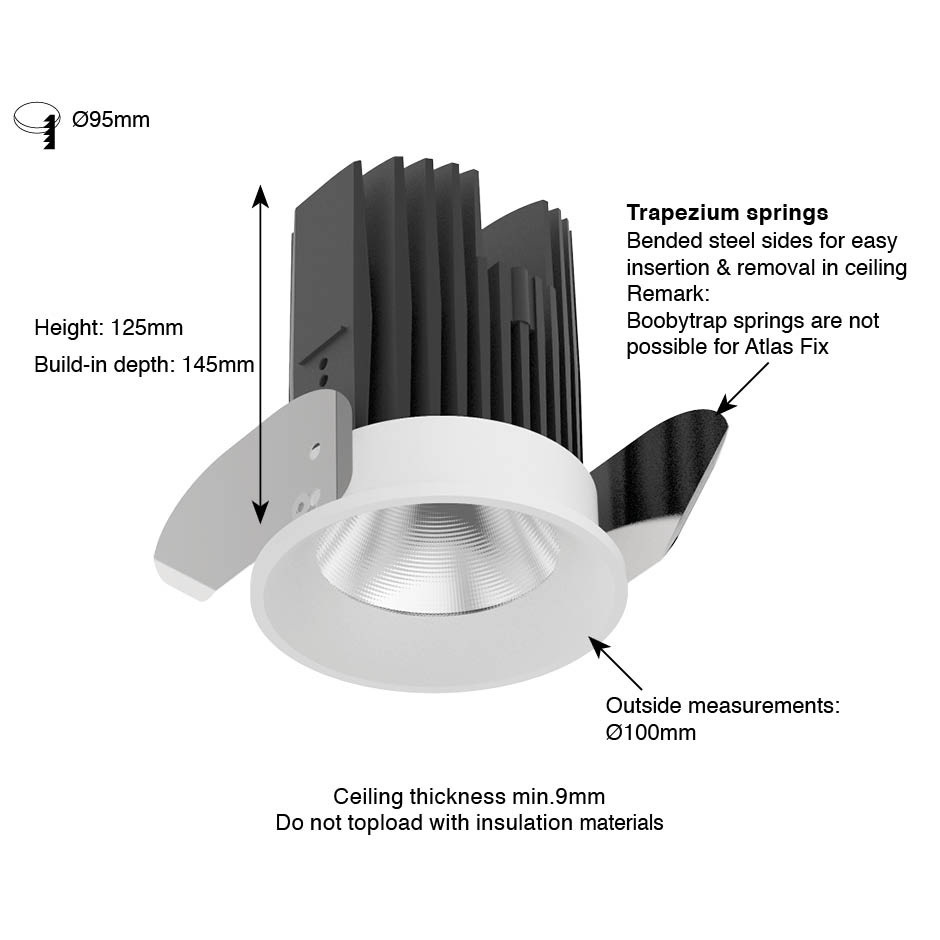

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 95mm
Outer diameter: 100mm
Weight: 909g

Lightsource

Dimming: Dali Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 2580lm (79lm/W) 3003lm (92lm/W)
3000K 2756lm (85lm/W) 3025lm (93lm/W)
4000K 2893lm (89lm/W) 3200lm (98lm/W)
Luminous flux LED:
RA97 RA90
2700K 3225lm (110lm/W) 3754lm (128lm/W)
3000K 3446lm (118lm/W) 3782lm (129lm/W)
4000K 3617lm (123lm/W) 4001lm (137lm/W)
Flux code: 98 99 100 100 100
Beam Angle: 22° / 45° / 58°
LED Power: 29.3W
System Power: 32.6W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Bronze
Brown
Champagne
Corten
Gold
Grey
White

Our products can be finished in a RAL colour of your choice on request.
