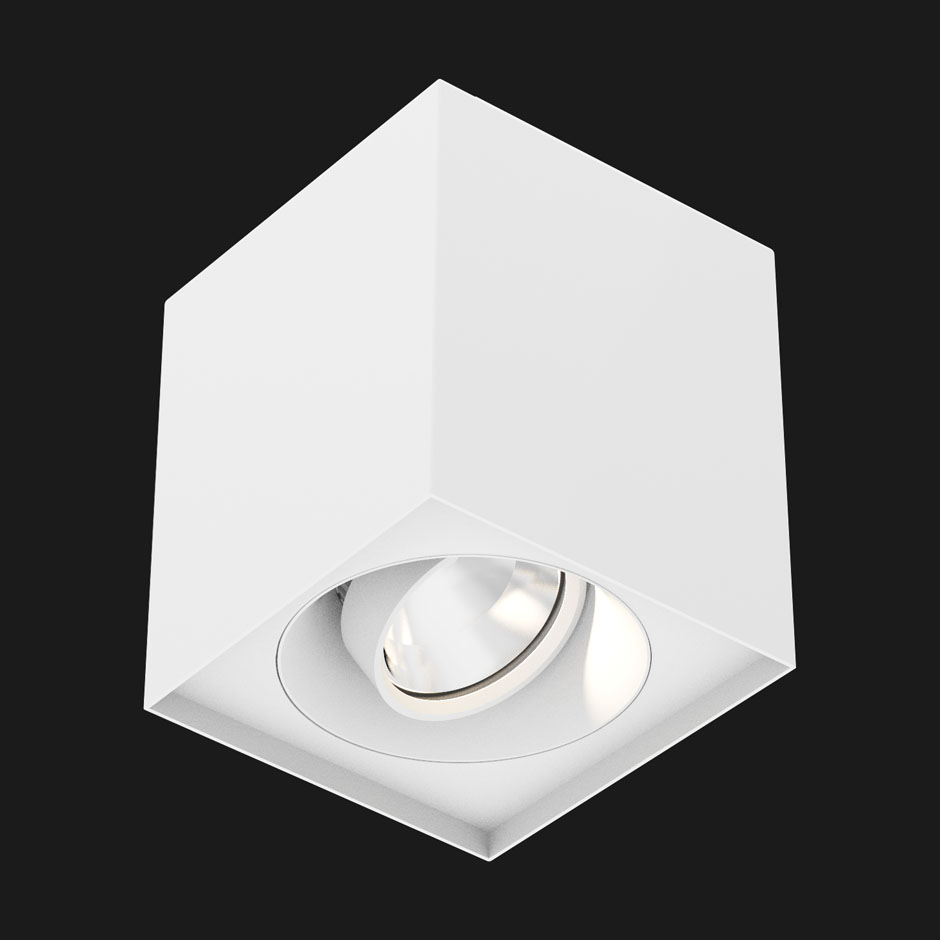

Atlas Box Single

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Atlas Box Single

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Atlas: <19 for 22°>

Luminaire Body

Type: Downlight
Positioning: Ceiling mounted
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 30°
El. Class: I (Protective earth required)
IP: IP20
Weight: 2742g

Lightsource

Dimming: Dali Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 1764lm (84lm/W) 2068lm (98lm/W)
3000K 1885lm (89lm/W) 2083lm (99lm/W)
4000K 2041lm (97lm/W) 2204lm (105lm/W)
Luminous flux LED:
RA97 RA90
2700K 2206lm (116lm/W) 2585lm (136lm/W)
3000K 2357lm (124lm/W) 2604lm (137lm/W)
4000K 2552lm (135lm/W) 2755lm (145lm/W)
Flux code: 98 99 100 100 100
Beam Angle: 22° / 45° / 58°
LED Power: 19.0W
System Power: 21.1W
Driver location: Integrated

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

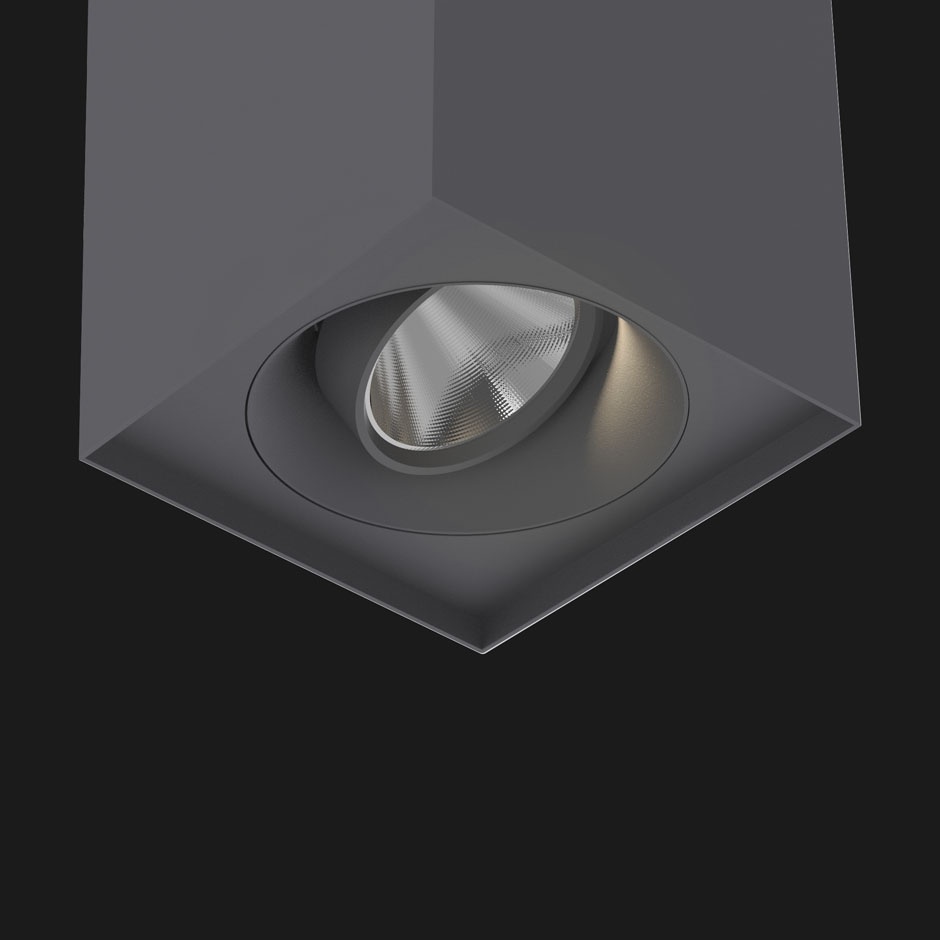

Anthracite
Black

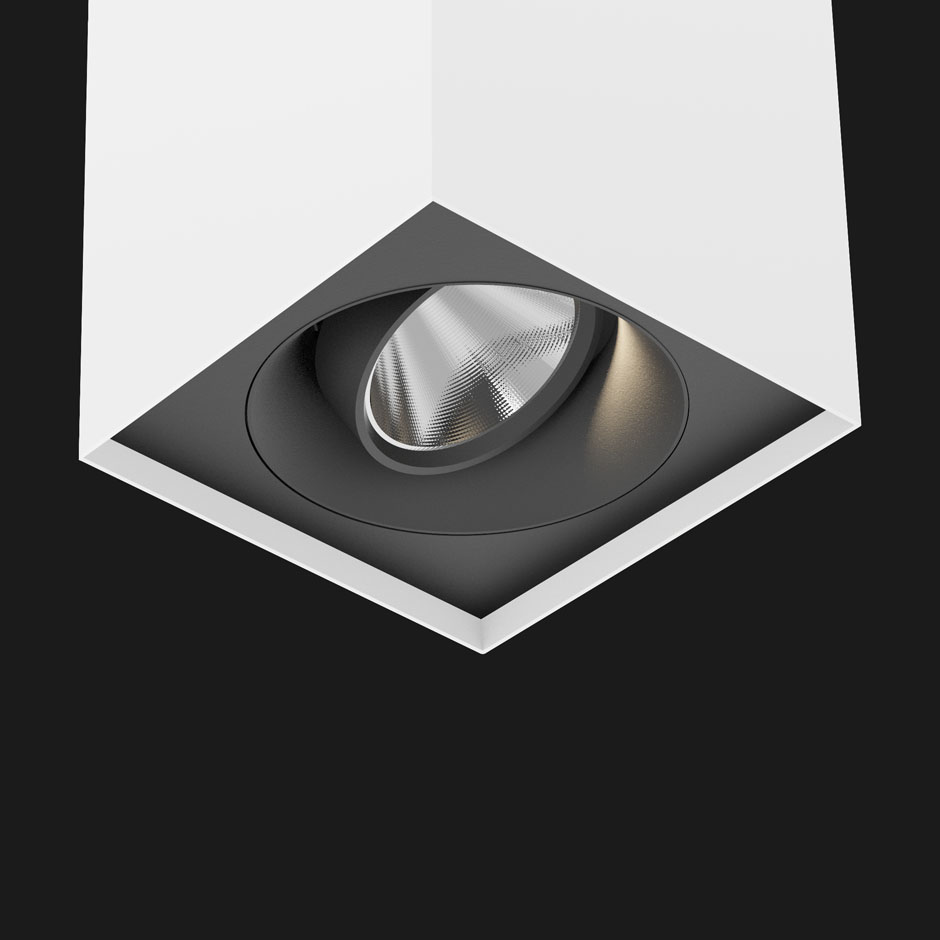

Black / White

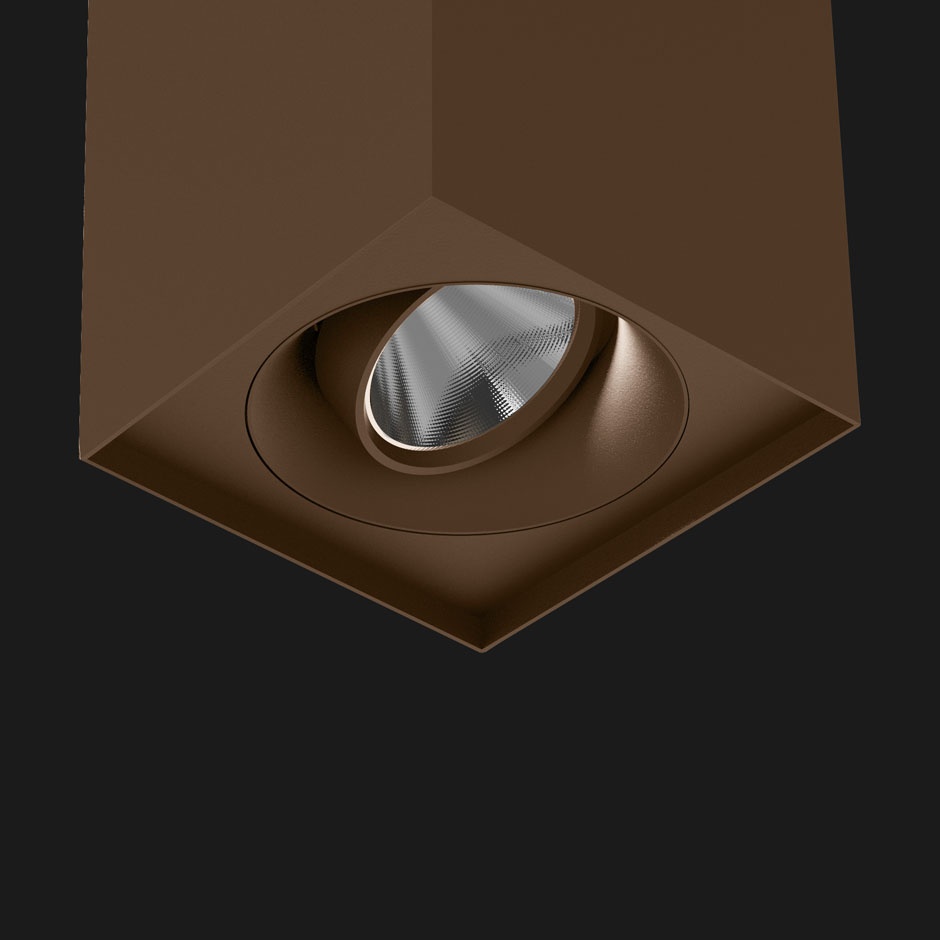

Brown

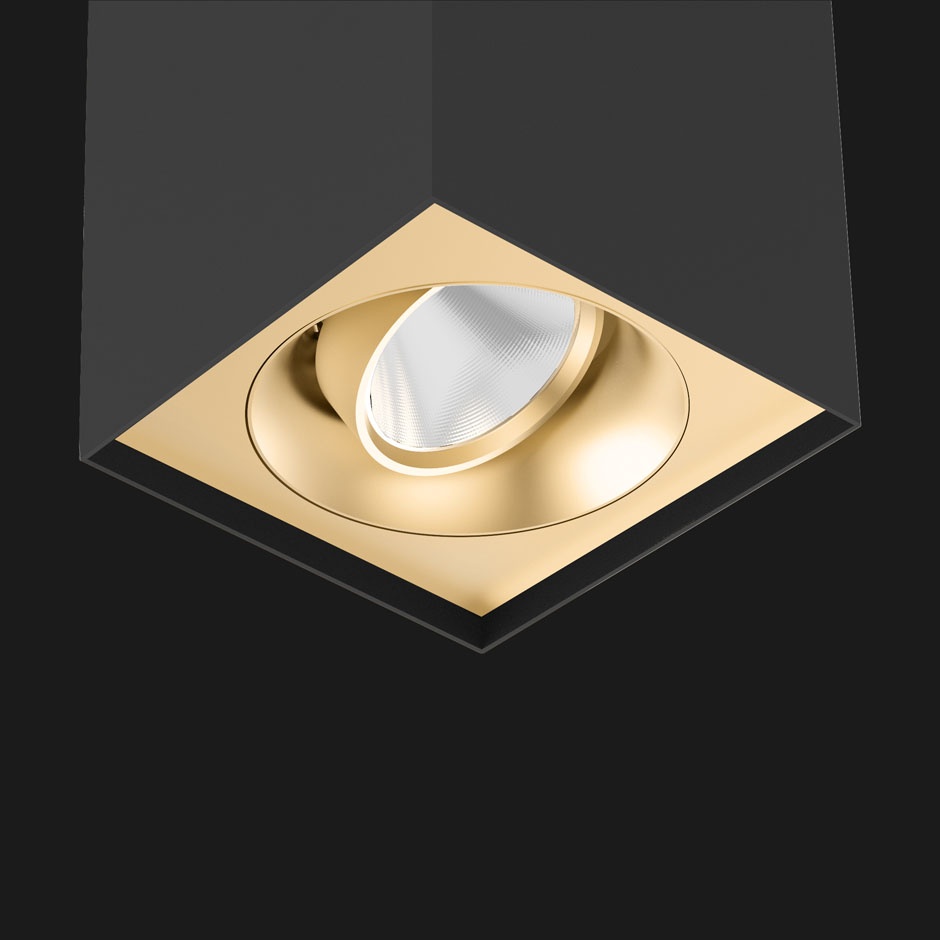

Champagne / Black

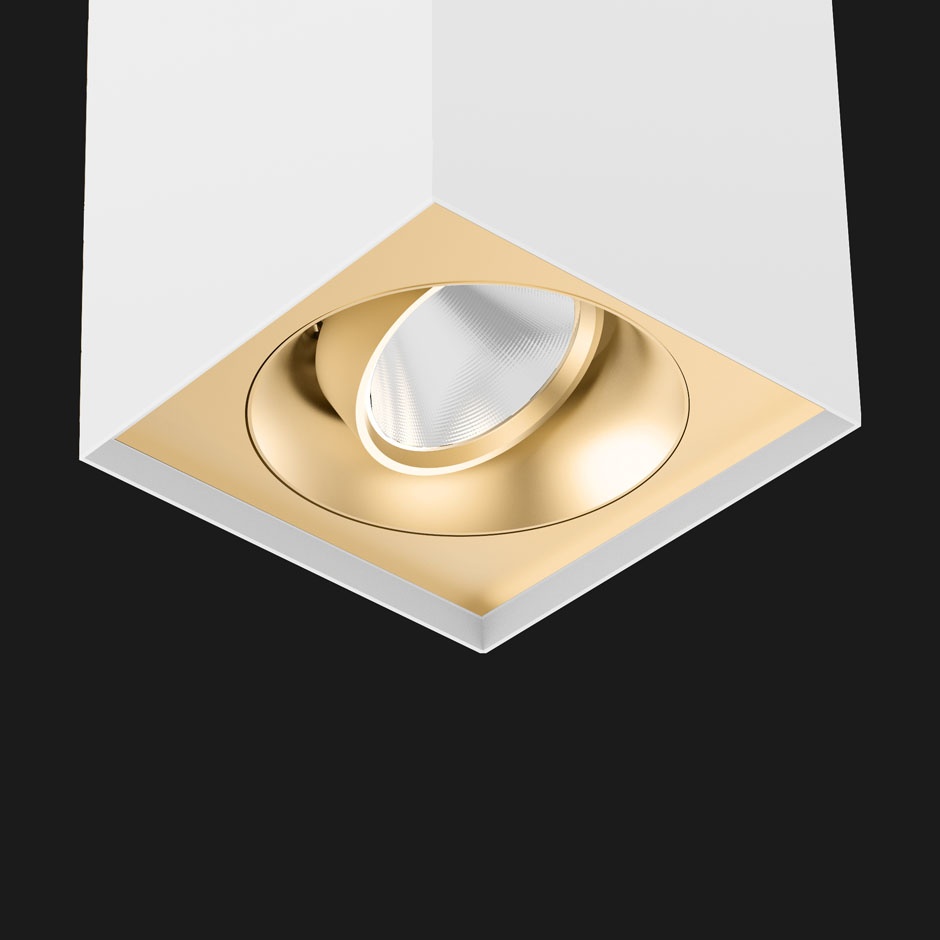

Champagne / White

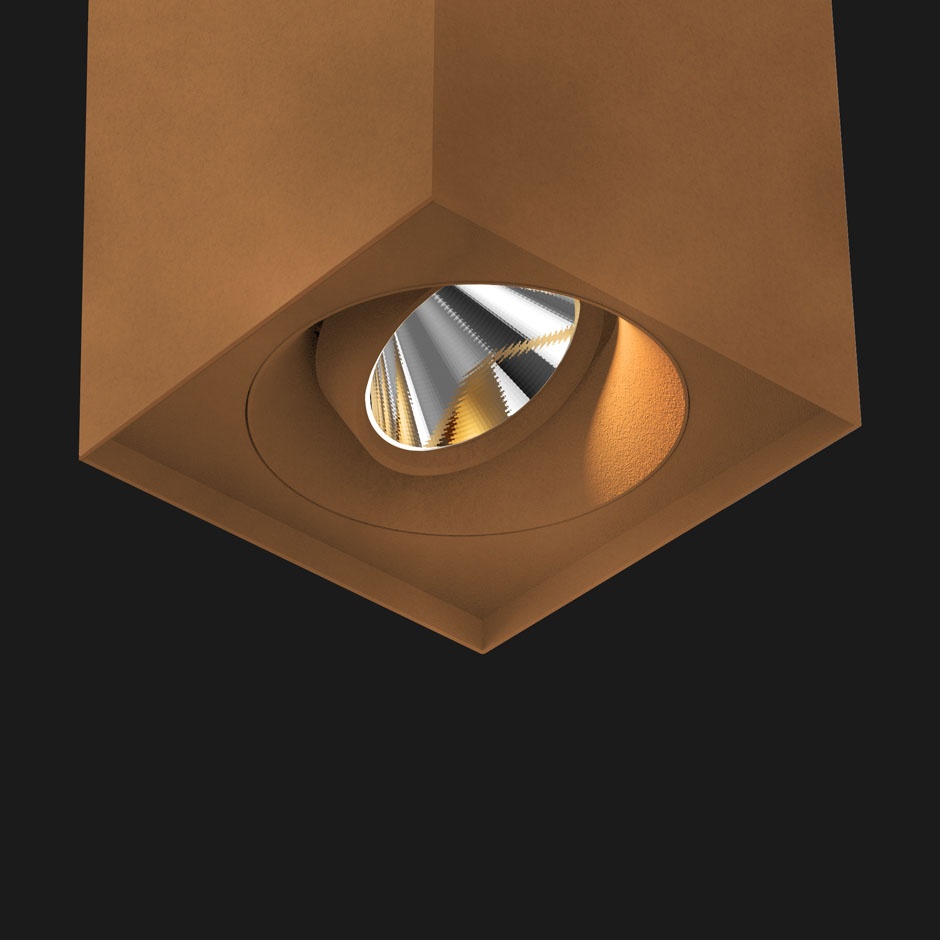

Corten

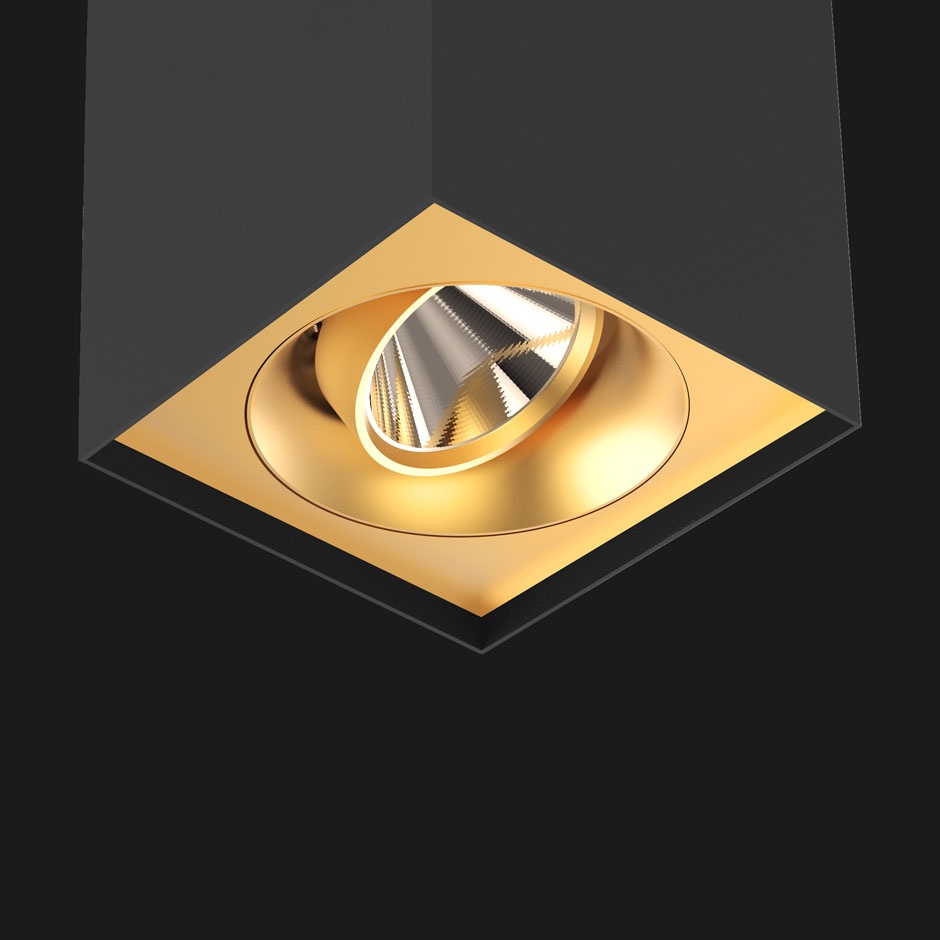

Gold / Black

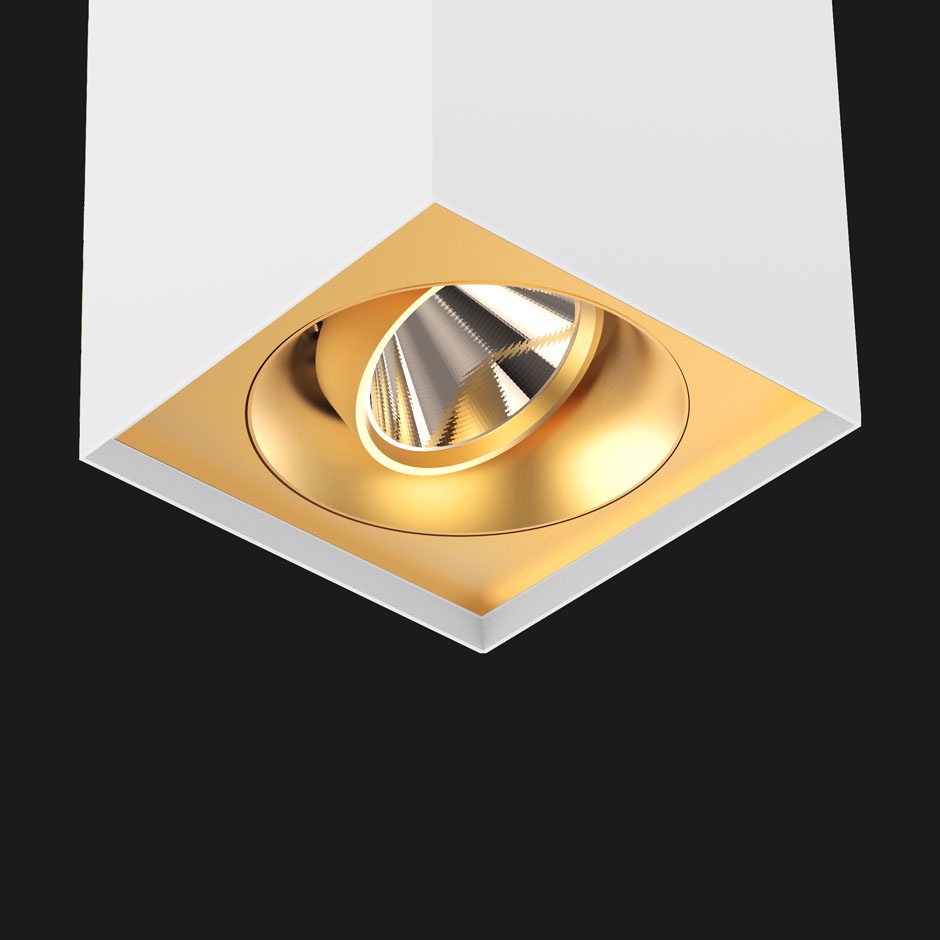

Gold / White

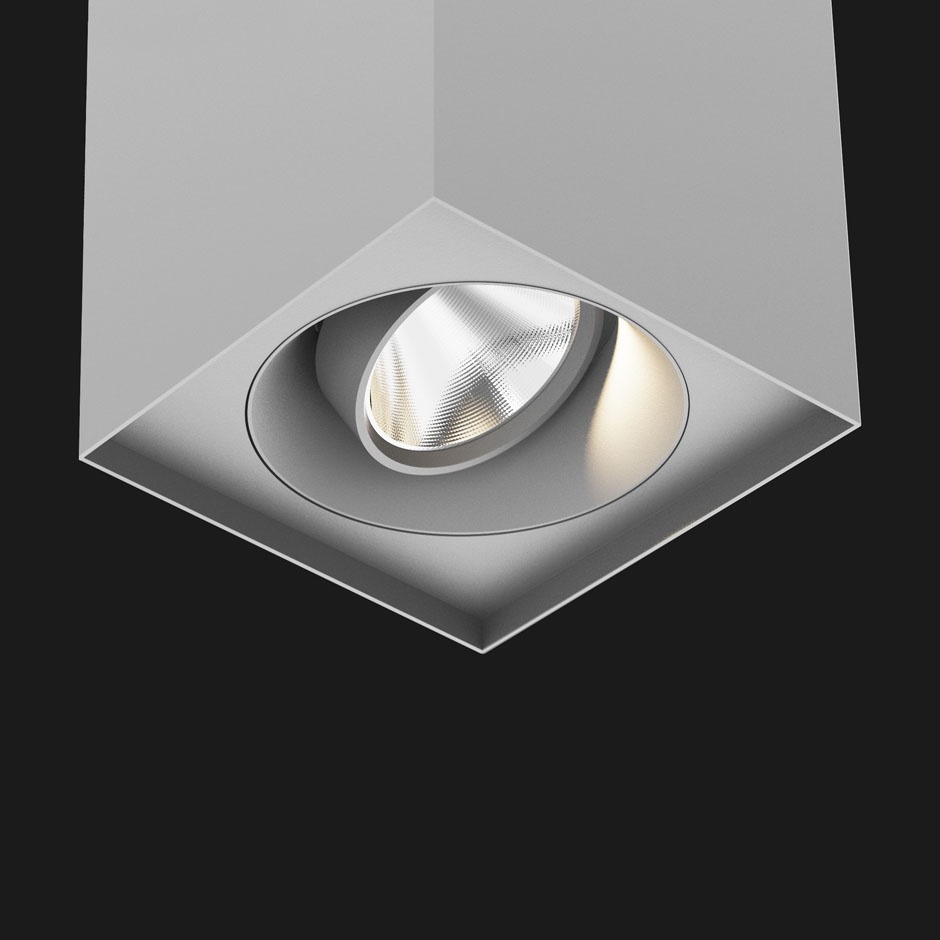

Grey

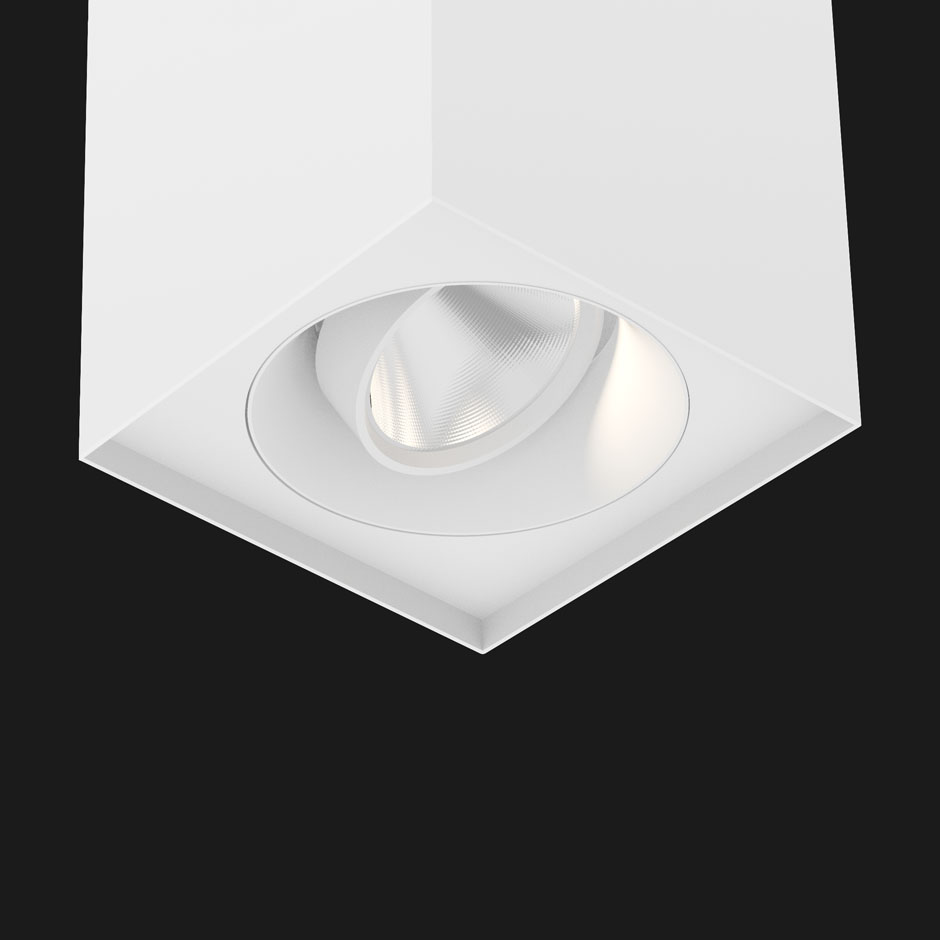

White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
