Atlas Base Double

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Atlas Base Double

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Atlas: <19 for 22°>

Luminaire Body

Type: Downlight
Positioning: Ceiling mounted
Material: Recycled aluminium
Adjustable: Yes

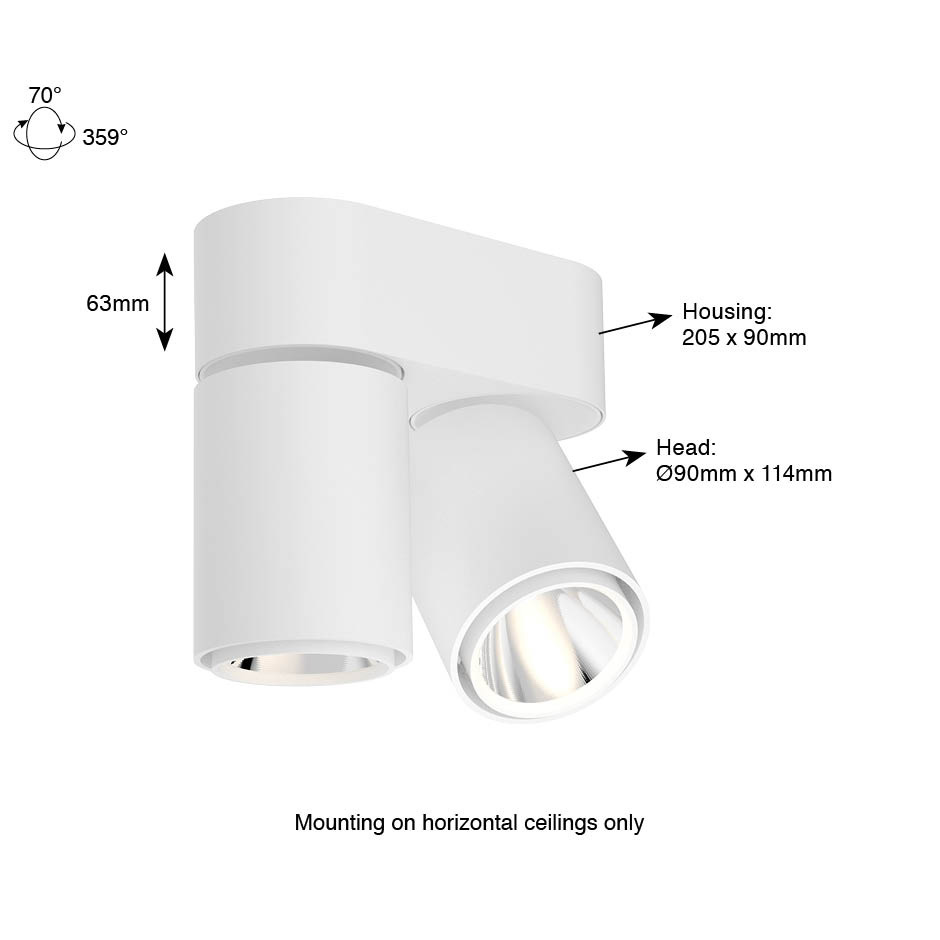

Rotation / tilt: 359° / 90°
El. Class: I (Protective earth required)
IP: IP20
Weight: 3119g

Lightsource

Dimming: Dali Dim, Non Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 3529lm (84lm/W) 4136lm (98lm/W)
3000K 3771lm (89lm/W) 4166lm (99lm/W)
4000K 4083lm (97lm/W) 4408lm (105lm/W)
Luminous flux LED:
RA97 RA90
2700K 4412lm (116lm/W) 5170lm (136lm/W)
3000K 4714lm (124lm/W) 5208lm (137lm/W)
4000K 5104lm (135lm/W) 5510lm (145lm/W)
Flux code: 98 99 100 100 100
Beam Angle: 22° / 45° / 58°
LED Power: 37.9W
System Power: 42.2W
Driver location: Integrated

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

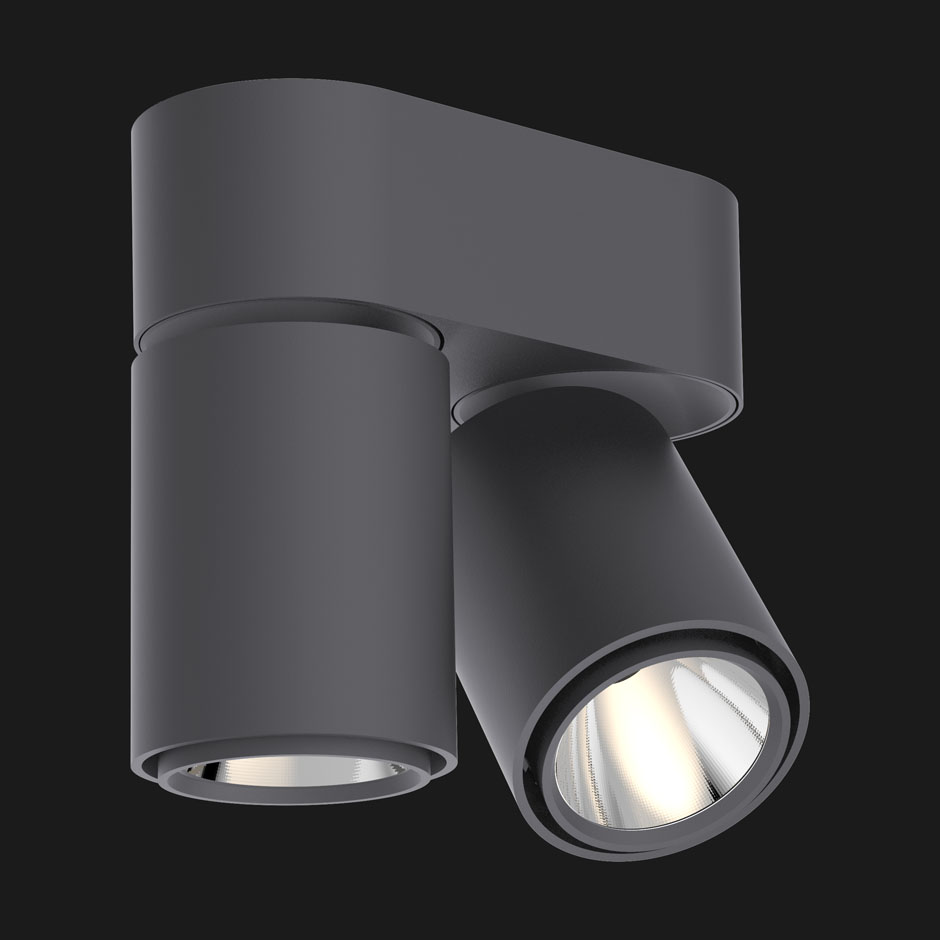

Anthracite

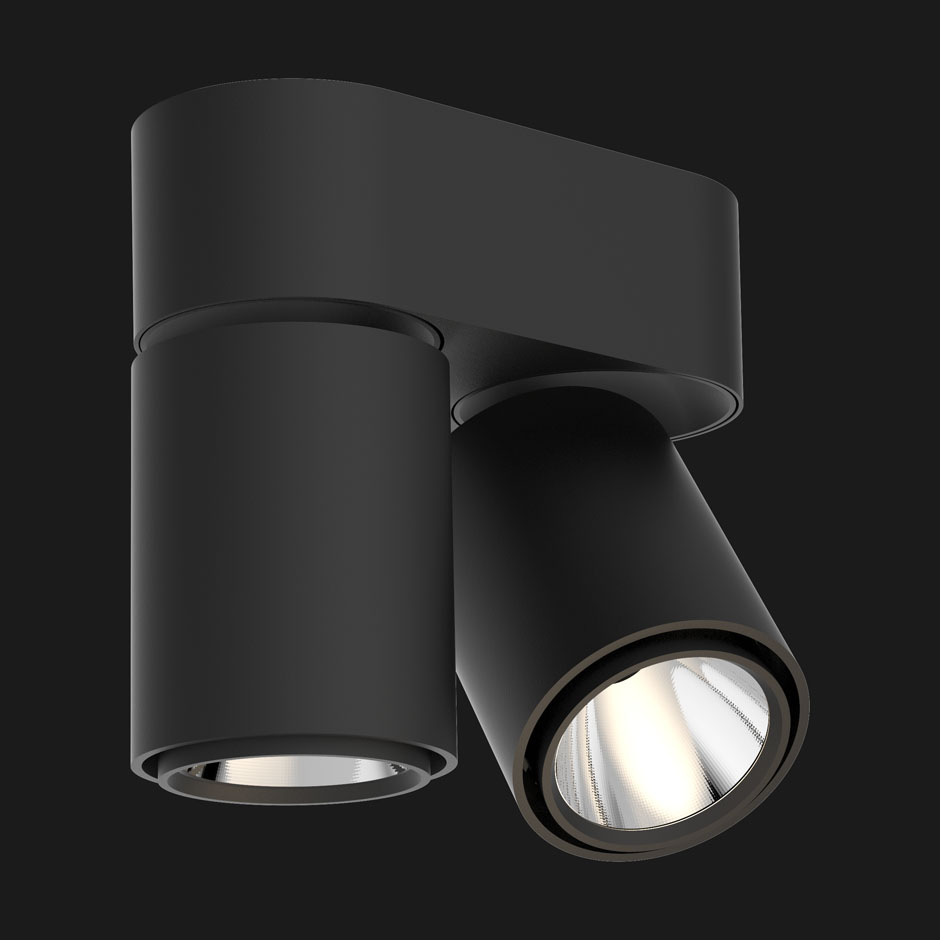

Black
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten

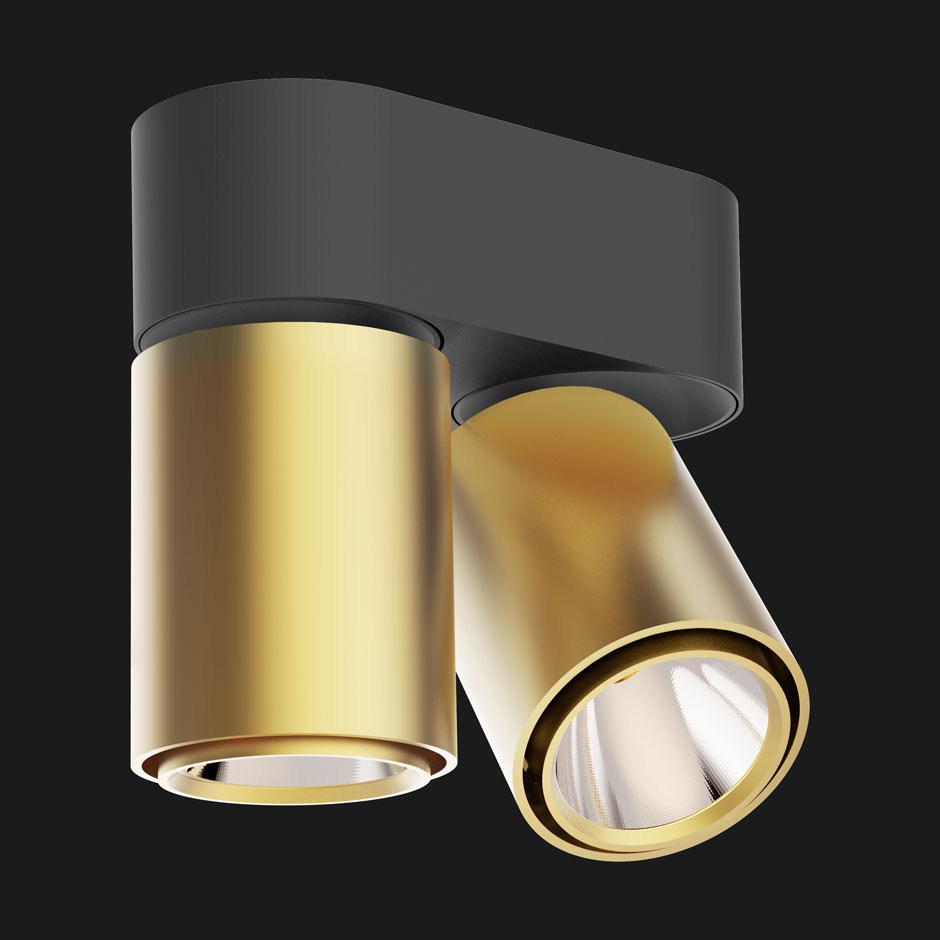

Gold / Black

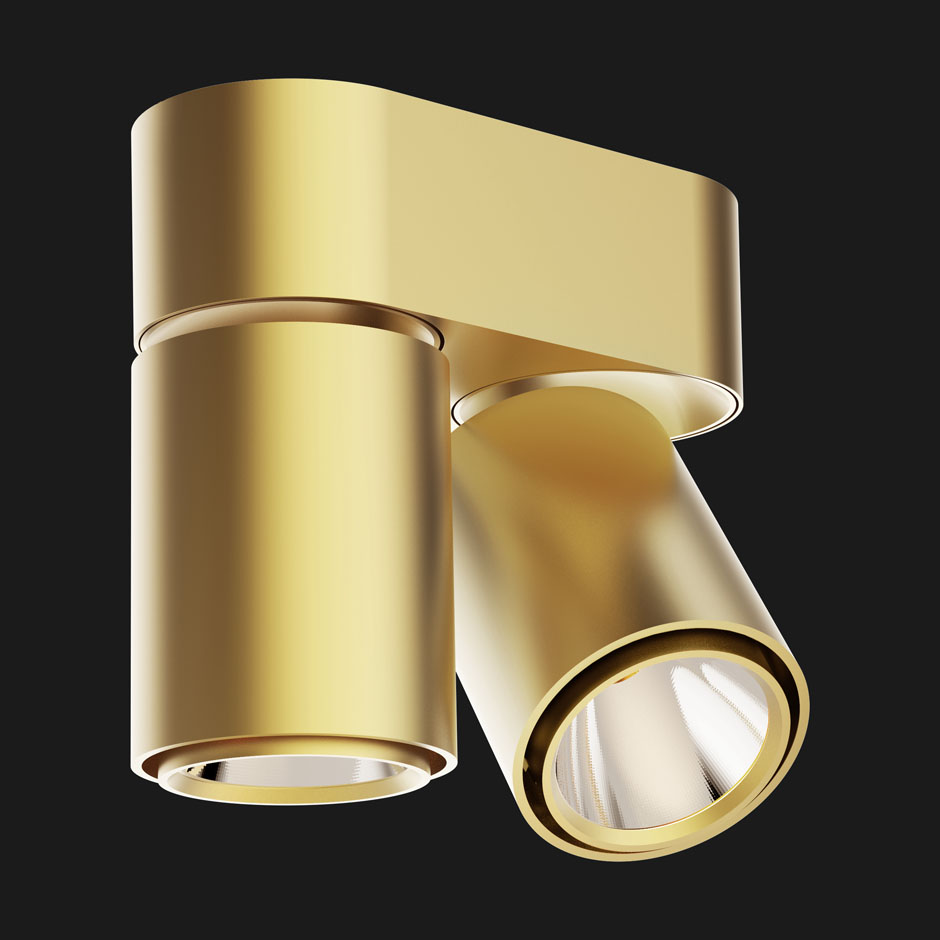

Gold
Gold / White

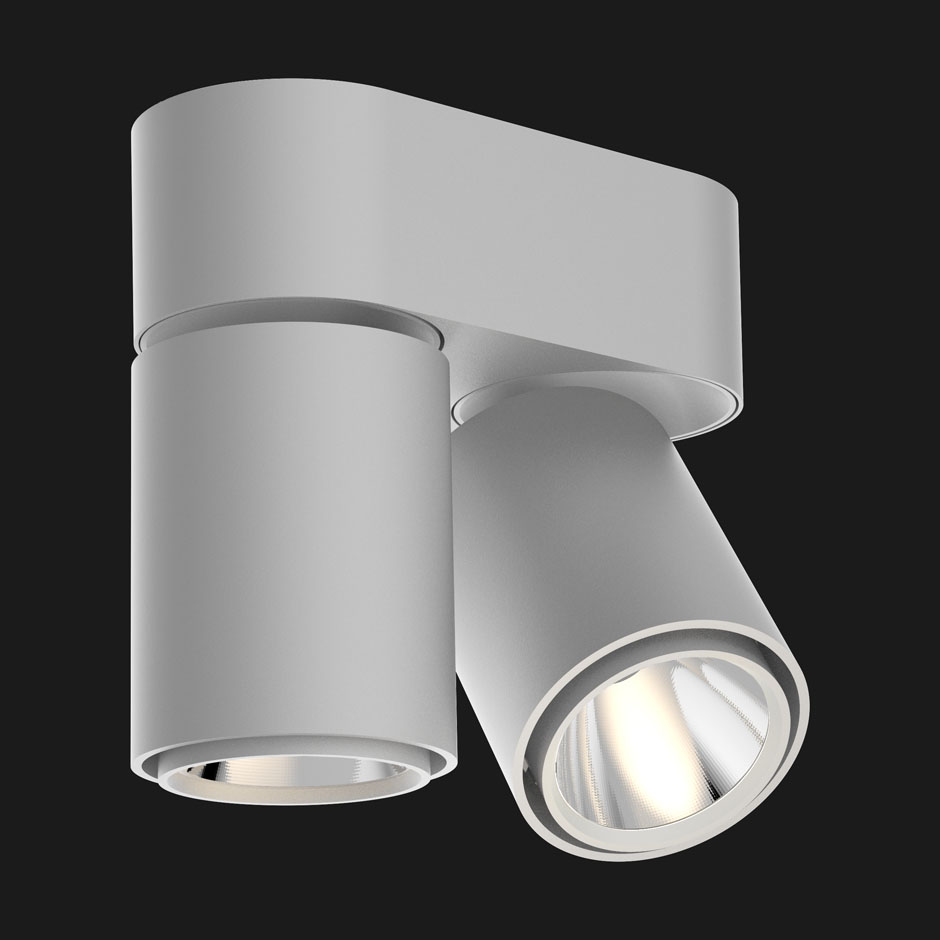

Grey

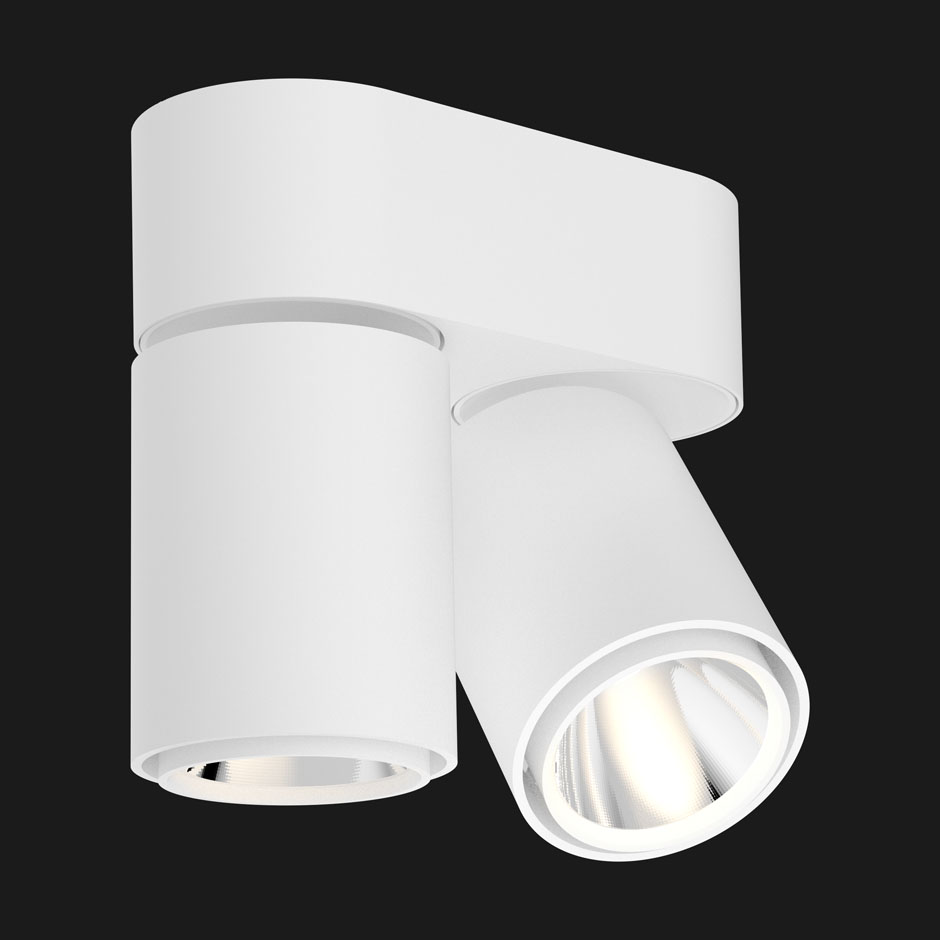

White

Our products can be finished in a RAL colour of your choice on request.
