stdClass Object
(
    [ID] => 4
    [TypeLichtbron] => COB
    [WebType] => 1
    [Groep] => Spots
    [Montage] => 8
    [SerieNummer] => 1036
    [Aanpasbaar] => 1
    [familie] => 7
    [SubFamilie] => 1036 Atlas Mix Square 700mA
    [SerieID] => 133
    [SubFamilieWeb] => 1036-atlas-mix-square-700ma
    [ArtikelNummer] => 1036.22.24.927.01-B
    [Omschrijving] => 114 mm
    [MinVoltage] => 24.40
    [MaxVoltage] => 29.80
    [TypVoltage] => 27.10
    [Amperage] => 700.00
    [LummenFluxLED] => 2585.00
    [LummenFluxSysteem] => 2068.00
    [ReductieFactor] => 80.00
    [LedPower] => 18.97
    [SystemPower] => 21.08
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 1053
    [UGR] => 3
    [TypeSpot] => Recessed Downlight
    [Materiaal] => Recycled aluminium
    [InbouwDiameter] => 114 mm
    [InbouwCategorieID] => 6
    [InbouwHoogte] => 0.00
    [LedID] => 1
    [OptiekID] => 2
    [ElecClassID] => 2
    [ReflectorID] => 4
    [LakKleurID] => 5
    [PrimaryColor] => White
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 3
    [BevestigingID] => 2
    [SpotOrientatie] => 2
    [SpotVorm] => 3
    [DriverIngebouwd] => 0
    [AantLeds] => 1.00
    [UgrOpmerking] => Atlas: <19 for 22u00b0> 0
    [Ugr16] => 0
    [Ugr19] => 1
    [ZichtbaarApparaatHoogte] => 5 mm
    [ApparaatDiameter] => 120x120
    [Rotatie] => 359u00b0
    [Tilt] => 30u00b0
    [FluxCode] => 98 99 100 100 100
    [FluxFoto] => 2335 FF - Atlas - Reflector 22d.jpg
    [GeenSystemFlux] => 0
    [CRI] => 90
    [CCT] => 2700
    [SDCM] => 3
    [EnergieKlasseID] => 6
    [L70B50] => >114.000 hrs
    [L70B20] => >114.000 hrs
    [L70B10] => >114.000 hrs
    [L80B50] => >114.000 hrs
    [L80B20] => >114.000 hrs
    [L80B10] => >114.000 hrs
    [L90B50] => >114.000 hrs
    [L90B20] => 112.000 hrs
    [L90B10] => 104.000 hrs
    [GatID] => 6
    [GatDiameter] => 114.00
    [Rechthoek] => 0
    [Lengte] => 0.00
    [Breedte] => 0.00
    [FilterDiameter] => 114.00
    [mounting] => Recessed
    [eCode] => II
    [eDesc] => Protective earth not required
    [sdcm] => 3
    [gat_omschrijving] => 114 mm
    [aanpasbaar] => 1
    [materiaal] => Recycled aluminium
    [dimming] => Dali Dim, Non Dim, Push/Touch Dim
    [hoogte] => 0.00
    [diameter] => 114 mm
    [cct] => 2700,3000,4000
    [cri] => 90,97
    [beam_angles] => 22u00b0,45u00b0,58u00b0
    [optiek] => Reflector
    [primaire_kleuren] => Anthracite, Black, Bronze, Brown, Champagne, Corten, Gold, Grey, White
    [secundaire_kleuren] => , Black, White
    [kleuren_combos] => Anthracite/Anthracite;Black/Black;Black/White;Bronze/Bronze;Brown/Brown;Champagne/Black;Champagne/Champagne;Champagne/White;Corten/Corten;Gold/Black;Gold/Gold;Gold/White;Grey/Grey;White/White
    [cri_values] => 90/97
    [cct_values] => 2700/3000/4000
    [led_table] => 90/2700/2068.00/21.08/2585.00/18.97;90/3000/2083.20/21.08/2604.00/18.97;90/4000/2204.00/21.08/2755.00/18.97;97/2700/1764.80/21.08/2206.00/18.97;97/3000/1885.60/21.08/2357.00/18.97;97/4000/2041.60/21.08/2552.00/18.97
)

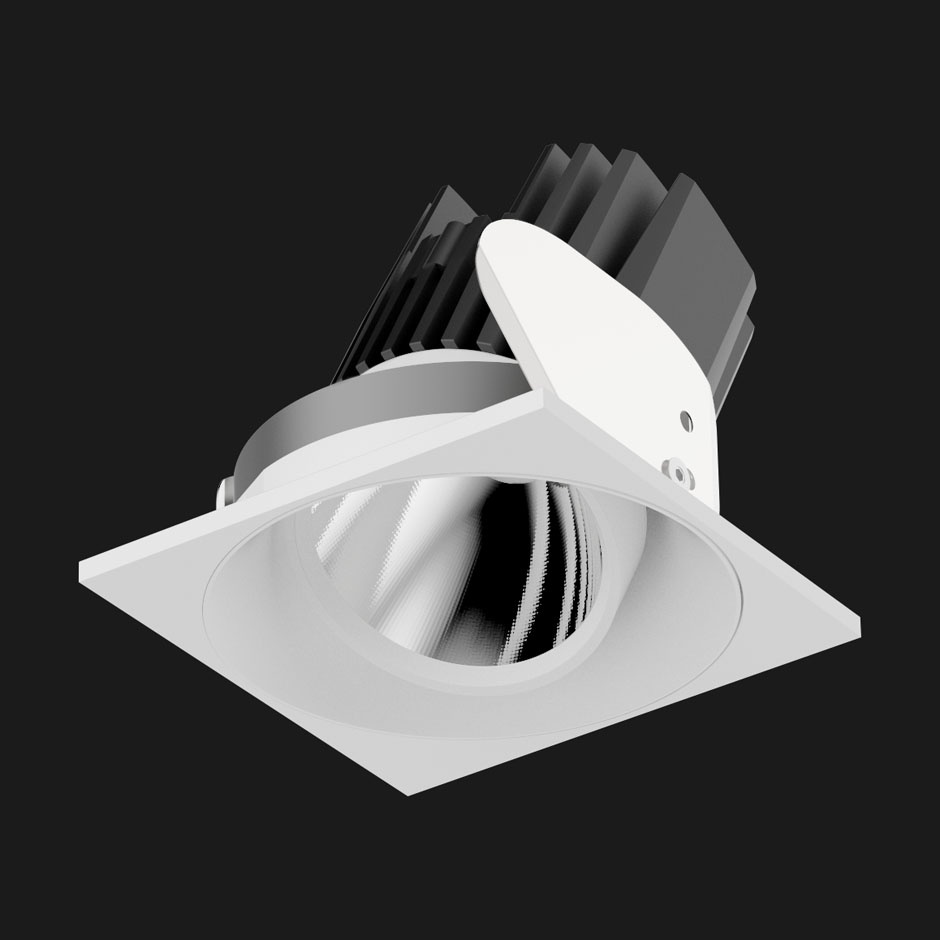

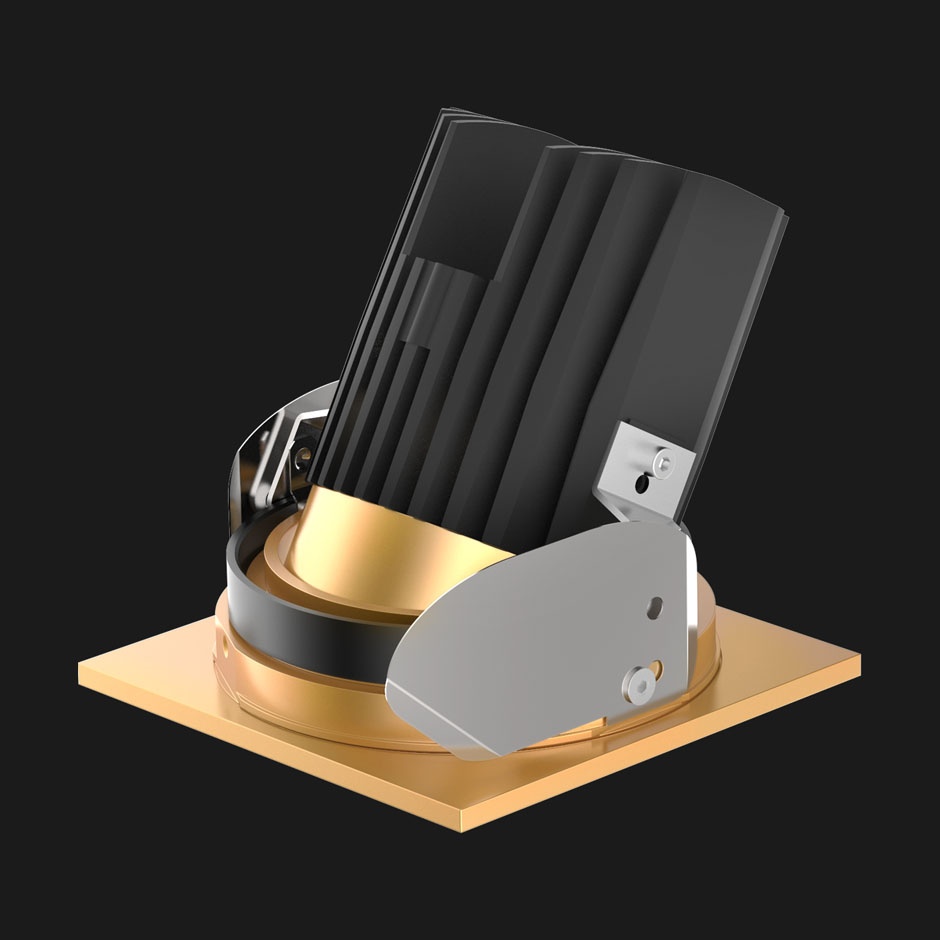

Atlas Mix Square 700mA

Available Colours

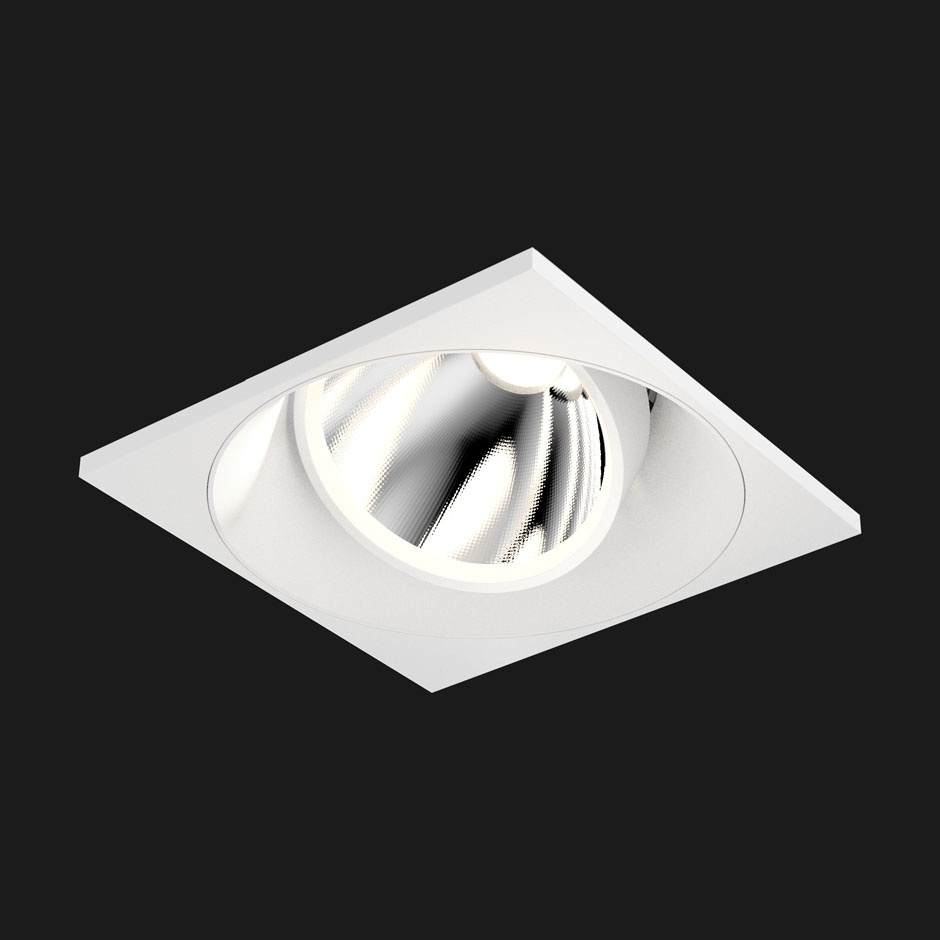

  • White

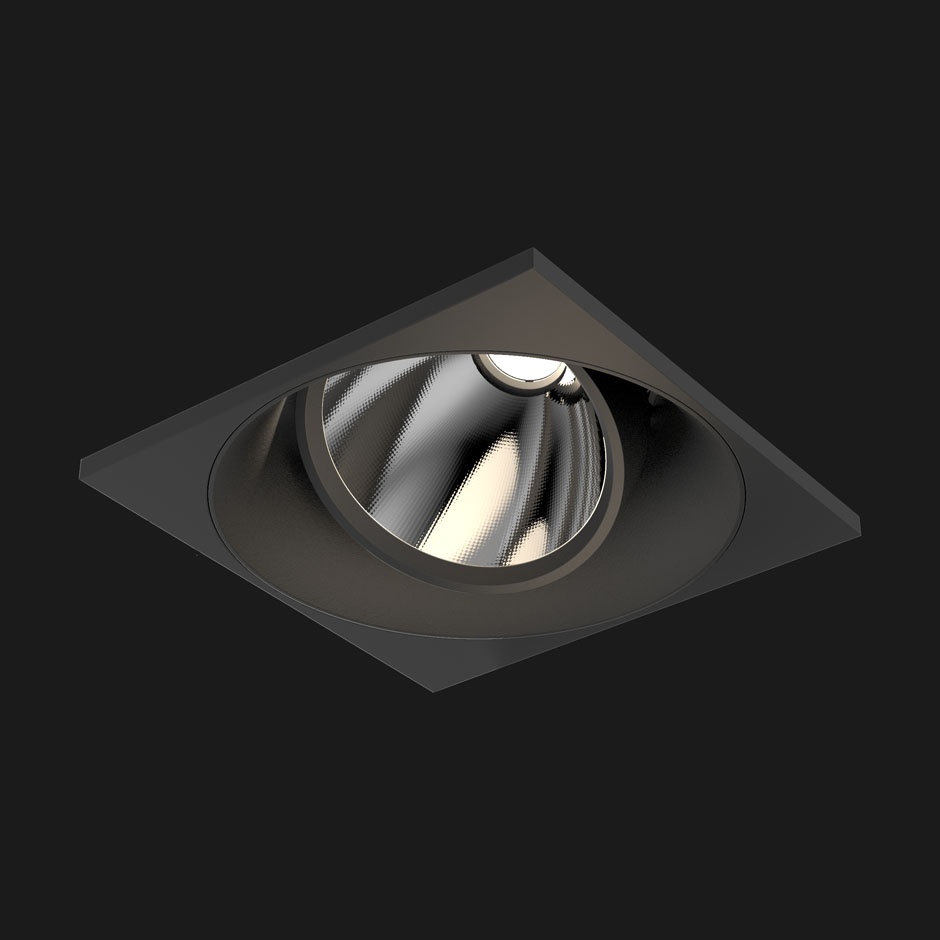

  • Black

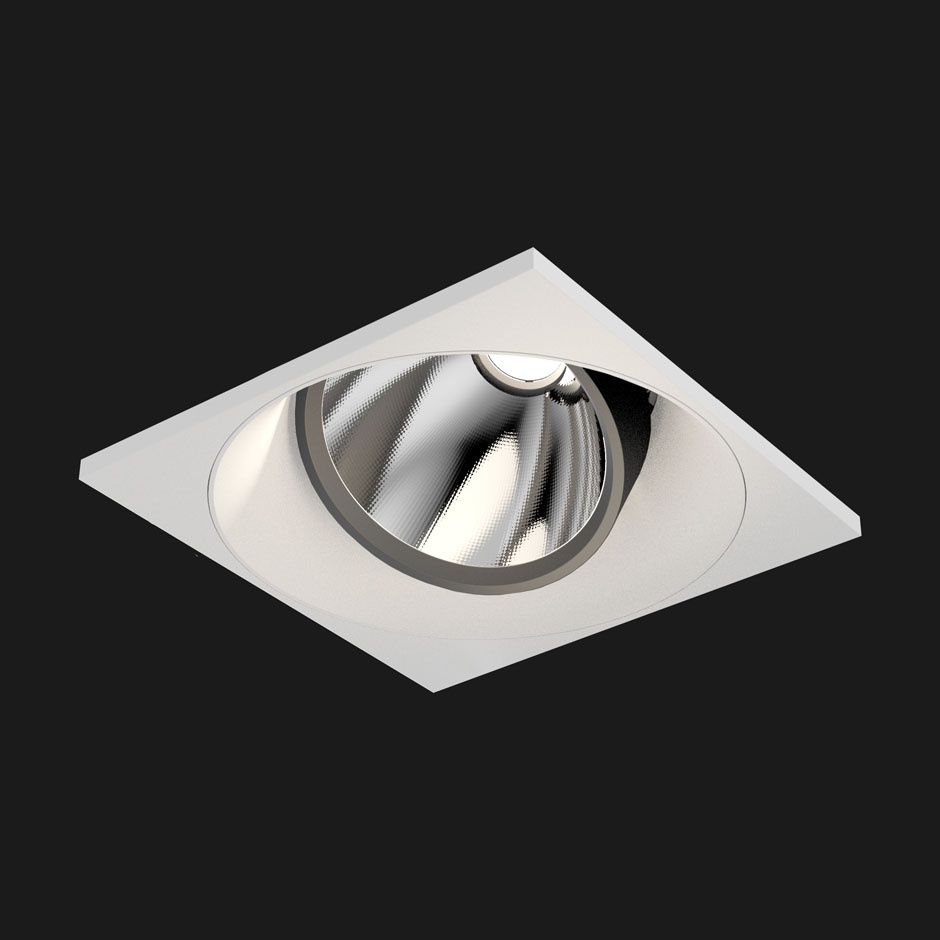

  • White & Black

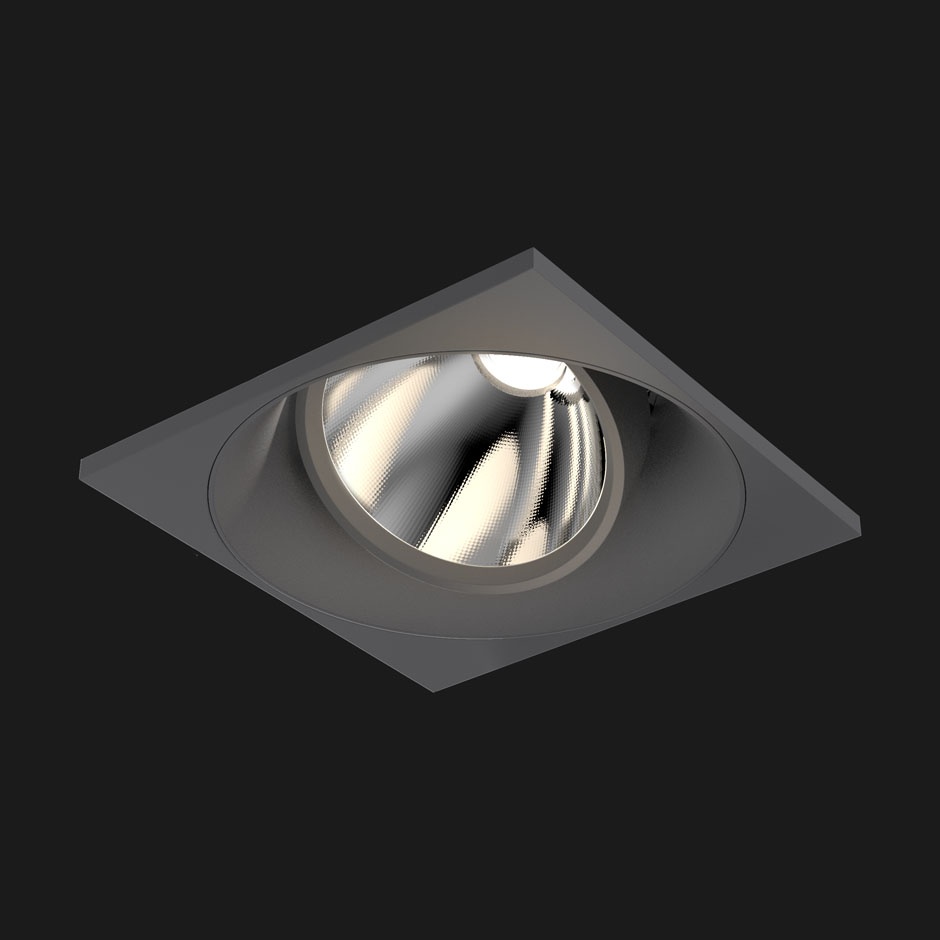

  • Anthracite

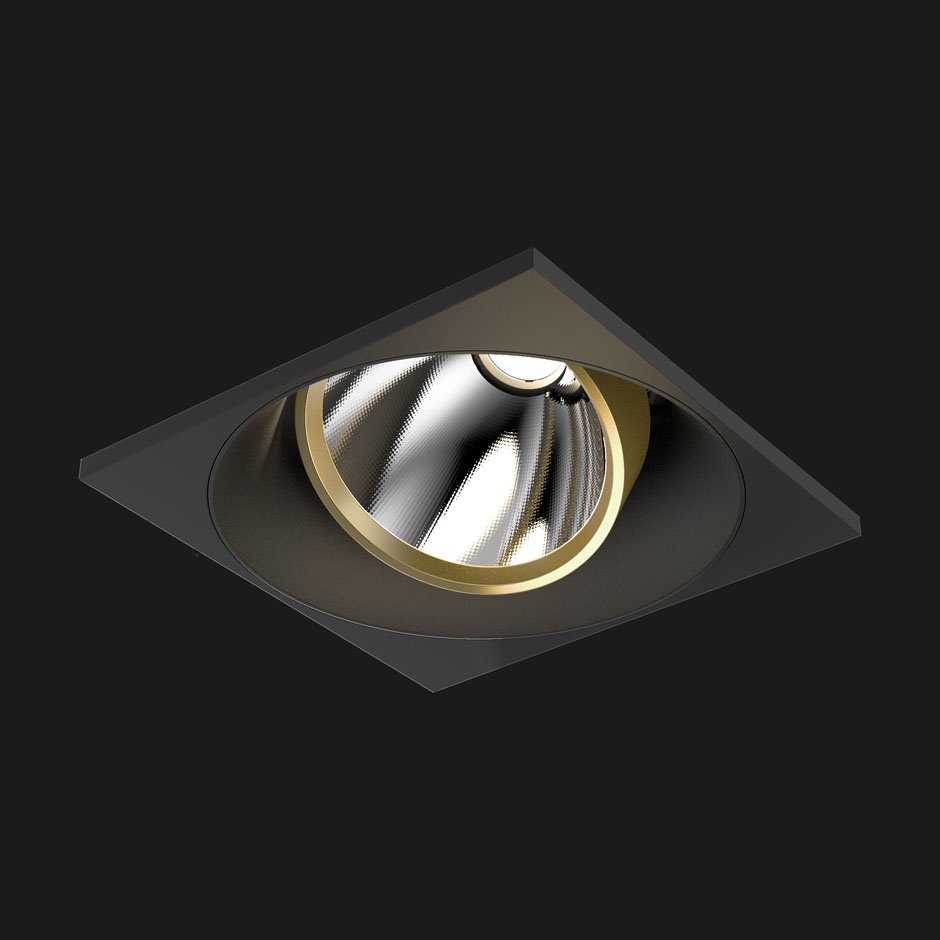

  • Black & Gold

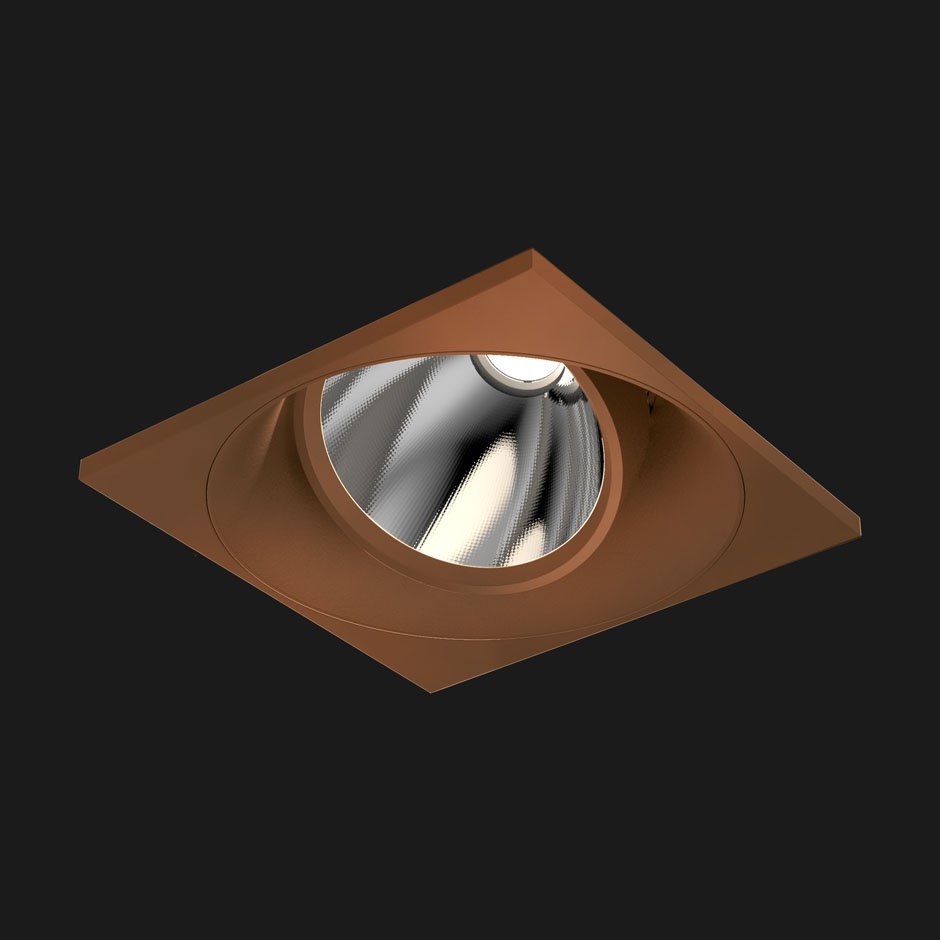

  • Corten

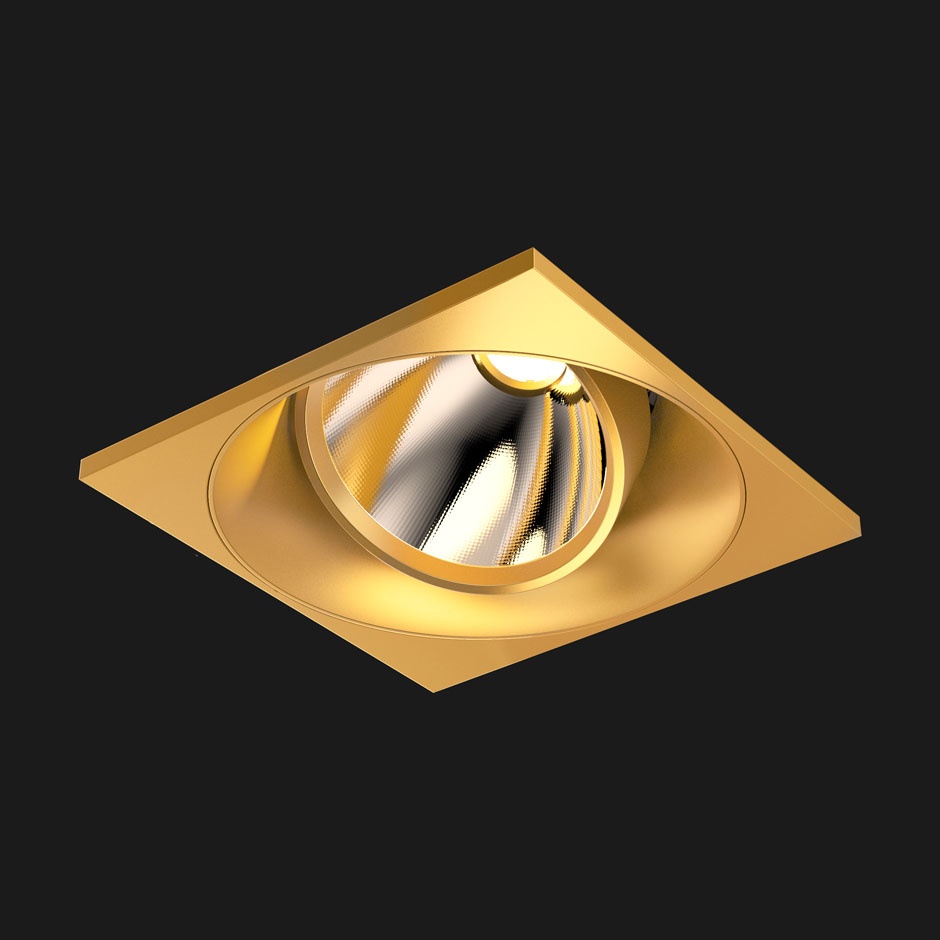

  • Gold

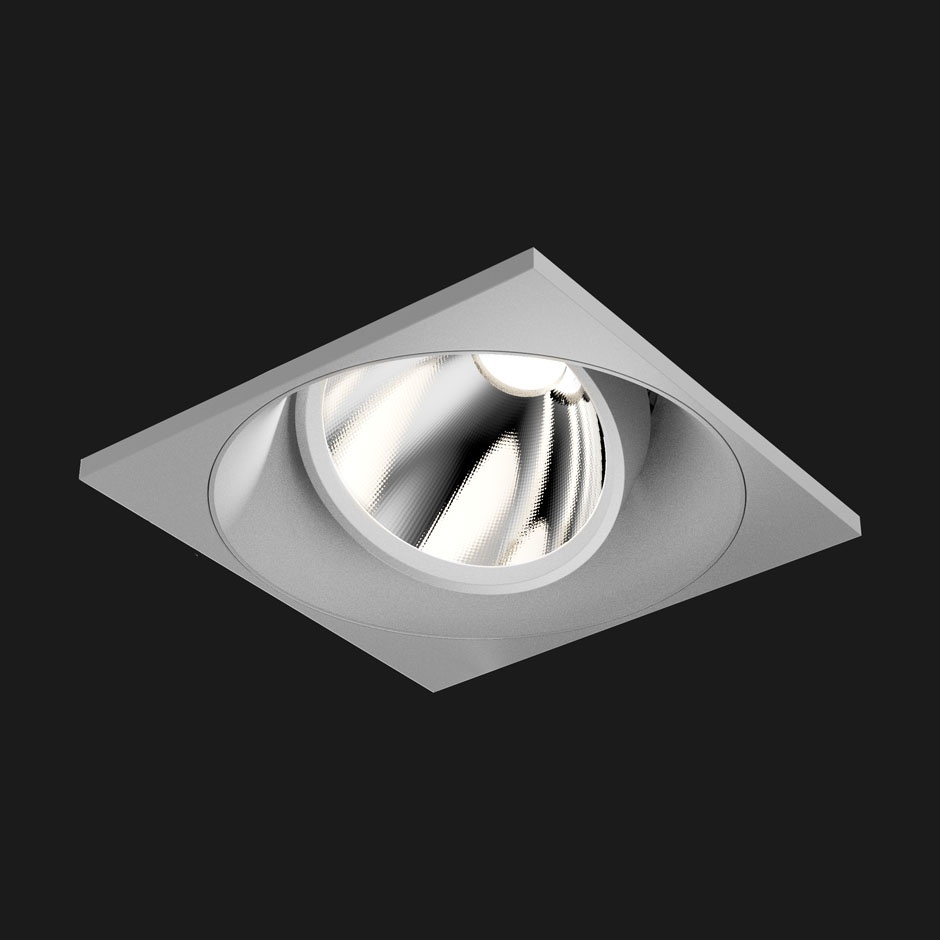

  • Grey

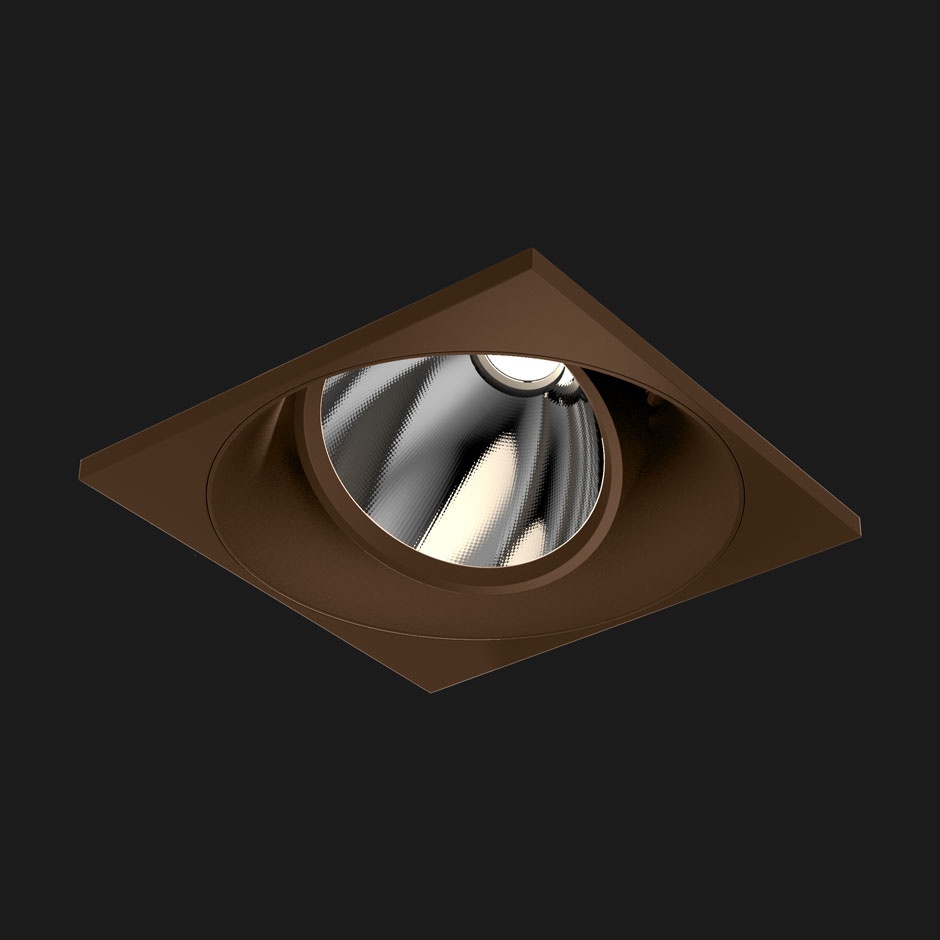

  • Brown

Our products can be finished in a RAL colour of your choice on request.

Atlas Mix Square 700mA

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Atlas: <19 for 22°>

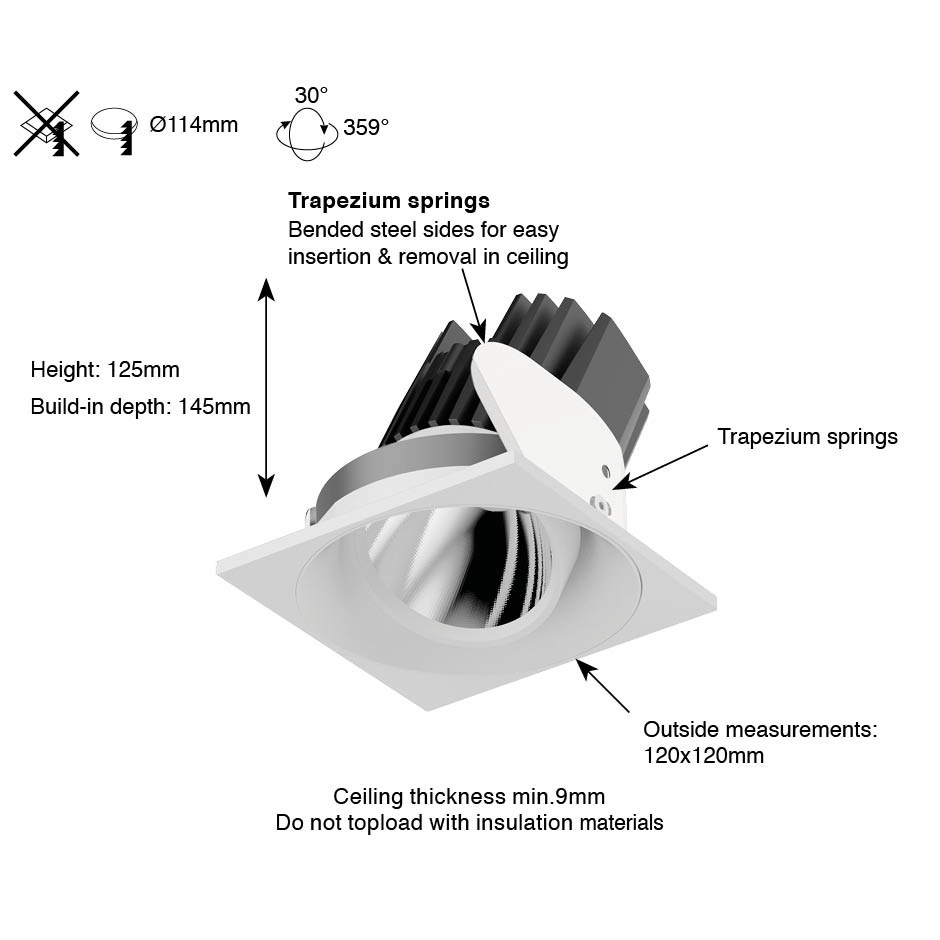

Luminaire Body

Type: Recessed Downlight
Positioning: Recessed
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 30°
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 114mm
Outer diameter: 120mm
Weight: 1053g

Lightsource

Dimming: Dali Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
2700K 1764lm (84lm/W) 2068lm (98lm/W)
3000K 1885lm (89lm/W) 2083lm (99lm/W)
4000K 2041lm (97lm/W) 2204lm (105lm/W)
Luminous flux LED:
RA97 RA90
2700K 2206lm (116lm/W) 2585lm (136lm/W)
3000K 2357lm (124lm/W) 2604lm (137lm/W)
4000K 2552lm (135lm/W) 2755lm (145lm/W)
Flux code: 98 99 100 100 100
Beam Angle: 22° / 45° / 58°
LED Power: 19.0W
System Power: 21.1W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Champagne / Black
Champagne
Champagne / White
Corten
Gold / Black
Gold
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
