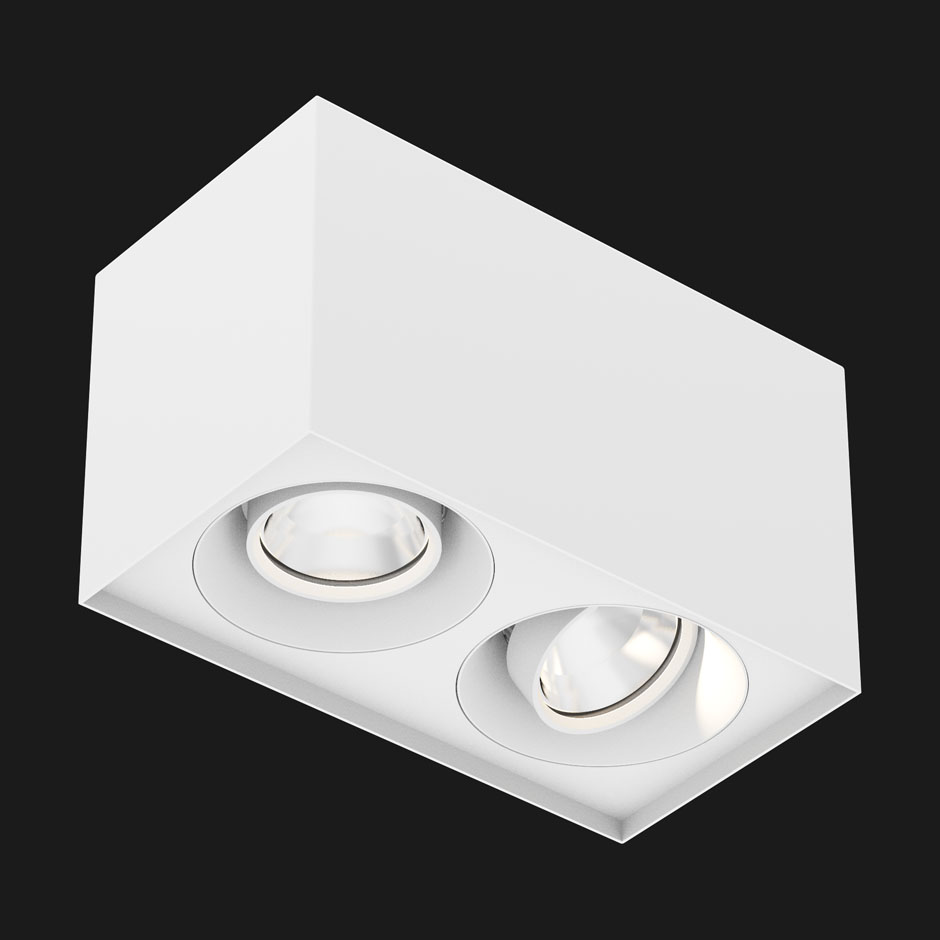

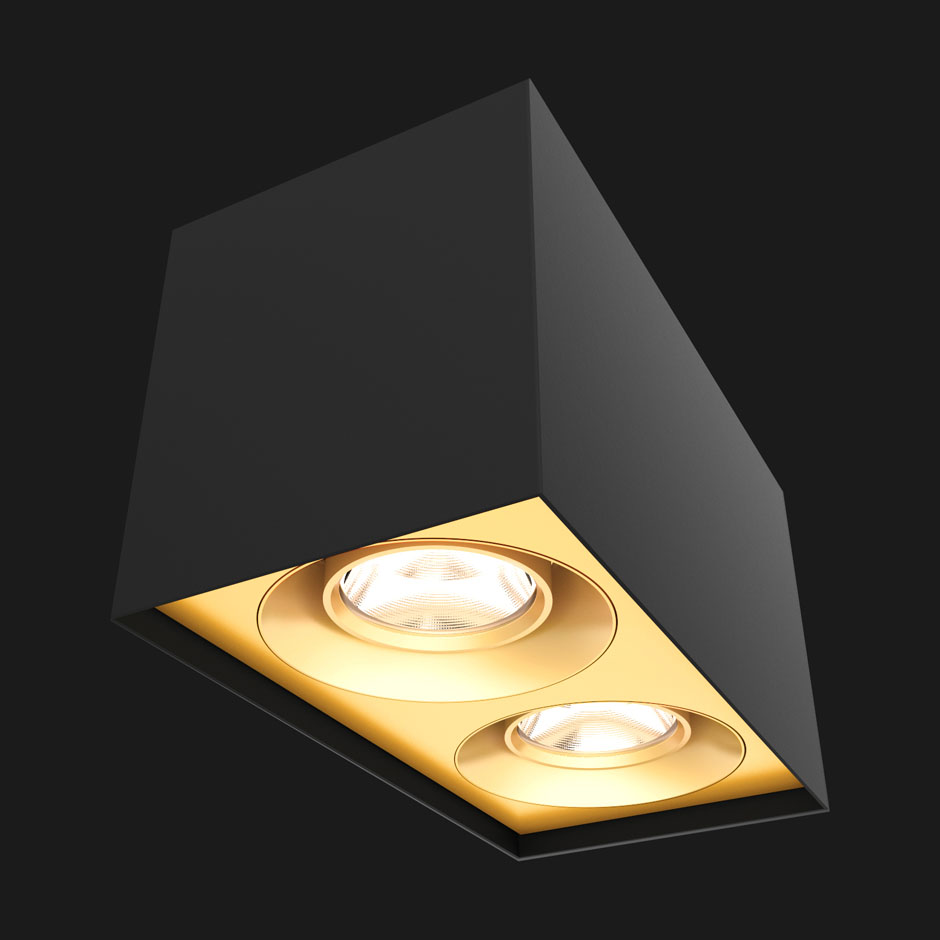

Atlas Box Double
General Specifications
Visual Comfort
UGR <13*
UGR <16*
UGR <19*
Atlas: <19 for 22°>
Luminaire Body
Type:
Downlight
Positioning:
Ceiling mounted
Material:
Recycled aluminium
Adjustable:
Yes

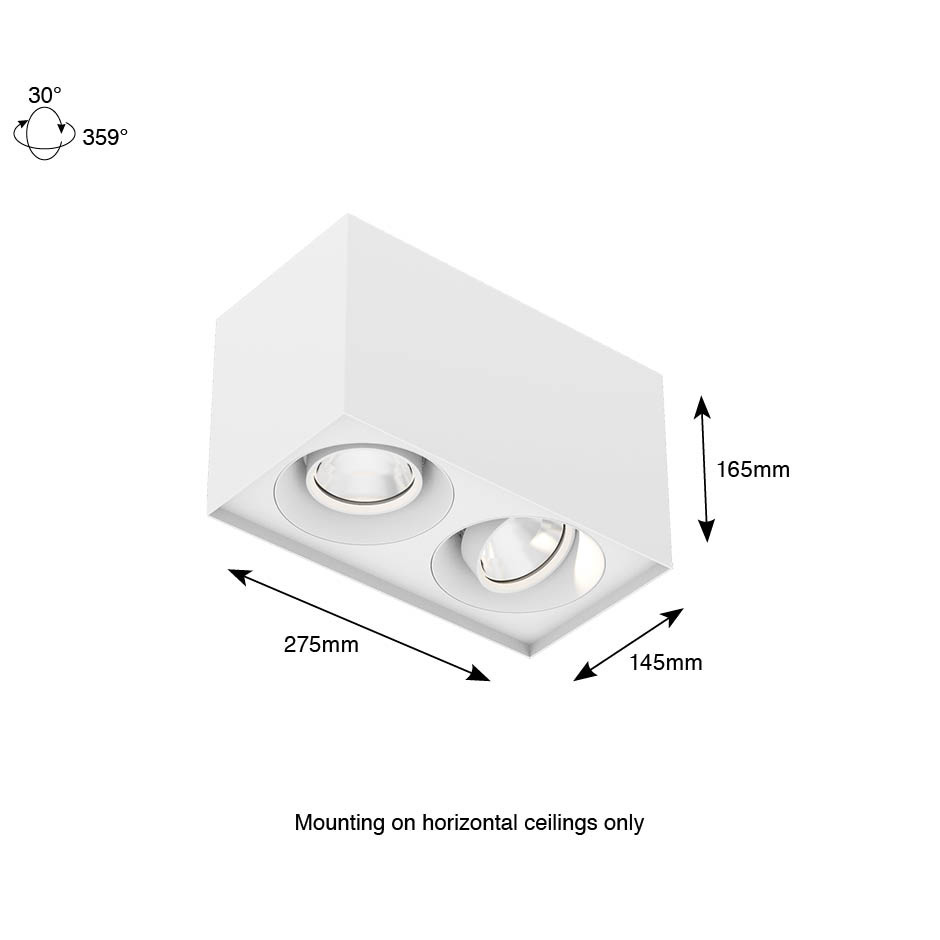

Rotation / tilt:
359° / 30°
El. Class:
I (Protective earth required)
IP:
IP20
Weight:
4763g
Lightsource
Dimming:
Dali Dim, Non Dim, Push/Touch Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90, Ra97
SDCM:
3
Optics:
Reflector
Luminous flux System:
RA97
RA90
2700K
3529lm (84lm/W)
4136lm (98lm/W)
3000K
3771lm (89lm/W)
4166lm (99lm/W)
4000K
4083lm (97lm/W)
4408lm (105lm/W)
Luminous flux LED:
RA97
RA90
2700K
4412lm (116lm/W)
5170lm (136lm/W)
3000K
4714lm (124lm/W)
5208lm (137lm/W)
4000K
5104lm (135lm/W)
5510lm (145lm/W)
Flux code:
98 99 100 100 100

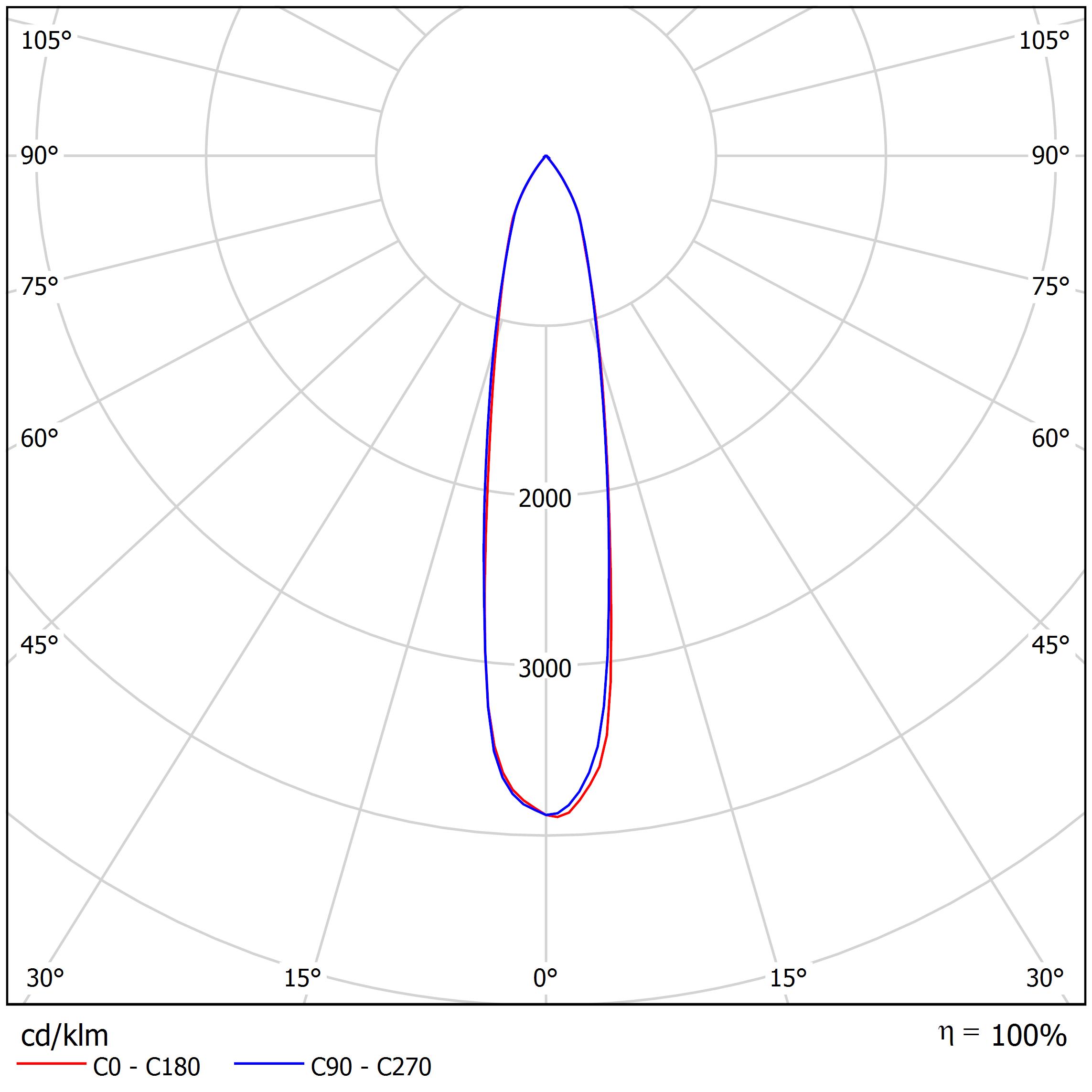

Beam Angle:
22° / 45° / 58°
LED Power:
37.9W
System Power:
42.2W
Driver location:
Integrated
Lumen maintenance
L70B50:
>114.000 hrs
L70B20:
>114.000 hrs
L70B10:
>114.000 hrs
L80B50:
>114.000 hrs
L80B20:
>114.000 hrs
L80B10:
>114.000 hrs
L90B50:
>114.000 hrs
L90B20:
112.000 hrs
L90B10:
104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors

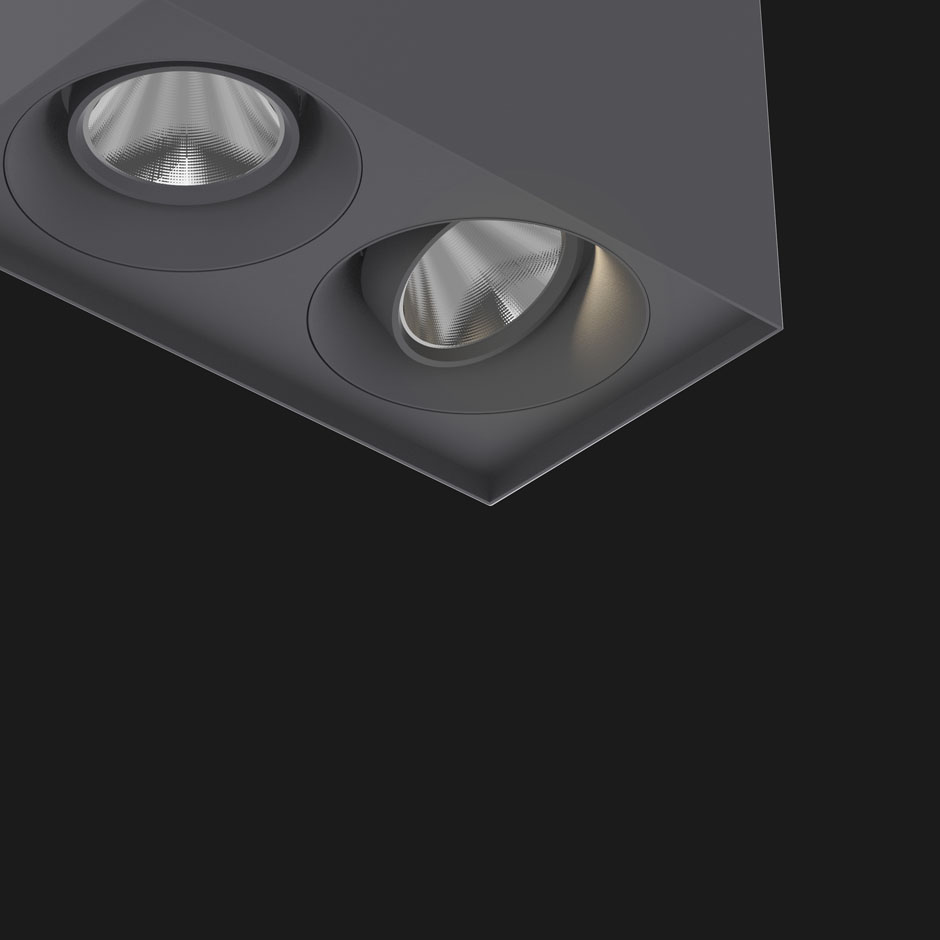

Anthracite

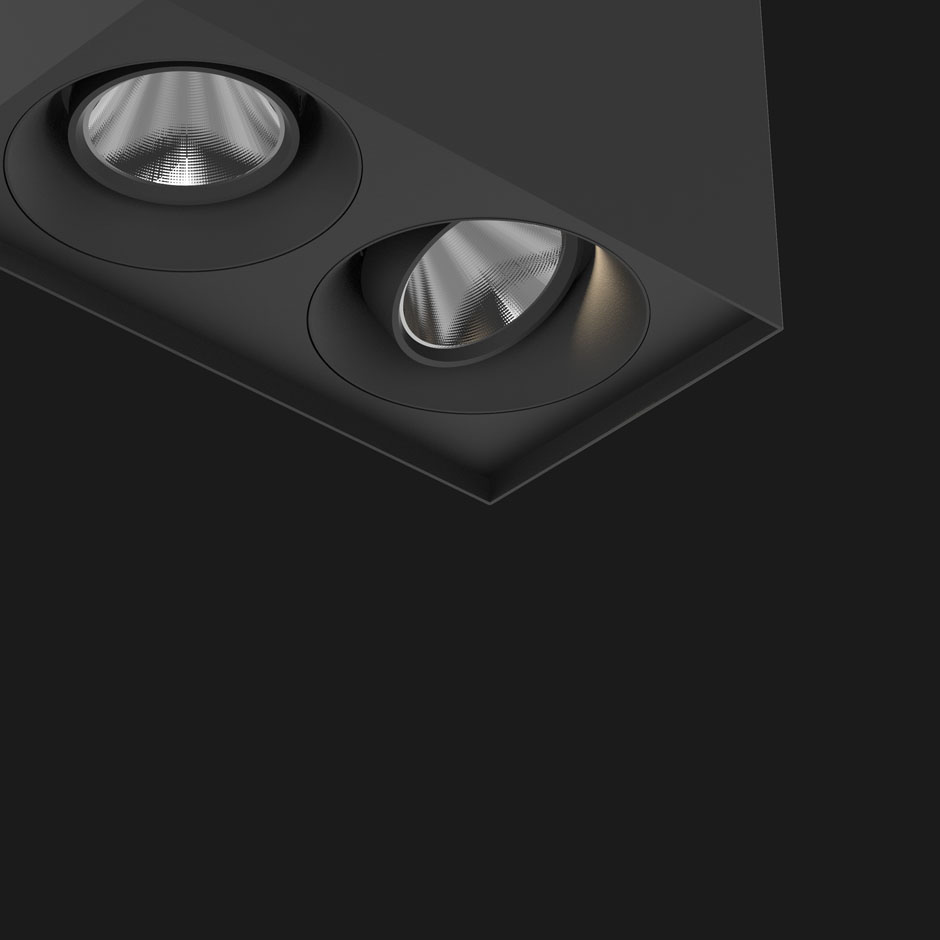

Black

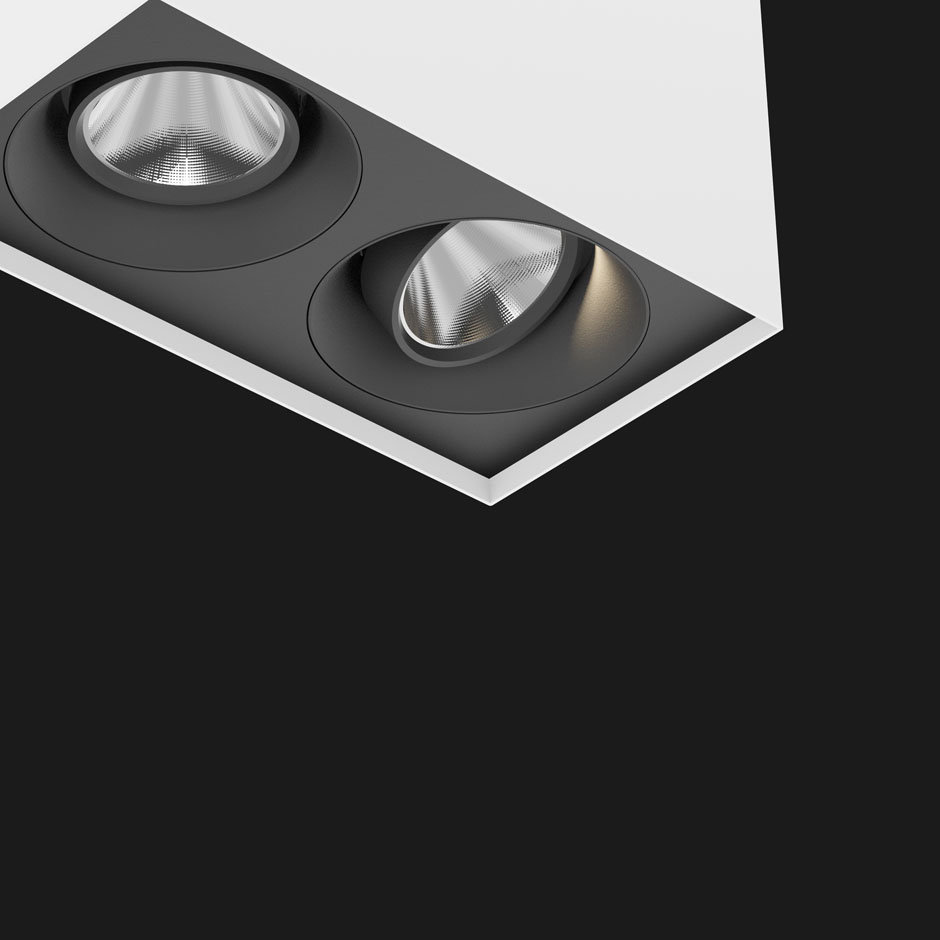

Black / White
Bronze
Brown
Champagne / Black
Champagne / White
Corten

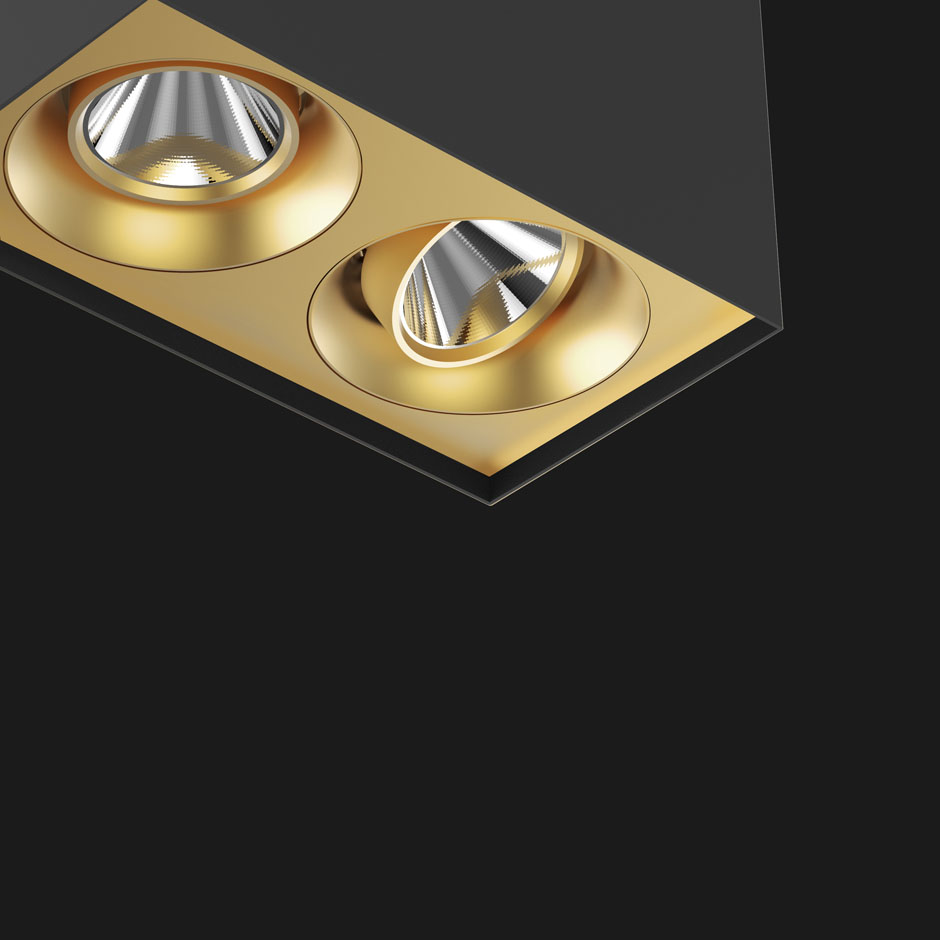

Gold / Black
Gold / White

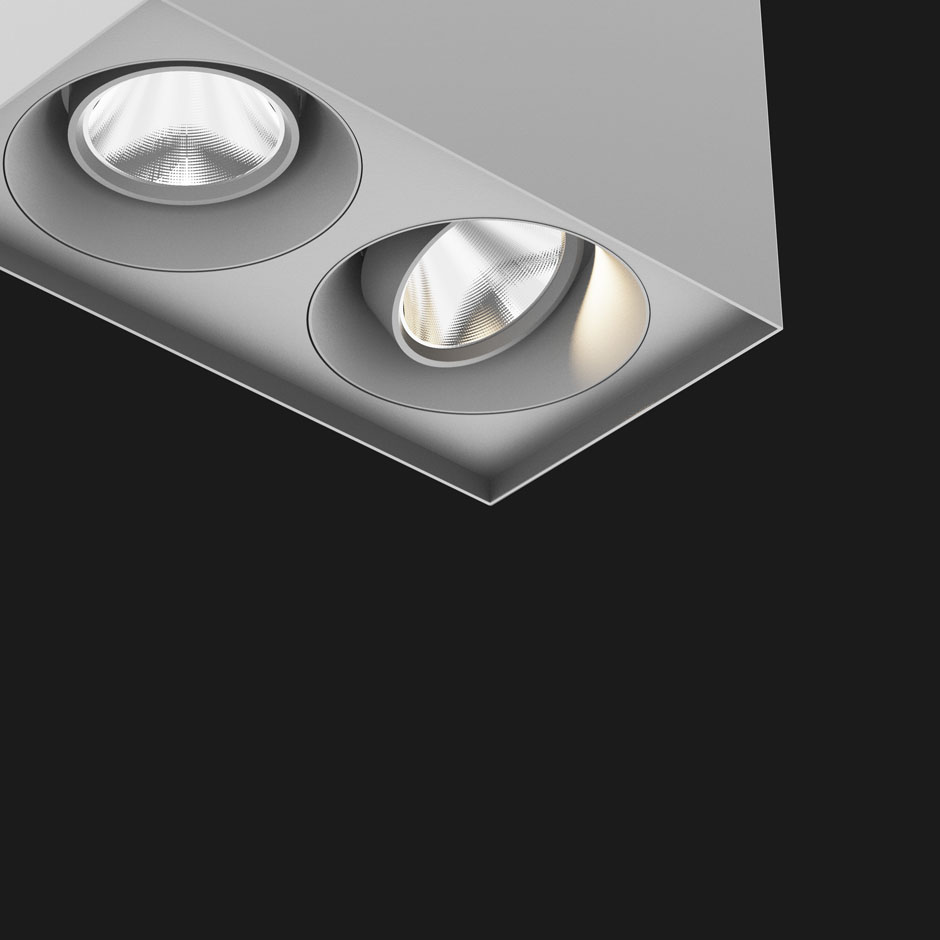

Grey

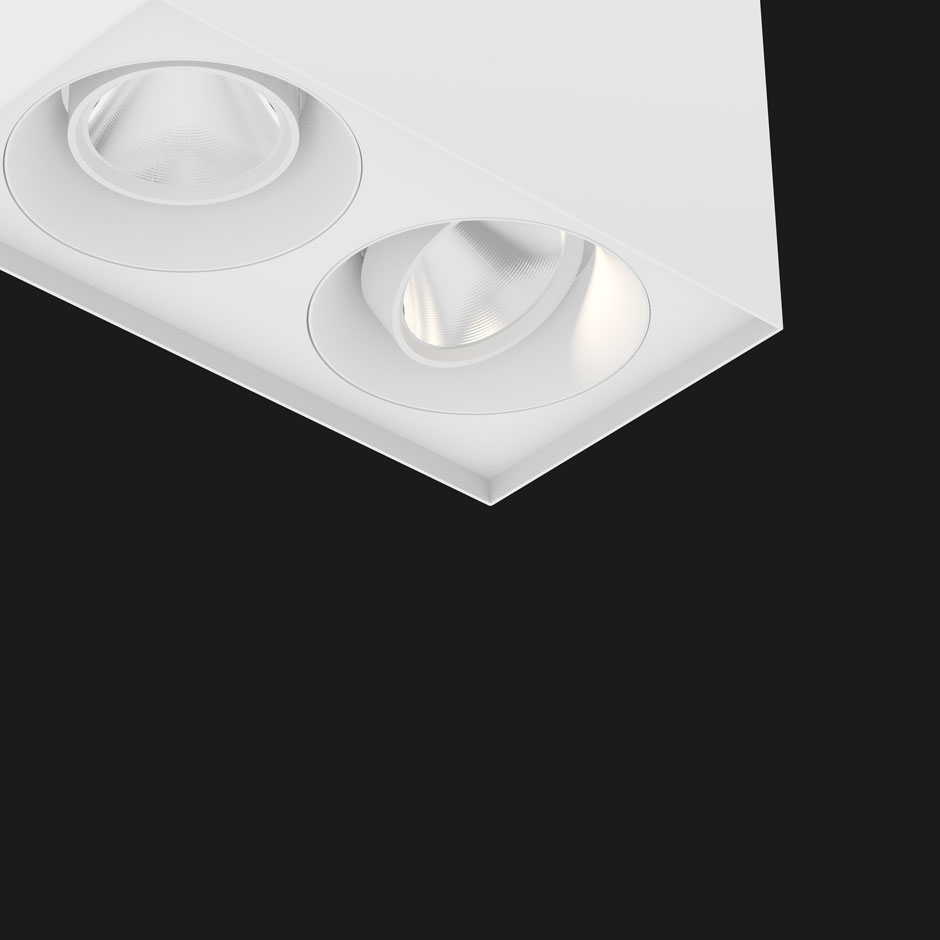

White
