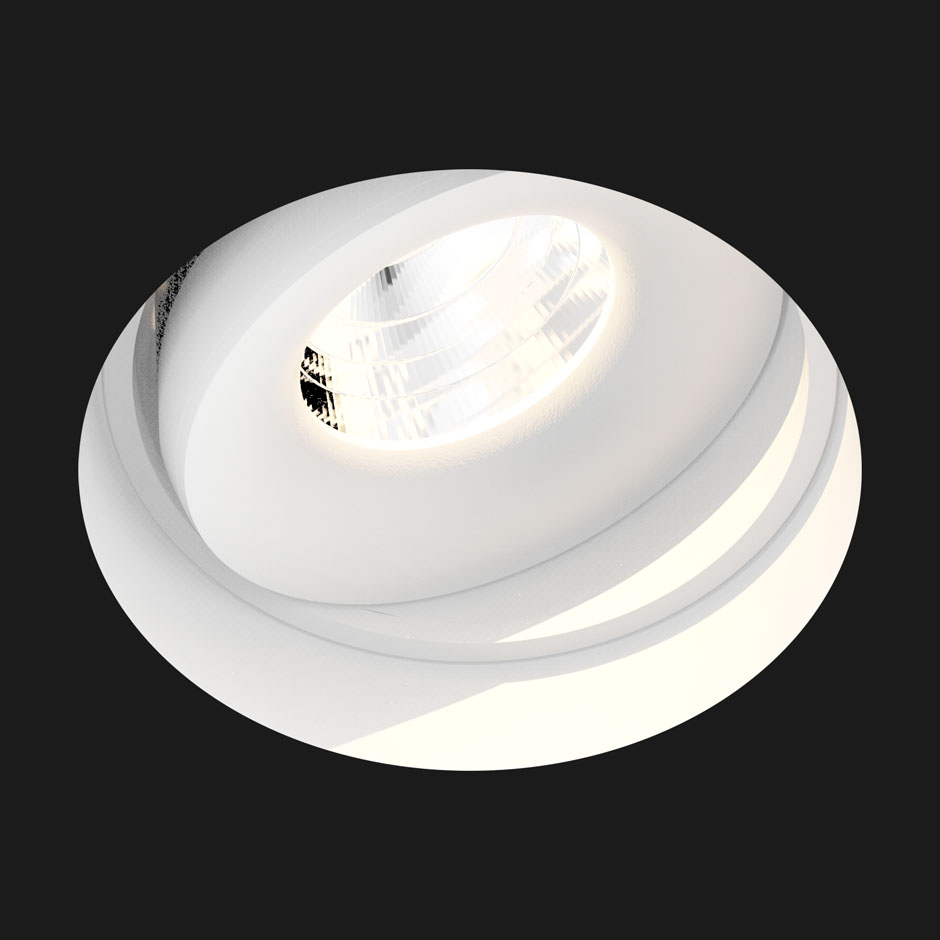

Titan Trimless Deep Organic

Available Colours

  • White
  • Black
  • Anthracite
  • Gold
  • Grey
  • Brown
  • Bronze
  • Champagne

Our products can be finished in a RAL colour of your choice on request.

Titan Trimless Deep Organic

General Specifications

Luminaire Body

Type: Trimless Downlight
Positioning: Trimless
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 40°
El. Class: II (Protective earth not required)
IP: IP20
Cut-out diameter: 85mm
Outer diameter: 84mm
Weight: 510g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 1800-3000K, 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 3
Optics: Reflector
Luminous flux System:
RA97 RA90
DTW(1800-3000K) 731lm (106lm/W)
2700K 798lm (82lm/W) 935lm (97lm/W)
3000K 852lm (88lm/W) 982lm (102lm/W)
4000K 891lm (92lm/W) 996lm (103lm/W)
Luminous flux LED:
RA97 RA90
DTW(1800-3000K) 860lm (138lm/W)
2700K 939lm (108lm/W) 1100lm (126lm/W)
3000K 1003lm (115lm/W) 1156lm (133lm/W)
4000K 1049lm (120lm/W) 1172lm (134lm/W)
Flux code: 97 99 100 100 100
Beam Angle: 28° / 40°
LED Power: 8.7W
System Power: 9.7W
Driver location: Remote

Lumen maintenance

L70B50: >114.000 hrs L70B20: >114.000 hrs L70B10: >114.000 hrs
L80B50: >114.000 hrs L80B20: >114.000 hrs L80B10: >114.000 hrs
L90B50: >114.000 hrs L90B20: 112.000 hrs L90B10: 104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Bronze
Brown
Champagne
Gold
Grey
White

Our products can be finished in a RAL colour of your choice on request.
