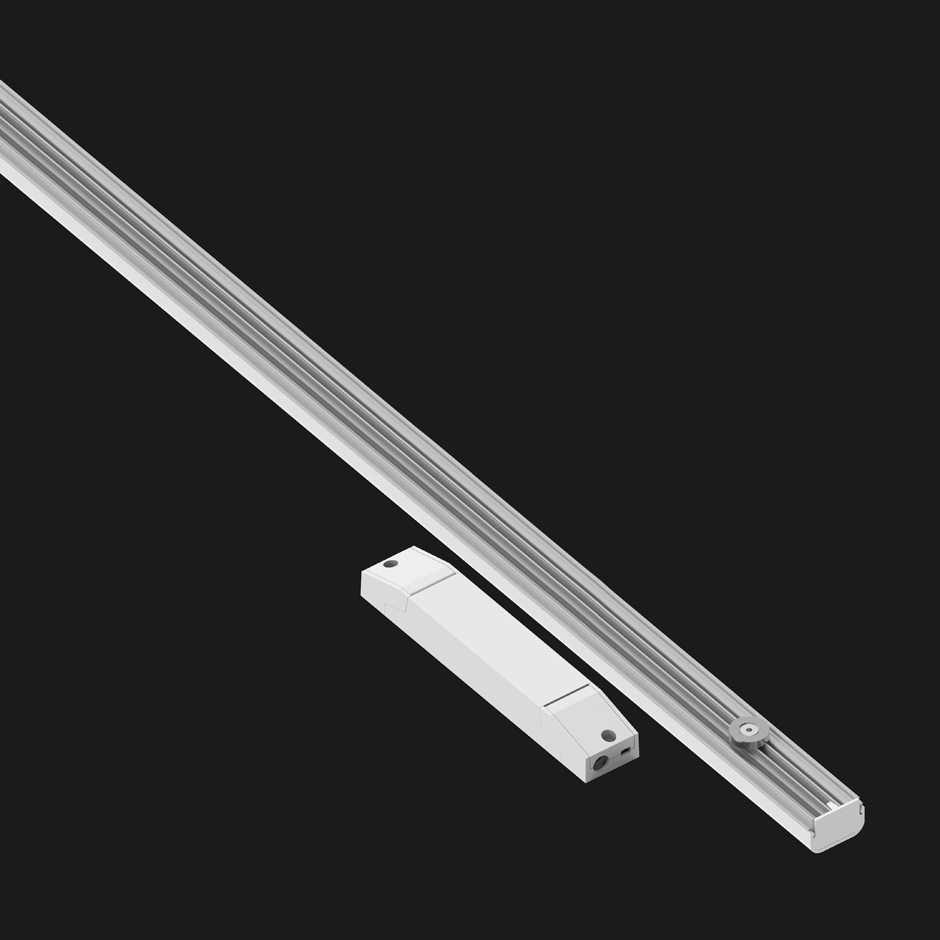

Seamlessliner Magnetic Bracket 24mm LV

Available Colours

color Aluminium Aluminium

Our products can be finished in a RAL colour of your choice on request.

Seamlessliner Magnetic Bracket 24mm LV

General Specifications

Luminaire Body

Positioning: Ceiling and wall mounted
Light direction: Down
Material: Recycled aluminium
El. Class: I (Protective earth required)
IP: IP20
Height (device): 20mm
Width (device): 30mm
Standard lengths: from 576mm to 3383mm

Customisation

Length: Not possible
Angles: Not possible
Colour: Possible to choose your own colour

Lightsource

CCT:
CRI: 90 (80 on request)
Optics: Opal
Photobiological Class: Low risk
LED Power: 11.5W/m
System Power: 18.9 - 20.8W/m
Lumen per meter: 3549lm/m
Light indications are based on measurements carried out by an independent laboratory on white luminaires. Luminaires in other colours can have different light outputs than the values indicated on this website.

Power source

Dimming: 1-10V Dim, Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
Driver location: Remote

Included

Driver
End Caps
LED Modules
Opal / Prismatic cover Down
Profile

Mounting

Mounting type: Ceiling and wall mounted
Fixing: Ceiling Mounted: Fixing with brackets by technician (incl. in scope)
Wall Mounted: Wall connector with screws onto wall by technician (wall screws not incl.)
Power: Direct connection in profile by technician

Available Colors

color Aluminium Aluminium

Our products can be finished in a RAL colour of your choice on request.

Optional modules

Untitled

Conformal coating for linear modules

  • 2210.00.00 - Protective coating for LED module only (drivers remain unprotected)
  • 2211.00.00 - Cast IP65 compound for driver(s)
  • A conformal coating provides extra protection against dust and humidity. Min. amount required: 10 meter.
Untitled

Silicone compound for linear modules and driver(s)*

  • 2209.35.00 - IP65 Compound min. 5 meter
  • DOXIS offers IP65 protection on the surface of the LED modules and drivers.
    *Important note: Using IP65 compound increases the CCT (color temperature)
    Example: Utilising 3000K LEDs results in an increase to approx. 4300K

Tridonic BasicDIM module (Casambi)

  • 661.26.00 - Casambi module*
  • Only in combination with DALI drivers
    One module can be connected to max. 4 drivers
    Module is built into luminaire
    *Building Casambi module into LEDIiner35 requires mechanical adjustments to the base profile. Module cannot be fit into profile atter production.

Emergency module for linear modules

  • 659.24.LED-3 - 3Hrs Standard
  • 659.26.LED-3 - 3Hrs Extended (DALI)
  • Emergency modules are equipped with self-testing.
    Extended version with on command testing, status read-out and additional functionality (only compatible with DALI).
    Minimum length RTG 8(suspended) or RTG 7(ceiling mounted)
