LEDliner80 Suspended Down Prismatic

Available Colours

color Black Black
color Grey Grey
color Anthracite Anthracite
color White White
color Brown Brown
color Gold Gold
color Copper Copper
color Corten Corten
color Champagne Champagne
color Bronze Bronze

Our products can be finished in a RAL colour of your choice on request.

LEDliner80 Suspended Down Prismatic

General Specifications

Luminaire Body

Positioning: Suspended
Light direction: Down
Material: Recycled aluminium
El. Class: I (Protective earth required)
IP: IP20

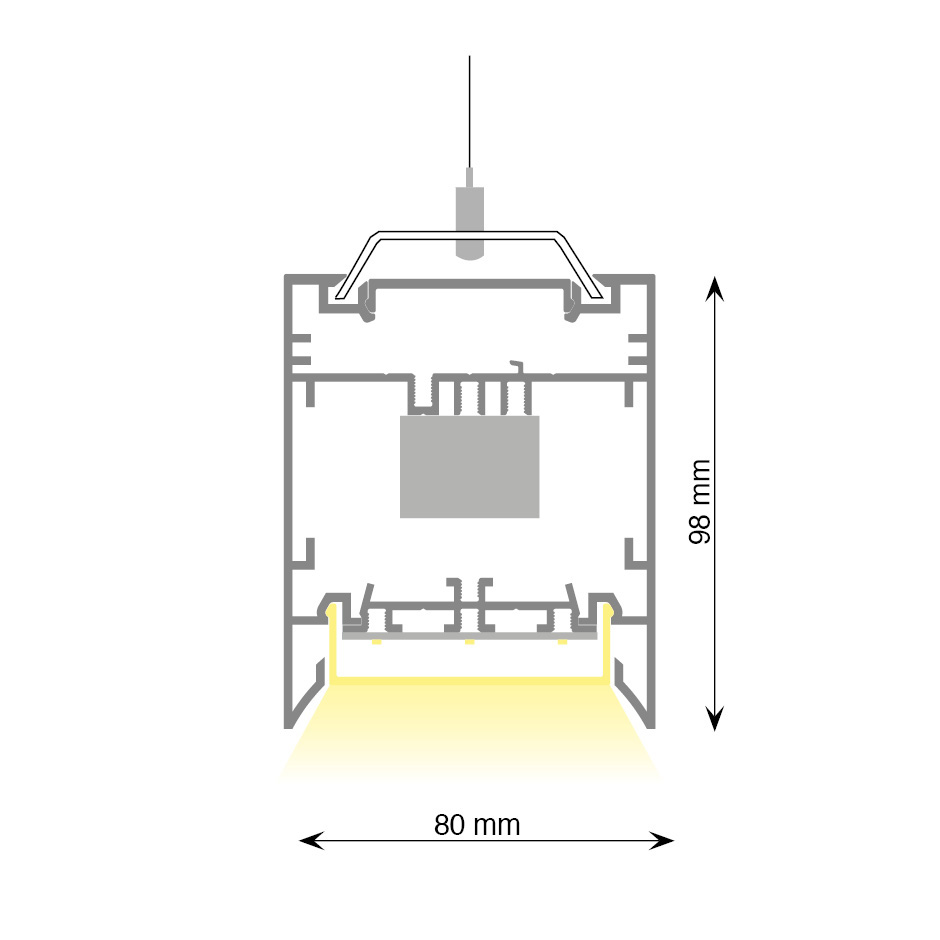

Height (device): 98mm
Width (device): 80mm
Weight: Approx. 4.01kg/m
Standard lengths: from 879mm to 6774mm

Customisation

Length: Possible
Angles: Possible
Colour: Possible to choose your own colour

Lightsource

CCT: 2700K, 3000K, 4000K
CRI: 90 (80 on request)
SDCM: 3
Optics: Prismatic
Photobiological Class: Low risk
LED Power: 19.0W/m
System Power: 20.7 - 23.9W/m
Flux code: 69 93 99 100 100
Lumen per meter: 3698lm/m
Light indications are based on measurements carried out by an independent laboratory on white luminaires. Luminaires in other colours can have different light outputs than the values indicated on this website.

Lumen maintenance

L70B50: >100.000 hrs L70B20: >100.000 hrs L70B10: >100.000 hrs
L80B50: >100.000 hrs L80B20: 99.000 hrs L80B10: 96.000 hrs
L90B50: 50.000 hrs L90B20: 46.000 hrs L90B10: 45.000 hrs

Power source

Dimming: 1-10V Dim, Dali Dim, Non Dim, Push/Touch Dim
Driver location: Integrated

Included

Connecting box
Driver
End Caps
Inner profile
LED Modules
Opal / Prismatic cover Down
Profile

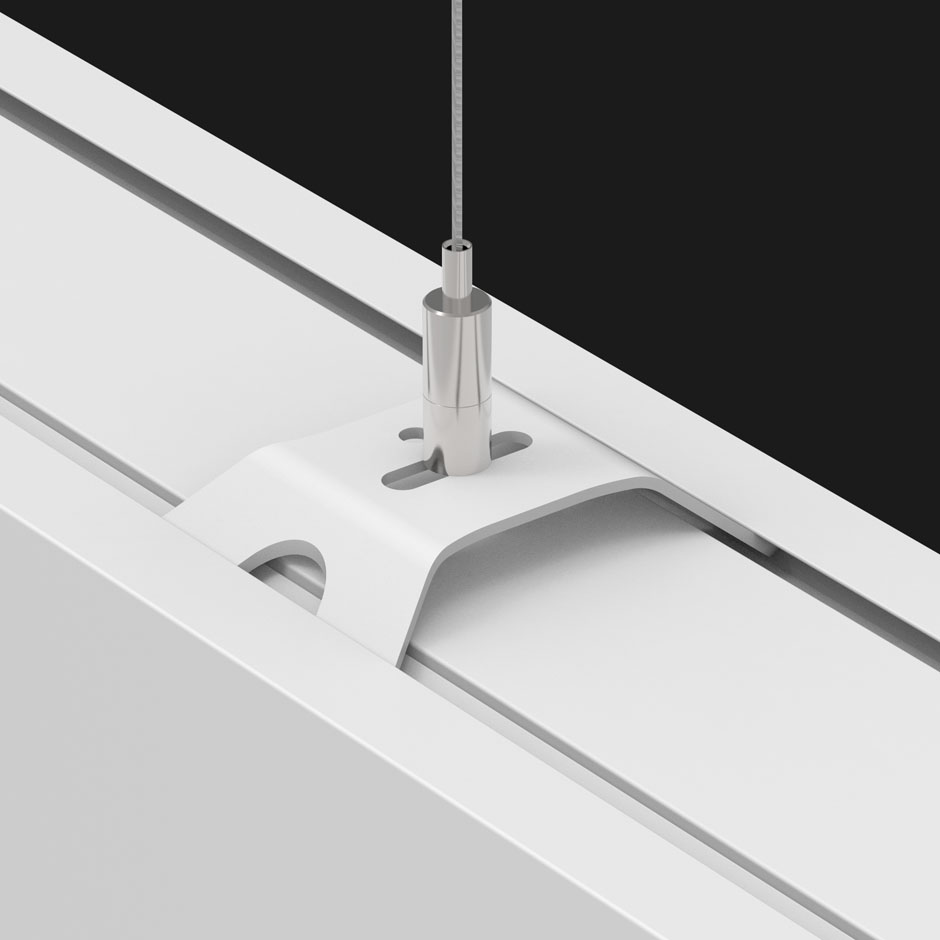

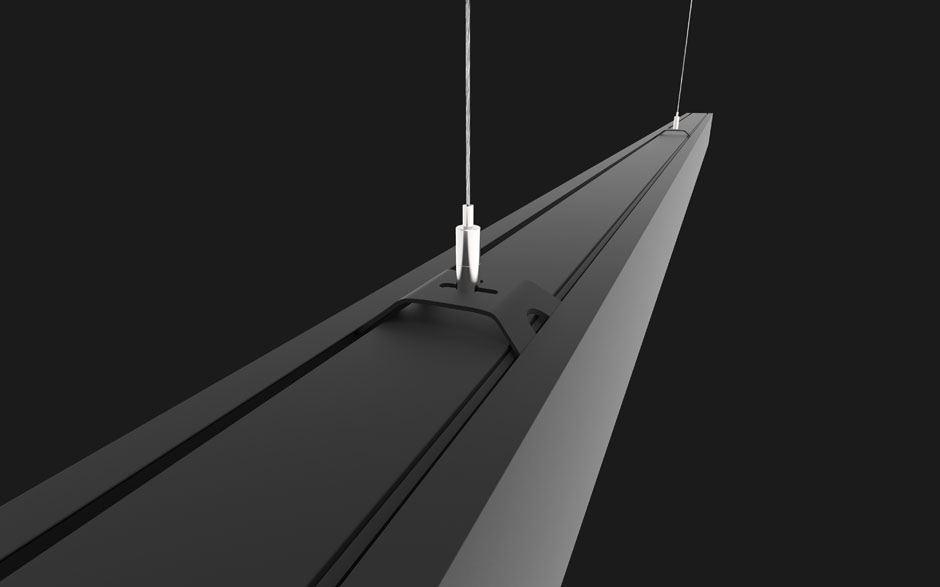

Suspension cables (2000mm)
Textile power cable (2000mm)
Top cover

Mounting

Mounting type: Suspended
Fixing: Suspension cables (incl. in scope) 2m / 4m
Power: Textile cable (incl. in scope) 2m / 4m
Surface Power: Ceiling connection box (incl. in scope) / Wall connector (wall mounted) / “-”(Ceiling mounted)

Available Colors

color Black Black
color Grey Grey
color Anthracite Anthracite
color White White
color Brown Brown
color Gold Gold
color Copper Copper
color Corten Corten
color Champagne Champagne
color Bronze Bronze

Our products can be finished in a RAL colour of your choice on request.

Optional modules

Untitled

Conformal coating for linear modules

  • 2210.00.00 - Protective coating for LED module only (drivers remain unprotected)
  • 2211.00.00 - Cast IP65 compound for driver(s)
  • A conformal coating provides extra protection against dust and humidity. Min. amount required: 10 meter.
Untitled

Silicone compound for linear modules and driver(s)*

  • 2209.35.00 - IP65 Compound min. 5 meter
  • DOXIS offers IP65 protection on the surface of the LED modules and drivers.
    *Important note: Using IP65 compound increases the CCT (color temperature)
    Example: Utilising 3000K LEDs results in an increase to approx. 4300K

Tridonic BasicDIM module (Casambi)

  • 661.26.00 - Casambi module*
  • Only in combination with DALI drivers
    One module can be connected to max. 4 drivers
    Module is built into luminaire
    *Building Casambi module into LEDIiner35 requires mechanical adjustments to the base profile. Module cannot be fit into profile atter production.

Emergency module for linear modules

  • 659.24.LED-3 - 3Hrs Standard
  • 659.26.LED-3 - 3Hrs Extended (DALI)
  • Emergency modules are equipped with self-testing.
    Extended version with on command testing, status read-out and additional functionality (only compatible with DALI).
    Minimum length RTG 8(suspended) or RTG 7(ceiling mounted)
