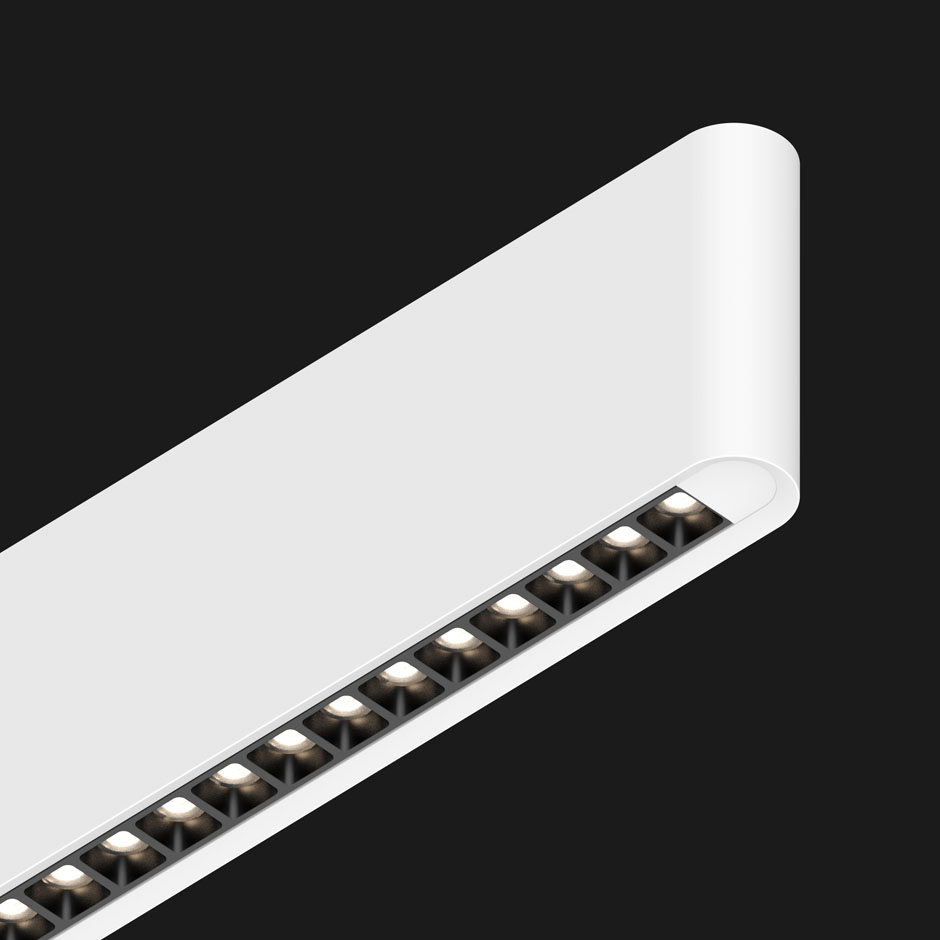

LEDliner21 Suspended Up & Down

Available Colours

color Black Black
color Grey Grey
color Anthracite Anthracite
color White White
color Brown Brown
color Gold Gold
color Corten Corten
color Champagne Champagne
color Bronze Bronze

Our products can be finished in a RAL colour of your choice on request.

LEDliner21 Suspended Up & Down

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Luminaire Body

Positioning: Suspended
Light direction: Up/Down 1 circuit
Material: Aluminium + steel
El. Class: I (Protective earth required)
IP: IP20
Height (device): 65mm
Width (device): 20mm
Weight: Approx. 1.31kg/m
Standard lengths: from 850mm to 2530mm

Customisation

Length: Not possible
Angles: Not possible
Colour: Possible to choose your own colour

Lightsource

CCT: 3000K, 4000K
CRI: 90 (80 on request)
SDCM: 3
Optics: Lens
Photobiological Class: No risk
LED Power: 0W/m
System Power: 0 - 0W/m
Lumen per meter: 3980lm/m
Light indications are based on measurements carried out by an independent laboratory on white luminaires. Luminaires in other colours can have different light outputs than the values indicated on this website.

Lumen maintenance

L70B50: 107k L70B10: 99k
L80B50: 66k L80B10: 61k
L90B50: 30k L90B10: 25k

Power source

Dimming: Dali Dim, Non Dim
Driver location: Integrated

Included

Connecting box
Driver
End Caps
LED Modules
Profile
Suspension cables (2000mm)
Textile power cable (2000mm)
Top cover

Mounting

Mounting type: Suspended
Fixing: Suspension cables (incl. in scope) 2m / 4m
Power: Textile cable (incl. in scope) 2m / 4m
Surface Power: Ceiling connection box (incl. in scope) / Wall connector (wall mounted) / “-”(Ceiling mounted)

Available Colors

color Black Black
color Grey Grey
color Anthracite Anthracite
color White White
color Brown Brown
color Gold Gold
color Corten Corten
color Champagne Champagne
color Bronze Bronze

Our products can be finished in a RAL colour of your choice on request.

Optional modules

Untitled

Conformal coating for linear modules

  • 2210.00.00 - Protective coating for LED module only (drivers remain unprotected)
  • 2211.00.00 - Cast IP65 compound for driver(s)
  • A conformal coating provides extra protection against dust and humidity. Min. amount required: 10 meter.
Untitled

Silicone compound for linear modules and driver(s)*

  • 2209.35.00 - IP65 Compound min. 5 meter
  • DOXIS offers IP65 protection on the surface of the LED modules and drivers.
    *Important note: Using IP65 compound increases the CCT (color temperature)
    Example: Utilising 3000K LEDs results in an increase to approx. 4300K

Tridonic BasicDIM module (Casambi)

  • 661.26.00 - Casambi module*
  • Only in combination with DALI drivers
    One module can be connected to max. 4 drivers
    Module is built into luminaire
    *Building Casambi module into LEDIiner35 requires mechanical adjustments to the base profile. Module cannot be fit into profile atter production.

Emergency module for linear modules

  • 659.24.LED-3 - 3Hrs Standard
  • 659.26.LED-3 - 3Hrs Extended (DALI)
  • Emergency modules are equipped with self-testing.
    Extended version with on command testing, status read-out and additional functionality (only compatible with DALI).
    Minimum length RTG 8(suspended) or RTG 7(ceiling mounted)
