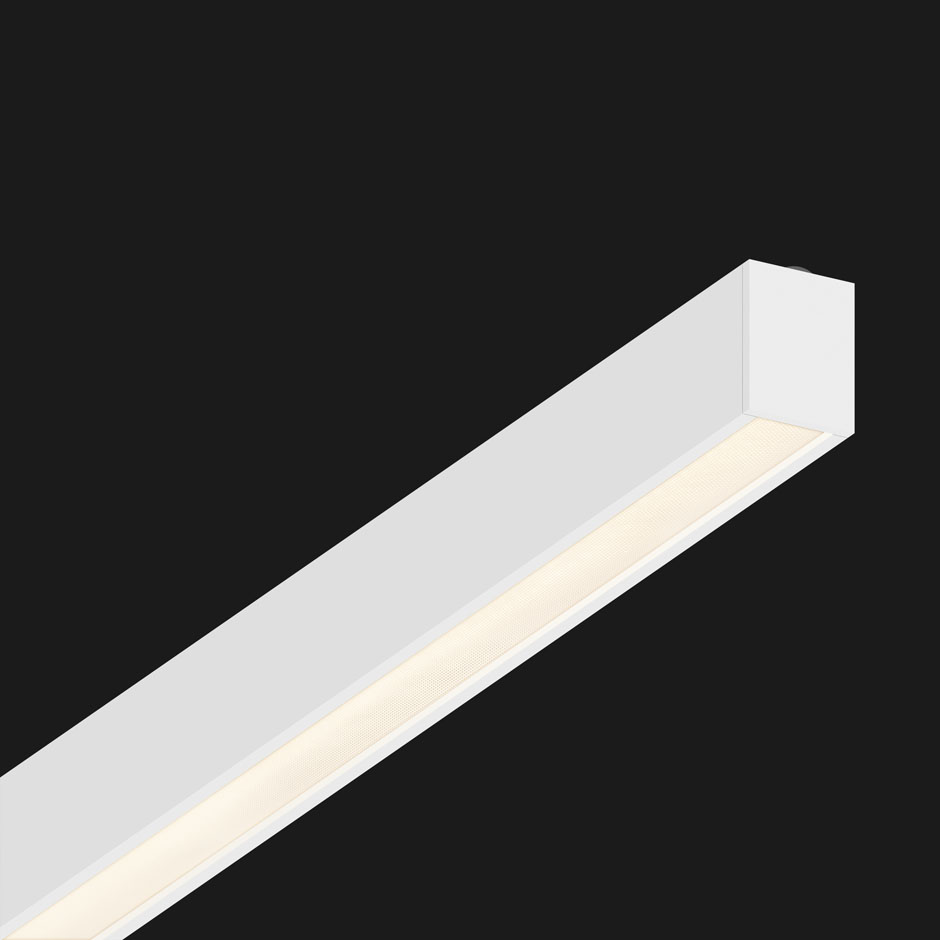

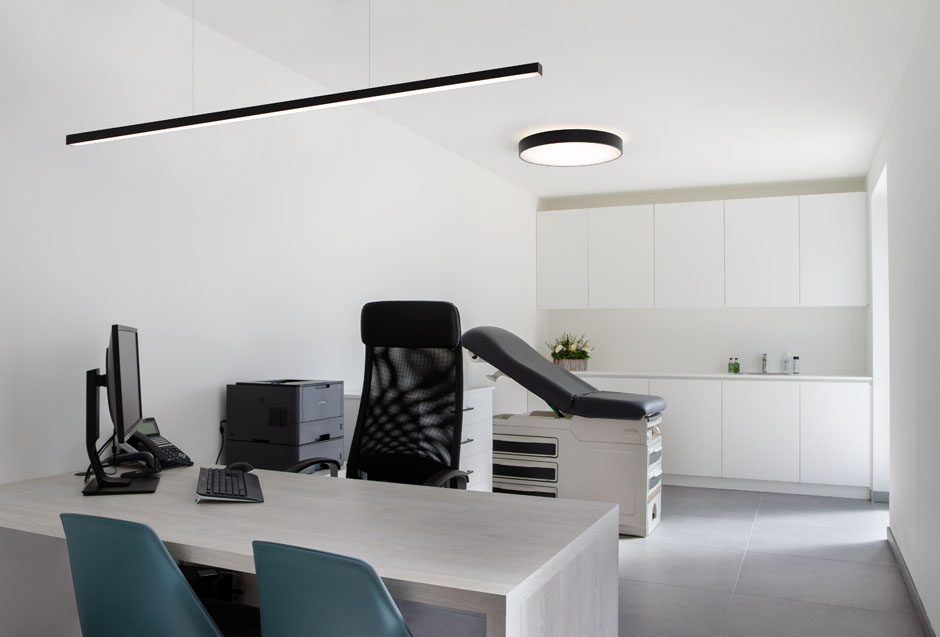

LEDliner20 Suspended

Available Colours

Black
White

Our products can be finished in a RAL colour of your choice on request.

LEDliner20 Suspended

General Specifications

Luminaire Body

Positioning: Suspended
Light direction: Down
Material: Recycled aluminium
El. Class: I (Protective earth required)
IP: IP20
Height (device): 28mm
Width (device): 20mm
Weight: Approx. 0.17kg/m
Standard lengths: from 522mm to 2022mm

Customisation

Length: Not possible
Angles: Not possible
Colour: Possible to choose your own colour

Lightsource

CCT: 3000K, 4000K
CRI: 90 (80 on request)
SDCM: 3
Optics: Prismatic
Photobiological Class: Low risk
LED Power: 8.8W/m
System Power: 14.3 - 14.5W/m
Flux code: 68 89 98 100 90
Lumen per meter: 3201lm/m
Light indications are based on measurements carried out by an independent laboratory on white luminaires. Luminaires in other colours can have different light outputs than the values indicated on this website.

Lumen maintenance

L70B50: >80.000 hrs L70B20: >80.000 hrs L70B10: >80.000 hrs
L80B50: >80.000 hrs L80B20: >80.000 hrs

Power source

Dimming: Dali Dim, Non Dim
Driver location: Integrated

Included

Driver
End Caps
LED Modules
Opal / Prismatic cover Down
Profile

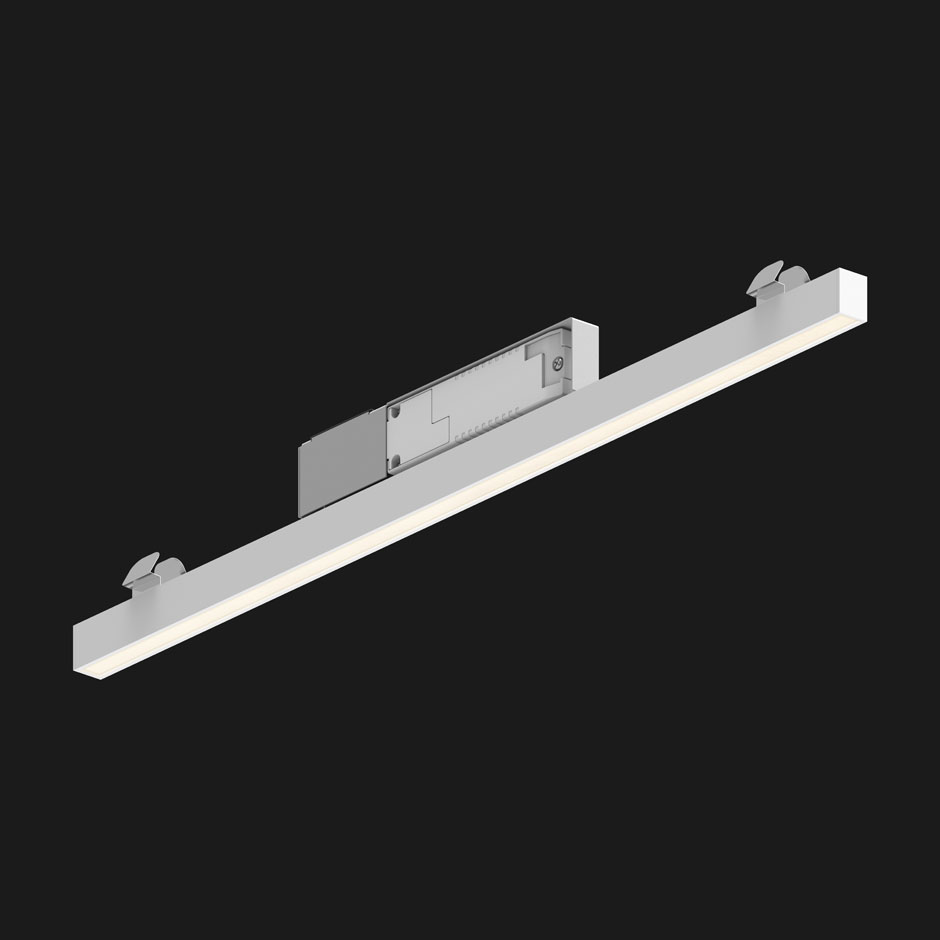

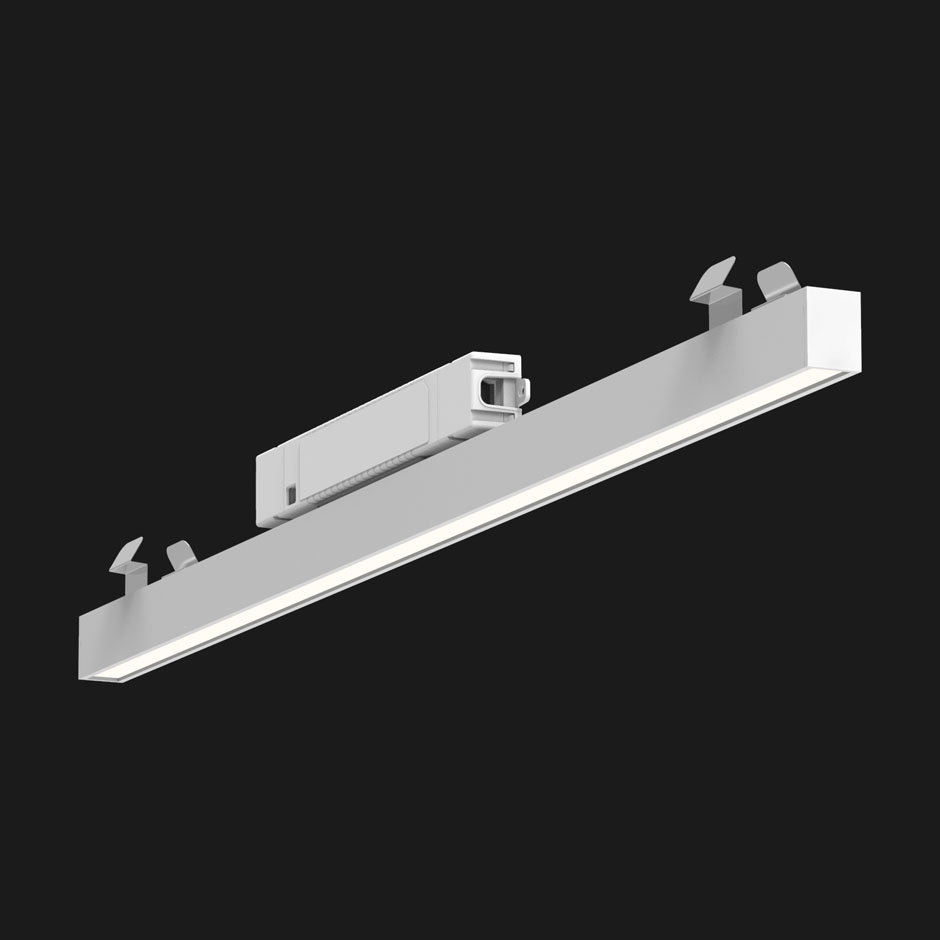

Recessed brackets

Mounting

Mounting type: Suspended
Fixing: Suspension cables (incl. in scope) 2m / 4m
Power: Textile cable (incl. in scope) 2m / 4m
Surface Power: Ceiling connection box (incl. in scope) / Wall connector (wall mounted) / “-”(Ceiling mounted)

Available Colors

Our products can be finished in a RAL colour of your choice on request.

Optional modules

Untitled

Conformal coating for linear modules

  • 2210.00.00 - Protective coating for LED module only (drivers remain unprotected)
  • 2211.00.00 - Cast IP65 compound for driver(s)
  • A conformal coating provides extra protection against dust and humidity. Min. amount required: 10 meter.
Untitled

Silicone compound for linear modules and driver(s)*

  • 2209.35.00 - IP65 Compound min. 5 meter
  • DOXIS offers IP65 protection on the surface of the LED modules and drivers.
    *Important note: Using IP65 compound increases the CCT (color temperature)
    Example: Utilising 3000K LEDs results in an increase to approx. 4300K

Tridonic BasicDIM module (Casambi)

  • 661.26.00 - Casambi module*
  • Only in combination with DALI drivers
    One module can be connected to max. 4 drivers
    Module is built into luminaire
    *Building Casambi module into LEDIiner35 requires mechanical adjustments to the base profile. Module cannot be fit into profile atter production.

Emergency module for linear modules

  • 659.24.LED-3 - 3Hrs Standard
  • 659.26.LED-3 - 3Hrs Extended (DALI)
  • Emergency modules are equipped with self-testing.
    Extended version with on command testing, status read-out and additional functionality (only compatible with DALI).
    Minimum length RTG 8(suspended) or RTG 7(ceiling mounted)
