stdClass Object
(
    [ID] =>
    [TypeLichtbron] => COB
    [WebType] => 3
    [Groep] => Office Lounge
    [Montage] => 4
    [SerieNummer] => F20SU
    [Aanpasbaar] => 0
    [familie] => 25
    [SubFamilie] => F20SU Freeliner Paperclip Suspended Down
    [SerieID] => 720000
    [SubFamilieWeb] => f20su-freeliner-paperclip-suspended-down
    [ArtikelNummer] => F20SU.24.927.01-12
    [Omschrijving] =>
    [MinVoltage] => 0.00
    [MaxVoltage] => 0.00
    [TypVoltage] => 0.00
    [Amperage] => 0.00
    [LummenFluxLED] => 2676.00
    [LummenFluxSysteem] => 2676.00
    [ReductieFactor] => 100.00
    [LedPower] => 53.22
    [SystemPower] => 53.22
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 1972
    [UGR] => 3
    [TypeSpot] => Office Lounge
    [Materiaal] => Recycled aluminium
    [InbouwDiameter] => N/A
    [InbouwCategorieID] => 0
    [InbouwHoogte] => 0.00
    [LedID] => 54
    [OptiekID] => 4
    [ElecClassID] => 1
    [ReflectorID] => 3
    [LakKleurID] => 5
    [PrimaryColor] => White
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 3
    [BevestigingID] => 0
    [SpotOrientatie] => 0
    [SpotVorm] => 0
    [DriverIngebouwd] => 0
    [AantLeds] => 0.00
    [UgrOpmerking] =>
    [Ugr13] => 0
    [Ugr16] => 0
    [Ugr19] => 0
    [ZichtbaarApparaatHoogte] => 51.00 mm
    [ApparaatDiameter] =>
    [Rotatie] => -1
    [Tilt] => -1
    [FluxCode] =>
    [FluxFoto] =>
    [GeenSystemFlux] => 0
    [CRI] => 90
    [CCT] => 2700
    [SDCM] => 3
    [EnergieKlasseID] => 7
    [L70B50] =>
    [L70B20] =>
    [L70B10] =>
    [L80B50] =>
    [L80B20] =>
    [L80B10] =>
    [L90B50] =>
    [L90B20] =>
    [L90B10] =>
    [GatID] =>
    [GatDiameter] =>
    [Rechthoek] =>
    [Lengte] =>
    [Breedte] =>
    [FilterDiameter] =>
    [mounting] => Suspended
    [eCode] => I
    [eDesc] => Protective earth required
    [sdcm] => 3
    [gat_omschrijving] =>
    [aanpasbaar] => 0
    [materiaal] => Recycled aluminium
    [dimming] => Dali Dim, Non Dim
    [hoogte] => 0.00
    [diameter] => N/A
    [cct] => 2700,3000
    [cri] => 90
    [beam_angles] => 58u00b0
    [optiek] => Opal
    [primaire_kleuren] => Anthracite, Black, Bronze, Brown, Champagne, Corten, Gold, Grey, White
    [secundaire_kleuren] =>
    [kleuren_combos] => Anthracite/Anthracite;Black/Black;Bronze/Bronze;Brown/Brown;Champagne/Champagne;Corten/Corten;Gold/Gold;Grey/Grey;White/White
    [cri_values] => 90
    [cct_values] => 2700/3000
    [led_table] => 90/2700/2676.00/53.22/2676.00/53.22;90/2700/3568.00/70.96/3568.00/70.96;90/2700/4460.00/88.70/4460.00/88.70;90/3000/2742.00/54.53/2742.00/54.53;90/3000/3656.00/72.71/3656.00/72.71;90/3000/4570.00/90.89/4570.00/90.89
)

Freeliner Paperclip Suspended Down

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Freeliner Paperclip Suspended Down

General Specifications

Luminaire Body

Type: Office Lounge
Positioning: Suspended
Material: Recycled aluminium
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: I (Protective earth required)
IP: IP20
Weight: 1972g

Lightsource

Dimming: Dali Dim, Non Dim
CCT: 2700K, 3000K
CRI: Ra90
SDCM: 3
Optics: Opal
Luminous flux System:
RA90
2700K 4460lm (50lm/W)
3000K 4570lm (50lm/W)
Luminous flux LED:
RA90
2700K 4460lm (50lm/W)
3000K 4570lm (50lm/W)
Beam Angle: 58°
LED Power: 53.2W
System Power: 53.2W
Driver location: Remote

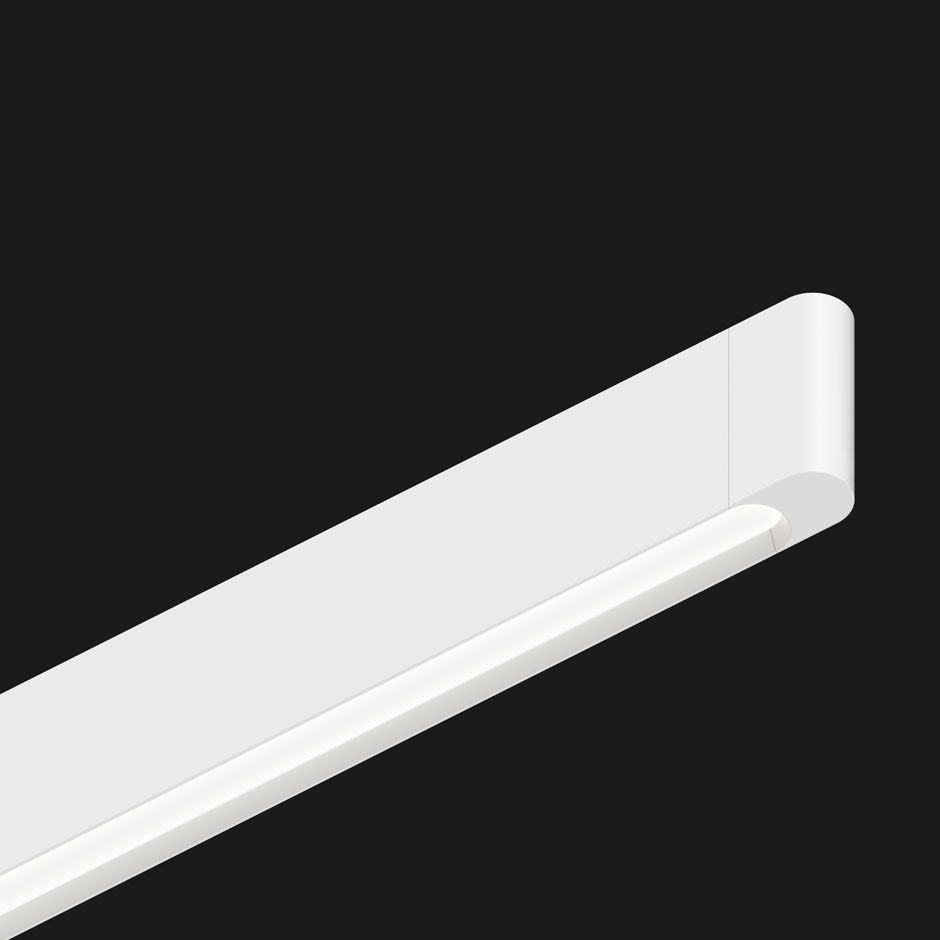

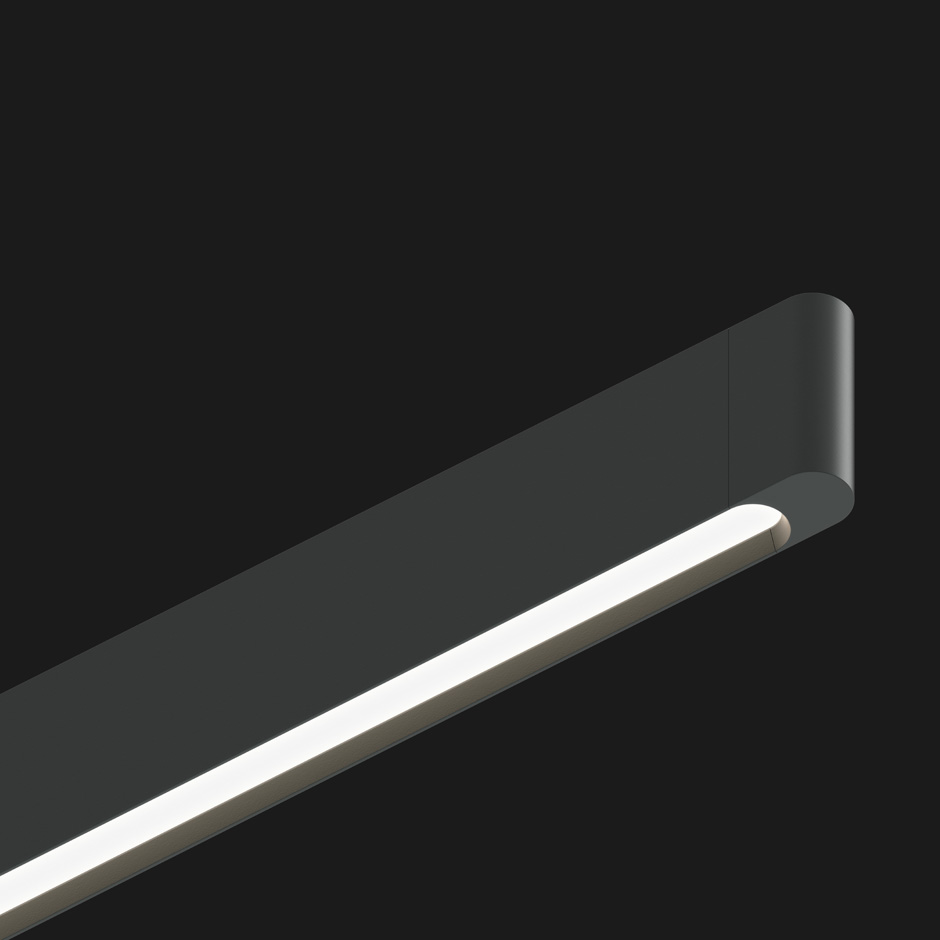

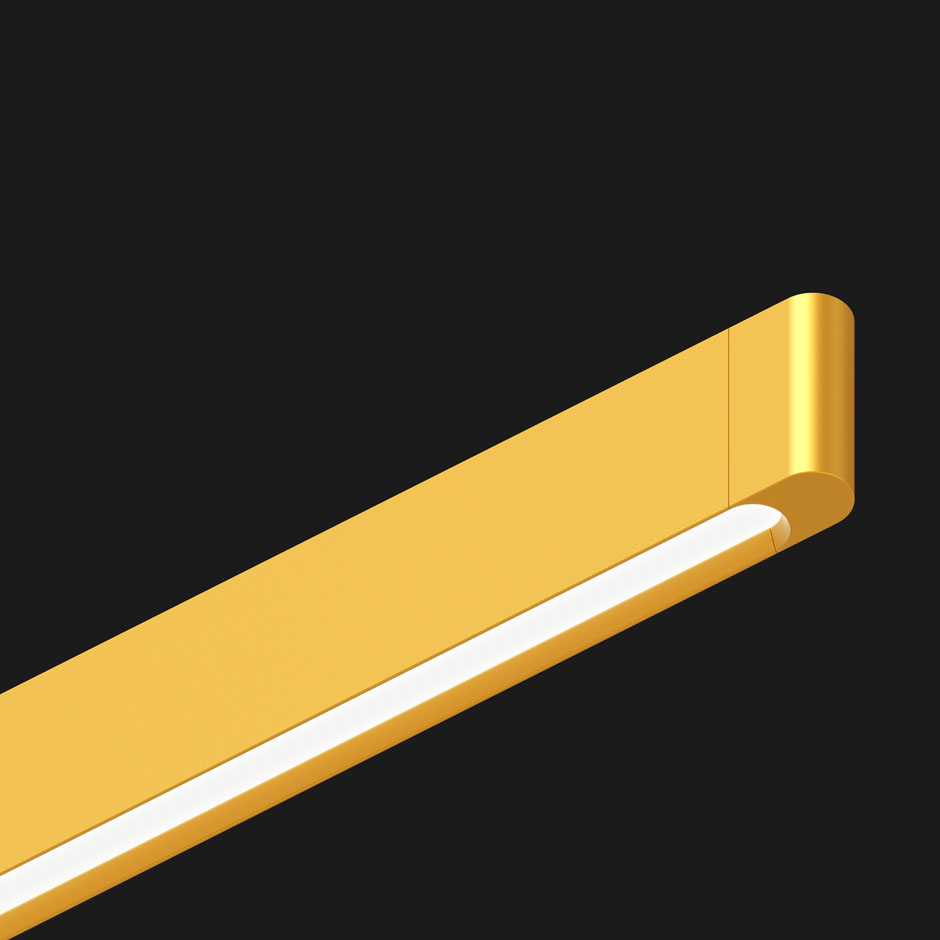

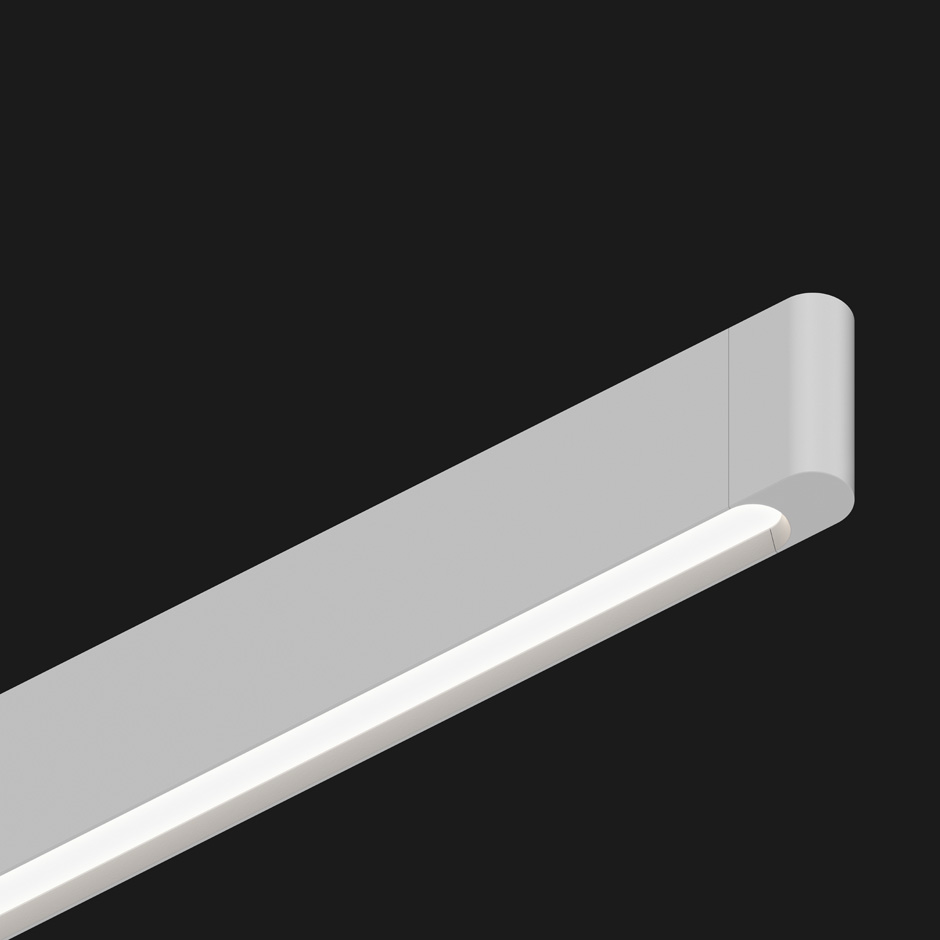

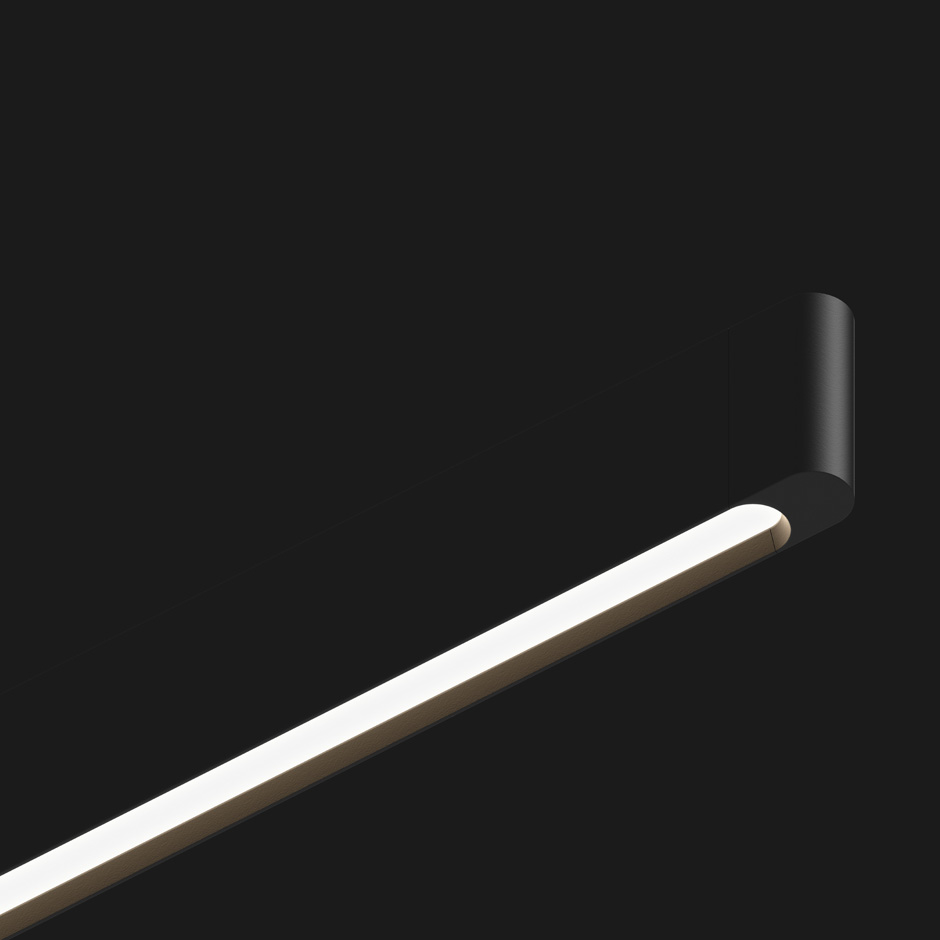

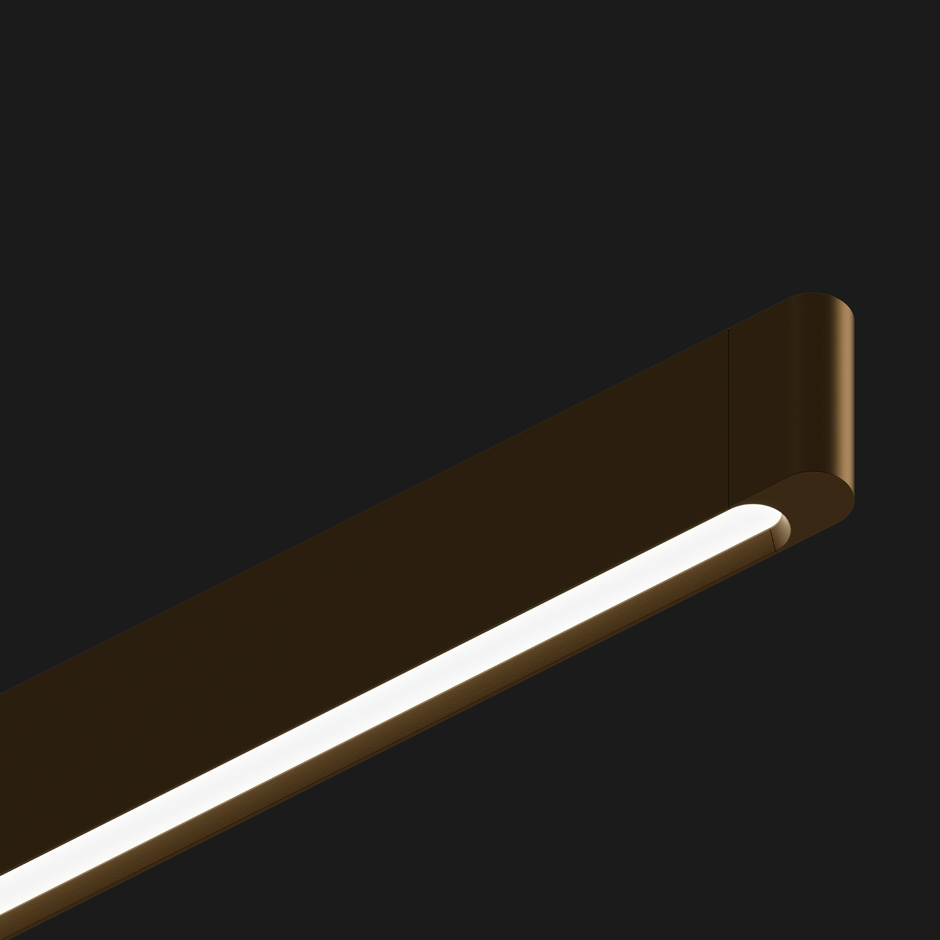

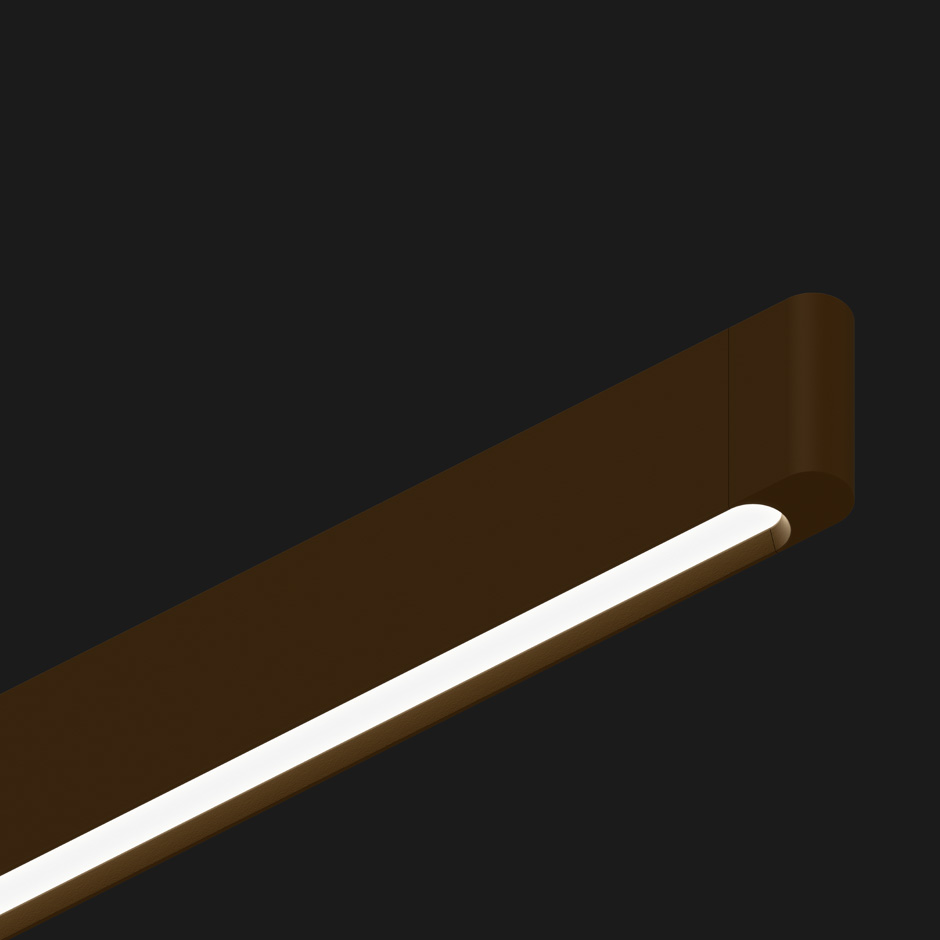

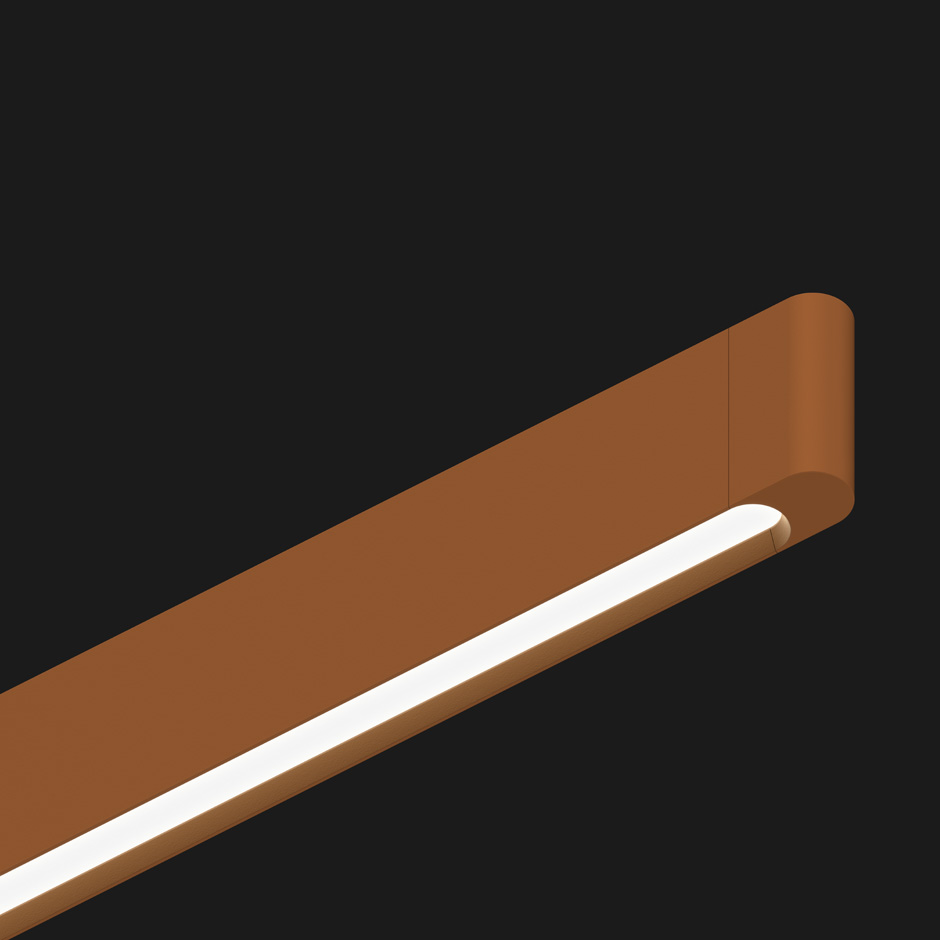

Available Colors

Anthracite
Black
Bronze
Brown
Champagne
Corten
Gold
Grey
White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
