Our products can be finished in a RAL colour of your choice on request.

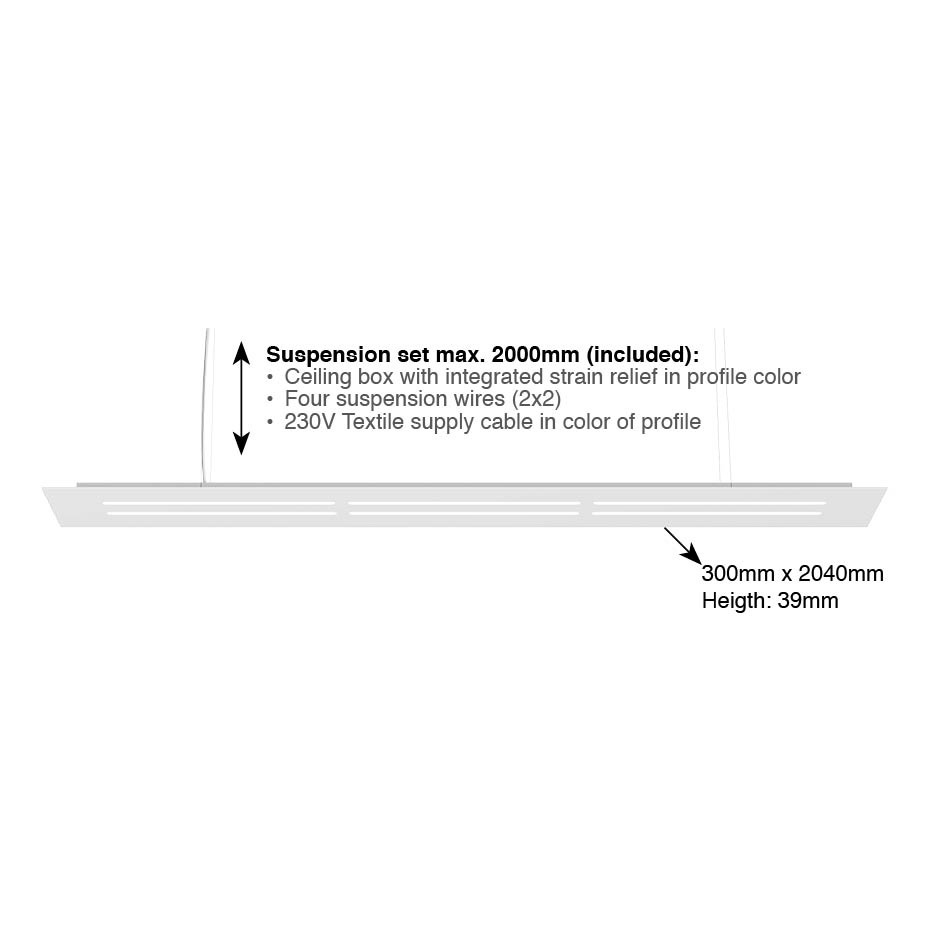

Tektus Linear Spotless 2040mm Up and Down
General Specifications
Visual Comfort
UGR <13*
UGR <16*
UGR <19*
N/A
Luminaire Body
Type:
Office Lounge
Positioning:
Suspended
Material:
Recycled aluminium
Adjustable:
No
Rotation / tilt:
Fixed / Fixed
El. Class:
I (Protective earth required)
IP:
IP20
Weight:
3615g
Lightsource
Dimming:
Dali Dim, Non Dim, Push/Touch Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90
SDCM:
3
Optics:
Opal
Luminous flux System:
RA90
2700K
0lm
3000K
0lm
4000K
0lm
Luminous flux LED:
RA90
2700K
8024lm (81lm/W)
3000K
16432lm (166lm/W)
4000K
17600lm (178lm/W)
Beam Angle:
43° / Diffuse
LED Power:
98.8W
System Power:
109.8W
Driver location:
Integrated
Lumen maintenance
L70B50:
>100.000 hrs
L70B20:
>100.000 hrs
L70B10:
>100.000 hrs
L80B50:
>100.000 hrs
L80B20:
99.000 hrs
L80B10:
96.000 hrs
L90B50:
50.000 hrs
L90B20:
46.000 hrs
L90B10:
45.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
Black
Grey
White
Our products can be finished in a RAL colour of your choice on request.
