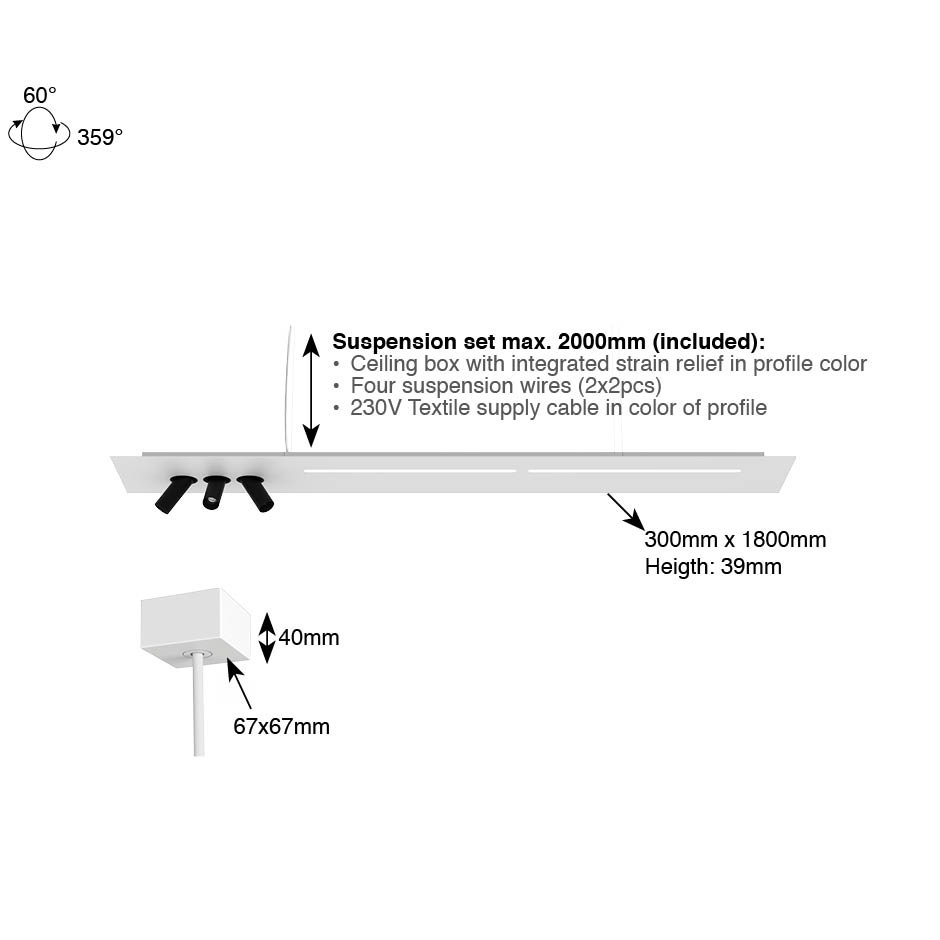

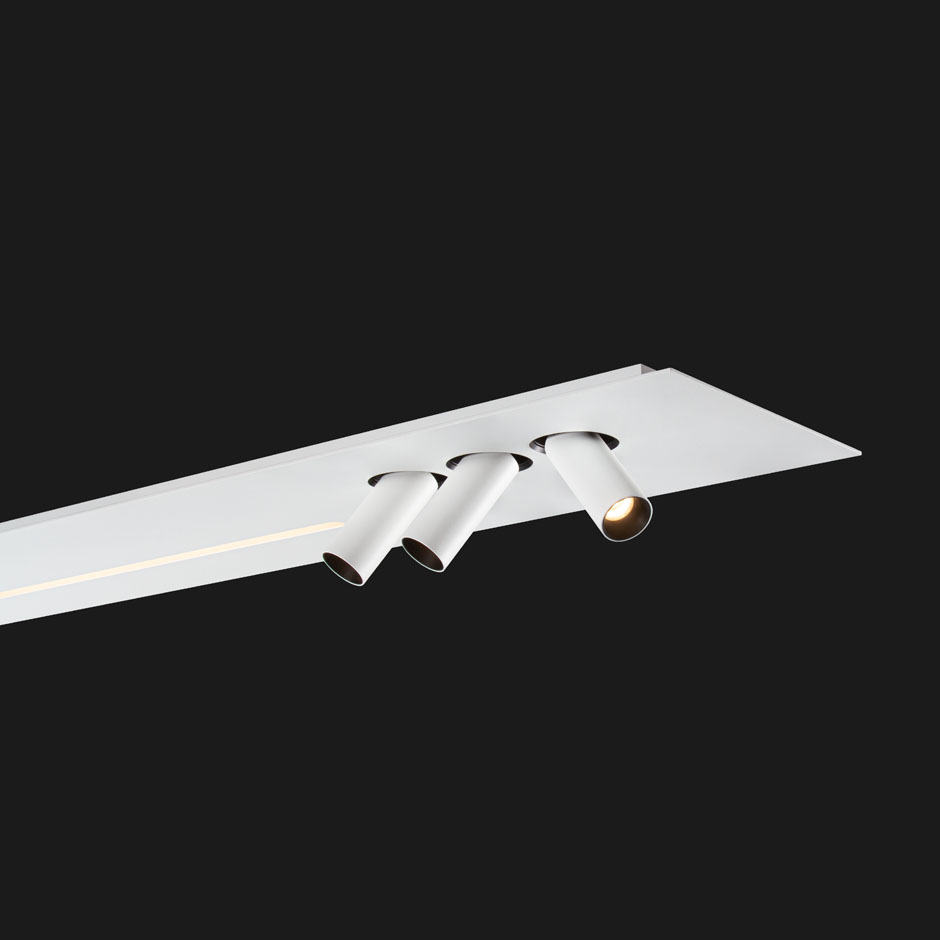

Tektus 45 Linear 1800mm 3-Way
General Specifications
Visual Comfort
UGR <13*
UGR <16*
UGR <19*
Tektus 45: UGR <16 for 29° lens, UGR <19 for 40° lens
Luminaire Body
Type:
Office Lounge
Positioning:
Suspended
Material:
Recycled aluminium
Adjustable:
Yes
Rotation / tilt:
359° / 60°
El. Class:
I (Protective earth required)
IP:
IP20
Weight:
1934g

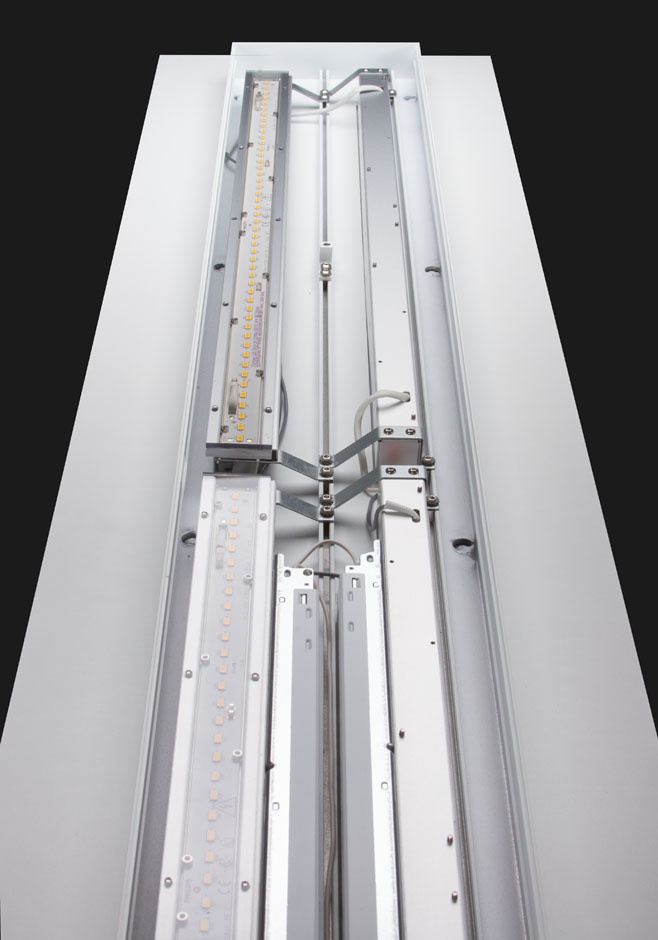

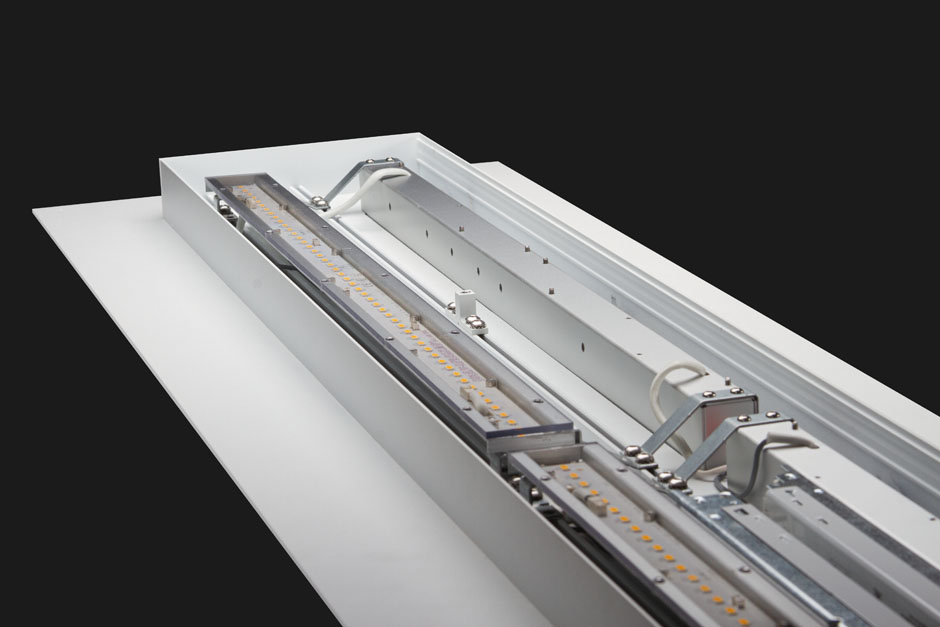

Lightsource
Dimming:
Dali Dim, Non Dim, Push/Touch Dim
CCT:
2700K, 3000K, 4000K
CRI:
Ra90
SDCM:
3
Optics:
Opal
Luminous flux System:
RA90
2700K
2310lm (80lm/W)
3000K
2427lm (84lm/W)
4000K
2461lm (85lm/W)
Luminous flux LED:
RA90
2700K
3300lm (126lm/W)
3000K
3468lm (133lm/W)
4000K
3516lm (134lm/W)
Flux code:
100 100 100 100 77
Beam Angle:
29° / 40° / 51°
LED Power:
26.2W
System Power:
29.1W

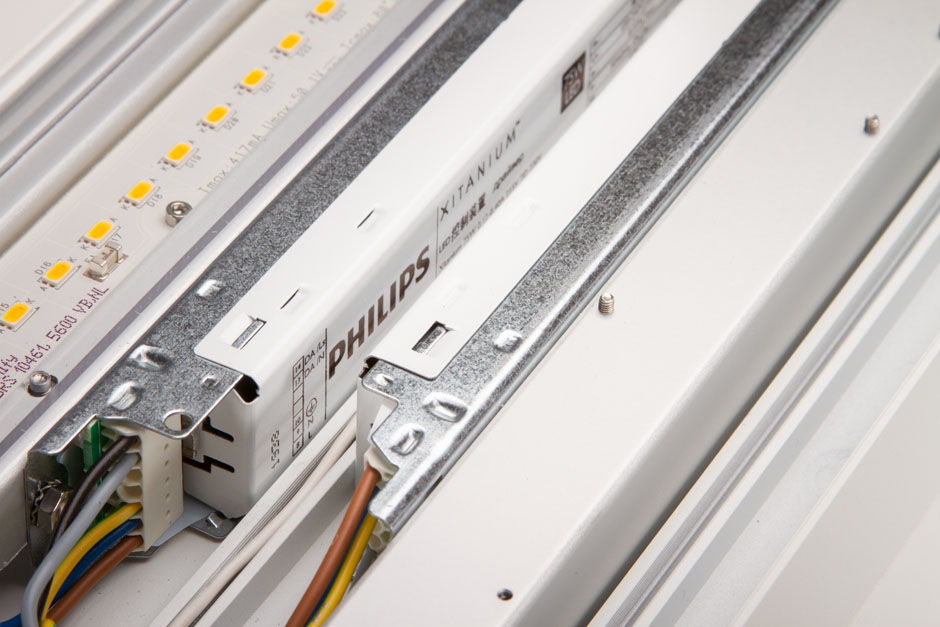

Driver location:
Integrated
Lumen maintenance
L70B50:
>114.000 hrs
L70B20:
>114.000 hrs
L70B10:
>114.000 hrs
L80B50:
>114.000 hrs
L80B20:
>114.000 hrs
L80B10:
>114.000 hrs
L90B50:
>114.000 hrs
L90B20:
112.000 hrs
L90B10:
104.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

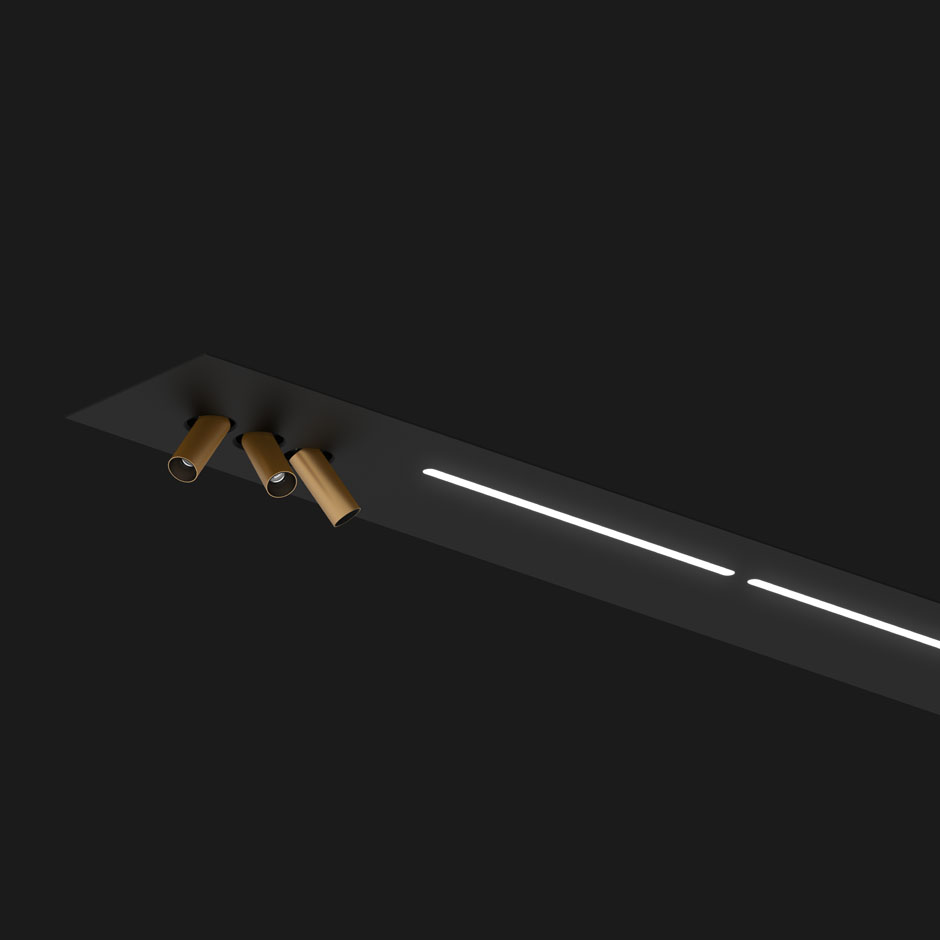

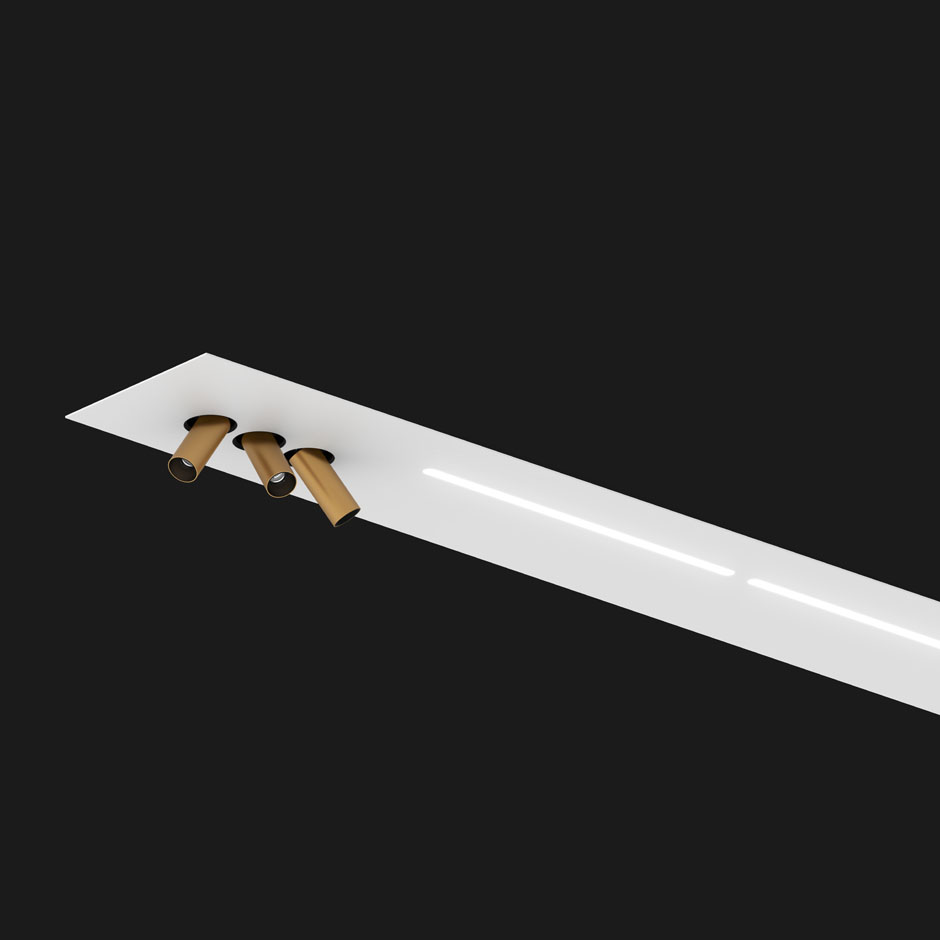

Available Colors
Anthracite
Black
Black / White
Bronze
Brown
Gold / Black
Gold / White
Grey
White
