stdClass Object
(
    [ID] => 38
    [TypeLichtbron] => COB
    [WebType] => 3
    [Groep] => Office Lounge
    [Montage] => 4
    [SerieNummer] => 1605
    [Aanpasbaar] => 1
    [familie] => 12
    [SubFamilie] => 1605 Tektus 60 Linear 1800mm Up and Down 2-Way
    [SerieID] => 522
    [SubFamilieWeb] => 1605-tektus-60-linear-1800mm-up-and-down-2-way
    [ArtikelNummer] => 1605.23.24.927.03
    [Omschrijving] => N/A
    [MinVoltage] => 30.60
    [MaxVoltage] => 35.30
    [TypVoltage] => 32.95
    [Amperage] => 350.00
    [LummenFluxLED] => 2822.00
    [LummenFluxSysteem] => 1975.40
    [ReductieFactor] => 70.00
    [LedPower] => 23.07
    [SystemPower] => 25.63
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 3740
    [UGR] => 3
    [TypeSpot] => Office Lounge
    [Materiaal] => Recycled aluminium
    [InbouwDiameter] => N/A
    [InbouwCategorieID] => 40
    [InbouwHoogte] => 0.00
    [LedID] => 22
    [OptiekID] => 4
    [ElecClassID] => 1
    [ReflectorID] => 17
    [LakKleurID] => 2
    [PrimaryColor] => Black
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 3
    [BevestigingID] => 0
    [SpotOrientatie] => 2
    [SpotVorm] => 3
    [DriverIngebouwd] => 1
    [AantLeds] => 2.00
    [UgrOpmerking] => Tektus 60: UGR <13 for 23> 1
    [Ugr16] => 1
    [Ugr19] => 0
    [ZichtbaarApparaatHoogte] => 189 mm
    [ApparaatDiameter] => 1800x300
    [Rotatie] => 359u00b0
    [Tilt] => 60u00b0
    [FluxCode] => 98 100 100 100 86
    [FluxFoto] => 2654 FF - Tektus 60 - Lens 23d.jpg
    [GeenSystemFlux] => 0
    [CRI] => 97
    [CCT] => 2700
    [SDCM] => 2
    [EnergieKlasseID] => 5
    [L70B50] => > 50.000 hrs
    [L70B20] => > 50.000 hrs
    [L70B10] => > 50.000 hrs
    [L80B50] => > 50.000 hrs
    [L80B20] => > 50.000 hrs
    [L80B10] => > 50.000 hrs
    [L90B50] => > 50.000 hrs
    [L90B20] => > 50.000 hrs
    [L90B10] => > 50.000 hrs
    [GatID] => 40
    [GatDiameter] => 0.00
    [Rechthoek] => 0
    [Lengte] => 0.00
    [Breedte] => 0.00
    [FilterDiameter] => 0.00
    [mounting] => Suspended
    [eCode] => I
    [eDesc] => Protective earth required
    [sdcm] => 2
    [gat_omschrijving] => N/A
    [aanpasbaar] => 1
    [materiaal] => Recycled aluminium
    [dimming] => Dali Dim, Non Dim, Push/Touch Dim
    [hoogte] => 0.00
    [diameter] => N/A
    [cct] => 2700,3000,4000
    [cri] => 90,97
    [beam_angles] => 23u00b0,36u00b0,48u00b0,57u00b0,Zoom 25u00b0-46u00b0
    [optiek] => Opal
    [primaire_kleuren] => Anthracite, Black, Bronze, Brown, Gold, Grey, White
    [secundaire_kleuren] => , Black, White
    [kleuren_combos] => Anthracite/Anthracite;Black/Black;Black/White;Bronze/Bronze;Brown/Brown;Gold/Black;Gold/White;Grey/Grey;White/White
    [cri_values] => 90/97
    [cct_values] => 2700/3000/4000
    [led_table] => 90/2700/1540.00/25.63/2200.00/23.07;90/3000/1618.40/25.63/2312.00/23.07;90/3000/2207.80/25.63/3154.00/23.07;90/4000/1640.80/25.63/2344.00/23.07;90/4000/2241.40/25.63/3202.00/23.07;97/2700/1975.40/25.63/2822.00/23.07
)

Tektus 60 Linear 1800mm Up and Down 2-Way

Available Colours

  • White
  • Black
  • Black & White
  • Black & Gold
  • White & Gold

Our products can be finished in a RAL colour of your choice on request.

Tektus 60 Linear 1800mm Up and Down 2-Way

General Specifications

Visual Comfort

  • UGR
    <13*
  • UGR
    <16*
  • UGR
    <19*

Tektus 60: UGR <13 for 23>

Luminaire Body

Type: Office Lounge
Positioning: Suspended
Material: Recycled aluminium
Adjustable: Yes
Rotation / tilt: 359° / 60°
El. Class: I (Protective earth required)
IP: IP20
Weight: 3740g

Lightsource

Dimming: Dali Dim, Non Dim, Push/Touch Dim
CCT: 2700K, 3000K, 4000K
CRI: Ra90, Ra97
SDCM: 2
Optics: Opal
Luminous flux System:
RA97 RA90
2700K 1975lm (77lm/W) 1540lm (60lm/W)
3000K 2207lm (86lm/W)
4000K 2241lm (87lm/W)
Luminous flux LED:
RA97 RA90
2700K 2822lm (122lm/W) 2200lm (95lm/W)
3000K 3154lm (137lm/W)
4000K 3202lm (139lm/W)
Flux code: 98 100 100 100 86
Beam Angle: 23° / 36° / 48° / 57° / Zoom 25°-46°
LED Power: 23.1W
System Power: 25.6W

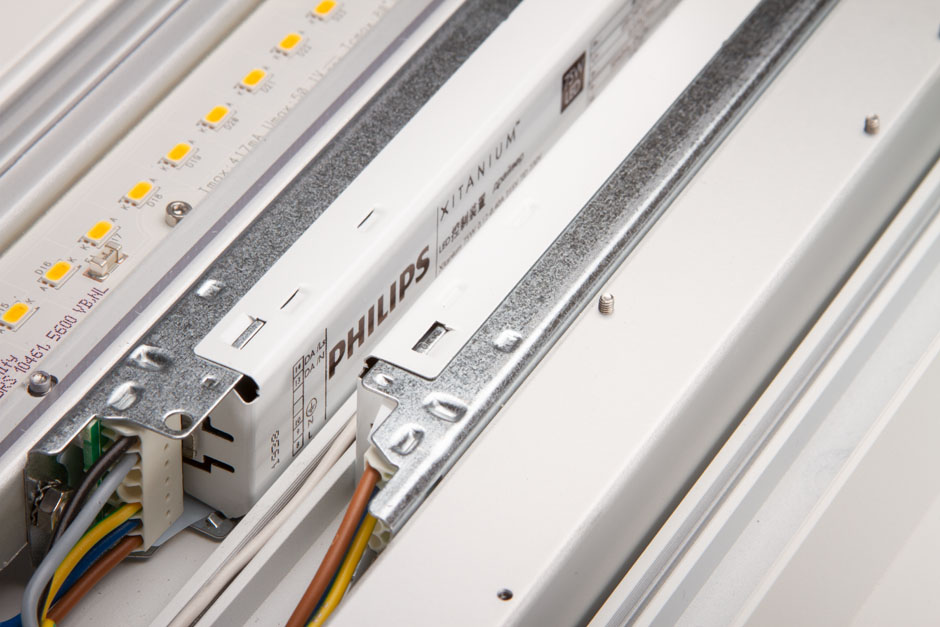

Driver location: Integrated

Lumen maintenance

L70B50: > 50.000 hrs L70B20: > 50.000 hrs L70B10: > 50.000 hrs
L80B50: > 50.000 hrs L80B20: > 50.000 hrs L80B10: > 50.000 hrs
L90B50: > 50.000 hrs L90B20: > 50.000 hrs L90B10: > 50.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Black / White
Bronze
Brown
Gold / Black
Gold / White
Grey
White

Our products can be finished in a RAL colour of your choice on request.

Generate technical data sheet

Make folowing selections to provide the necessary information for your Technical Data Sheet (Advice: get assistance from a light expert professional).
