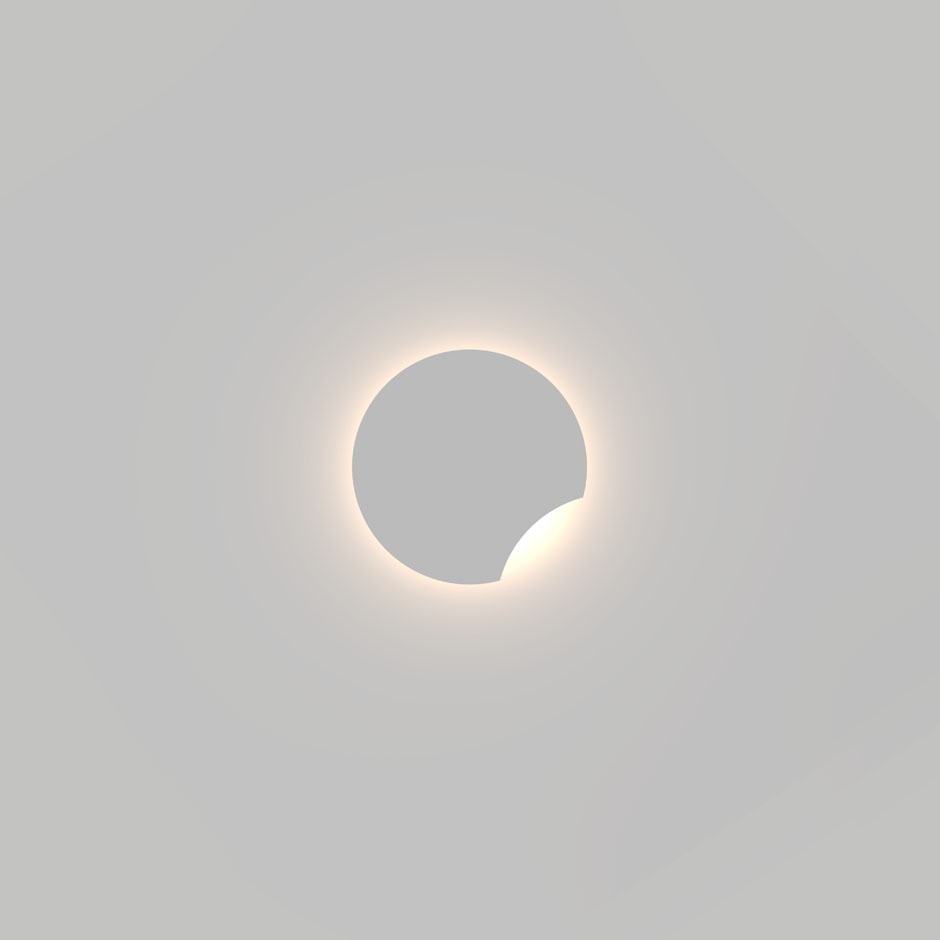

Eclipse D320 High

Available Colours

Our products can be finished in a RAL colour of your choice on request.

Eclipse D320 High

General Specifications

Luminaire Body

Type: Office Lounge
Positioning: Wall mounted
Material: Steel
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: I (Protective earth required)
IP: IP20
Weight: 1451g

Lightsource

Dimming: Dali Dim, Mains Dim, Non Dim
CCT: 2700K, 3000K
CRI: Ra90
SDCM: 3
Optics: Opal
Luminous flux System:
RA90
2700K 0lm
3000K 0lm
Luminous flux LED:
RA90
2700K 1620lm (133lm/W)
3000K 1800lm (147lm/W)
Beam Angle: Diffuse
LED Power: 12.2W
System Power: 13.6W
Driver location: Integrated

Lumen maintenance

L80B20: 60000 - 80000
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

Anthracite
Black
Bronze
Brown
Champagne
Corten
Gold
Grey
White

Our products can be finished in a RAL colour of your choice on request.
