stdClass Object
(
    [ID] => 38
    [TypeLichtbron] => COB
    [WebType] => 2
    [Groep] => Lounge
    [Montage] => 4
    [SerieNummer] => 341.LED
    [Aanpasbaar] => 0
    [familie] => 40
    [SubFamilie] => 341.LED Palladino LED
    [SerieID] => 505
    [SubFamilieWeb] => 341.led-palladino-led
    [ArtikelNummer] => 341.LED.LED.830
    [Omschrijving] => N/A
    [MinVoltage] => 11.10
    [MaxVoltage] => 11.10
    [TypVoltage] => 11.10
    [Amperage] => 700.00
    [LummenFluxLED] => 4047.00
    [LummenFluxSysteem] => 0.00
    [ReductieFactor] => 0.00
    [LedPower] => 23.31
    [SystemPower] => 25.90
    [IPClass] => IP20
    [Usage] => Indoor
    [Gewicht] => 2627
    [UGR] => 3
    [TypeSpot] => Lounge
    [Materiaal] => Plastic
    [InbouwDiameter] => N/A
    [InbouwCategorieID] => 40
    [InbouwHoogte] => 0.00
    [LedID] => 71
    [OptiekID] => 0
    [ElecClassID] => 1
    [ReflectorID] => 20
    [LakKleurID] => 5
    [PrimaryColor] => White
    [SecundaryColor] =>
    [DimmingID] => 4
    [LichtKleurID] => 1
    [BevestigingID] => 0
    [SpotOrientatie] => 1
    [SpotVorm] => 1
    [DriverIngebouwd] => 1
    [AantLeds] => 3.00
    [UgrOpmerking] =>
    [Ugr13] => 0
    [Ugr16] => 0
    [Ugr19] => 0
    [ZichtbaarApparaatHoogte] => 150 mm
    [ApparaatDiameter] => 800
    [Rotatie] => 0u00b0
    [Tilt] => 0u00b0
    [FluxCode] =>
    [FluxFoto] =>
    [GeenSystemFlux] => 0
    [CRI] => 80
    [CCT] => 3000
    [SDCM] => 3
    [EnergieKlasseID] => 2
    [L70B50] => >102.000
    [L70B20] =>
    [L70B10] => >102.000
    [L80B50] => >102.000
    [L80B20] =>
    [L80B10] => >102.000
    [L90B50] => >50.000
    [L90B20] =>
    [L90B10] => >50.000
    [GatID] => 40
    [GatDiameter] => 0.00
    [Rechthoek] => 0
    [Lengte] => 0.00
    [Breedte] => 0.00
    [FilterDiameter] => 0.00
    [mounting] => Suspended
    [eCode] => I
    [eDesc] => Protective earth required
    [sdcm] => 3
    [gat_omschrijving] => N/A
    [aanpasbaar] => 0
    [materiaal] => Plastic
    [dimming] => Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
    [hoogte] => 0.00
    [diameter] => N/A
    [cct] => 3000,4000
    [cri] => 80
    [beam_angles] => Diffuse
    [optiek] =>
    [primaire_kleuren] => White
    [secundaire_kleuren] =>
    [kleuren_combos] => White/White
    [cri_values] => 80
    [cct_values] => 3000/4000
    [led_table] => 80/3000/0.00/25.90/4047.00/23.31;80/4000/0.00/25.90/0.00/23.31
)

Palladino LED

Available Colours

Our products can be finished in a RAL colour of your choice on request.

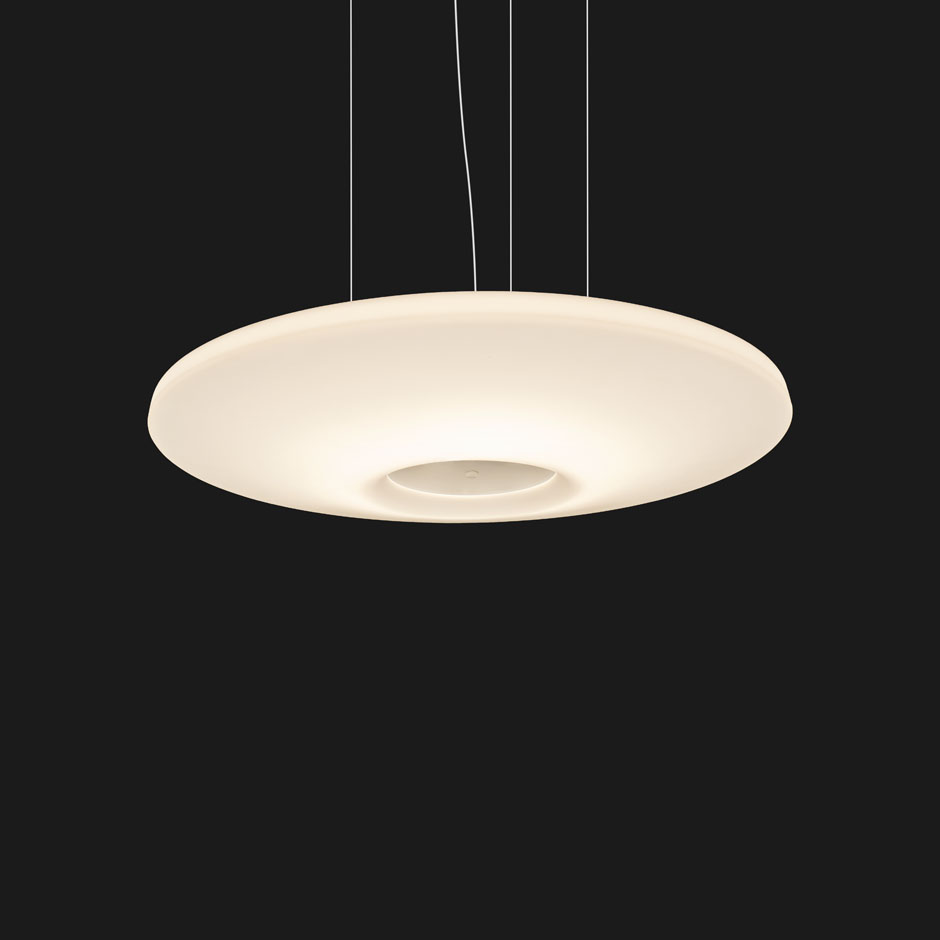

Palladino LED

General Specifications

Luminaire Body

Type: Lounge
Positioning: Suspended
Material: Plastic
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: I (Protective earth required)
IP: IP20
Weight: 2627g

Lightsource

Dimming: Dali Dim, Mains Dim, Non Dim, Push/Touch Dim
CCT: 3000K, 4000K
CRI: Ra80
SDCM: 3
Luminous flux System:
RA80
3000K 0lm
4000K 0lm
Luminous flux LED:
RA80
3000K 4047lm (174lm/W)
4000K 0lm
Beam Angle: Diffuse
LED Power: 23.3W
System Power: 25.9W
Driver location: Integrated

Lumen maintenance

L70B50: >102.000 L70B10: >102.000
L80B50: >102.000 L80B10: >102.000
L90B50: >50.000 L90B10: >50.000
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

White

Our products can be finished in a RAL colour of your choice on request.
