Tunnel 900 LED Round

Available Colours

Our products can be finished in a RAL colour of your choice on request.

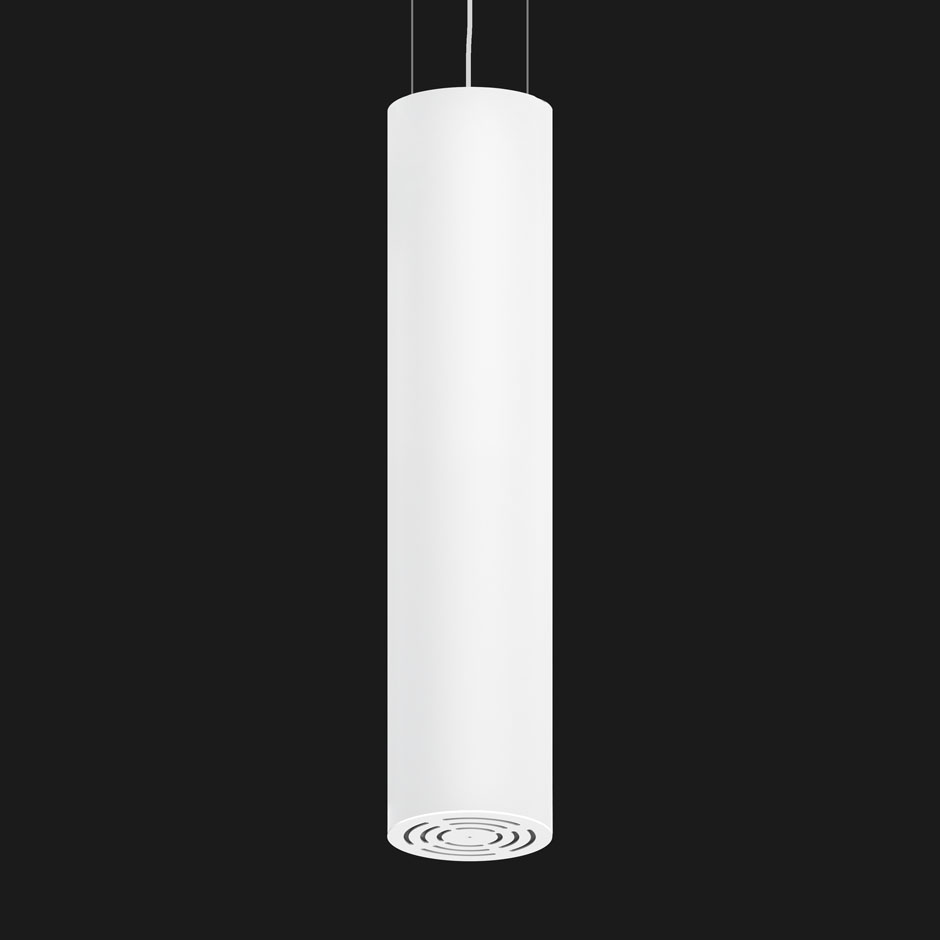

Tunnel 900 LED Round

General Specifications

Luminaire Body

Type: Lounge
Positioning: Suspended
Material: Plastic
Adjustable: No
Rotation / tilt: Fixed / Fixed
El. Class: I (Protective earth required)
IP: IP20
Weight: 2860g

Lightsource

Dimming: 1-10V Dim, Dali Dim, Non Dim
CCT: 3000K, 4000K
CRI: Ra90
SDCM: 3
Luminous flux System:
RA90
3000K 849lm (22lm/W)
4000K 0lm
Luminous flux LED:
RA90
3000K 1030lm (30lm/W)
4000K 0lm
Beam Angle: Diffuse
LED Power: 34.7W
System Power: 38.5W
Driver location: Integrated

Lumen maintenance

L70B50: >60.000 hrs L70B20: >60.000 hrs L70B10: >60.000 hrs
L80B50: >60.000 hrs L80B20: >60.000 hrs L80B10: >60.000 hrs
L90B50: 47.000 hrs L90B20: 46.000 hrs L90B10: 45.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.

Available Colors

White

Our products can be finished in a RAL colour of your choice on request.
