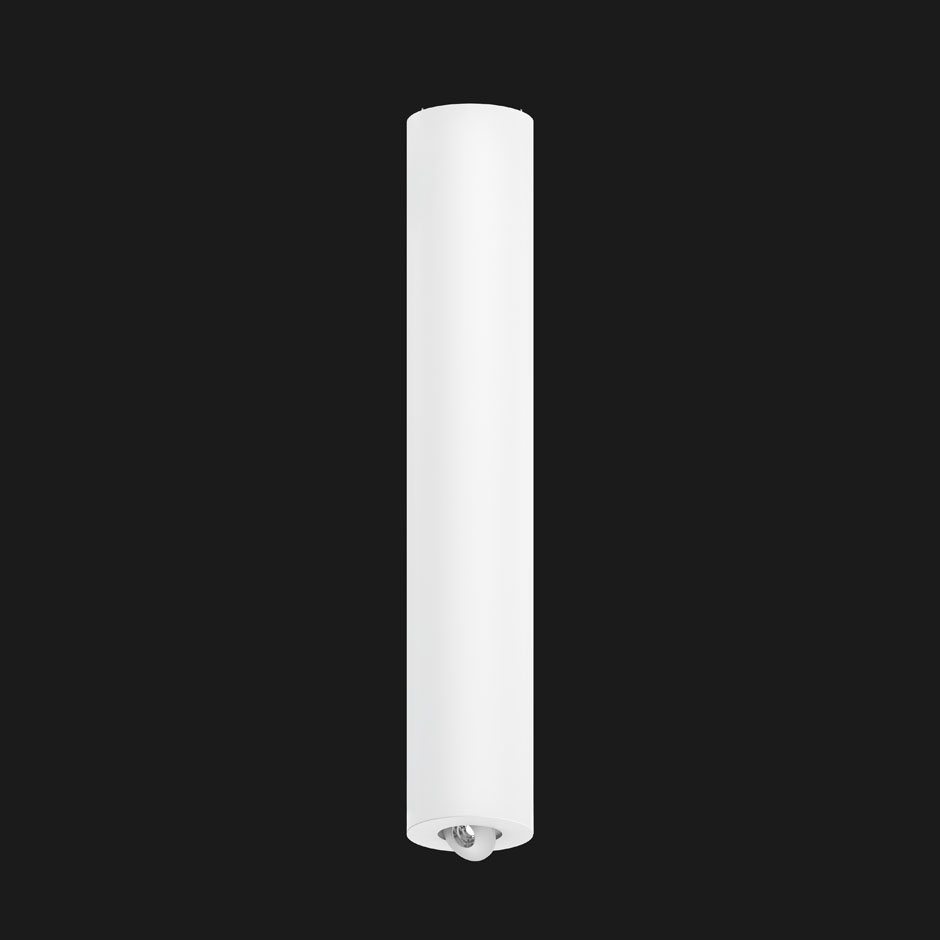

Tunnel 1200 T2 Round
General Specifications
Luminaire Body
Type:
Lounge
Positioning:
Suspended
Material:
Plastic
Adjustable:
Yes
Rotation / tilt:
359° / 55°
El. Class:
I (Protective earth required)
IP:
IP20
Weight:
5150g
Lightsource
Dimming:
Dali Dim, Non Dim
CCT:
3000K, 4000K
CRI:
Ra90
SDCM:
3
Optics:
Reflector
Luminous flux System:
RA90
3000K
1699lm (28lm/W)
4000K
0lm
Luminous flux LED:
RA90
3000K
2060lm (37lm/W)
4000K
0lm
Beam Angle:
Diffuse
LED Power:
55.5W
System Power:
61.6W
Driver location:
Integrated
Lumen maintenance
L70B50:
>60.000 hrs
L70B20:
>60.000 hrs
L70B10:
>60.000 hrs
L80B50:
>60.000 hrs
L80B20:
>60.000 hrs
L80B10:
>60.000 hrs
L90B50:
47.000 hrs
L90B20:
46.000 hrs
L90B10:
45.000 hrs
Values at nominal current at a case temperature of 45°C operated under normal circumstances. They are to be regarded as purely informative data from which no warranty claim can be derived.
Available Colors
White
Our products can be finished in a RAL colour of your choice on request.
